Rigid Pod Tech Specs

360 Connect Adapt Adapt E-Series E-Series Rad+ RGBW Rad+ SR RGBW Revolve RDS RDS SR SR SR Dual

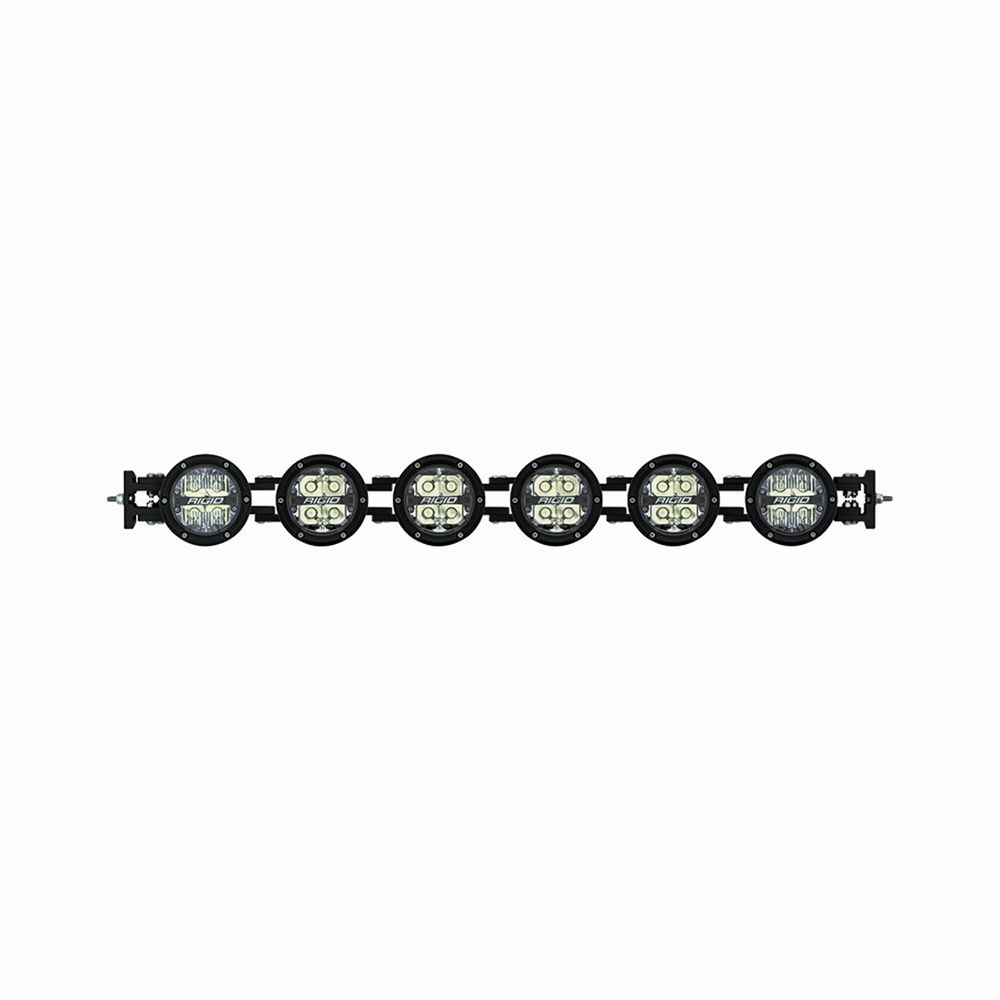

360 Connect Light Bars

  • 30 Inch Assembly

    • SKU: 36306
    • Size: 30"
    • Mount Type: CONNECTABLE
    • Beam Category: SPOT DRIVING COMBO
    • Current Draw at 14V (a): 10.7
    • Raw Lumens: 18360
    • Watts: 149.8
    • Lux @10m: 3183
    • Beam Distance @ 1 LUX: 564
    • Beam Distance @ .25 LUX: 1128
    • Peak Beam Intensity(cd): 318306
    • Horizontal Beam Angle: 21
    • Vertical Beam Angle: 16.6

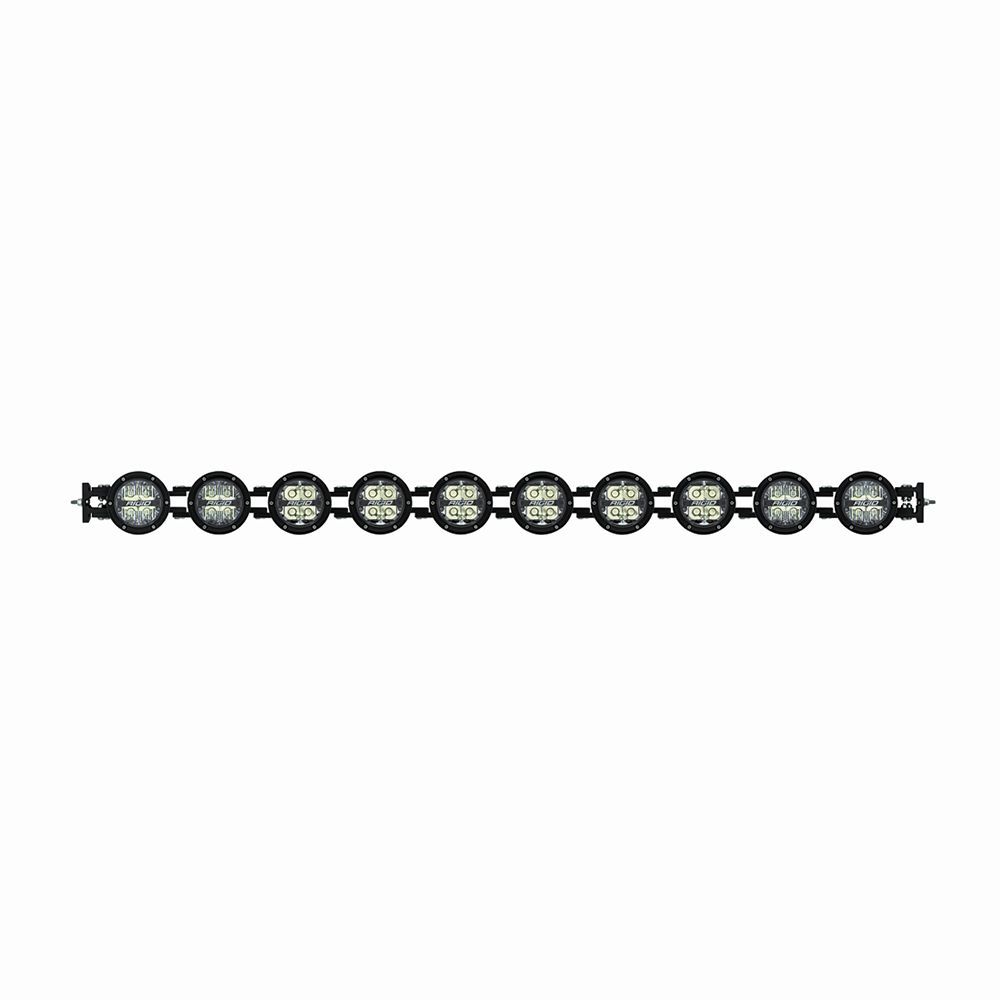

  • 40 Inch Assembly

    • SKU: 36308
    • Size: 40"
    • Mount Type: CONNECTABLE
    • Beam Category: COMBO
    • Current Draw at 14V (a): 14.3
    • Raw Lumens: 24480
    • Watts: 200.2
    • Lux @10m: 3660
    • Beam Distance @ 1 LUX: 605
    • Beam Distance @ .25 LUX: 1210
    • Peak Beam Intensity(cd): 366044
    • Horizontal Beam Angle: 27
    • Vertical Beam Angle: 17.3

  • 50 Inch Assembly

    • SKU: 36310
    • Size: 50"
    • Mount Type: CONNECTABLE
    • Beam Category: COMBO
    • Current Draw at 14V (a): 17.9
    • Raw Lumens: 30600
    • Watts: 250.6
    • Lux @10m: 5099
    • Beam Distance @ 1 LUX: 714
    • Beam Distance @ .25 LUX: 1428
    • Peak Beam Intensity(cd): 509998
    • Horizontal Beam Angle: 23
    • Vertical Beam Angle: 16.9

Adapt Light Bars

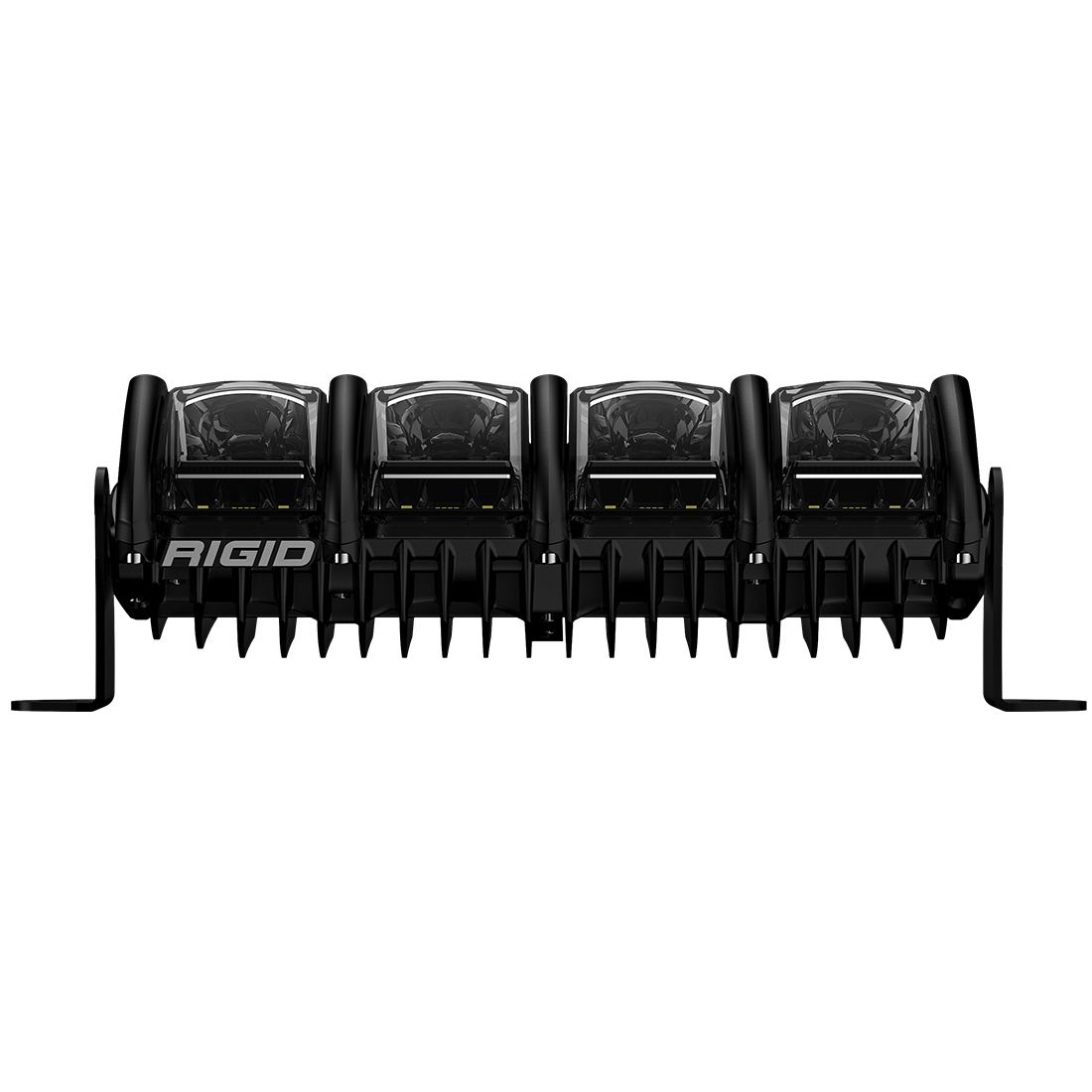

  • Adapt 10in

    • SKU: 210413
    • Size: 10"
    • Beam Category: FLOOD DRIVING
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 5.7
    • Raw Lumens: 6848
    • Watts: 80
    • Lux @10m: 78
    • Beam Distance @ 1 LUX: 88
    • Beam Distance @ .25 LUX: 177
    • Peak Beam Intensity(cd): 7876.6
    • Horizontal Beam Angle: 90
    • Vertical Beam Angle: 37

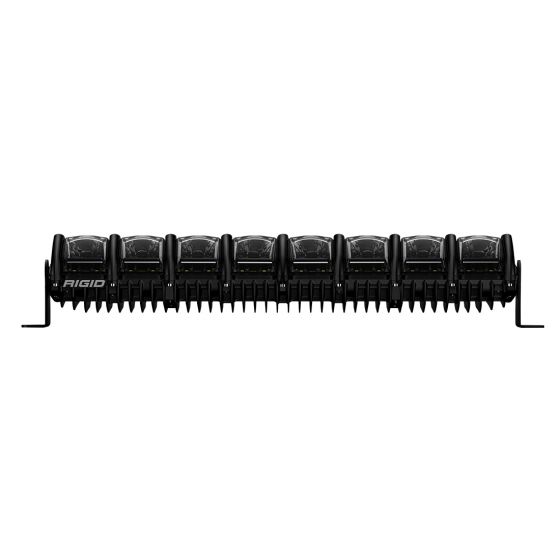

  • Adapt 20in

    • SKU: 220413
    • Size: 20"
    • Beam Category: FLOOD DRIVING
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 11.4
    • Raw Lumens: 13696
    • Watts: 160
    • Lux @10m: 156
    • Beam Distance @ 1 LUX: 125
    • Beam Distance @ .25 LUX: 250
    • Peak Beam Intensity(cd): 15633
    • Horizontal Beam Angle: 90
    • Vertical Beam Angle: 37

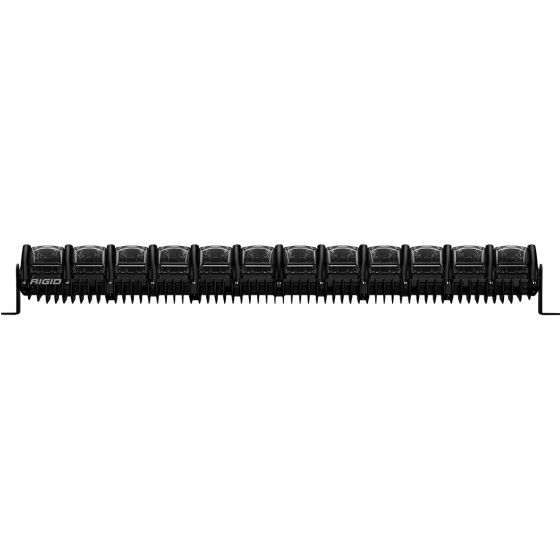

  • Adapt 30in

    • SKU: 230413
    • Size: 30"
    • Beam Category: FLOOD DRIVING
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 17.2
    • Raw Lumens: 20544
    • Watts: 240
    • Lux @10m: 225
    • Beam Distance @ 1 LUX: 150
    • Beam Distance @ .25 LUX: 300
    • Peak Beam Intensity(cd): 22638
    • Horizontal Beam Angle: 150
    • Vertical Beam Angle: 300

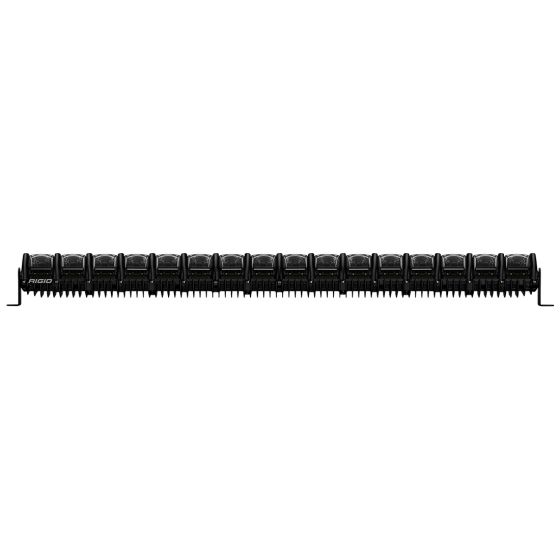

  • Adapt 40in

    • SKU: 240413
    • Size: 40"
    • Beam Category: FLOOD DRIVING
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 22.9
    • Raw Lumens: 27392
    • Watts: 320
    • Lux @10m: 315
    • Beam Distance @ 1 LUX: 177
    • Beam Distance @ .25 LUX: 355
    • Peak Beam Intensity(cd): 31592
    • Horizontal Beam Angle: 177
    • Vertical Beam Angle: 355

  • Adapt 50in

    • SKU: 250413
    • Size: 50"
    • Beam Category: FLOOD DRIVING
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 28.6
    • Raw Lumens: 34240
    • Watts: 400
    • Lux @10m: 353
    • Beam Distance @ 1 LUX: 188
    • Beam Distance @ .25 LUX: 376
    • Peak Beam Intensity(cd): 35348
    • Horizontal Beam Angle: 188
    • Vertical Beam Angle: 376

Adapt E-Series Light Bars

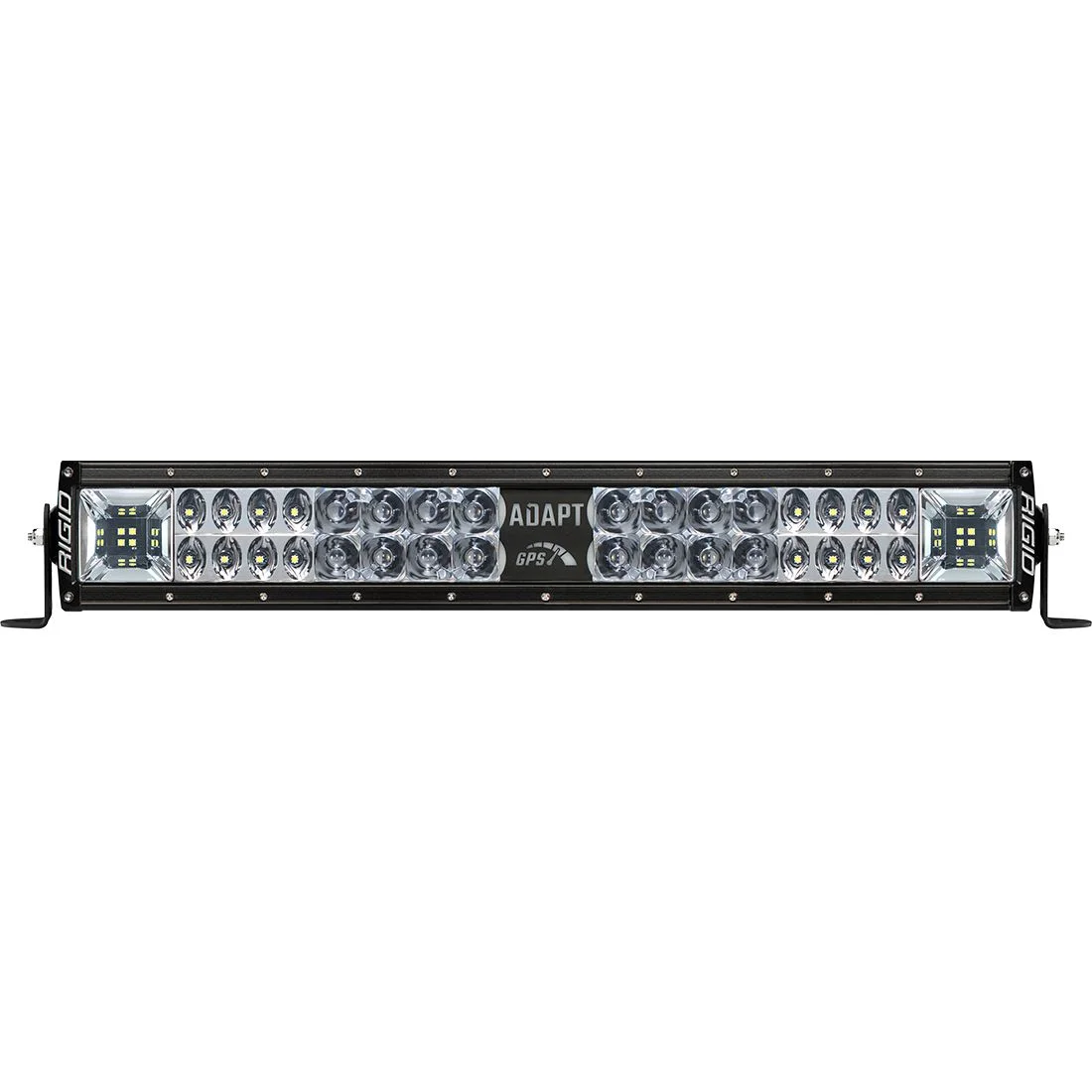

  • Adapt E-Series 20in

    • SKU: 260413
    • Size: 20"
    • Beam Category: DRIVING SPOT
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 6.3-Zone 1/5.9-Zone 2/6.9-Zone 3
    • Raw Lumens: 8641-Zone 1/11880-Zone 2/11968-Zone 3
    • Watts: 88-Zone 1/82-Zone 2/97-Zone 3
    • Lux @10m: 52-Zone 1/709-Zone 2/3106-Zone 3
    • Beam Distance @ 1 LUX: 72-Zone 1/266-Zone 2/557-Zone 3
    • Beam Distance @ .25 LUX: 144-Zone 1/533-Zone 2/1115-Zone 3
    • Peak Beam Intensity(cd): 5189-Zone 1/70948-Zone 2/310578-Zone 3
    • Horizontal Beam Angle: 102-Zone 1/48-Zone 2/17-Zone 3
    • Vertical Beam Angle: 97-Zone 1/24-Zone 2/16-Zone 3

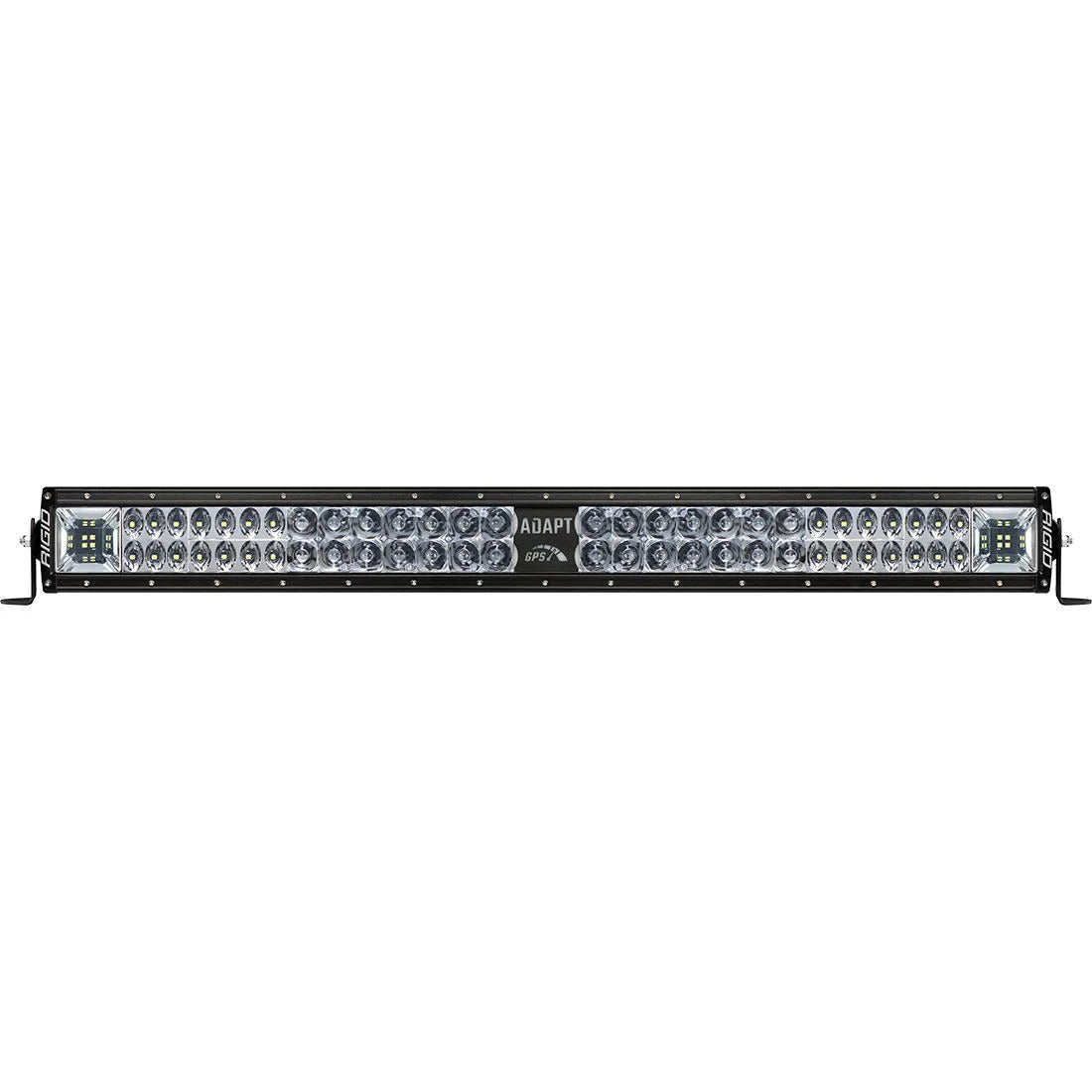

  • Adapt E-Series 30in

    • SKU: 270413
    • Size: 30"
    • Beam Category: DRIVING SPOT
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 6.3-Zone 1/5.9-Zone 2/6.9-Zone 3
    • Raw Lumens: 8641-Zone 1/11880-Zone 2/11968-Zone 3
    • Watts: 88-Zone 1/82-Zone 2/97-Zone 3
    • Lux @10m: 52-Zone 1/709-Zone 2/3106-Zone 3
    • Beam Distance @ 1 LUX: 72-Zone 1/266-Zone 2/557-Zone 3
    • Beam Distance @ .25 LUX: 144-Zone 1/533-Zone 2/1115-Zone 3
    • Peak Beam Intensity(cd): 5189-Zone 1/70948-Zone 2/310578-Zone 3
    • Horizontal Beam Angle: 102-Zone 1/48-Zone 2/17-Zone 3
    • Vertical Beam Angle: 97-Zone 1/24-Zone 2/16-Zone 3

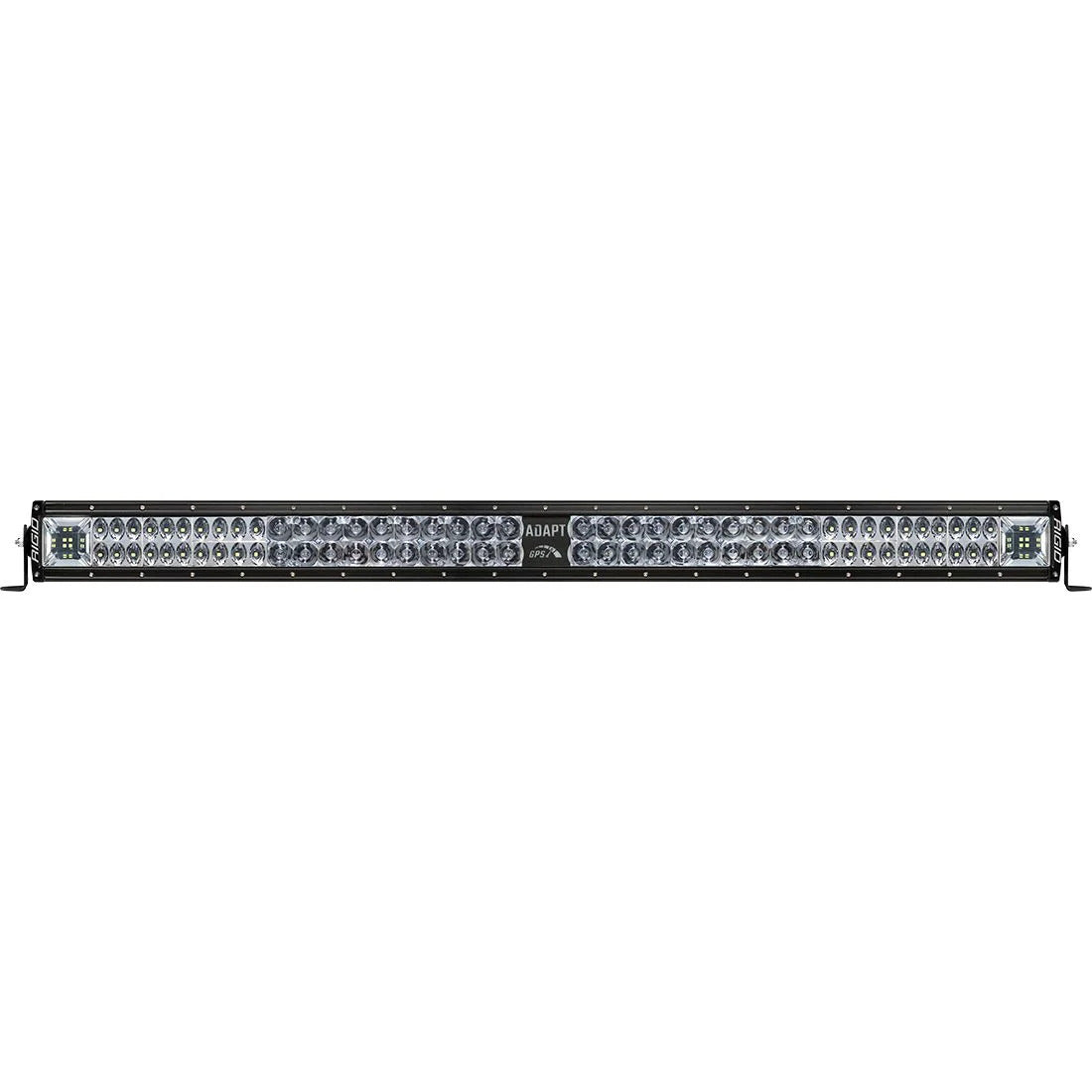

  • Adapt E-Series 40in

    • SKU: 280413
    • Size: 40"
    • Beam Category: DRIVING SPOT
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 6.3-Zone 1/13.5-Zone 2/16.5-Zone 3
    • Raw Lumens: 8641-Zone 1/25520-Zone 2/29920-Zone 3
    • Watts: 88-Zone 1/189-Zone 2/231-Zone 3
    • Lux @10m: 53-Zone 1/1580-Zone 2/7425-Zone 3
    • Beam Distance @ 1 LUX: 73-Zone 1/398-Zone 2/862-Zone 3
    • Beam Distance @ .25 LUX: 145-Zone 1/795-Zone 2/1723-Zone 3
    • Peak Beam Intensity(cd): 5285-Zone 1/158027-Zone 2/742460-Zone 3
    • Horizontal Beam Angle: 102-Zone 1/51-Zone 2/18-Zone 3
    • Vertical Beam Angle: 96-Zone 1/24-Zone 2/16-Zone 3

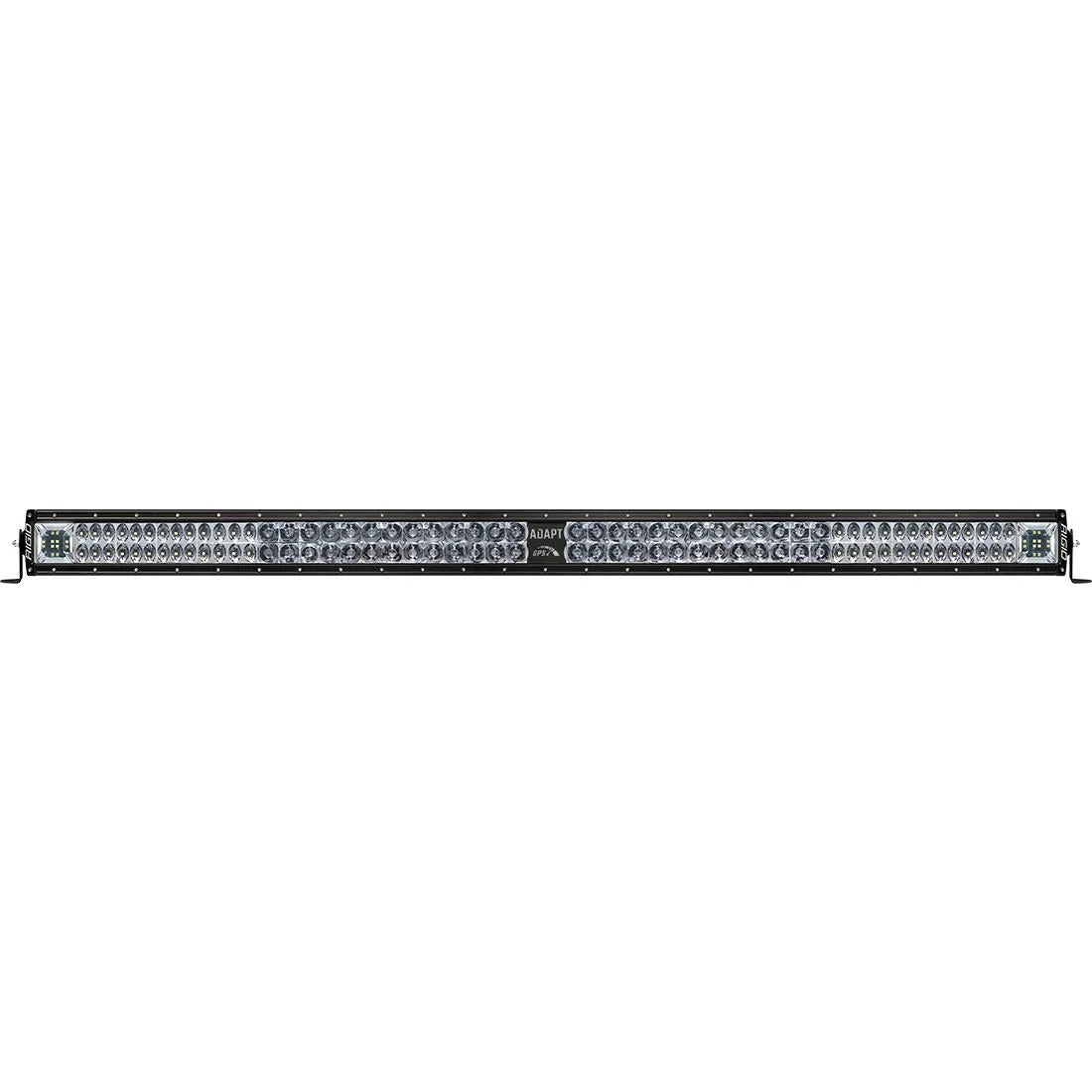

  • Adapt E-Series 50in

    • SKU: 290413
    • Size: 50"
    • Beam Category: DRIVING SPOT
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 6.3-Zone 1/19.6-Zone 2/25.6-Zone 3
    • Raw Lumens: 8641-Zone 1/33176-Zone 2/38896-Zone 3
    • Watts: 88-Zone 1/274-Zone 2/358-Zone 3
    • Lux @10m: 54-Zone 1/2286-Zone 2/9398-Zone 3
    • Beam Distance @ 1 LUX: 73-Zone 1/478-Zone 2/969-Zone 3
    • Beam Distance @ .25 LUX: 147-Zone 1/956-Zone 2/1939-Zone 3
    • Peak Beam Intensity(cd): 5362-Zone 1/228565-Zone 2/939827-Zone 3
    • Horizontal Beam Angle: 102-Zone 1/51-Zone 2/18-Zone 3
    • Vertical Beam Angle: 97-Zone 1/22-Zone 2/17-Zone 3

E-Series Pro Light Bars

  • E-Series PRO 4in Spot

    • SKU: 104213
    • Size: 4"
    • Beam Category: SPOT
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 4.36
    • Raw Lumens: 6336
    • Watts: 61
    • Lux @10m: 1396.54
    • Beam Distance @ 1 LUX: 373.7
    • Beam Distance @ .25 LUX: 747.4
    • Peak Beam Intensity(cd): 139654
    • Horizontal Beam Angle: 16.5
    • Vertical Beam Angle: 15.2

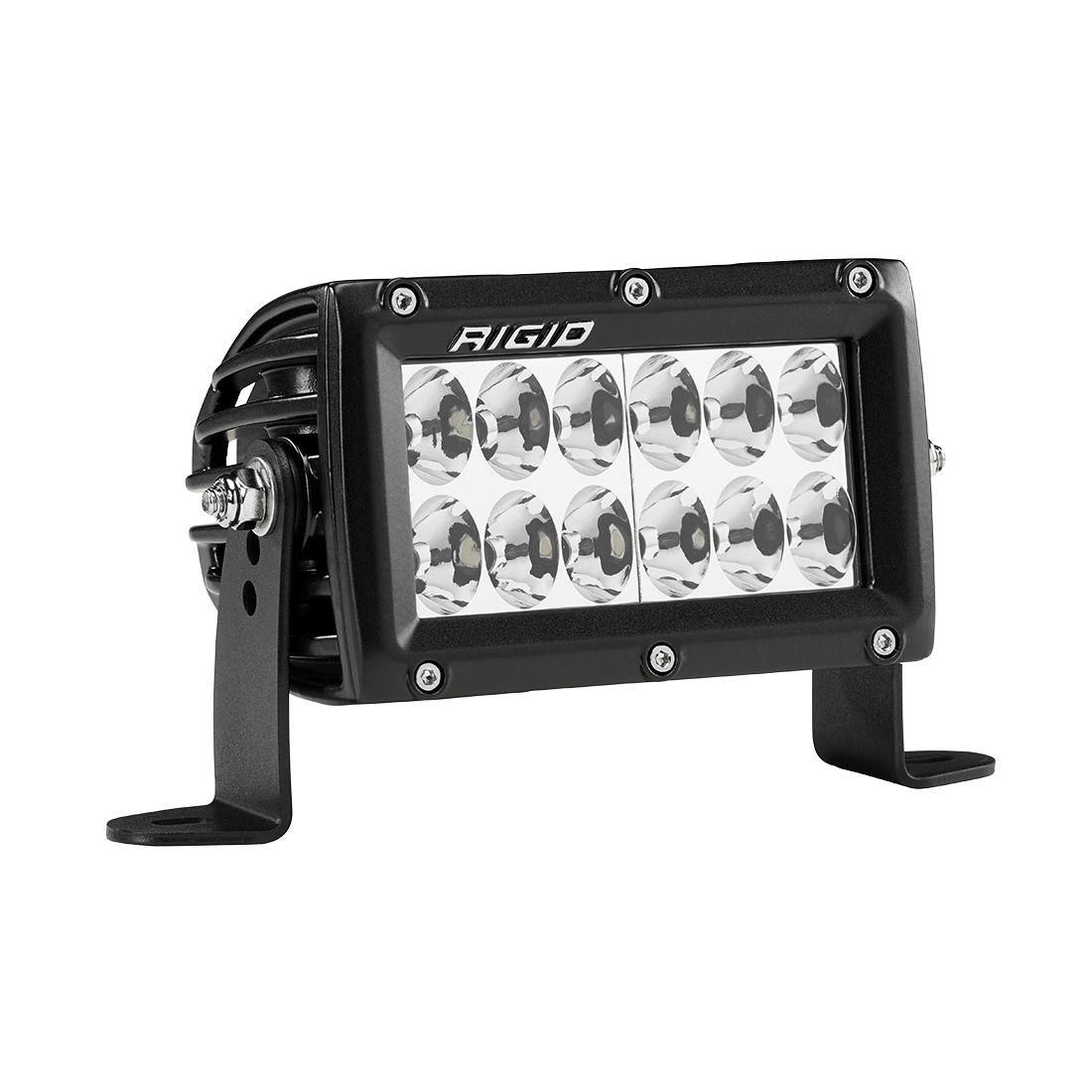

  • E-Series PRO 4in Driving

    • SKU: 173613
    • Size: 4"
    • Beam Category: Driving
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 6.43
    • Raw Lumens: 9504
    • Watts: 90
    • Lux @10m: 545.58
    • Beam Distance @ 1 LUX: 233.6
    • Beam Distance @ .25 LUX: 467.2
    • Peak Beam Intensity(cd): 54558
    • Horizontal Beam Angle: 49.3
    • Vertical Beam Angle: 22.1

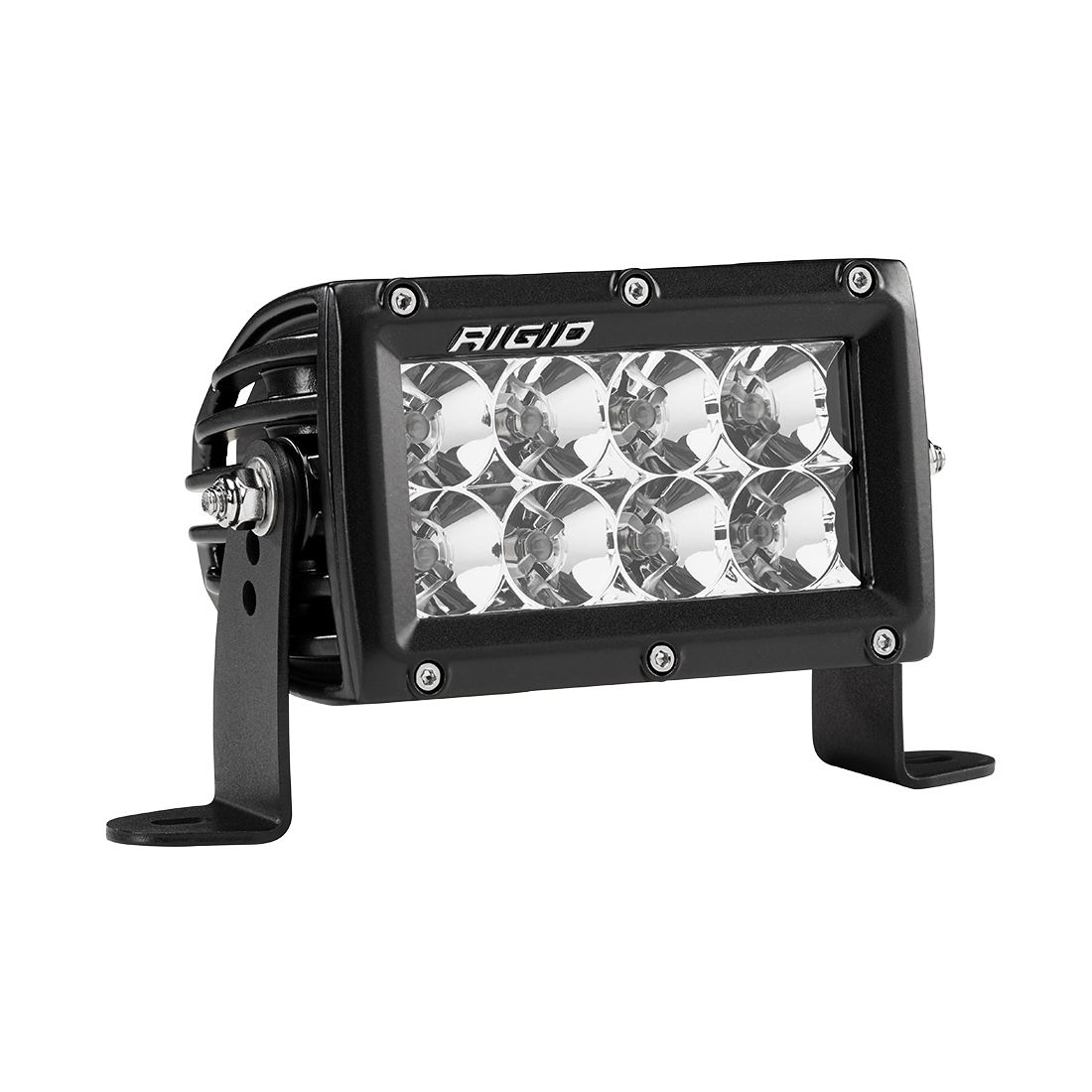

  • E-Series PRO 4in Flood

    • SKU: 104113
    • Size: 4"
    • Beam Category: Flood
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 4.36
    • Raw Lumens: 6336
    • Watts: 61
    • Lux @10m: 128.15
    • Beam Distance @ 1 LUX: 113.2
    • Beam Distance @ .25 LUX: 226.4
    • Peak Beam Intensity(cd): 12815
    • Horizontal Beam Angle: 50.6
    • Vertical Beam Angle: 48.3

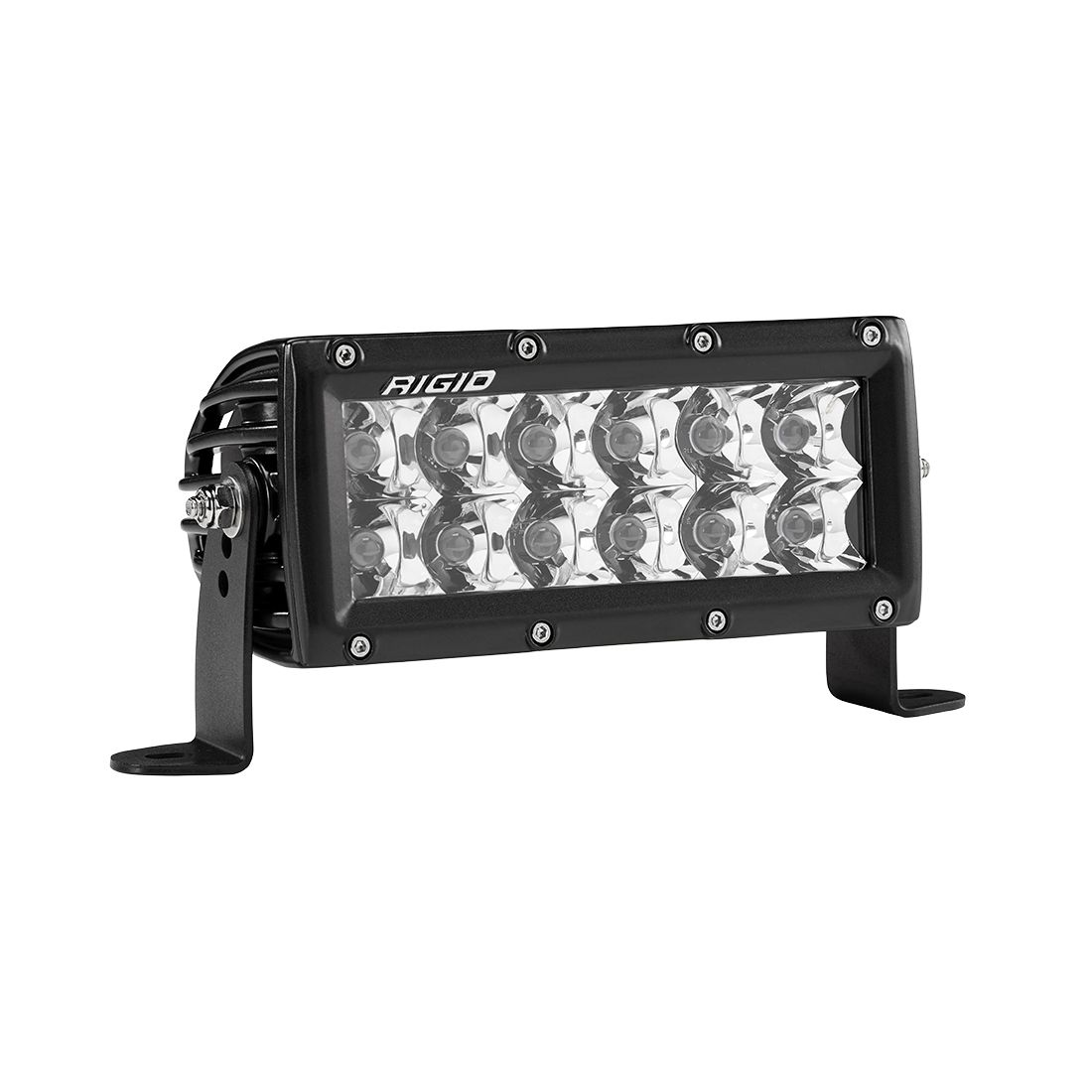

  • E-Series PRO 6in Spot

    • SKU: 106213
    • Size: 6"
    • Beam Category: Spot
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 6.07
    • Raw Lumens: 9504
    • Watts: 85
    • Lux @10m: 2130.58
    • Beam Distance @ 1 LUX: 461.6
    • Beam Distance @ .25 LUX: 923.2
    • Peak Beam Intensity(cd): 213058
    • Horizontal Beam Angle: 16.5
    • Vertical Beam Angle: 15.4

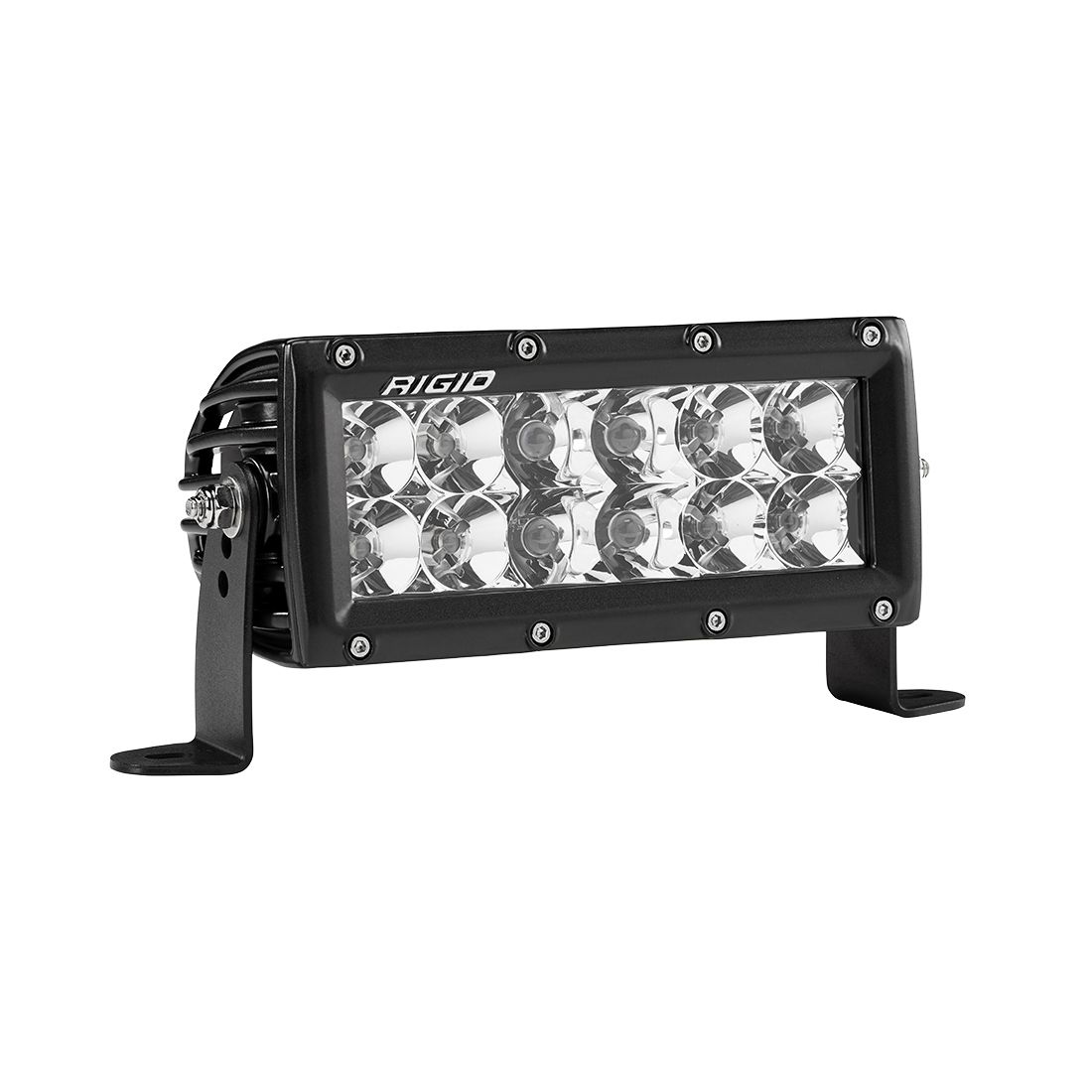

  • E-Series PRO 6in Spot/Flood Combo

    • SKU: 106313
    • Size: 6"
    • Beam Category: Spot Flood Combo
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 5.86
    • Raw Lumens: 9504
    • Watts: 85
    • Lux @10m: 828.63
    • Beam Distance @ 1 LUX: 287.9
    • Beam Distance @ .25 LUX: 575.7
    • Peak Beam Intensity(cd): 82863
    • Horizontal Beam Angle: 28.3
    • Vertical Beam Angle: 23.1

  • E-Series PRO 6in Flood

    • SKU: 106113
    • Size: 6"
    • Beam Category: Flood
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 5.71
    • Raw Lumens: 9504
    • Watts: 80
    • Lux @10m: 128.9
    • Beam Distance @ 1 LUX: 128.9
    • Beam Distance @ .25 LUX: 257.8
    • Peak Beam Intensity(cd): 16616
    • Horizontal Beam Angle: 50.1
    • Vertical Beam Angle: 48.8

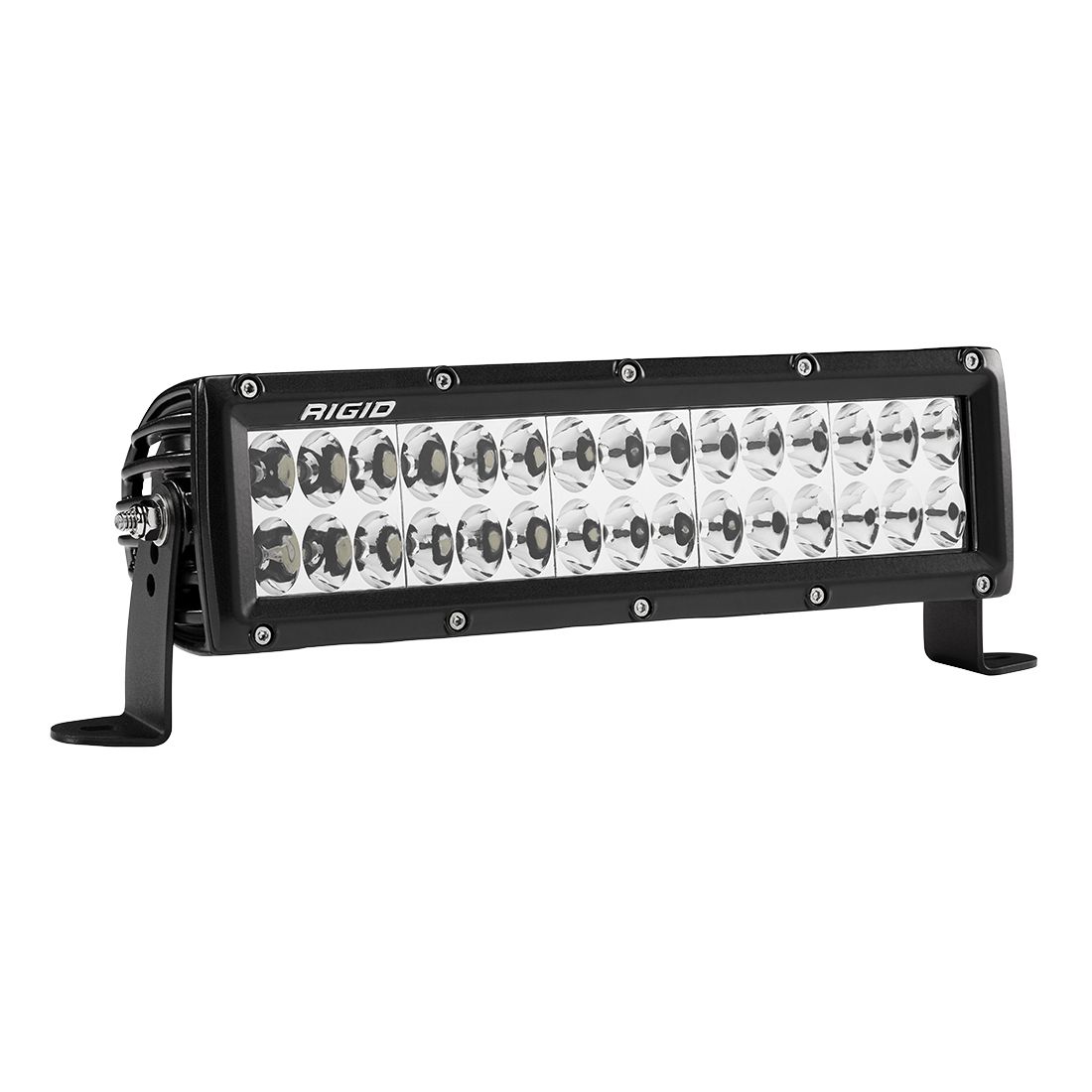

  • E-Series PRO 10in Driving

    • SKU: 178613
    • Size: 10"
    • Beam Category: Driving
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 14.57
    • Raw Lumens: 18810
    • Watts: 204
    • Lux @10m: 960.28
    • Beam Distance @ 1 LUX: 309.9
    • Beam Distance @ .25 LUX: 619.8
    • Peak Beam Intensity(cd): 96028
    • Horizontal Beam Angle: 50.6
    • Vertical Beam Angle: 25

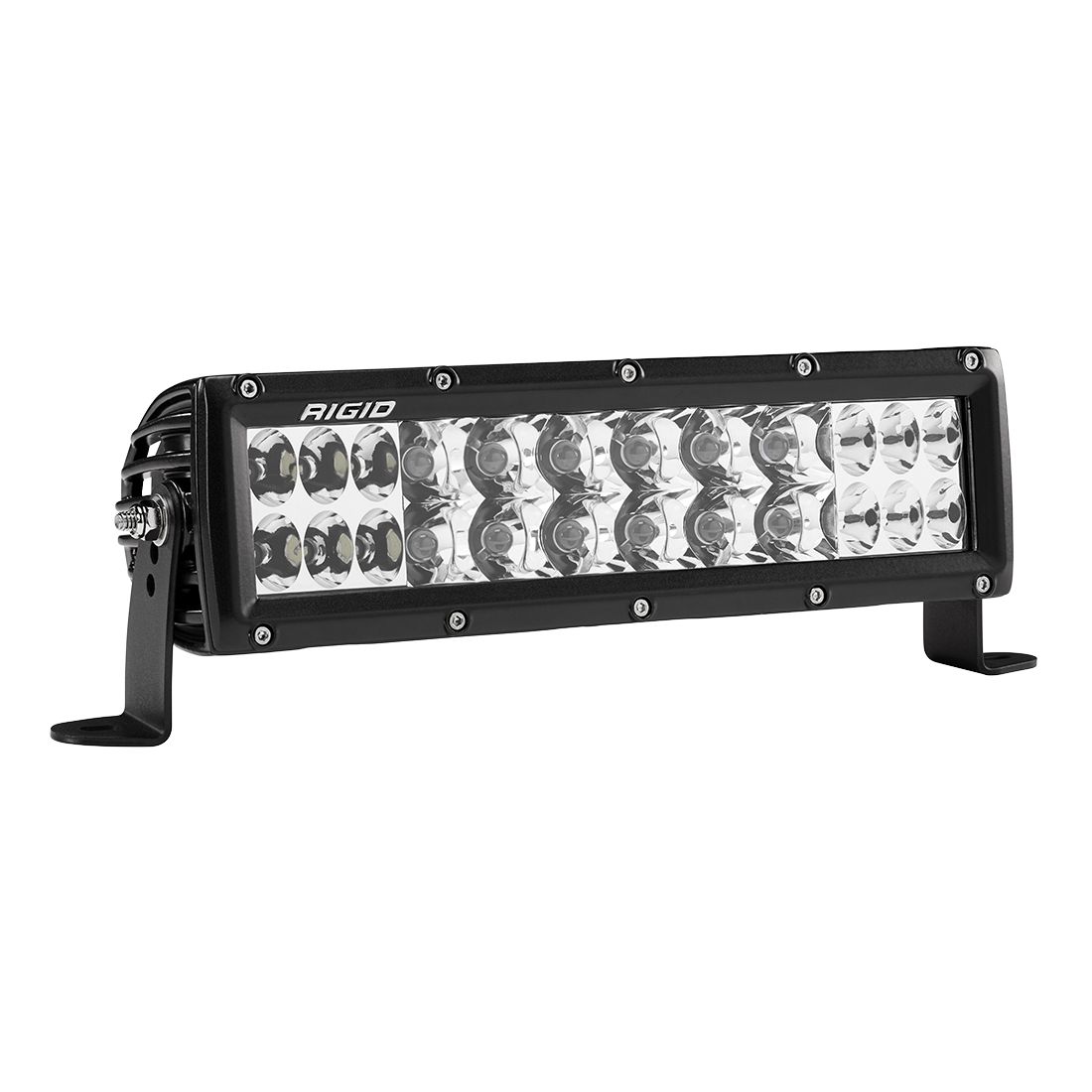

  • E-Series PRO 10in Spot/Driving Combo

    • SKU: 178313
    • Size: 10"
    • Beam Category: Driving
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 12.43
    • Raw Lumens: 15048
    • Watts: 174
    • Lux @10m: 2285.02
    • Beam Distance @ 1 LUX: 478
    • Beam Distance @ .25 LUX: 956
    • Peak Beam Intensity(cd): 82750
    • Horizontal Beam Angle: 27.7
    • Vertical Beam Angle: 17.8

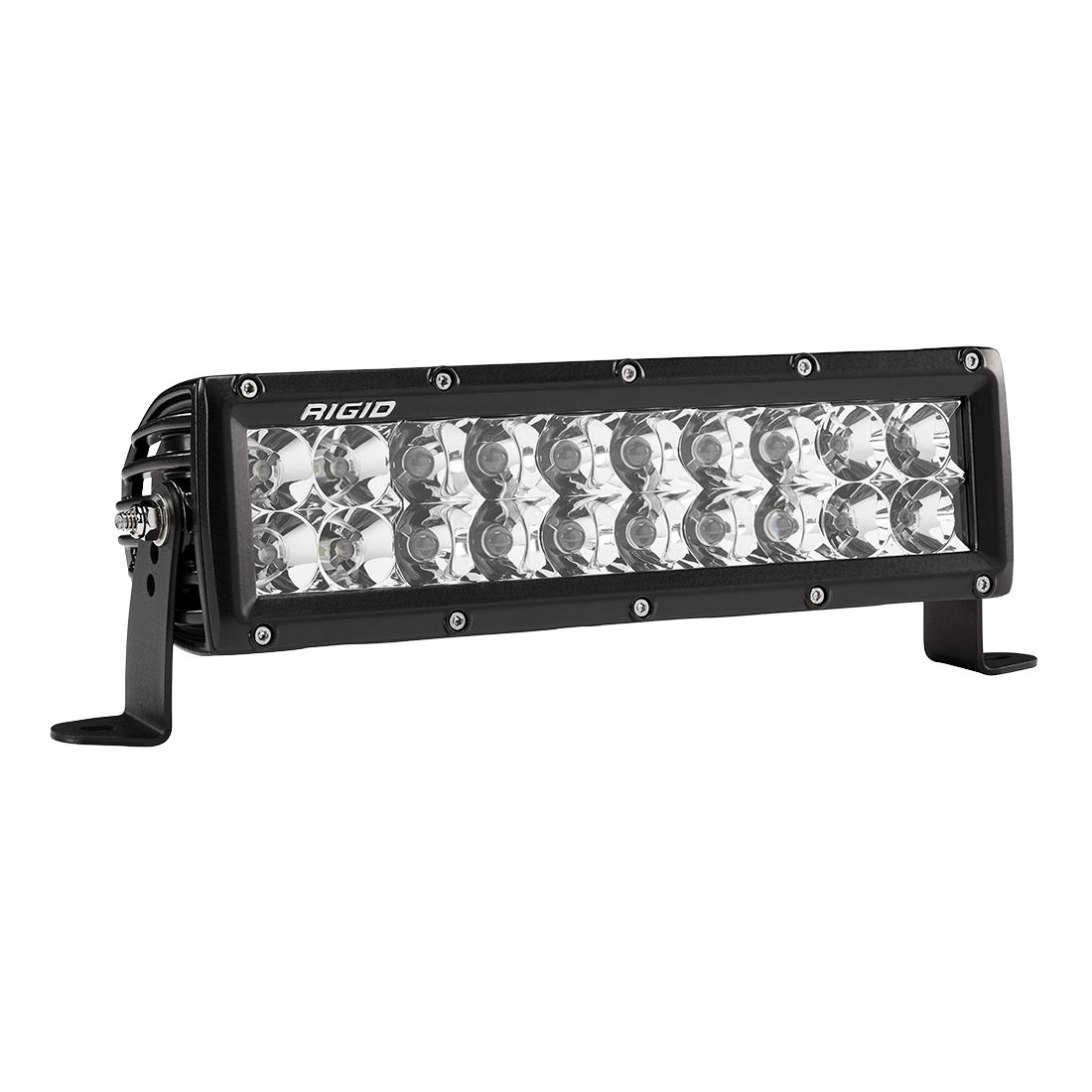

  • E-Series PRO 10in Spot/Flood Combo

    • SKU: 110313
    • Size: 10"
    • Beam Category: Spot Flood Combo
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 11.79
    • Raw Lumens: 15840
    • Watts: 165
    • Lux @10m: 2002.67
    • Beam Distance @ 1 LUX: 447.5
    • Beam Distance @ .25 LUX: 895
    • Peak Beam Intensity(cd): 200267
    • Horizontal Beam Angle: 19.1
    • Vertical Beam Angle: 17.6

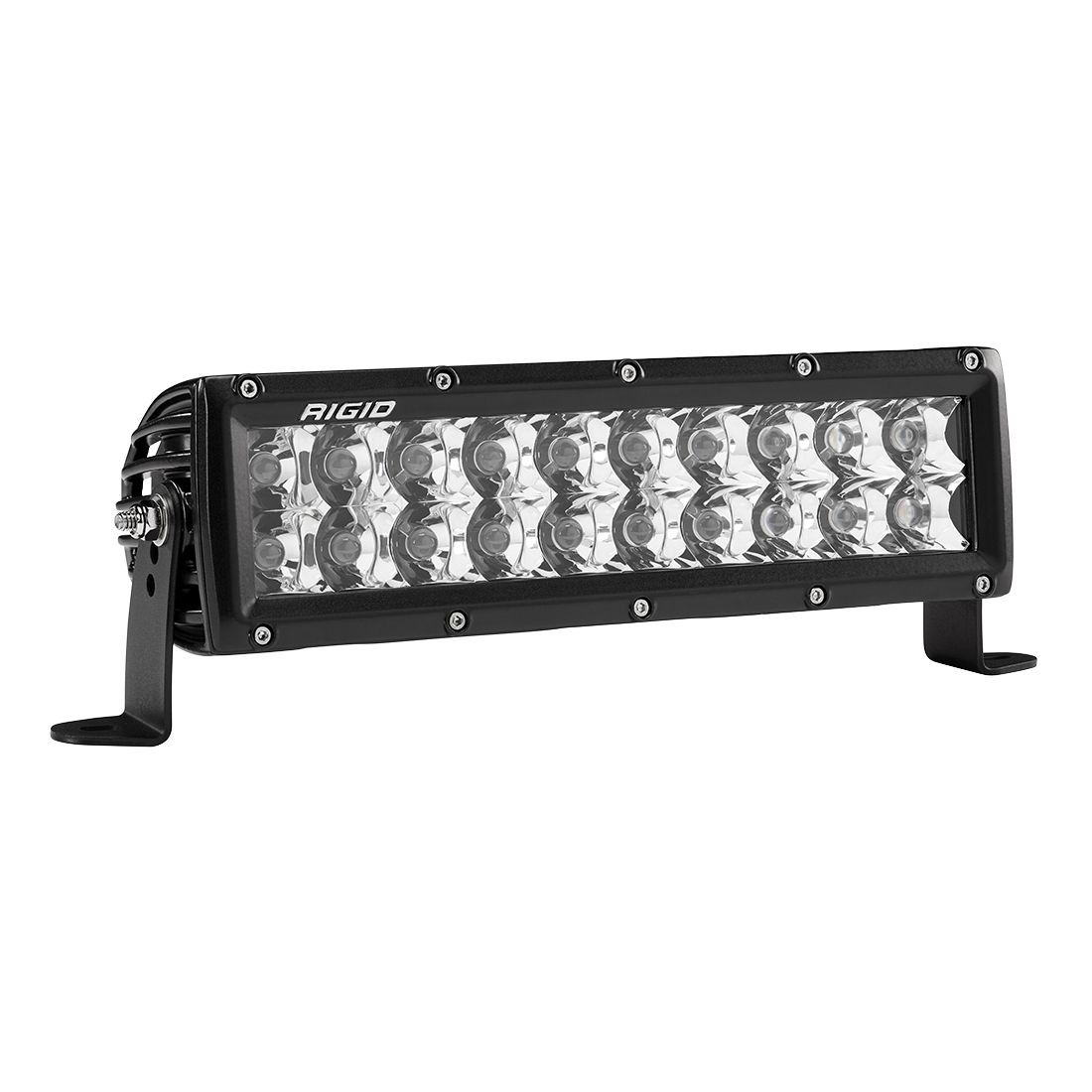

  • E-Series PRO 10in Spot

    • SKU: 110213
    • Size: 10"
    • Beam Category: Spot
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 12
    • Raw Lumens: 15840
    • Watts: 168
    • Lux @10m: 3367.79
    • Beam Distance @ 1 LUX: 580.3
    • Beam Distance @ .25 LUX: 1160.7
    • Peak Beam Intensity(cd): 336779
    • Horizontal Beam Angle: 17.3
    • Vertical Beam Angle: 15.7

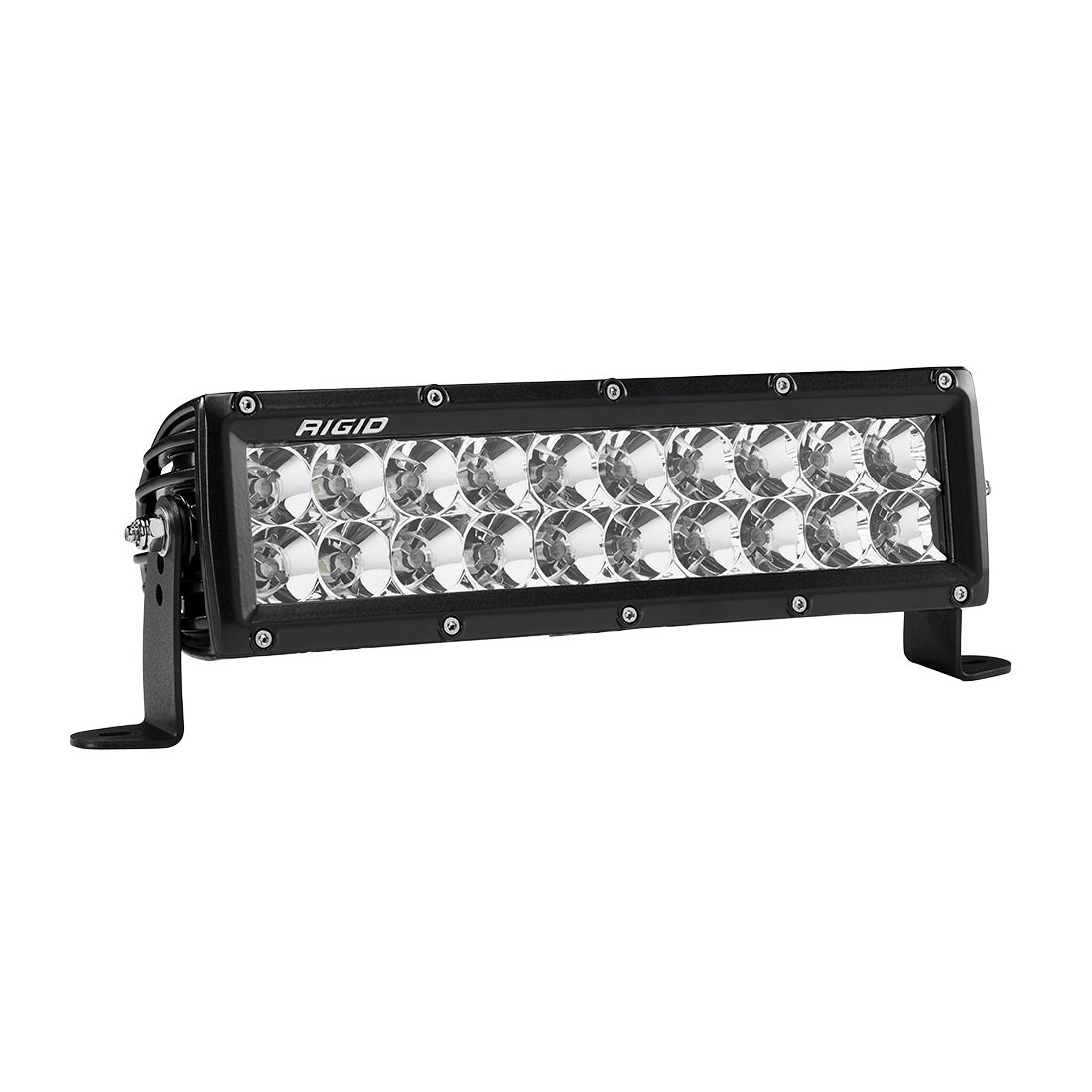

  • E-Series PRO 10in Flood

    • SKU: 110113
    • Size: 10"
    • Beam Category: Flood
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 13.21
    • Raw Lumens: 15840
    • Watts: 185
    • Lux @10m: 285.75
    • Beam Distance @ 1 LUX: 169
    • Beam Distance @ .25 LUX: 338.1
    • Peak Beam Intensity(cd): 28575
    • Horizontal Beam Angle: 50
    • Vertical Beam Angle: 47.4

  • E-Series Pro 10in Spot/Flood Combo Infrared

    • SKU: 110392
    • Size: 10"
    • Light Shape: BAR
    • Mount Type: SURFACE MOUNT
    • Beam Category: SPOT FLOOD COMBO
    • Current Draw at 14V (a): 3.28

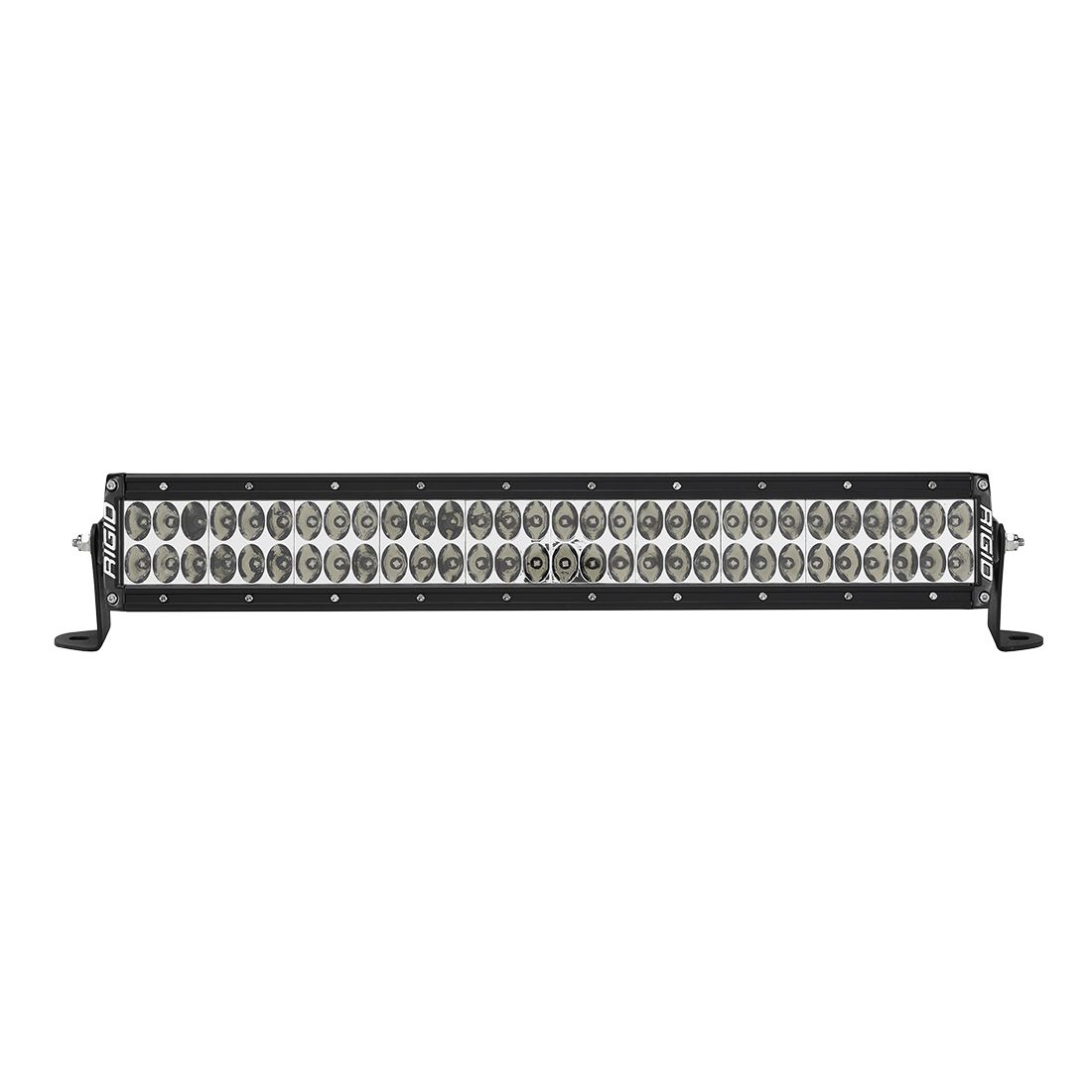

  • E-Series PRO 20in Driving

    • SKU: 121613
    • Size: 20"
    • Beam Category: Driving
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 24.29
    • Raw Lumens: 47520
    • Watts: 340
    • Lux @10m: 2132
    • Beam Distance @ 1 LUX: 462
    • Beam Distance @ .25 LUX: 924
    • Peak Beam Intensity(cd): 213244
    • Horizontal Beam Angle: 49
    • Vertical Beam Angle: 23

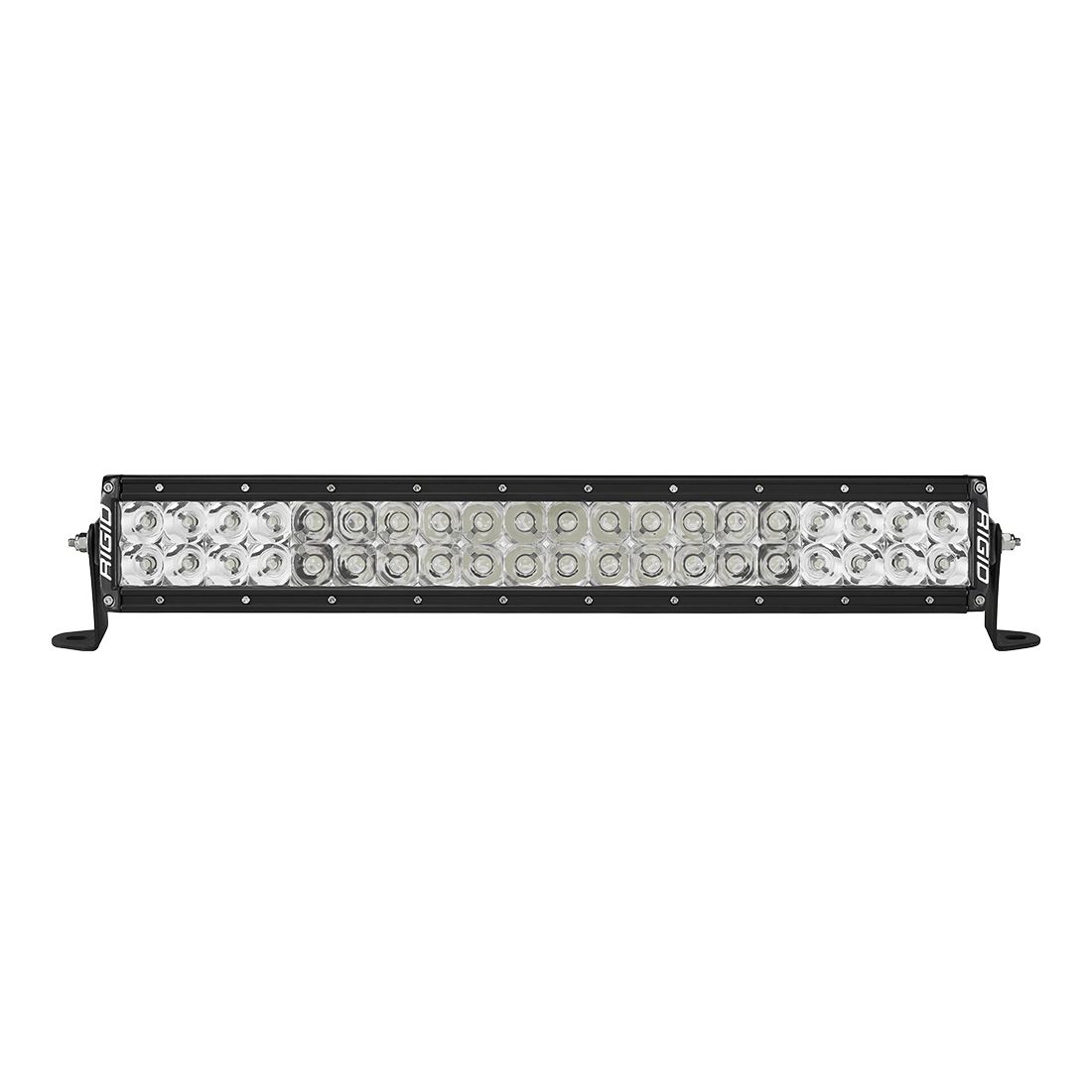

  • E-Series PRO 20in Spot/Flood Combo

    • SKU: 120313
    • Size: 20"
    • Beam Category: Spot Flood Combo
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 15.29
    • Raw Lumens: 25080
    • Watts: 214
    • Lux @10m: 3898
    • Beam Distance @ 1 LUX: 624
    • Beam Distance @ .25 LUX: 1249
    • Peak Beam Intensity(cd): 389784
    • Horizontal Beam Angle: 19
    • Vertical Beam Angle: 17

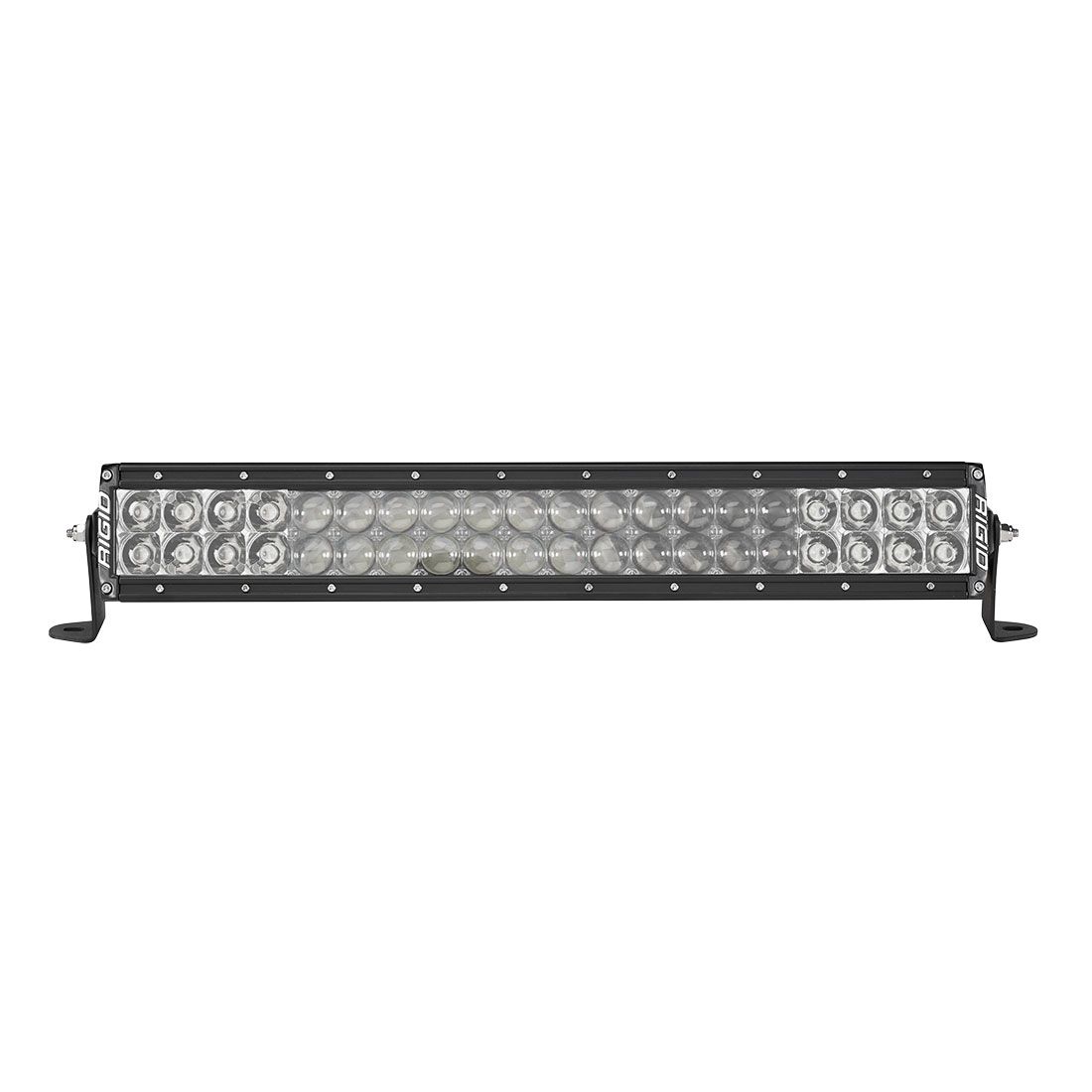

  • E-Series PRO 20in Spot/Hyperspot Combo

    • SKU: 120213
    • Size: 20"
    • Beam Category: Spot Hyper Spot Combo
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 11.14
    • Raw Lumens: 20344
    • Watts: 156
    • Lux @10m: 5690
    • Beam Distance @ 1 LUX: 754
    • Beam Distance @ .25 LUX: 1509
    • Peak Beam Intensity(cd): 569046
    • Horizontal Beam Angle: 14
    • Vertical Beam Angle: 11

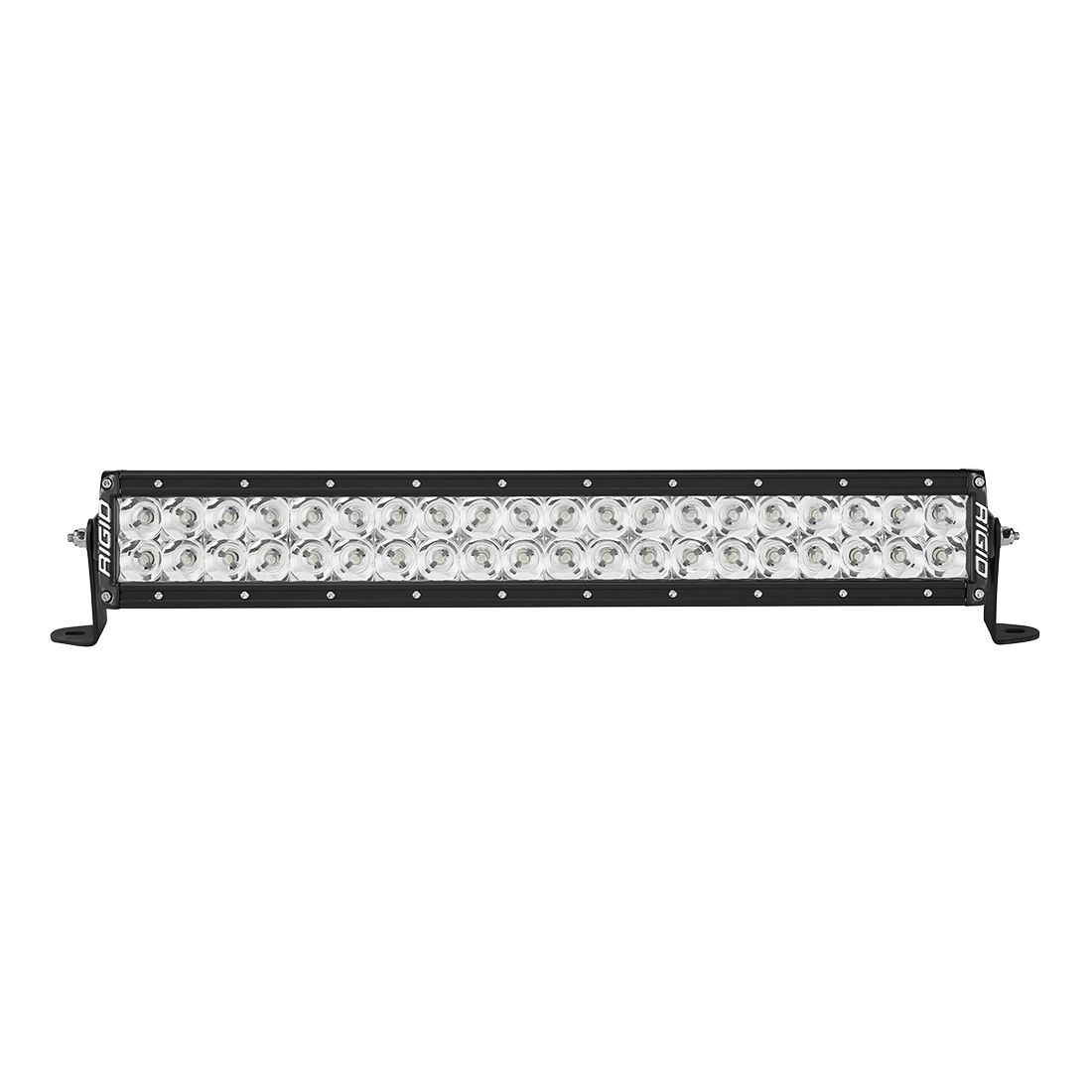

  • E-Series PRO 20in Flood

    • SKU: 120113
    • Size: 20"
    • Beam Category: Flood
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 15.29
    • Raw Lumens: 25080
    • Watts: 214
    • Lux @10m: 497
    • Beam Distance @ 1 LUX: 223
    • Beam Distance @ .25 LUX: 446
    • Peak Beam Intensity(cd): 49730
    • Horizontal Beam Angle: 50
    • Vertical Beam Angle: 46

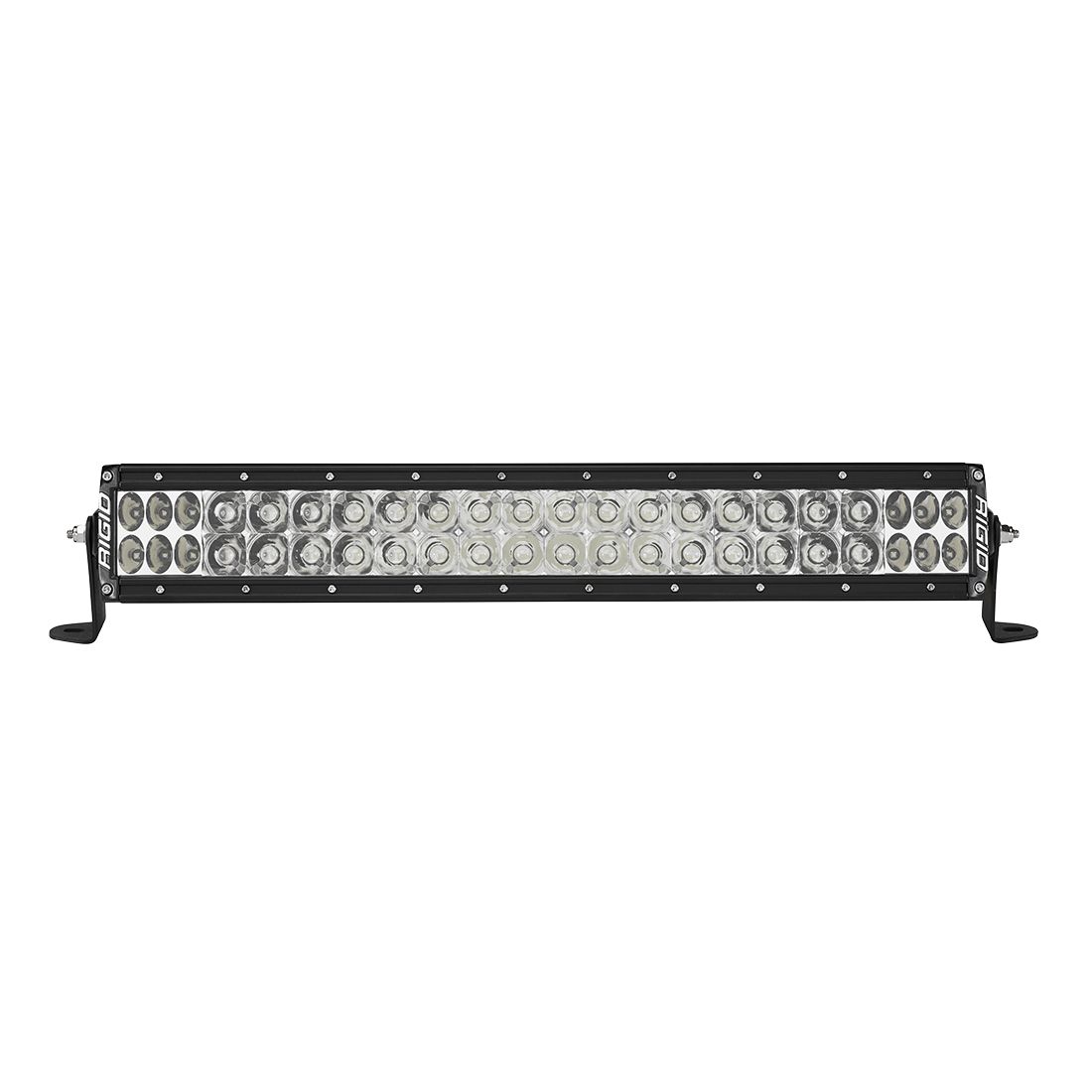

  • E-Series PRO 20in Spot/Driving Combo

    • SKU: 122313
    • Size: 20"
    • Beam Category: Spot Driving Combo
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 23.1
    • Raw Lumens: 34848
    • Watts: 319
    • Lux @10m: 5480
    • Beam Distance @ 1 LUX: 740
    • Beam Distance @ .25 LUX: 1481
    • Peak Beam Intensity(cd): 548042
    • Horizontal Beam Angle: 22
    • Vertical Beam Angle: 17

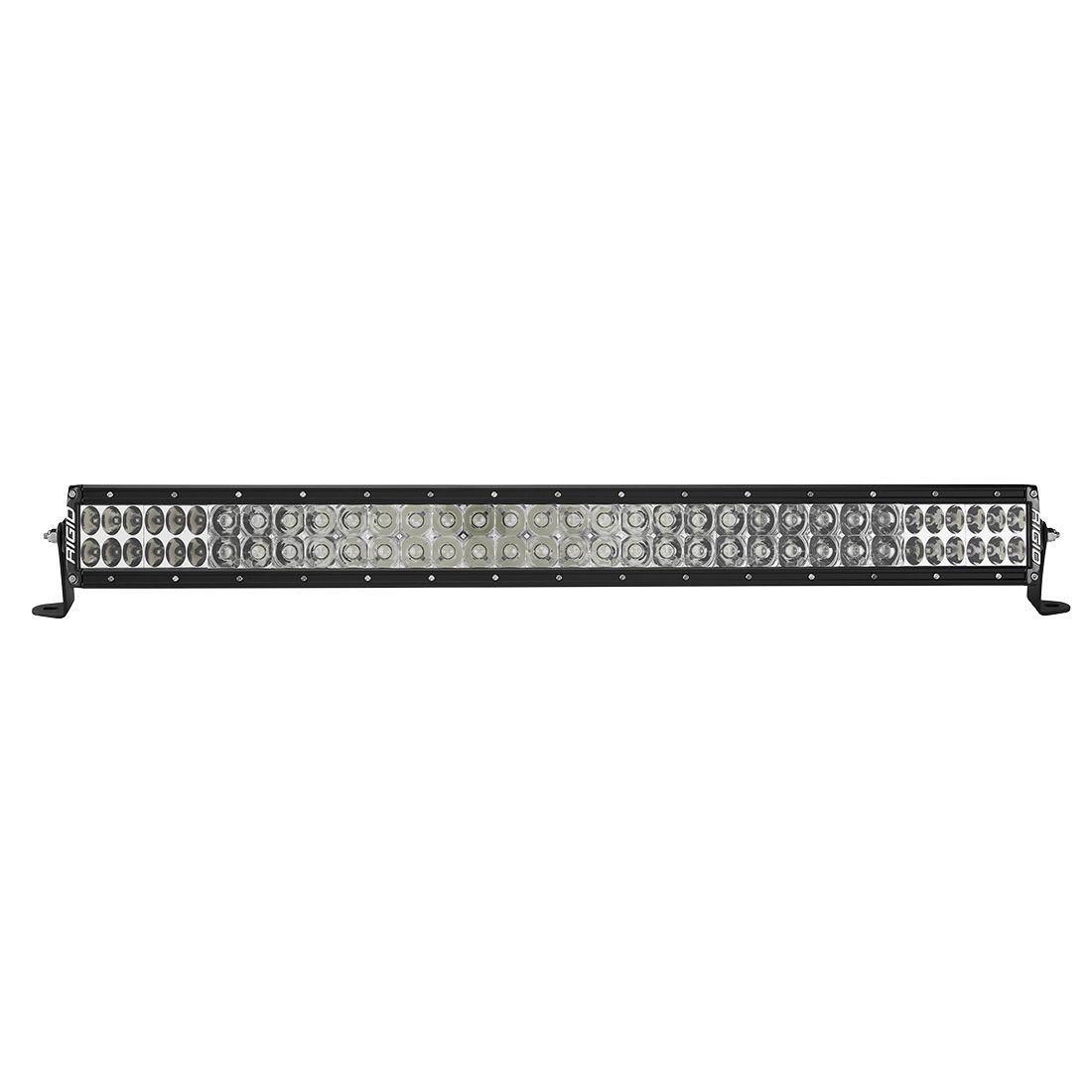

  • E-Series PRO 30in Spot/Driving Combo

    • SKU: 132313
    • Size: 30"
    • Beam Category: Spot Driving Combo
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 33.57
    • Raw Lumens: 37060
    • Watts: 470
    • Lux @10m: 5932
    • Beam Distance @ 1 LUX: 770
    • Beam Distance @ .25 LUX: 1540
    • Peak Beam Intensity(cd): 593163
    • Horizontal Beam Angle: 23
    • Vertical Beam Angle: 17

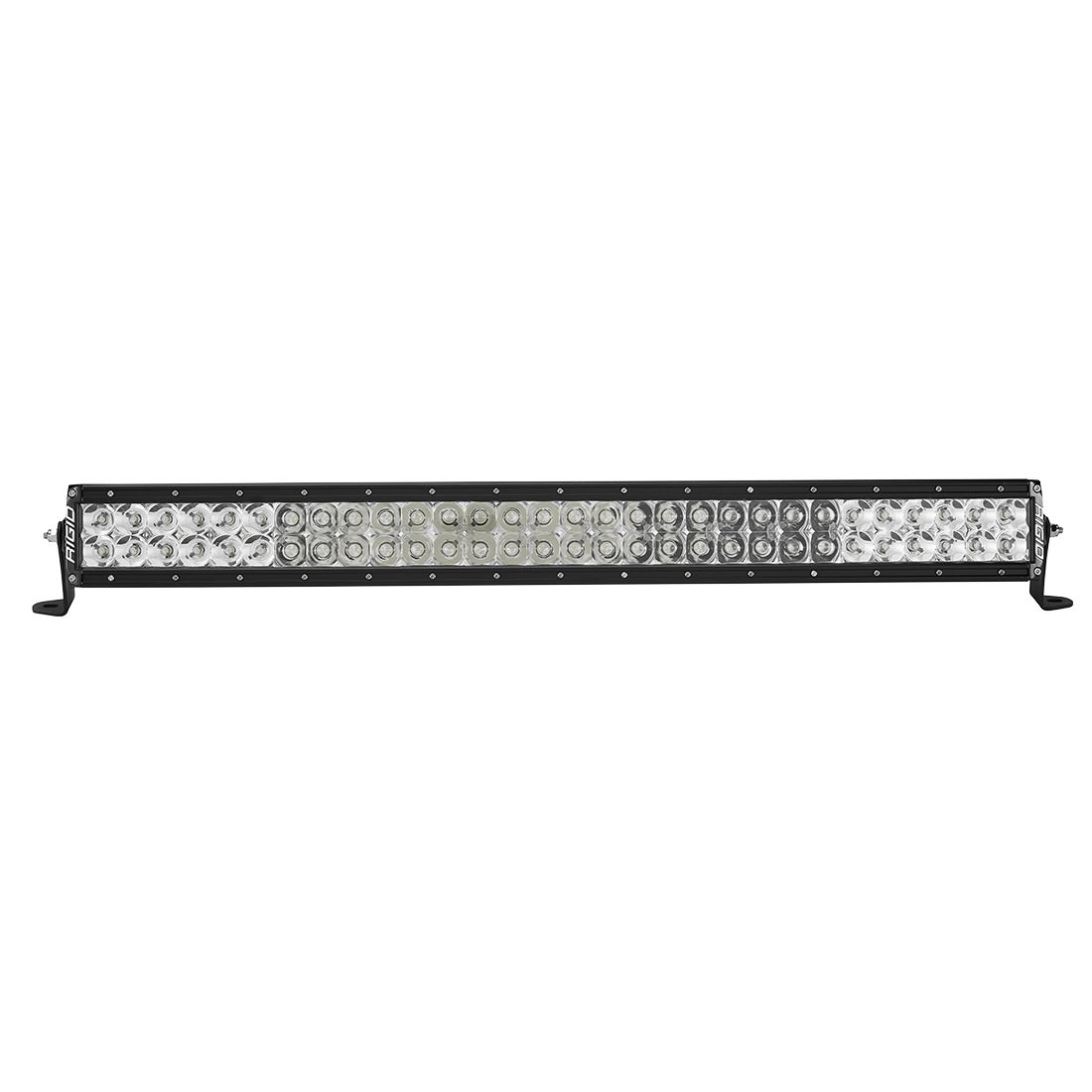

  • E-Series PRO 30in Spot/Flood Combo

    • SKU: 130313
    • Size: 30"
    • Beam Category: Spot Flood Combo
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 21.36
    • Raw Lumens: 32700
    • Watts: 311
    • Lux @10m: 4746
    • Beam Distance @ 1 LUX: 689
    • Beam Distance @ .25 LUX: 1378
    • Peak Beam Intensity(cd): 474648
    • Horizontal Beam Angle: 19
    • Vertical Beam Angle: 18

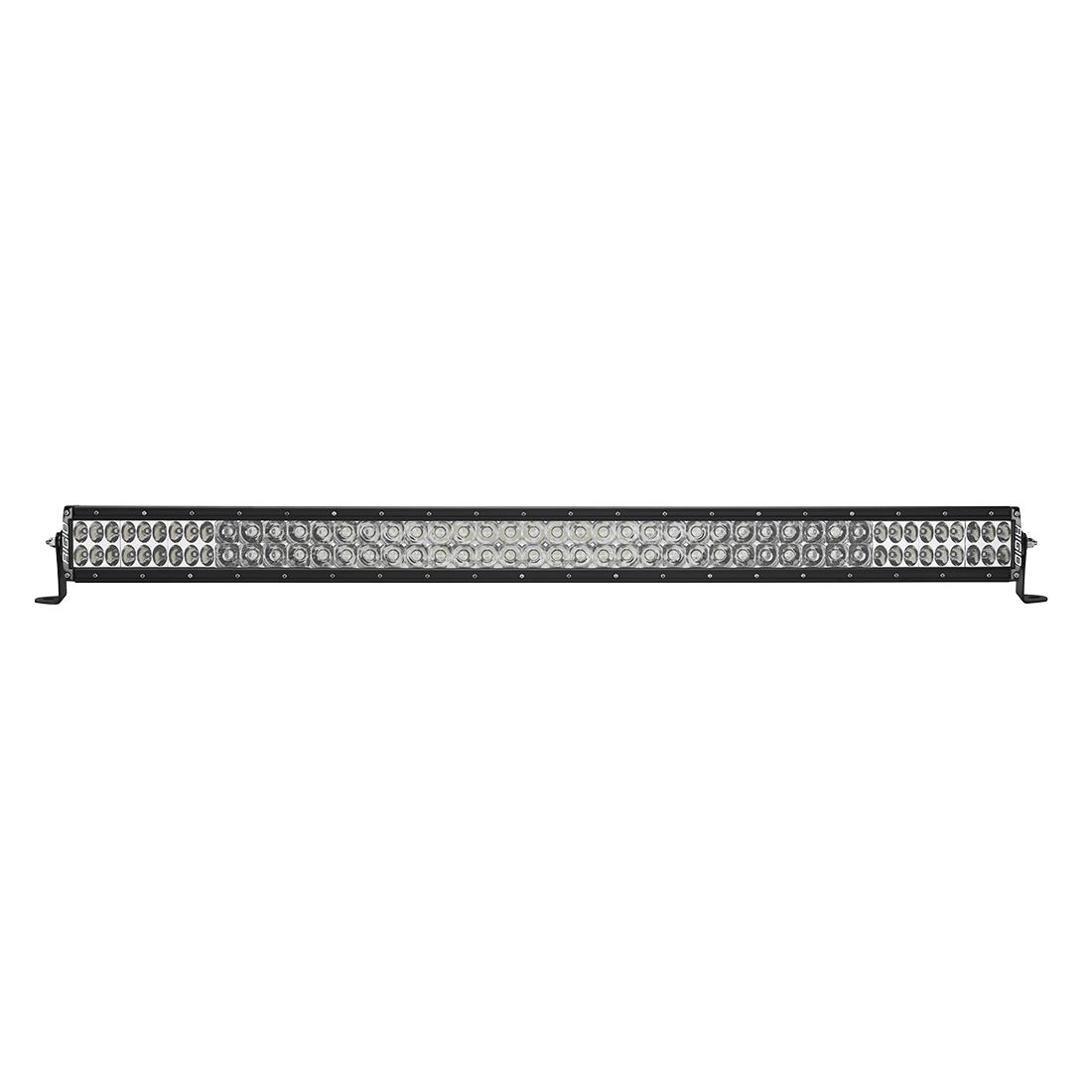

  • E-Series PRO 40in Spot/Driving Combo

    • SKU: 142313
    • Size: 40"
    • Beam Category: Spot Driving Combo
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 25.1
    • Raw Lumens: 41032
    • Watts: 293
    • Lux @10m: 7736
    • Beam Distance @ 1 LUX: 880
    • Beam Distance @ .25 LUX: 1759
    • Peak Beam Intensity(cd): 773615
    • Horizontal Beam Angle: 28
    • Vertical Beam Angle: 17

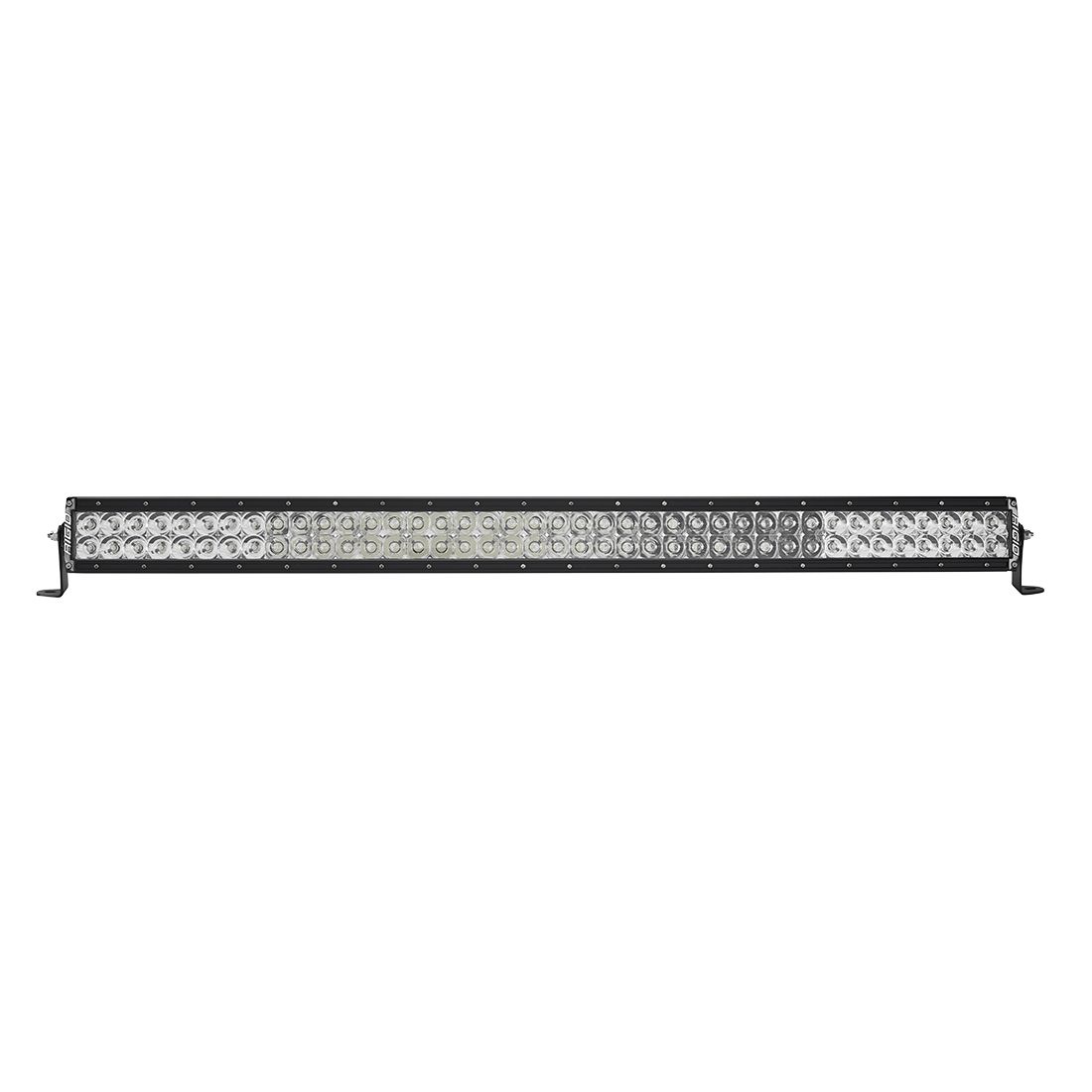

  • E-Series PRO 40in Spot/Flood Combo

    • SKU: 140313
    • Size: 40"
    • Beam Category: Spot Flood Combo
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 22.21
    • Raw Lumens: 35680
    • Watts: 299
    • Lux @10m: 5134
    • Beam Distance @ 1 LUX: 716
    • Beam Distance @ .25 LUX: 1433
    • Peak Beam Intensity(cd): 513412
    • Horizontal Beam Angle: 19
    • Vertical Beam Angle: 18

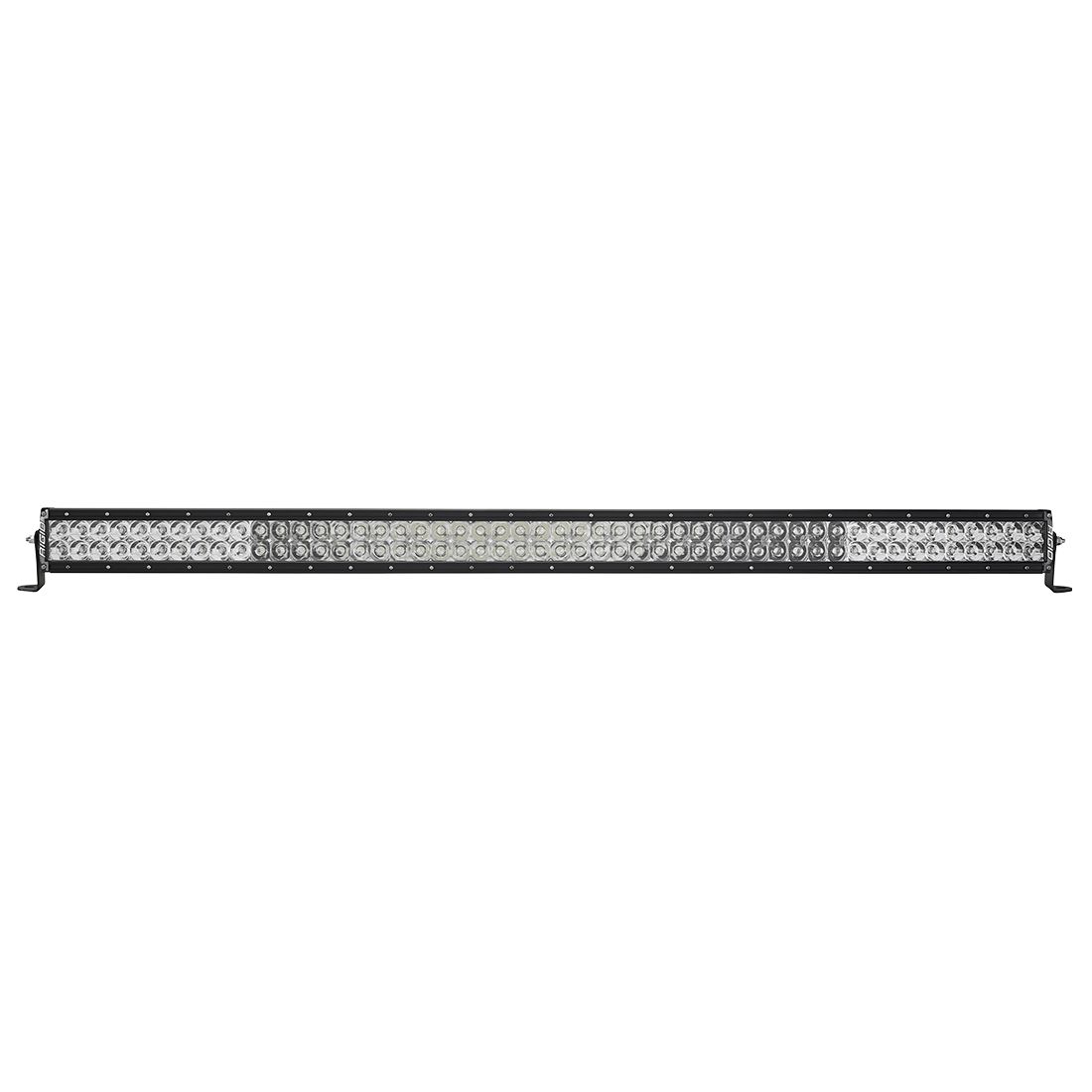

  • E-Series PRO 50in Spot/Flood Combo

    • SKU: 150313
    • Size: 50"
    • Beam Category: Spot Flood Combo
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 26.93
    • Raw Lumens: 44600
    • Watts: 377
    • Lux @10m: 6308
    • Beam Distance @ 1 LUX: 794
    • Beam Distance @ .25 LUX: 1589
    • Peak Beam Intensity(cd): 630822
    • Horizontal Beam Angle: 19
    • Vertical Beam Angle: 17

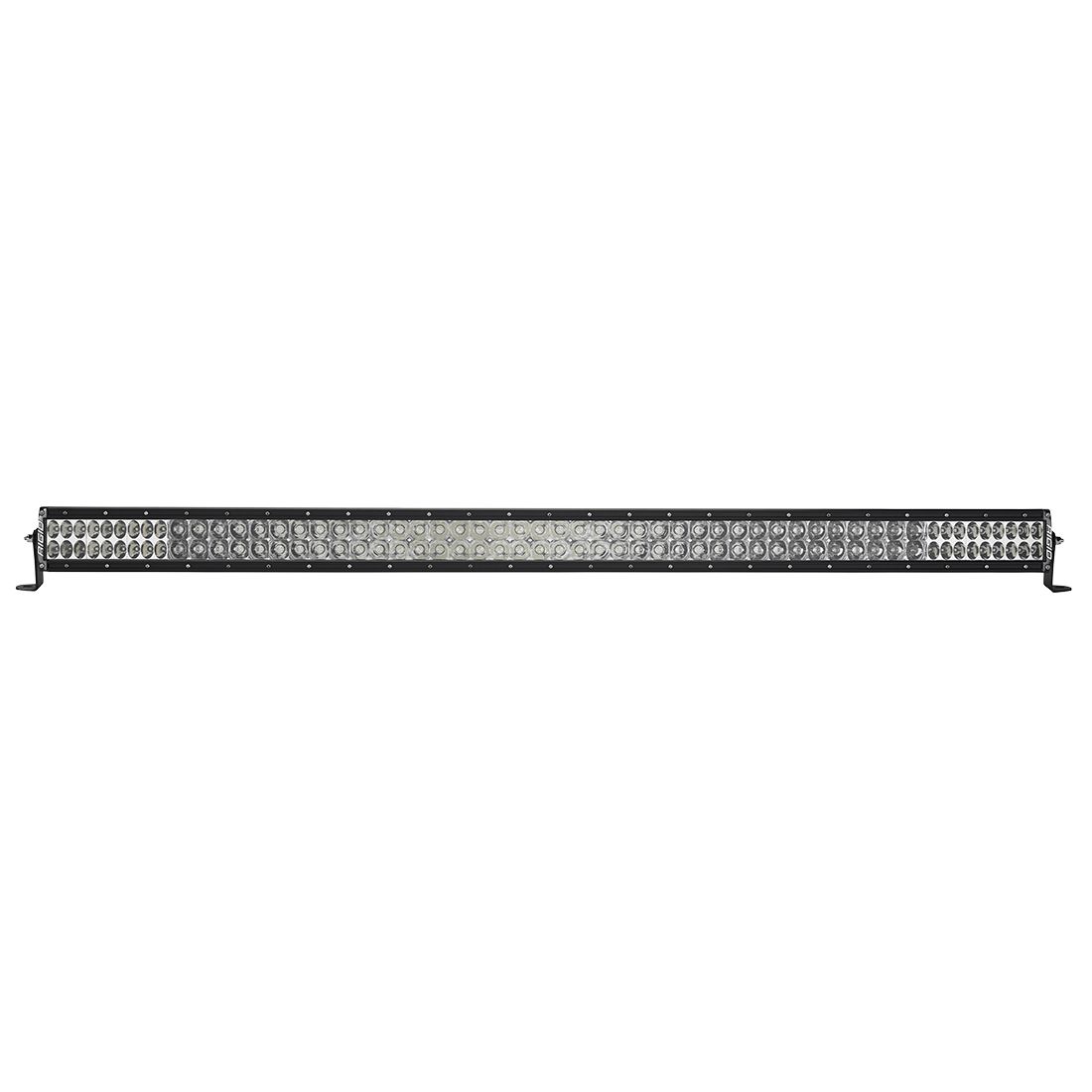

  • E-Series PRO 50in Spot/Driving Combo

    • SKU: 152313
    • Size: 50"
    • Beam Category: Spot Driving Combo
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 32
    • Raw Lumens: 49952
    • Watts: 448
    • Lux @10m: 7536.7
    • Beam Distance @ 1 LUX: 868.1
    • Beam Distance @ .25 LUX: 1736.3
    • Peak Beam Intensity(cd): 753666
    • Horizontal Beam Angle: 22.6
    • Vertical Beam Angle: 16.7

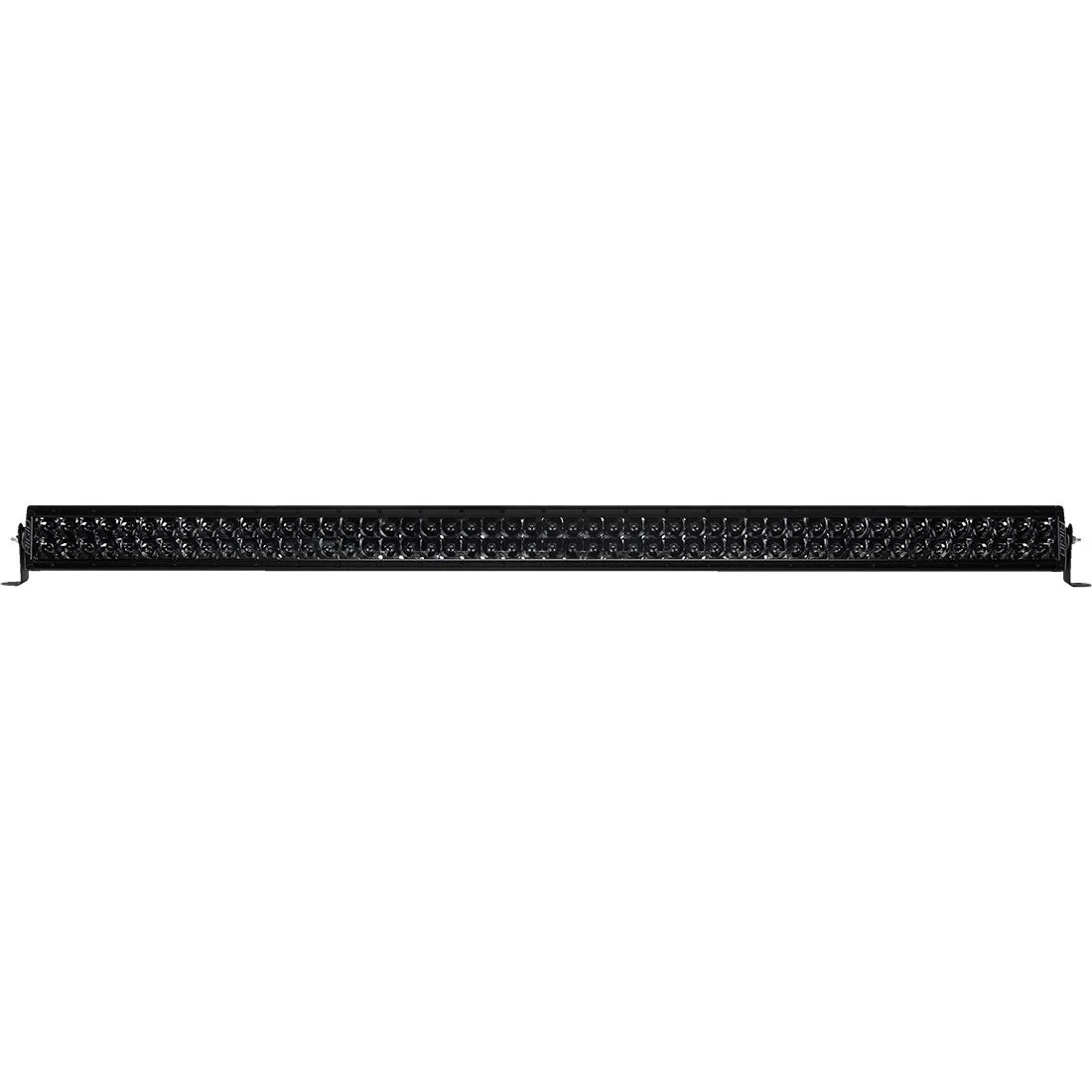

  • E-Series PRO 50in Spot Midnight

    • SKU: 150213BLK
    • Size: 50"
    • Beam Category: Spot
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 26.93
    • Raw Lumens: 44600
    • Watts: 377
    • Lux @10m: 5864
    • Beam Distance @ 1 LUX: 766
    • Beam Distance @ .25 LUX: 1532
    • Peak Beam Intensity(cd): 586474
    • Horizontal Beam Angle: 19
    • Vertical Beam Angle: 17

Radiance+ RGBW

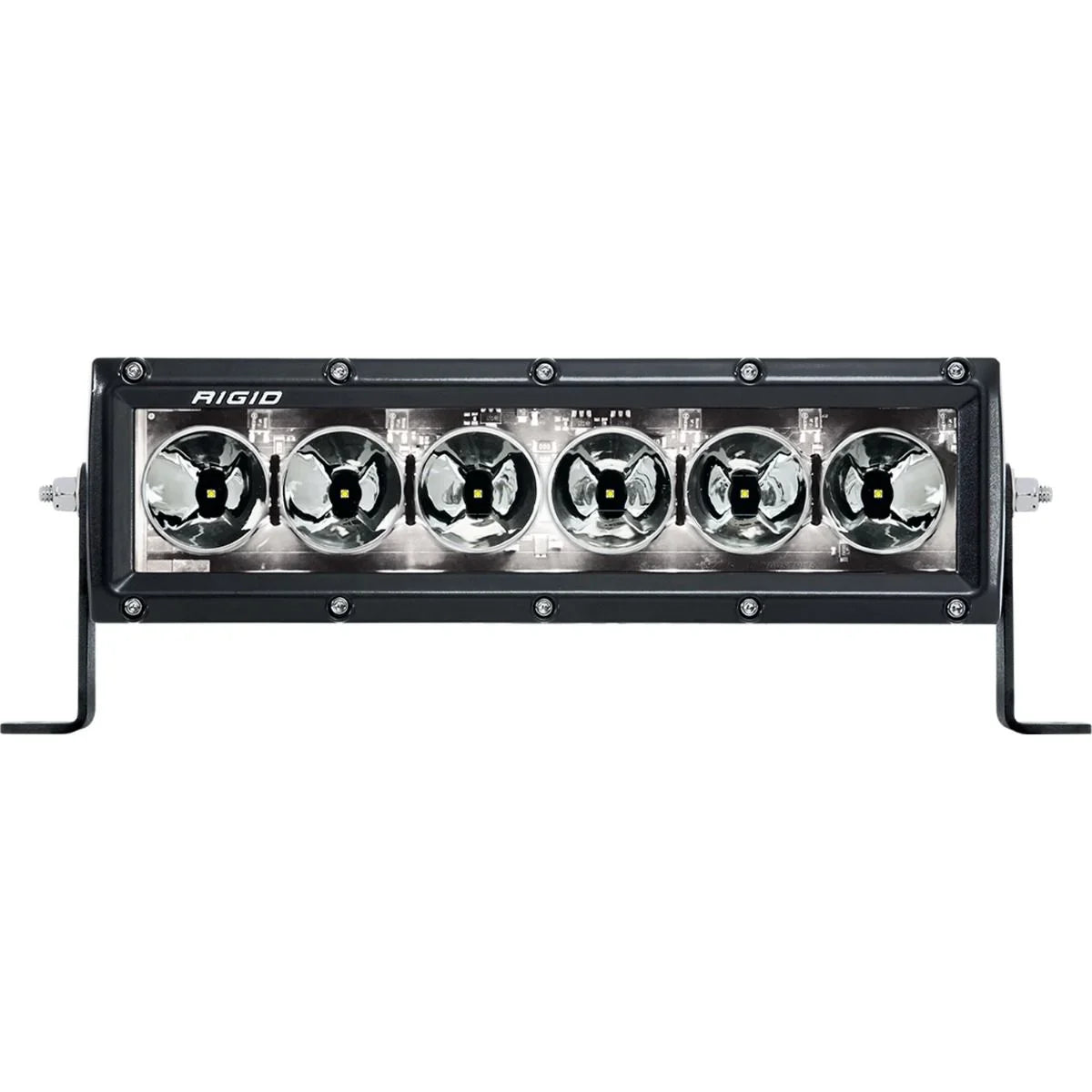

  • Radiance+ 10in RGBW

    • SKU: 210053
    • Size: 10"
    • Beam Category: SPOT DRIVE
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 3.65
    • Raw Lumens: 4752
    • Watts: 51
    • Lux @10m: 834.99
    • Beam Distance @ 1 LUX: 289
    • Beam Distance @ .25 LUX: 577.9
    • Peak Beam Intensity(cd): 83499
    • Horizontal Beam Angle: 18
    • Vertical Beam Angle: 9.4

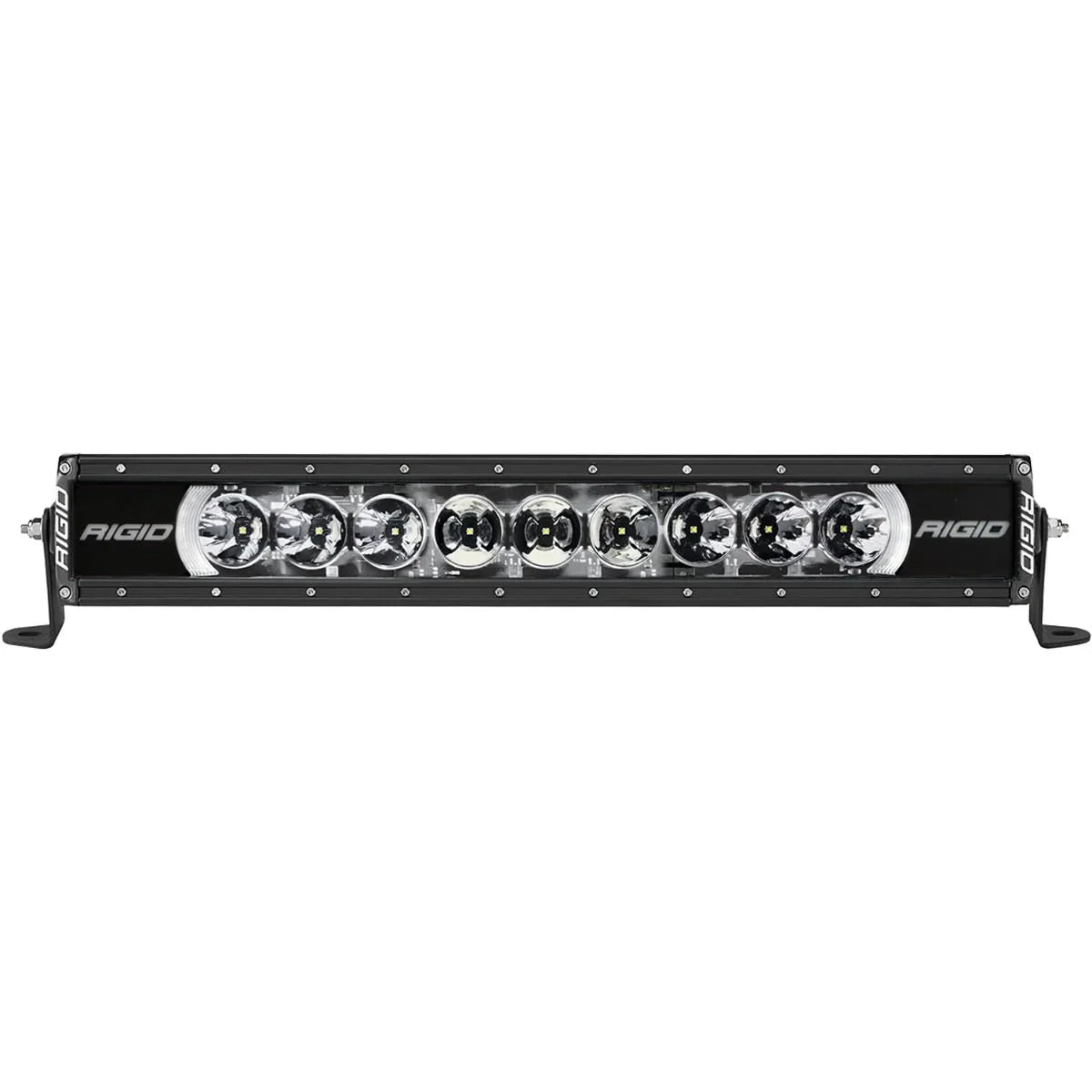

  • Radiance+ 20in RGBW

    • SKU: 220053
    • Size: 20"
    • Beam Category: SPOT DRIVE
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 5.4
    • Raw Lumens: 7128
    • Watts: 76
    • Lux @10m: 1295.36
    • Beam Distance @ 1 LUX: 359.9
    • Beam Distance @ .25 LUX: 719.8
    • Peak Beam Intensity(cd): 129536
    • Horizontal Beam Angle: 16
    • Vertical Beam Angle: 9.2

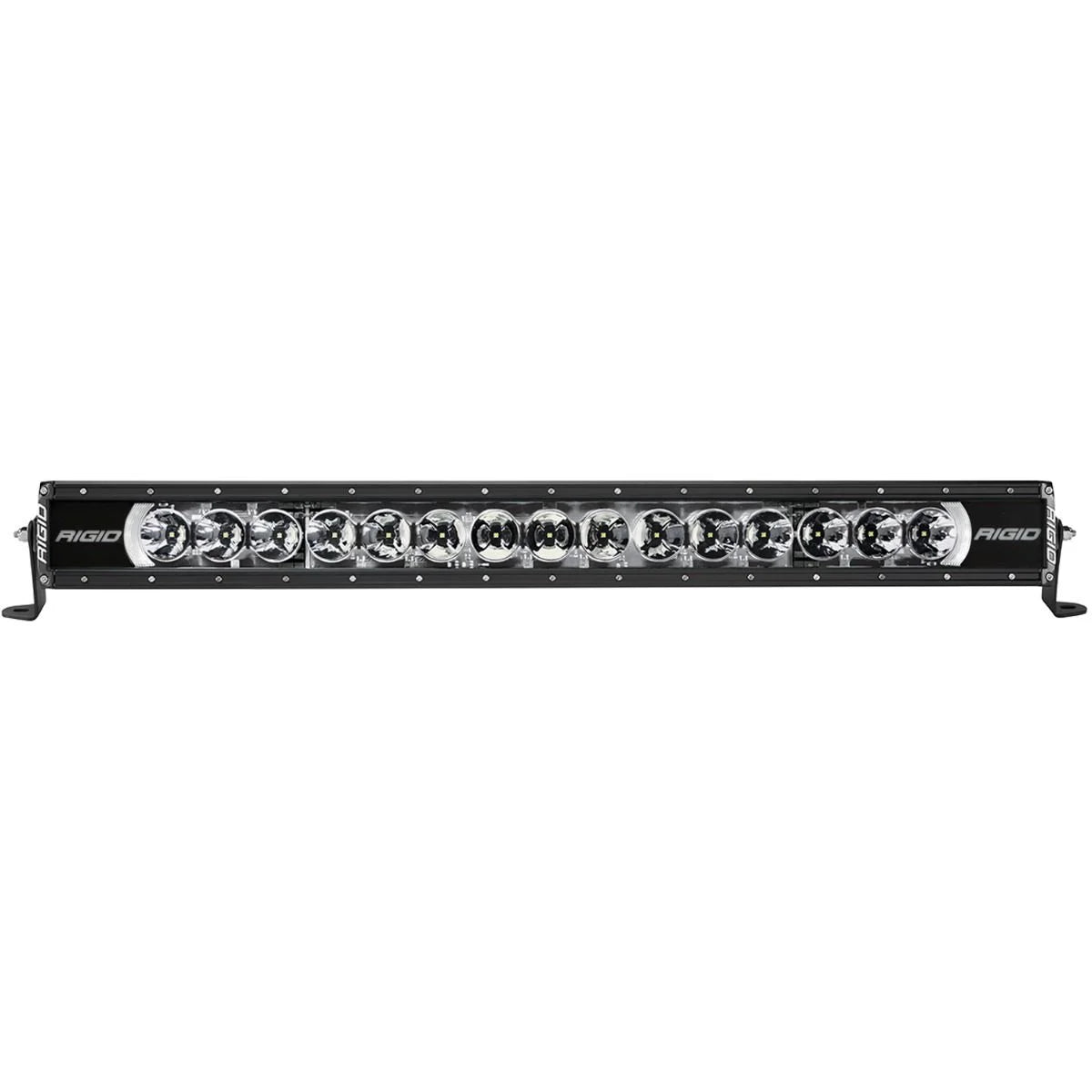

  • Radiance+ 30in RGBW

    • SKU: 230053
    • Size: 30"
    • Beam Category: SPOT DRIVE
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 8.9
    • Raw Lumens: 11880
    • Watts: 125
    • Lux @10m: 1991.08
    • Beam Distance @ 1 LUX: 446.2
    • Beam Distance @ .25 LUX: 892.4
    • Peak Beam Intensity(cd): 199108
    • Horizontal Beam Angle: 17.4
    • Vertical Beam Angle: 9.2

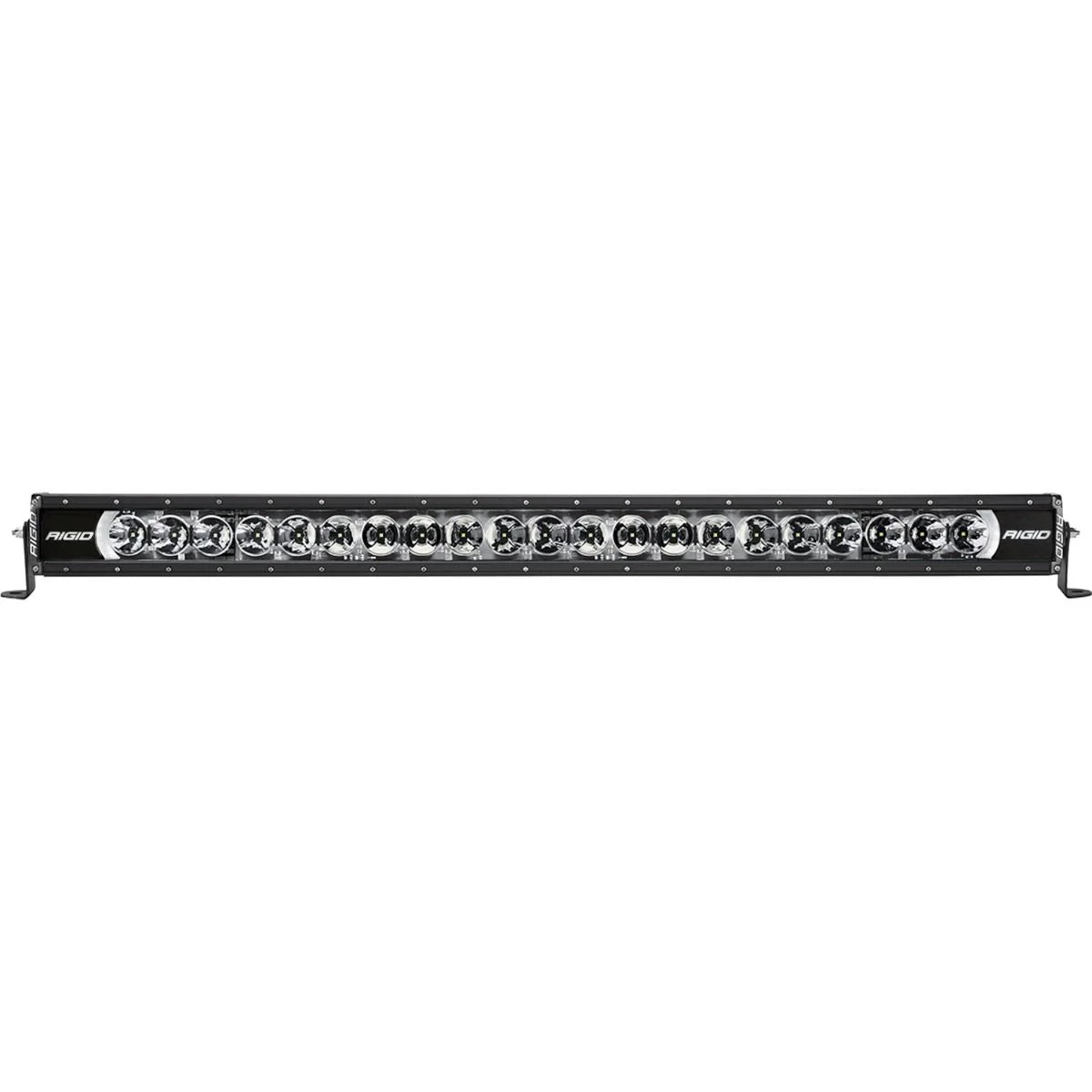

  • Radiance+ 40in RGBW

    • SKU: 240053
    • Size: 40"
    • Beam Category: SPOT DRIVE
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 12.8
    • Raw Lumens: 16632
    • Watts: 179
    • Lux @10m: 2595.99
    • Beam Distance @ 1 LUX: 509.5
    • Beam Distance @ .25 LUX: 1019
    • Peak Beam Intensity(cd): 259599
    • Horizontal Beam Angle: 18.5
    • Vertical Beam Angle: 9.1

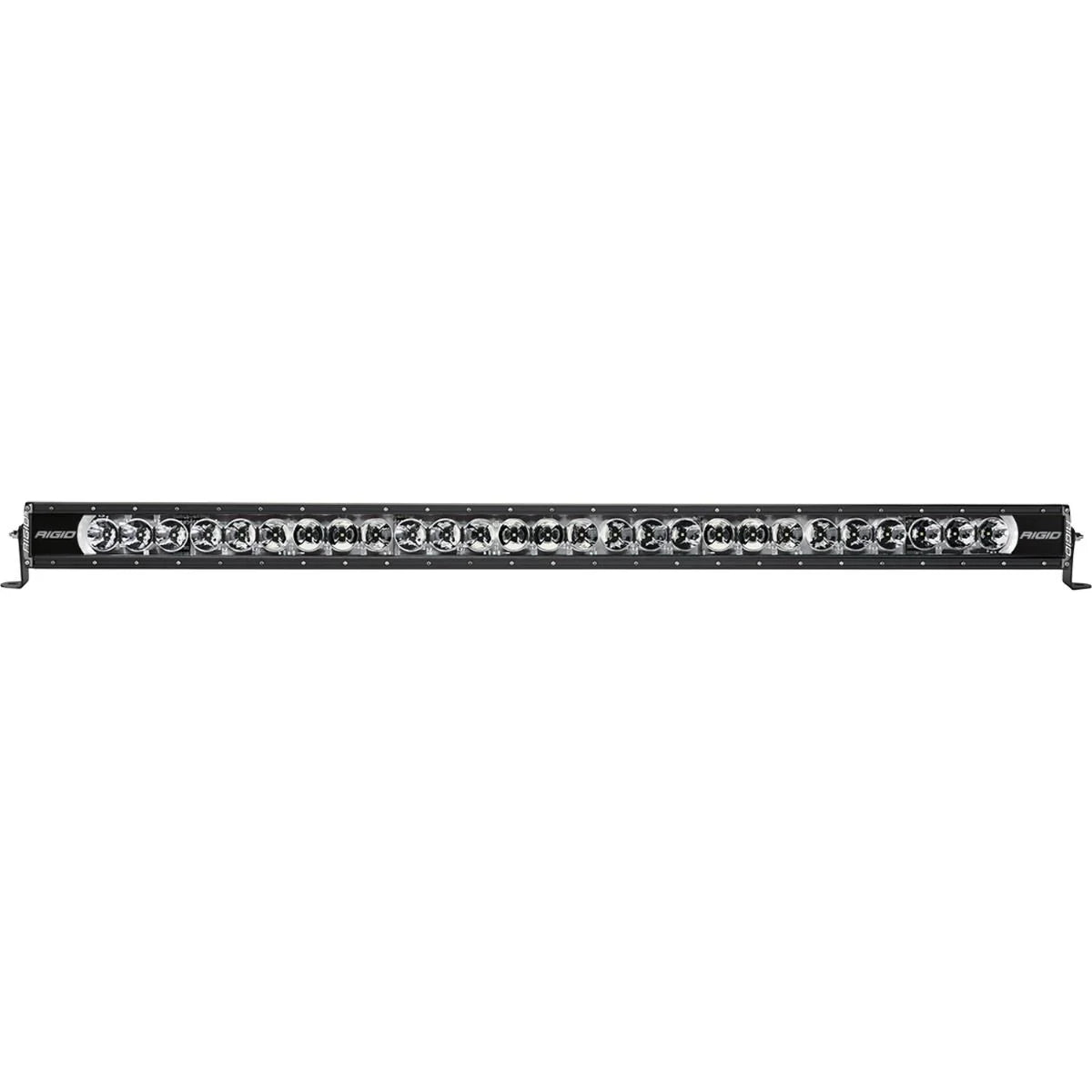

  • Radiance+ 50in RGBW

    • SKU: 250053
    • Size: 50"
    • Beam Category: SPOT DRIVE
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 16.4
    • Raw Lumens: 21384
    • Watts: 230
    • Lux @10m: 3015.09
    • Beam Distance @ 1 LUX: 549.1
    • Beam Distance @ .25 LUX: 1098.2
    • Peak Beam Intensity(cd): 301509
    • Horizontal Beam Angle: 19.7
    • Vertical Beam Angle: 9.4

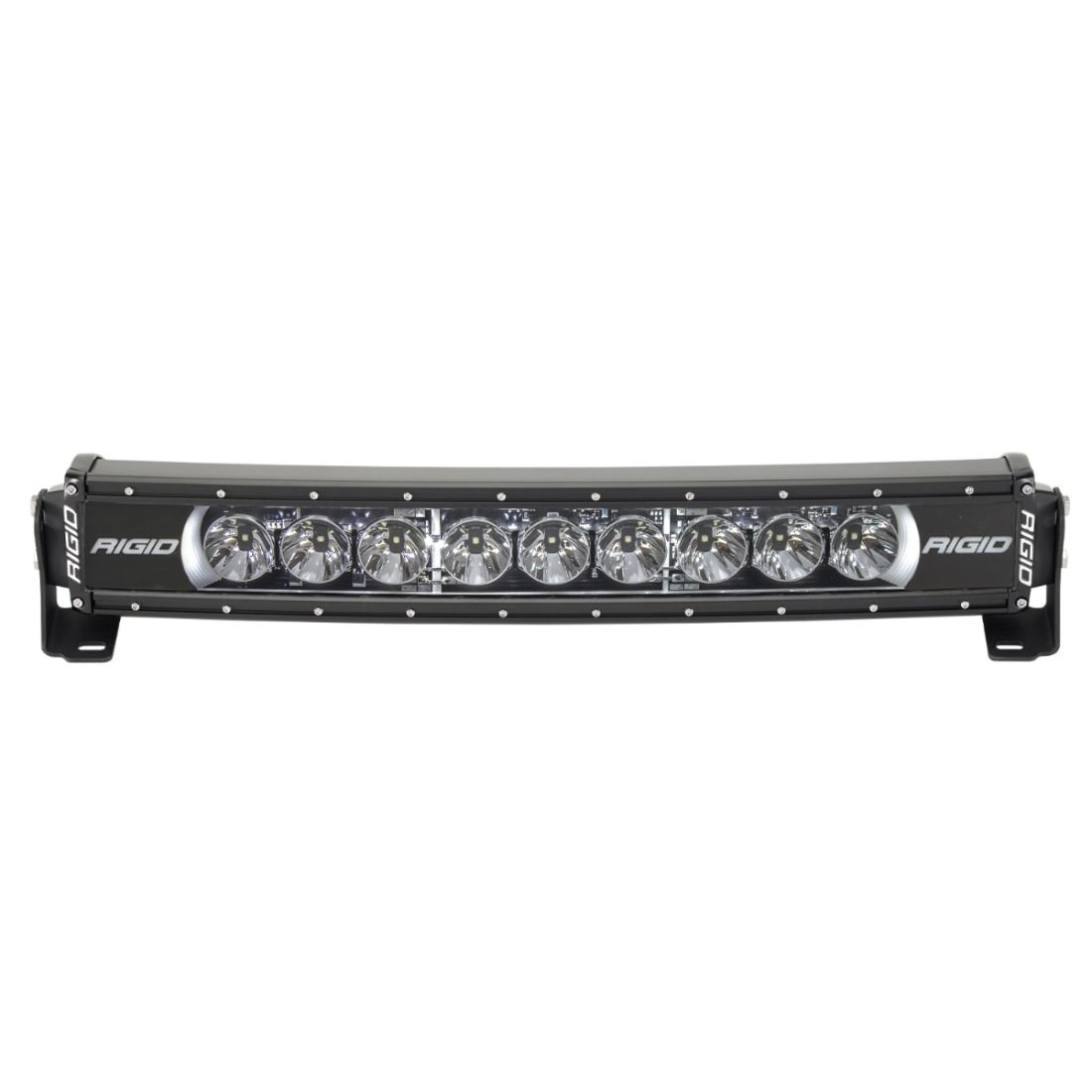

  • Radiance+ Curved 20in RGBW

    • SKU: 320053
    • Size: 20"
    • Beam Category: SPOT DRIVE
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 5.4
    • Raw Lumens: 7128
    • Watts: 46

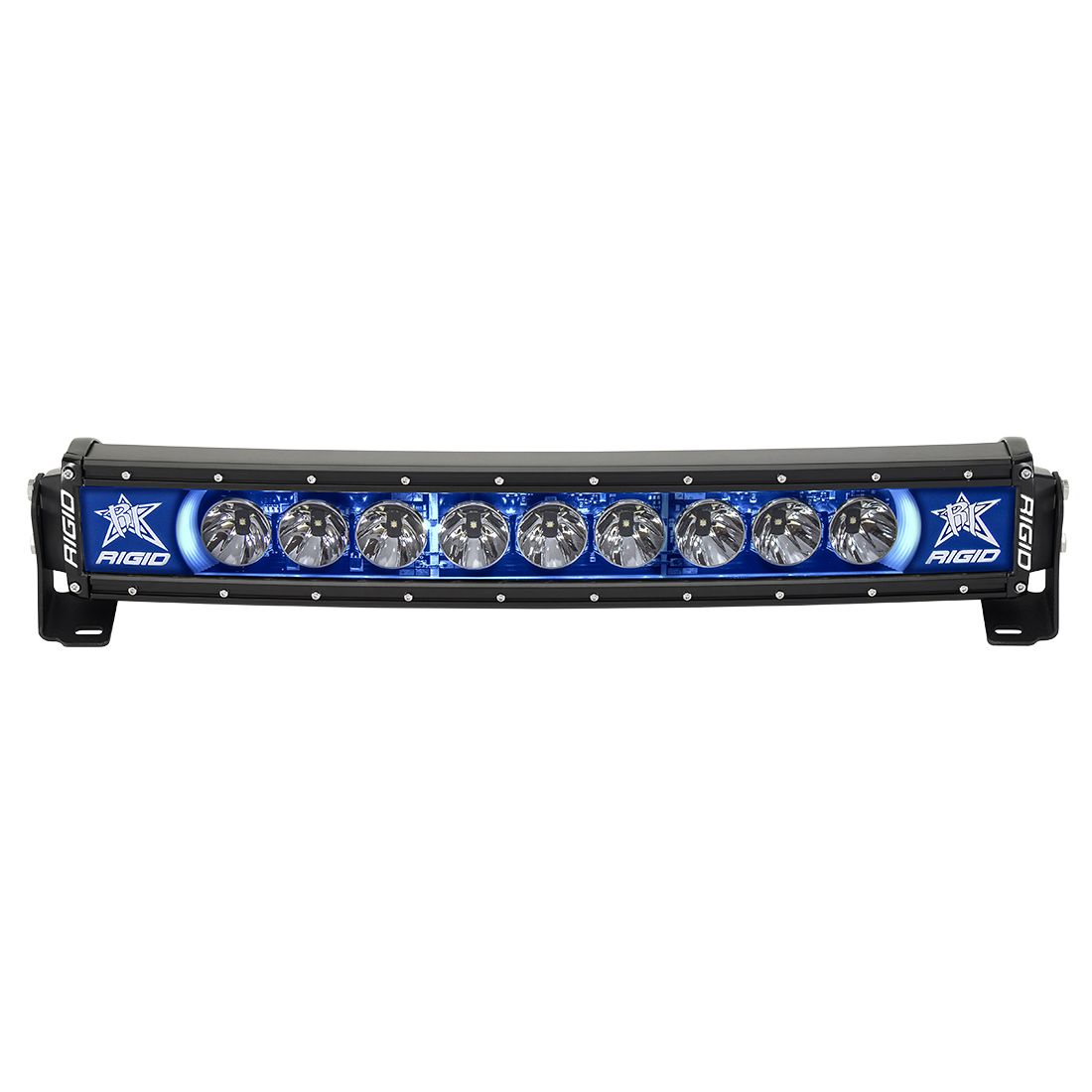

  • Radiance+ Curved 20in with Blue Backlight

    • SKU: 32001
    • Size: 20"
    • Beam Category: BROAD SPOT
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 6.57
    • Raw Lumens: 7128
    • Watts: 111
    • Lux @10m: 836.4
    • Beam Distance @ 1 LUX: 289.2
    • Beam Distance @ .25 LUX: 578.4
    • Horizontal Beam Angle: 25.1
    • Vertical Beam Angle: 11.4

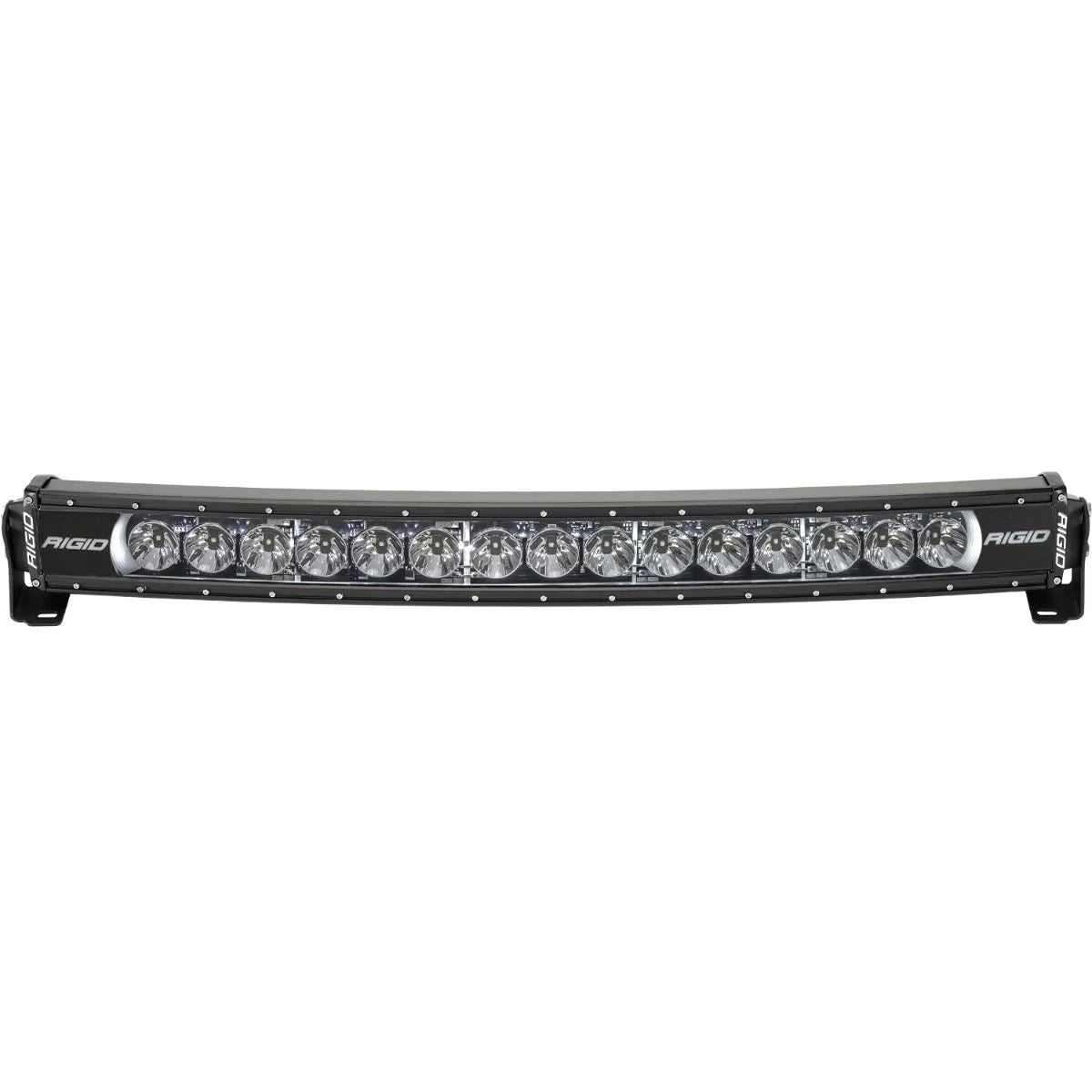

  • Radiance+ Curved 30in RGBW

    • SKU: 330053
    • Size: 30"
    • Beam Category: SPOT DRIVE
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 8.9
    • Raw Lumens: 11880
    • Watts: 125

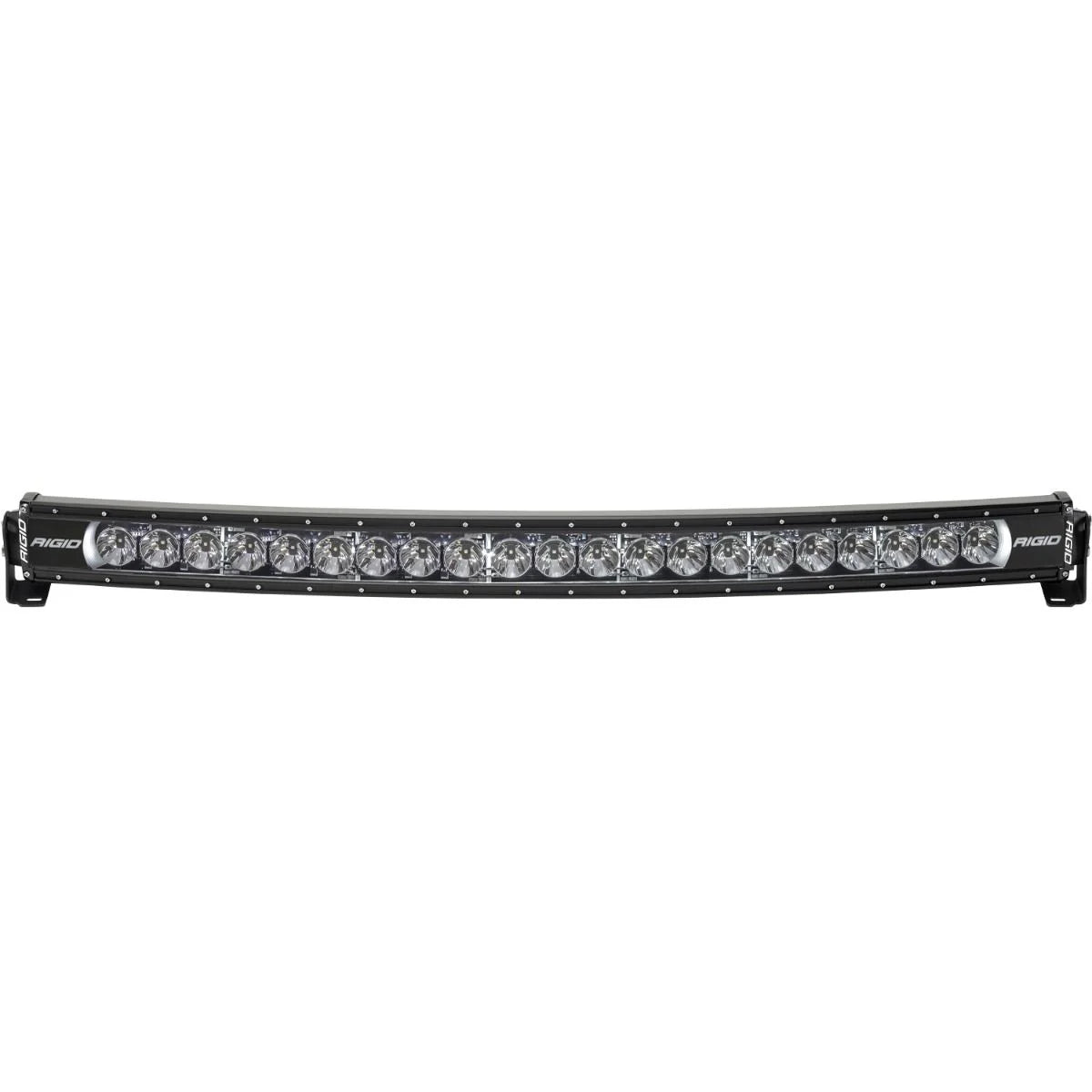

  • Radiance+ Curved 40in RGBW

    • SKU: 340053
    • Size: 40"
    • Beam Category: SPOT DRIVE
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 12.8
    • Raw Lumens: 16632
    • Watts: 179

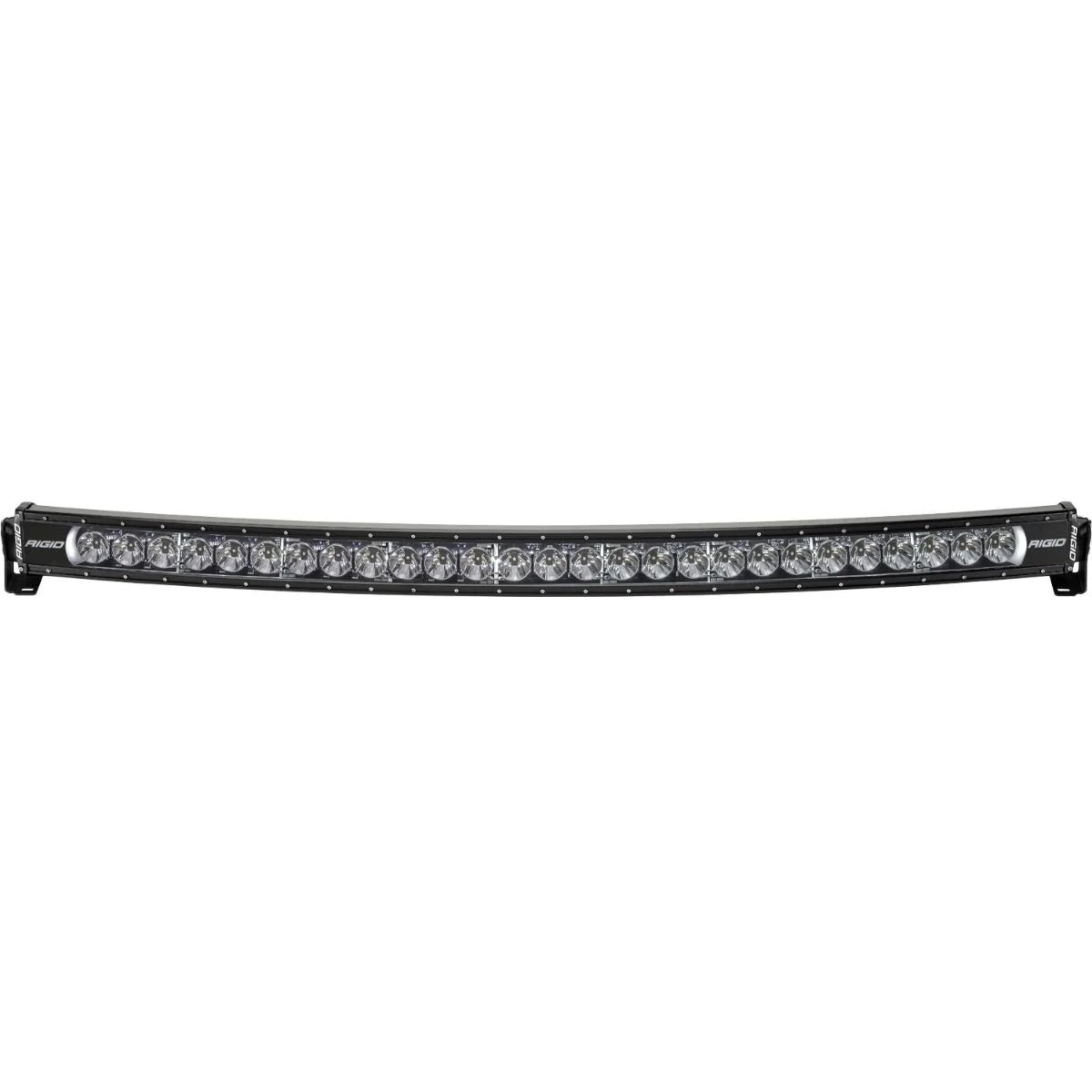

  • Radiance+ Curved 50in RGBW

    • SKU: 350053
    • Size: 50"
    • Beam Category: SPOT DRIVE
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 16.4
    • Raw Lumens: 21384
    • Watts: 230

Radiance+ SR-Series RGBW

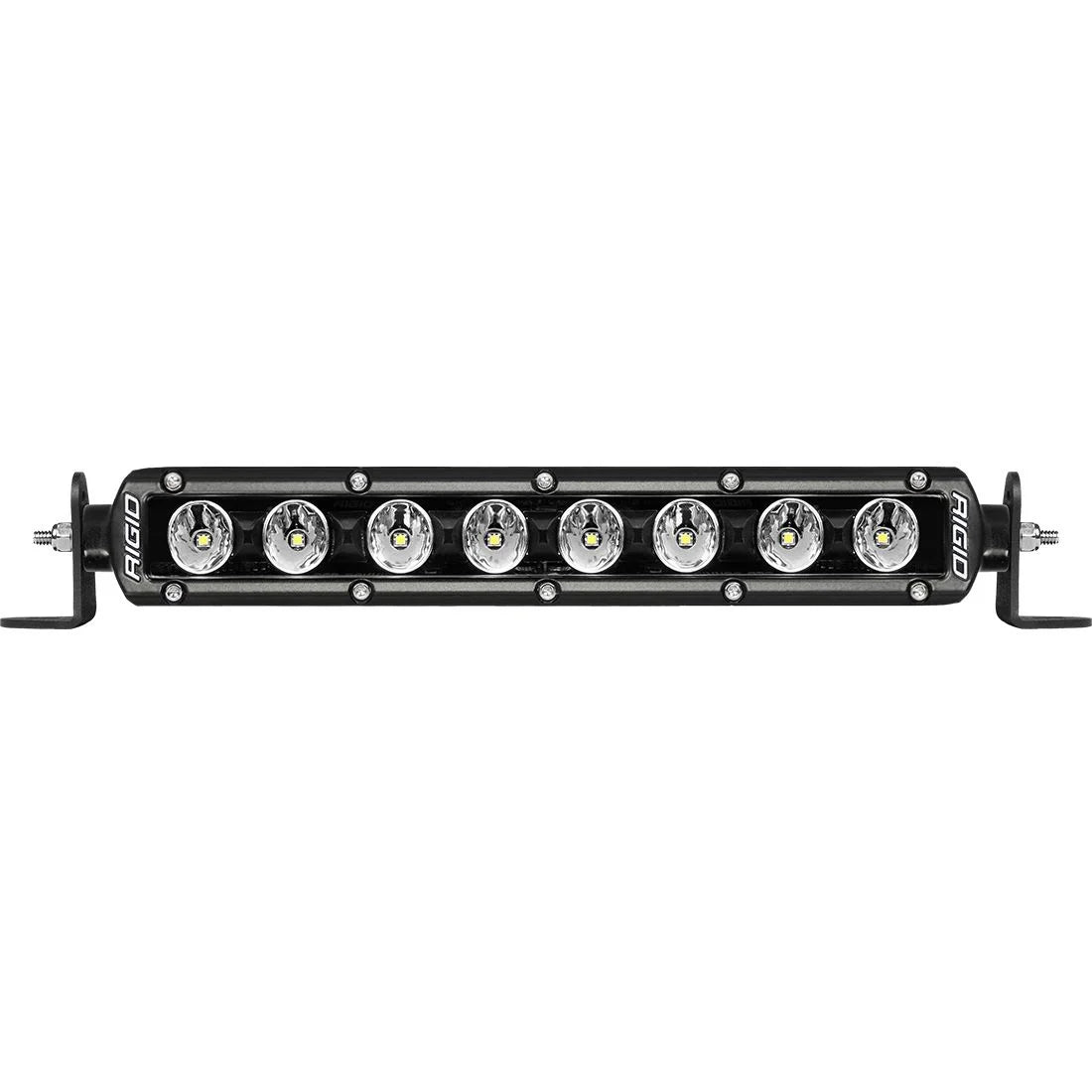

  • Radiance+ SR-Series 10in RGBW

    • SKU: 210603
    • Size: 10"
    • Beam Category: BROAD SPOT
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 2.9
    • Raw Lumens: 4896
    • Watts: 43
    • Lux @10m: 658.4
    • Beam Distance @ 1 LUX: 256.6
    • Beam Distance @ .25 LUX: 513.15
    • Peak Beam Intensity(cd): 65840
    • Horizontal Beam Angle: 23
    • Vertical Beam Angle: 18.6

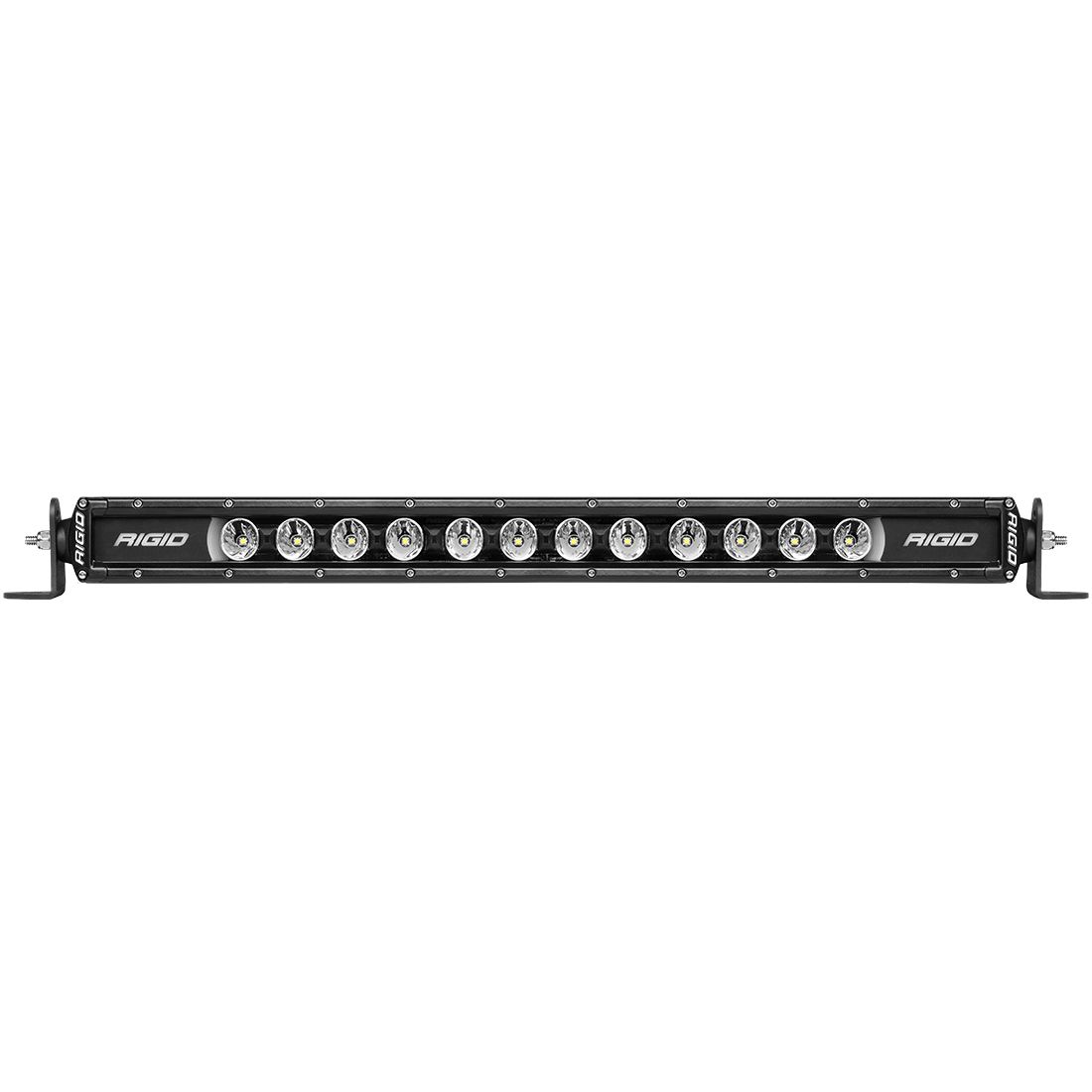

  • Radiance+ SR-Series 20in RGBW

    • SKU: 220603
    • Size: 20"
    • Beam Category: BROAD SPOT
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 6.2
    • Raw Lumens: 9792
    • Watts: 81
    • Lux @10m: 1188.95
    • Beam Distance @ 1 LUX: 344.85
    • Beam Distance @ .25 LUX: 689.6
    • Peak Beam Intensity(cd): 118895
    • Horizontal Beam Angle: 23.6
    • Vertical Beam Angle: 19.2

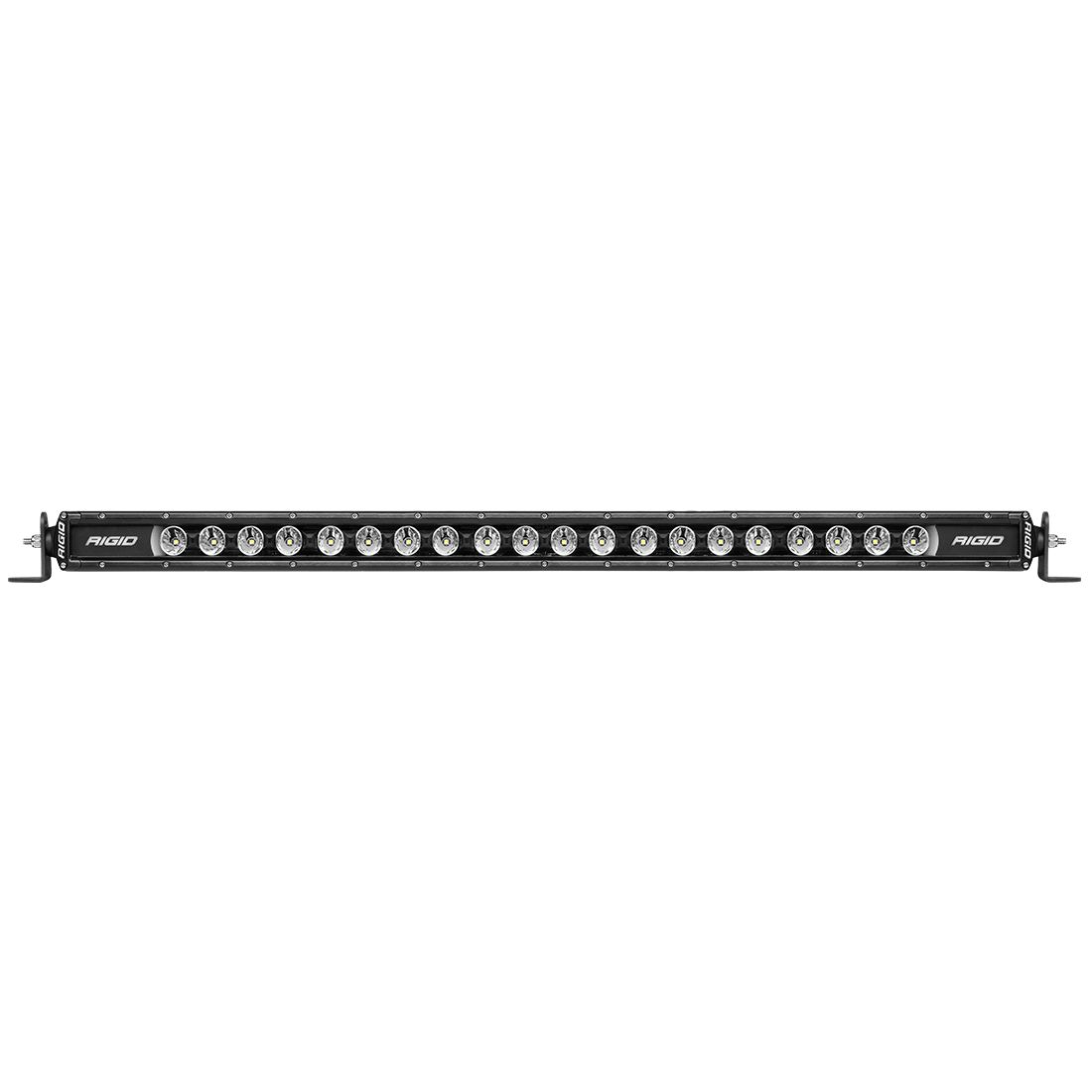

  • Radiance+ SR-Series 30in RGBW

    • SKU: 230603
    • Size: 30"
    • Beam Category: BROAD SPOT
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 10.5
    • Raw Lumens: 16320
    • Watts: 137
    • Lux @10m: 1976.42
    • Beam Distance @ 1 LUX: 444.55
    • Beam Distance @ .25 LUX: 889.15
    • Peak Beam Intensity(cd): 197642
    • Horizontal Beam Angle: 23.7
    • Vertical Beam Angle: 18.5

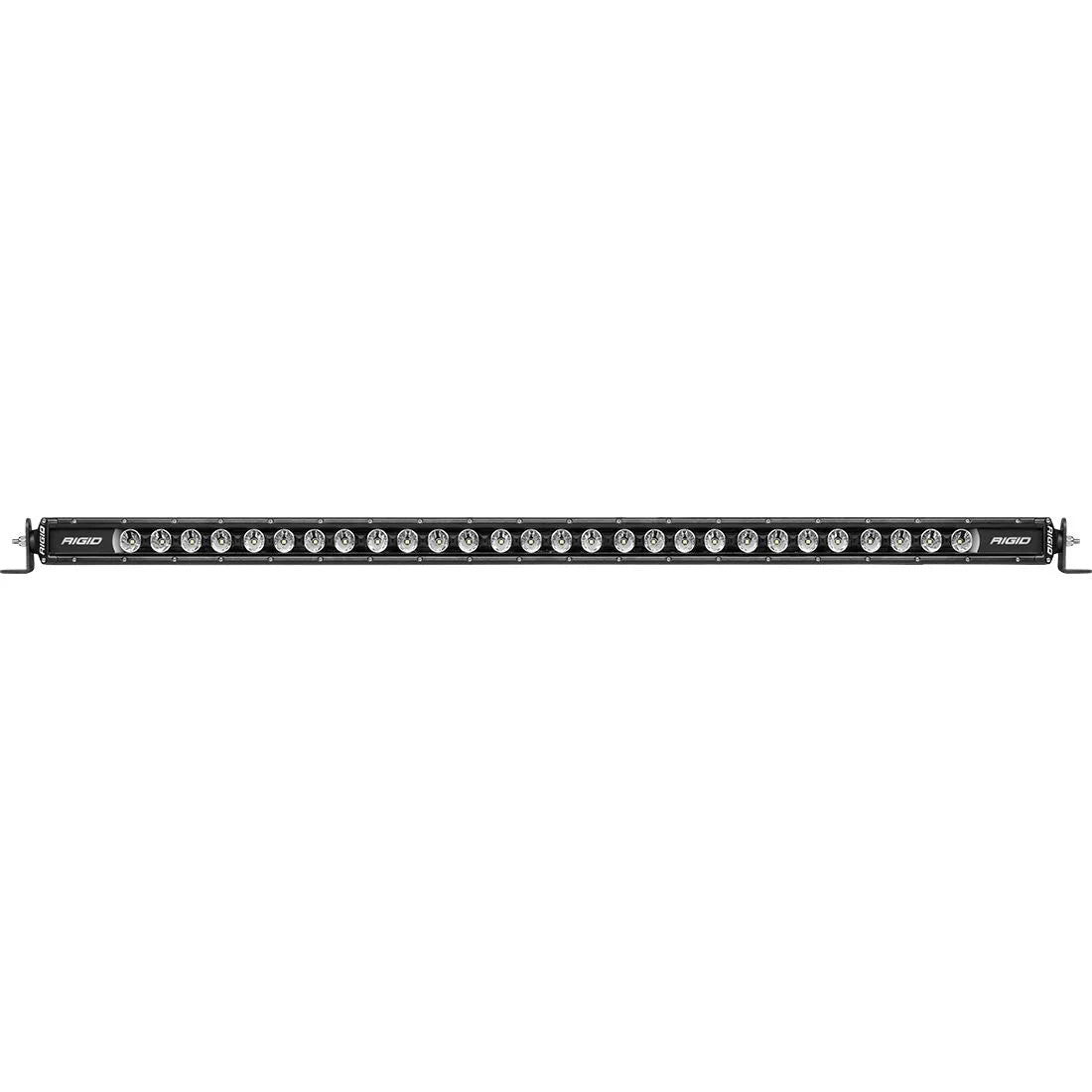

  • Radiance+ SR-Series 40in RGBW

    • SKU: 240603
    • Size: 40"
    • Beam Category: BROAD SPOT
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 14.8
    • Raw Lumens: 22848
    • Watts: 197
    • Lux @10m: 2800.68
    • Beam Distance @ 1 LUX: 529.2
    • Beam Distance @ .25 LUX: 1058.45
    • Peak Beam Intensity(cd): 280068
    • Horizontal Beam Angle: 24
    • Vertical Beam Angle: 18.3

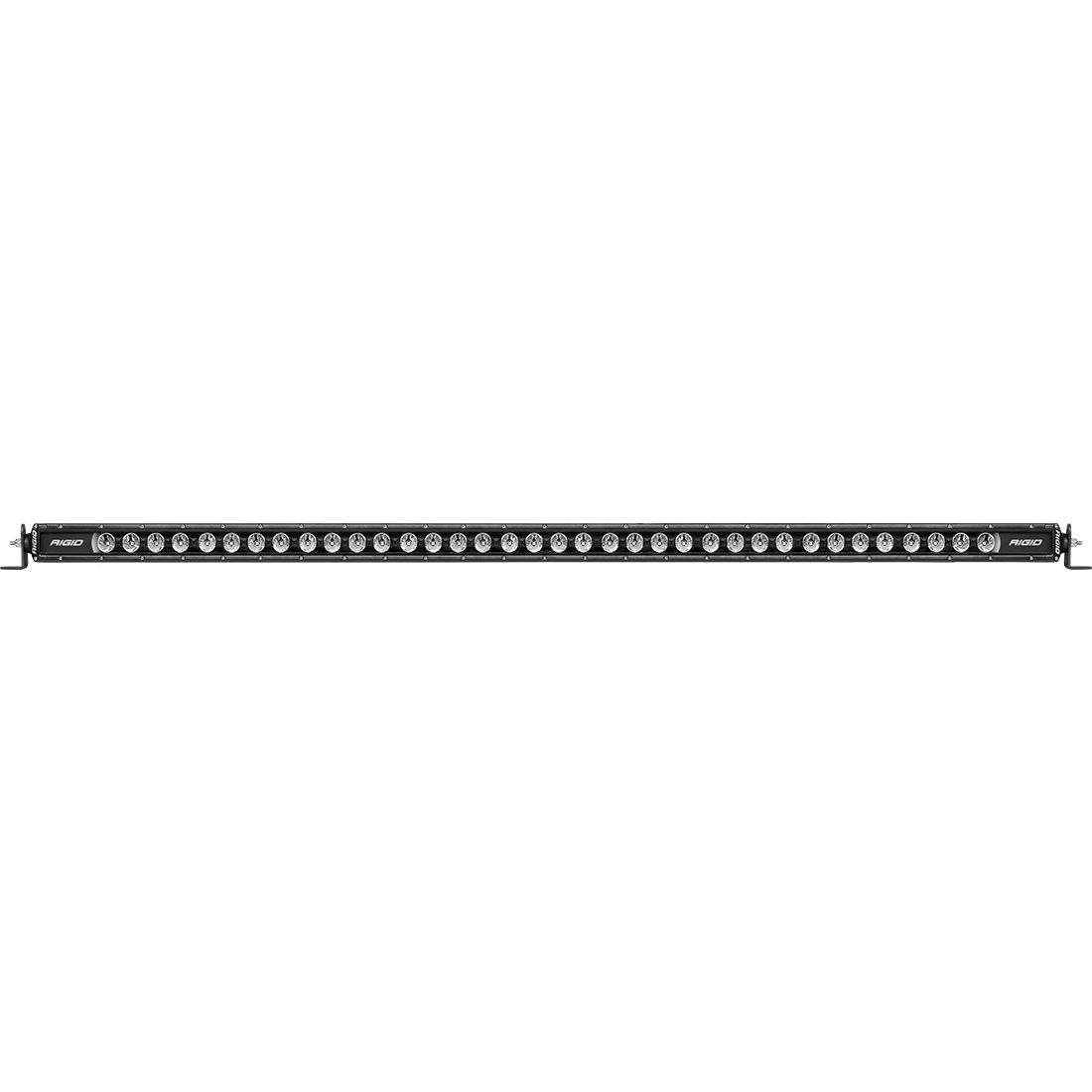

  • Radiance+ SR-Series 50in RGBW

    • SKU: 250603
    • Size: 50"
    • Beam Category: BROAD SPOT
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 19.1
    • Raw Lumens: 29376
    • Watts: 262
    • Lux @10m: 3404.5
    • Beam Distance @ 1 LUX: 565.45
    • Beam Distance @ .25 LUX: 1166.95
    • Peak Beam Intensity(cd): 340450
    • Horizontal Beam Angle: 24.8
    • Vertical Beam Angle: 19

Revolve

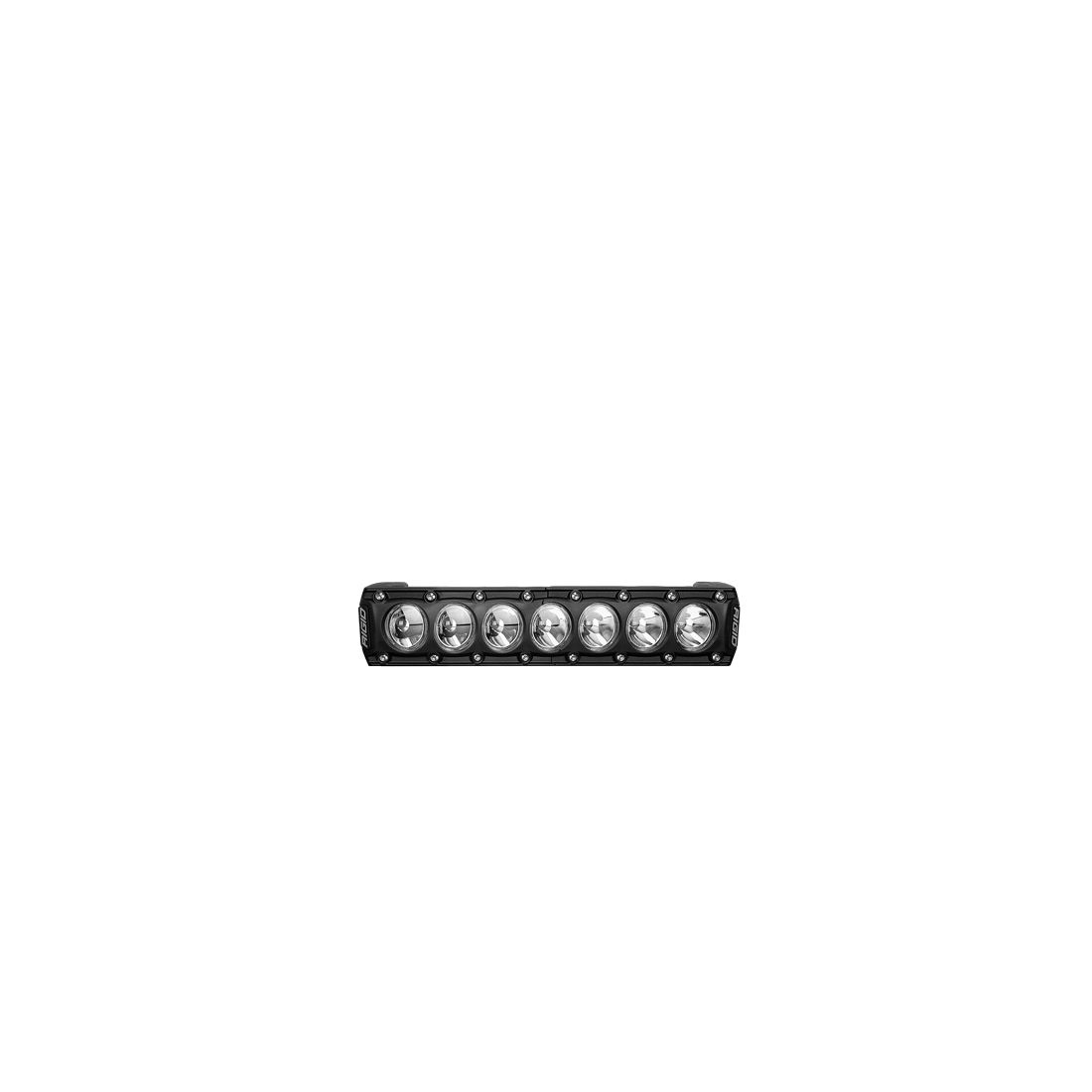

  • Revolve 10in Bar with White

    • SKU: 410613
    • Size: 10"
    • Beam Category: BROAD SPOT
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 2.9
    • Raw Lumens: 5082
    • Watts: 47
    • Lux @10m: 3404.5
    • Beam Distance @ 1 LUX: 970.44
    • Beam Distance @ .25 LUX: 623
    • Peak Beam Intensity(cd): 97044
    • Horizontal Beam Angle: 19.9
    • Vertical Beam Angle: 19

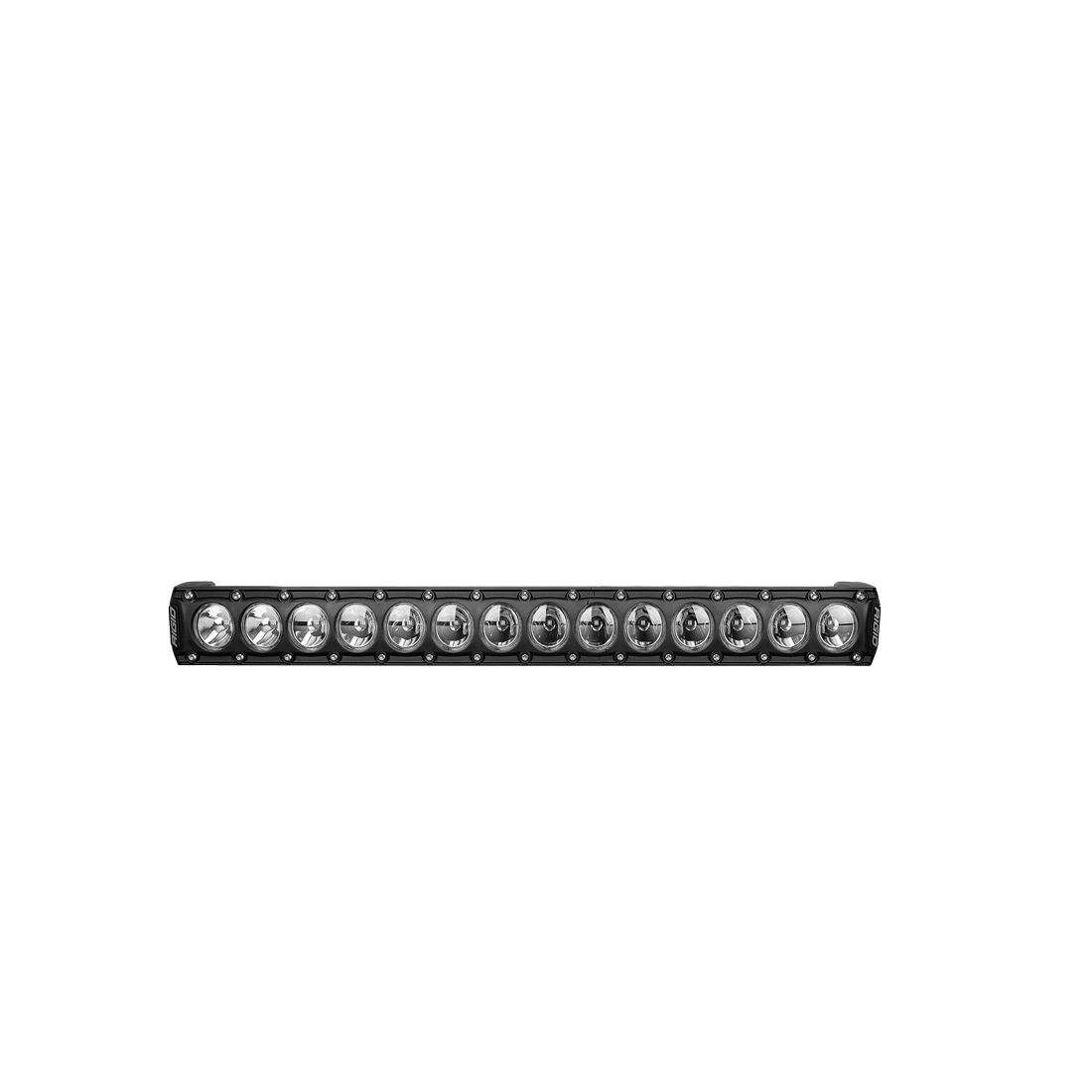

  • Revolve 20in Bar with White

    • SKU: 420613
    • Size: 20"
    • Beam Category: BROAD SPOT
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 6.3
    • Raw Lumens: 10164
    • Watts: 84
    • Lux @10m: 1851.5
    • Beam Distance @ 1 LUX: 430.3
    • Beam Distance @ .25 LUX: 860.6
    • Peak Beam Intensity(cd): 185150
    • Horizontal Beam Angle: 20.5
    • Vertical Beam Angle: 19.8

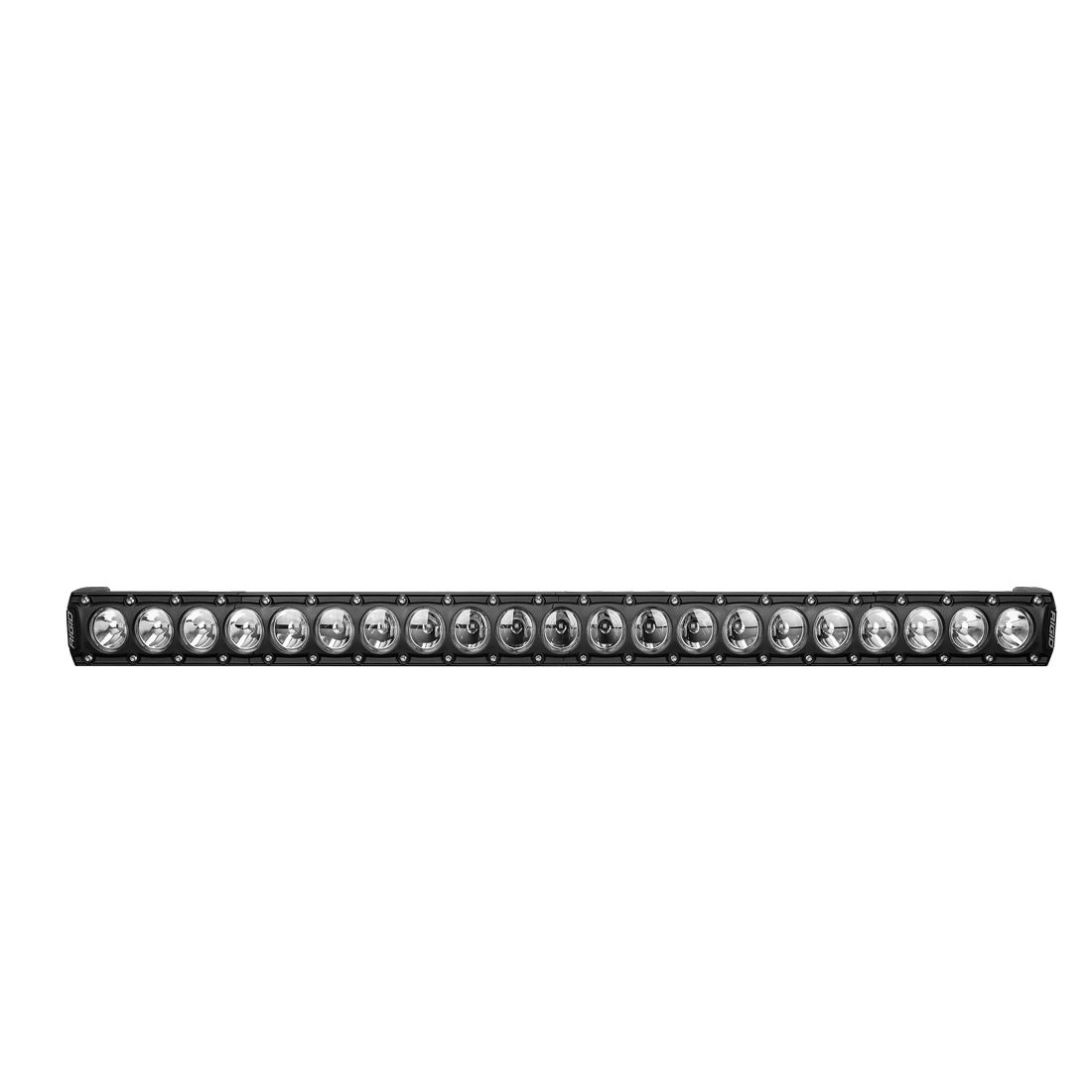

  • Revolve 30in Bar with White

    • SKU: 430613
    • Size: 30"
    • Beam Category: BROAD SPOT
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 9.4
    • Raw Lumens: 15246
    • Watts: 126
    • Lux @10m: 2591.76
    • Beam Distance @ 1 LUX: 509.1
    • Beam Distance @ .25 LUX: 1018.2
    • Peak Beam Intensity(cd): 259176
    • Horizontal Beam Angle: 19.9
    • Vertical Beam Angle: 19.3

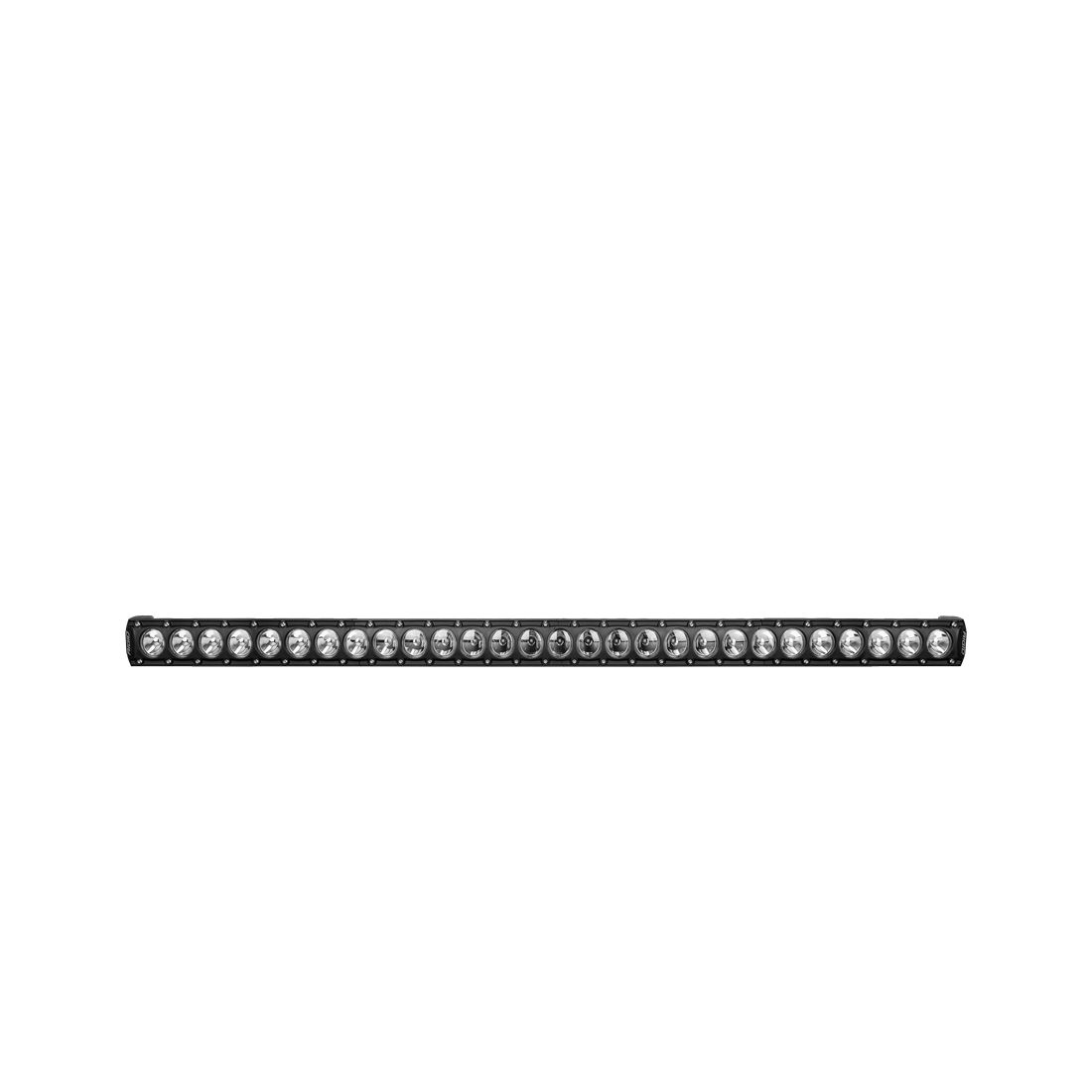

  • Revolve 40in Bar with White

    • SKU: 440613
    • Size: 40"
    • Beam Category: BROAD SPOT
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 13
    • Raw Lumens: 20328
    • Watts: 169
    • Lux @10m: 3578.83
    • Beam Distance @ 1 LUX: 598.2
    • Beam Distance @ .25 LUX: 1196.5
    • Peak Beam Intensity(cd): 357883
    • Horizontal Beam Angle: 22
    • Vertical Beam Angle: 19.2

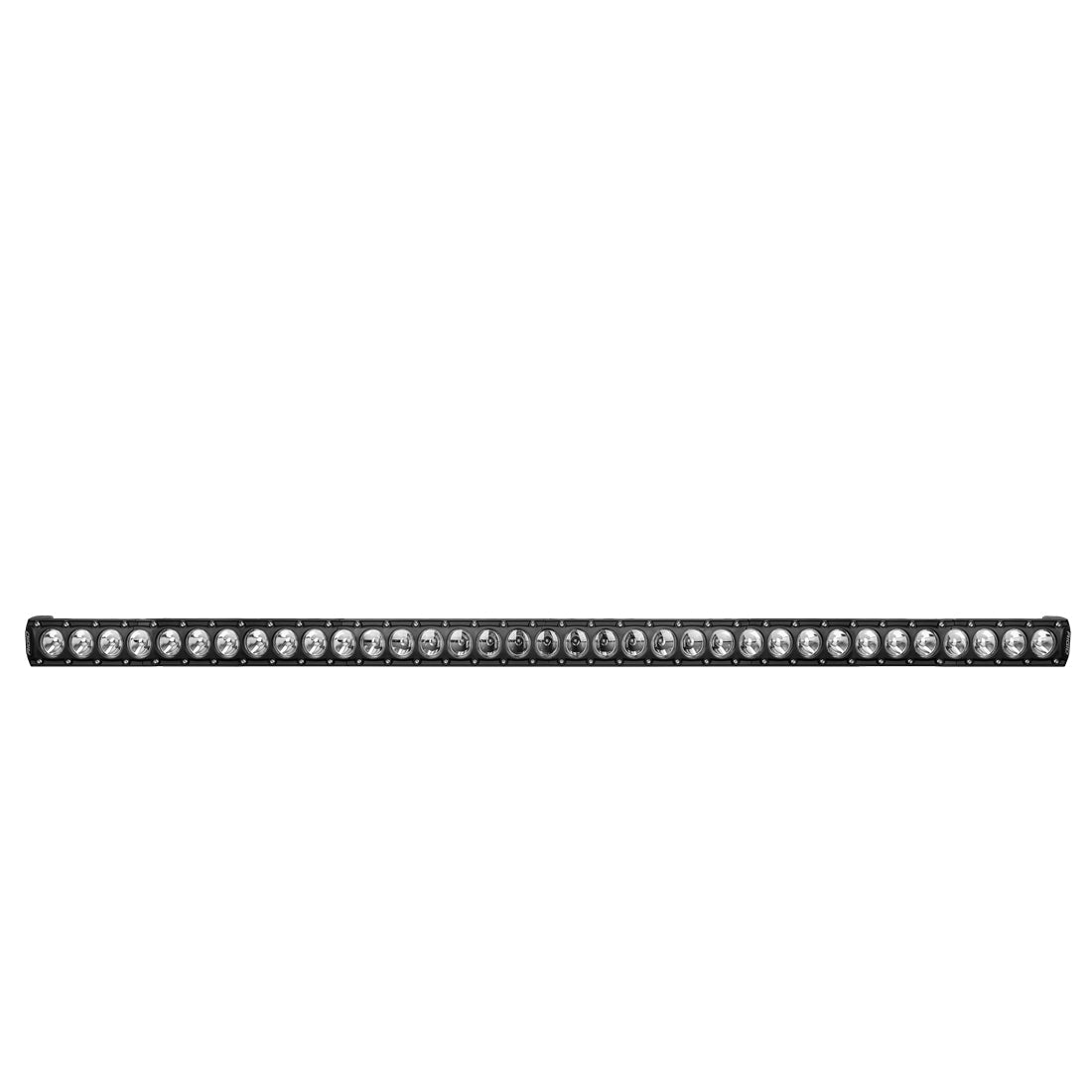

  • Revolve 50in Bar with White

    • SKU: 450613
    • Size: 50"
    • Beam Category: BROAD SPOT
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 17
    • Raw Lumens: 25410
    • Watts: 217
    • Lux @10m: 4097.23
    • Beam Distance @ 1 LUX: 640.1
    • Beam Distance @ .25 LUX: 1280.2
    • Peak Beam Intensity(cd): 409723
    • Horizontal Beam Angle: 22.8
    • Vertical Beam Angle: 18.2

RDS-Series

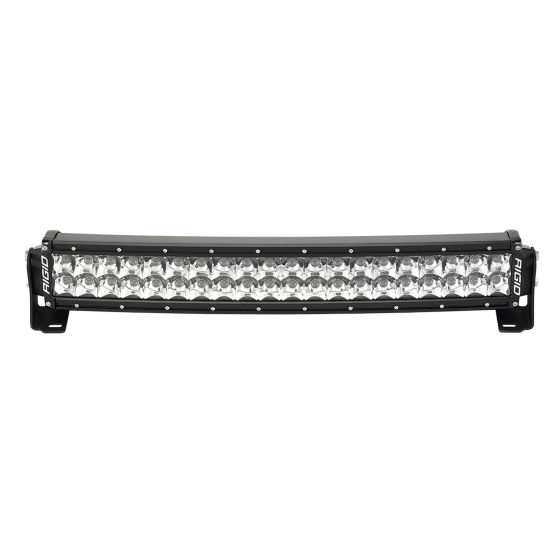

  • RDS-Series PRO 20in Spot

    • SKU: 882213
    • Size:20"
    • Beam Category: SPOT
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 16
    • Raw Lumens: 24420
    • Watts: 224
    • Lux @10m: 1826.5
    • Beam Distance @ 1 LUX: 427.4
    • Beam Distance @ .25 LUX: 855
    • Horizontal Beam Angle: 24.6
    • Vertical Beam Angle: 17.9

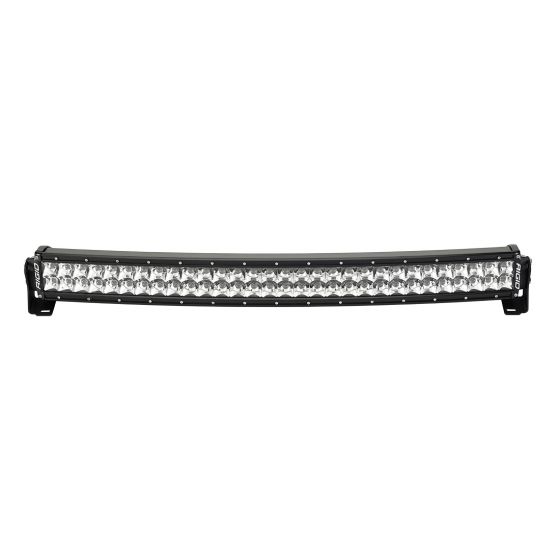

  • RDS-Series PRO 30in Spot

    • SKU: 883213
    • Size: 30"
    • Beam Category: SPOT
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 18.7
    • Raw Lumens: 31680
    • Watts: 262
    • Lux @10m: 2050.3
    • Beam Distance @ 1 LUX: 453
    • Beam Distance @ .25 LUX: 905.6
    • Horizontal Beam Angle: 31.2
    • Vertical Beam Angle: 17.6

  • RDS-Series PRO 40in Spot

    • SKU: 884213
    • Size: 40"
    • Beam Category: SPOT
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 19.6
    • Raw Lumens: 60720
    • Watts: 274
    • Lux @10m: 2566
    • Beam Distance @ 1 LUX: 507
    • Beam Distance @ .25 LUX: 1013
    • Horizontal Beam Angle: 39
    • Vertical Beam Angle: 18.5

  • RDS-Series PRO 50in Spot

    • SKU: 885213
    • Size: 50"
    • Beam Category: SPOT
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 24.3
    • Raw Lumens: 75900
    • Watts: 340
    • Lux @10m: 1850
    • Beam Distance @ 1 LUX: 430
    • Beam Distance @ .25 LUX: 860
    • Horizontal Beam Angle: 45.2
    • Vertical Beam Angle: 18.1

  • RDS-Series PRO 54in Spot

    • SKU: 886213
    • Size: 54"
    • Beam Category: SPOT
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 27.4
    • Raw Lumens: 81972
    • Watts: 384
    • Lux @10m: 2089
    • Beam Distance @ 1 LUX: 457
    • Beam Distance @ .25 LUX: 914
    • Horizontal Beam Angle: 47
    • Vertical Beam Angle: 17.5

RDS SR-Series

  • RDS SR-Series PRO 30in Spot

    • SKU: 88331
    • Size: 30"
    • Beam Category: SPOT
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 11.4
    • Raw Lumens: 23760
    • Watts: 176
    • Lux @10m: 1914
    • Beam Distance @ 1 LUX: 438
    • Beam Distance @ .25 LUX: 875
    • Peak Beam Intensity(cd): 191382
    • Horizontal Beam Angle: 32.1
    • Vertical Beam Angle: 17.1

  • RDS SR-Series PRO 40in Spot

    • SKU: 88431
    • Size: 40"
    • Beam Category: SPOT
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 16.4
    • Raw Lumens: 31680
    • Watts: 229
    • Lux @10m: 2062
    • Beam Distance @ 1 LUX: 454
    • Beam Distance @ .25 LUX: 908
    • Peak Beam Intensity(cd): 206176
    • Horizontal Beam Angle: 38.3
    • Vertical Beam Angle: 17.1

  • RDS SR-Series PRO 50in Spot

    • SKU: 88531
    • Size: 50"
    • Beam Category: SPOT
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 16.4
    • Raw Lumens: 39600
    • Watts: 285
    • Lux @10m: 1960
    • Beam Distance @ 1 LUX: 443
    • Beam Distance @ .25 LUX: 885
    • Peak Beam Intensity(cd): 195982
    • Horizontal Beam Angle: 44.6
    • Vertical Beam Angle: 17.1

SR-Series

  • SR-Series PRO 6in Flood

    • SKU: 906113
    • Size: 6"
    • Beam Category: Flood
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 3.43
    • Raw Lumens: 4752
    • Watts: 48
    • Lux @10m: 1914
    • Beam Distance @ 1 LUX: 101.3
    • Beam Distance @ .25 LUX: 202.6
    • Peak Beam Intensity(cd): 10262
    • Horizontal Beam Angle: 48.1
    • Vertical Beam Angle: 41.1

  • SR-Series PRO 6in Driving

    • SKU: 906613
    • Size: 6"
    • Beam Category: Driving
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 4.93
    • Raw Lumens: 7128
    • Watts: 69
    • Lux @10m: 434.09
    • Beam Distance @ 1 LUX: 208.3
    • Beam Distance @ .25 LUX: 416.7
    • Peak Beam Intensity(cd): 43409
    • Horizontal Beam Angle: 47.9
    • Vertical Beam Angle: 22.5

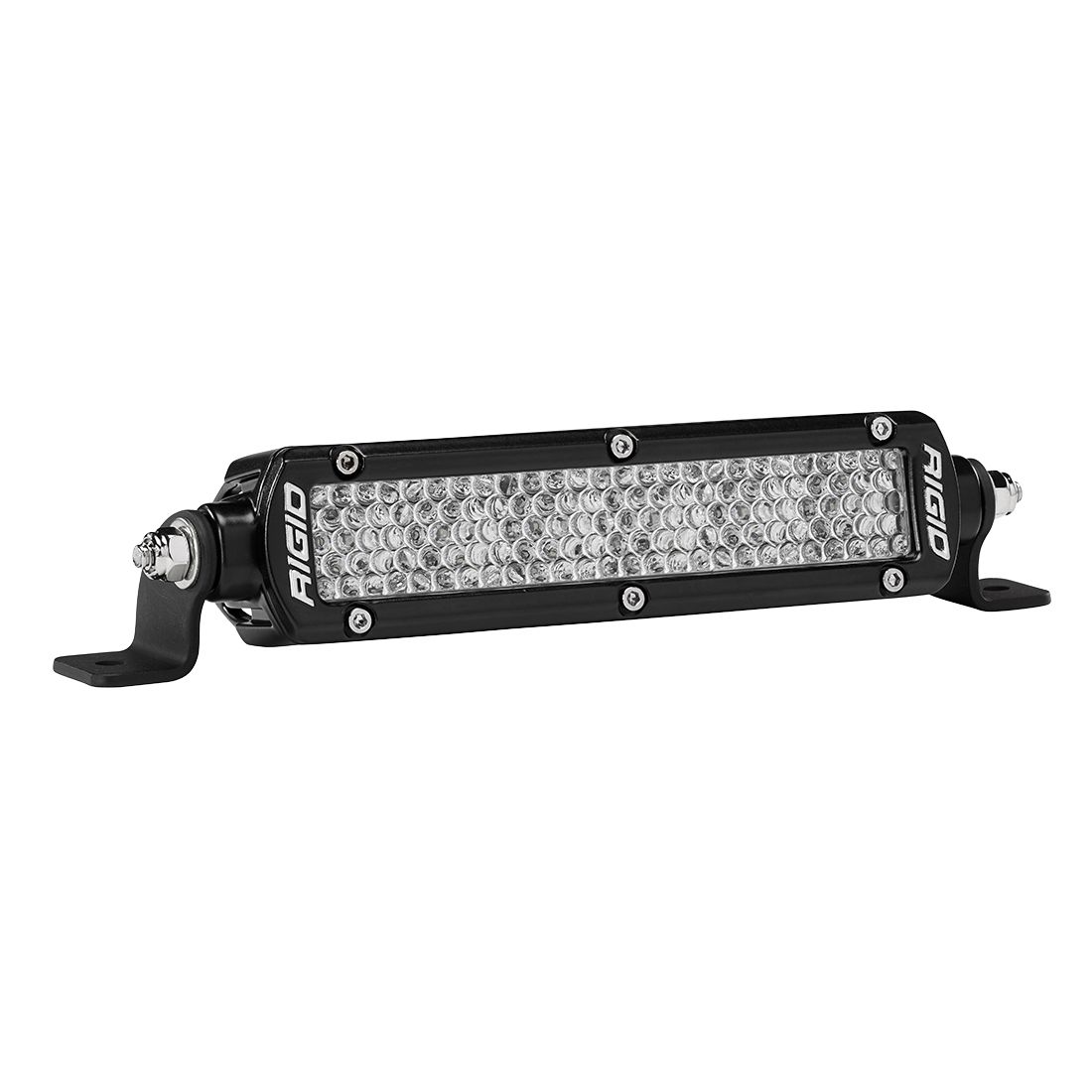

  • SR-Series PRO 6in Diffused

    • SKU: 906513
    • Size: 6"
    • Beam Category: Flood Diffused
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 3.36
    • Raw Lumens: 4752
    • Watts: 47
    • Lux @10m: 21.26
    • Beam Distance @ 1 LUX: 46.1
    • Beam Distance @ .25 LUX: 92.2
    • Peak Beam Intensity(cd): 2126
    • Horizontal Beam Angle: 101.8
    • Vertical Beam Angle: 89.8

  • SR-Series PRO 6in Spot/Flood Combo

    • SKU: 906313
    • Size: 6"
    • Beam Category: Spot Flood Combo
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 3.43
    • Raw Lumens: 4752
    • Watts: 48
    • Lux @10m: 443.29
    • Beam Distance @ 1 LUX: 210.5
    • Beam Distance @ .25 LUX: 421.29
    • Peak Beam Intensity(cd): 44329
    • Horizontal Beam Angle: 24.1
    • Vertical Beam Angle: 21.7

  • SR-Series PRO 6in Spot

    • SKU: 906213
    • Size: 6"
    • Beam Category: Spot
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 3.43
    • Raw Lumens: 4752
    • Watts: 48
    • Lux @10m: 1110.04
    • Beam Distance @ 1 LUX: 333.2
    • Beam Distance @ .25 LUX: 666.3
    • Peak Beam Intensity(cd): 111004
    • Horizontal Beam Angle: 16.2
    • Vertical Beam Angle: 15.2

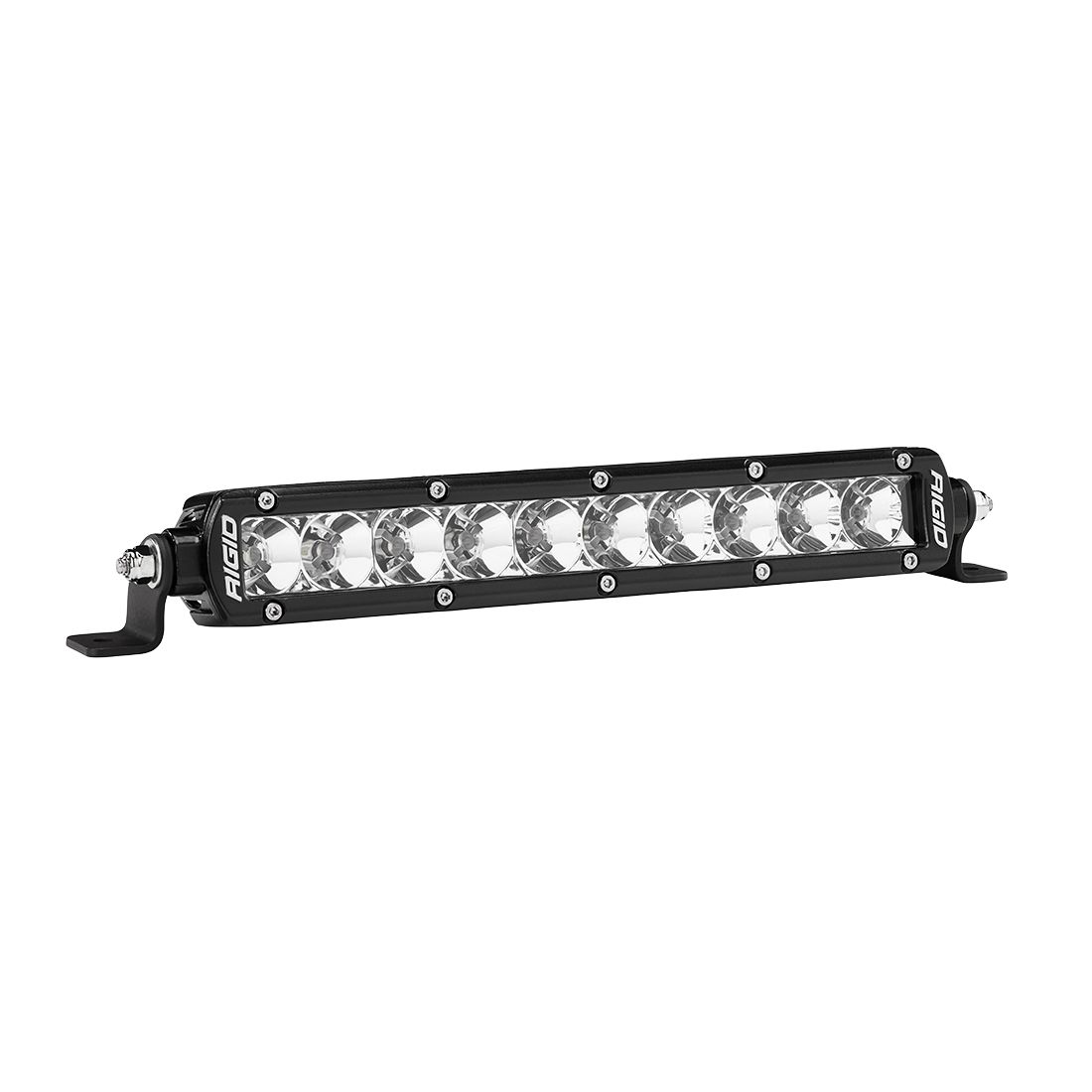

  • SR-Series PRO 10in Flood

    • SKU: 910113
    • Size: 10"
    • Beam Category: Flood
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 4.21
    • Raw Lumens: 7920
    • Watts: 61
    • Lux @10m: 1394.11
    • Beam Distance @ 1 LUX: 373.4
    • Beam Distance @ .25 LUX: 746.8
    • Peak Beam Intensity(cd): 139411
    • Horizontal Beam Angle: 17.2
    • Vertical Beam Angle: 16.1

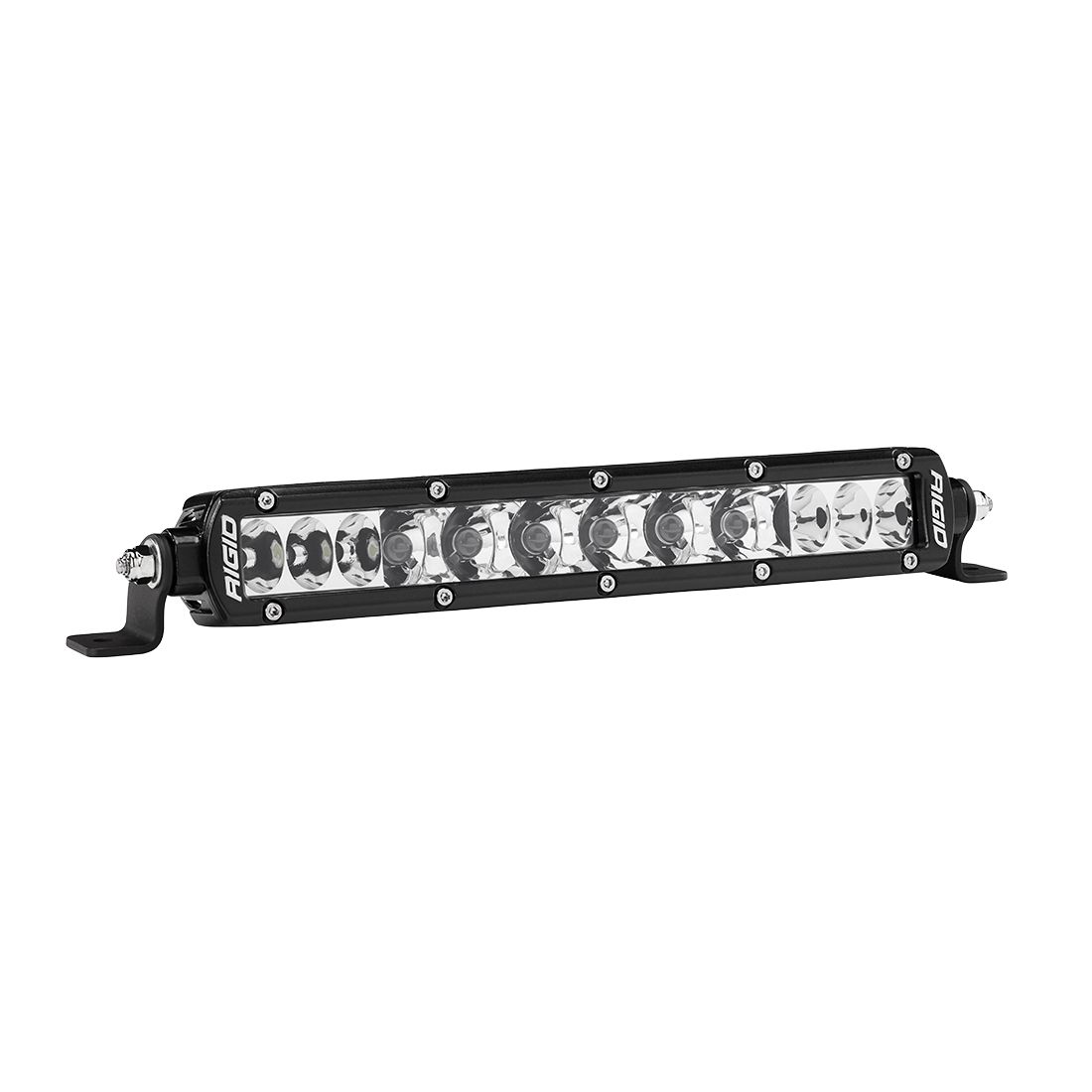

  • SR-Series PRO 10in Spot/Drive Combo

    • SKU: 911313
    • Size: 10"
    • Beam Category: Spot Driving Combo
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 3.57
    • Raw Lumens: 9504
    • Watts: 50
    • Lux @10m: 904.75
    • Beam Distance @ 1 LUX: 300.8
    • Beam Distance @ .25 LUX: 601.6
    • Peak Beam Intensity(cd): 90475
    • Horizontal Beam Angle: 25.1
    • Vertical Beam Angle: 17.3

  • SR-Series PRO 10in Driving

    • SKU: 910613
    • Size: 10"
    • Beam Category: Driving
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 4.94
    • Raw Lumens: 7524
    • Watts: 84
    • Lux @10m: 593.58
    • Beam Distance @ 1 LUX: 243.6
    • Beam Distance @ .25 LUX: 487.3
    • Peak Beam Intensity(cd): 59358
    • Horizontal Beam Angle: 49.4
    • Vertical Beam Angle: 22.3

  • SR-Series PRO 10in Spot/Flood Combo

    • SKU: 910313
    • Size: 10"
    • Beam Category: Spot Flood Combo
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 4.29
    • Raw Lumens: 7920
    • Watts: 60
    • Lux @10m: 899.37
    • Beam Distance @ 1 LUX: 299.9
    • Beam Distance @ .25 LUX: 599.8
    • Peak Beam Intensity(cd): 89937
    • Horizontal Beam Angle: 19.3
    • Vertical Beam Angle: 18

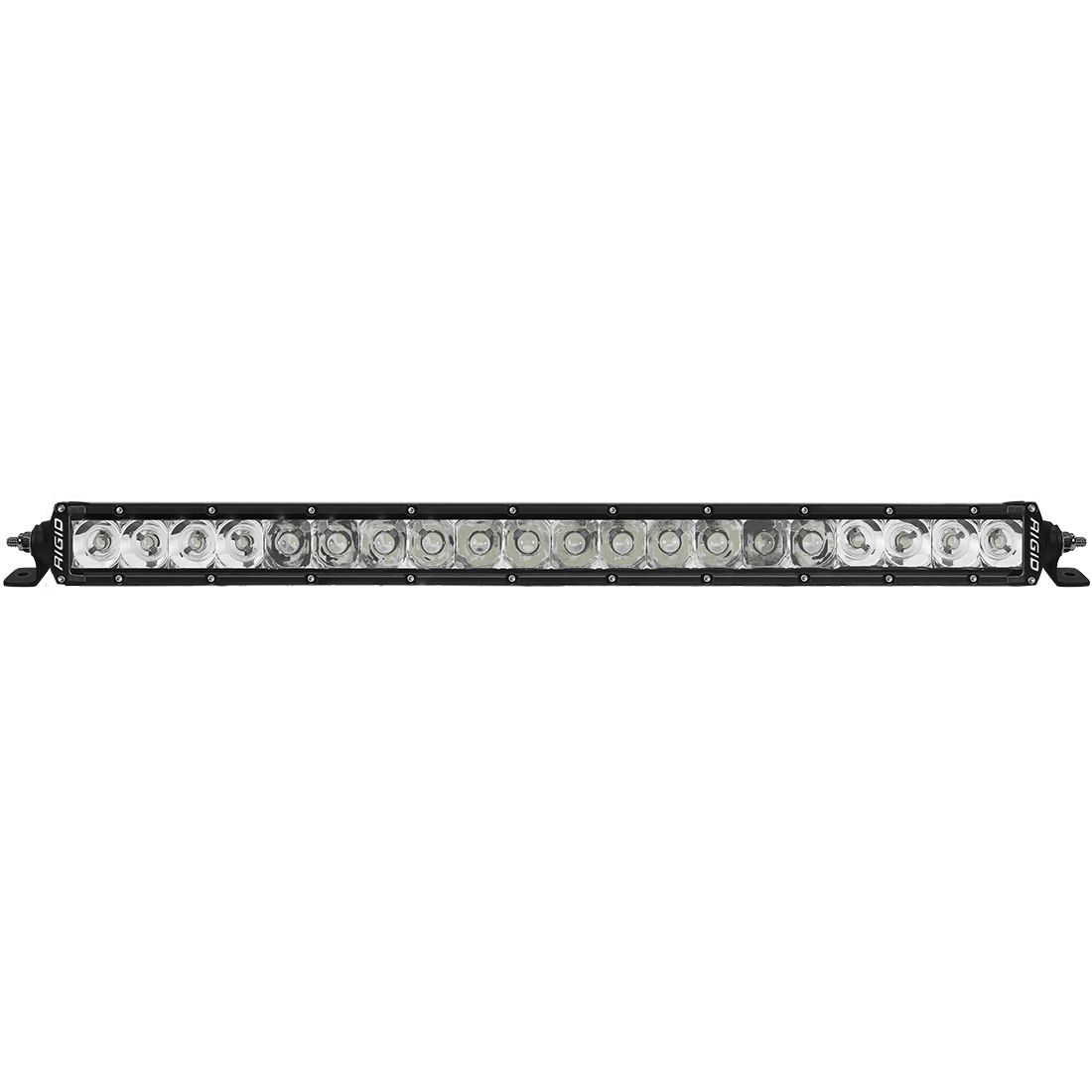

  • SR-Series PRO 20in Spot/Flood Combo

    • SKU: 920314
    • Size: 20"
    • Beam Category: Spot Flood Combo
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 8.5
    • Raw Lumens: 15840
    • Watts: 119
    • Lux @10m: 1989
    • Beam Distance @ 1 LUX: 446
    • Beam Distance @ .25 LUX: 892
    • Peak Beam Intensity(cd): 198854
    • Horizontal Beam Angle: 19
    • Vertical Beam Angle: 17

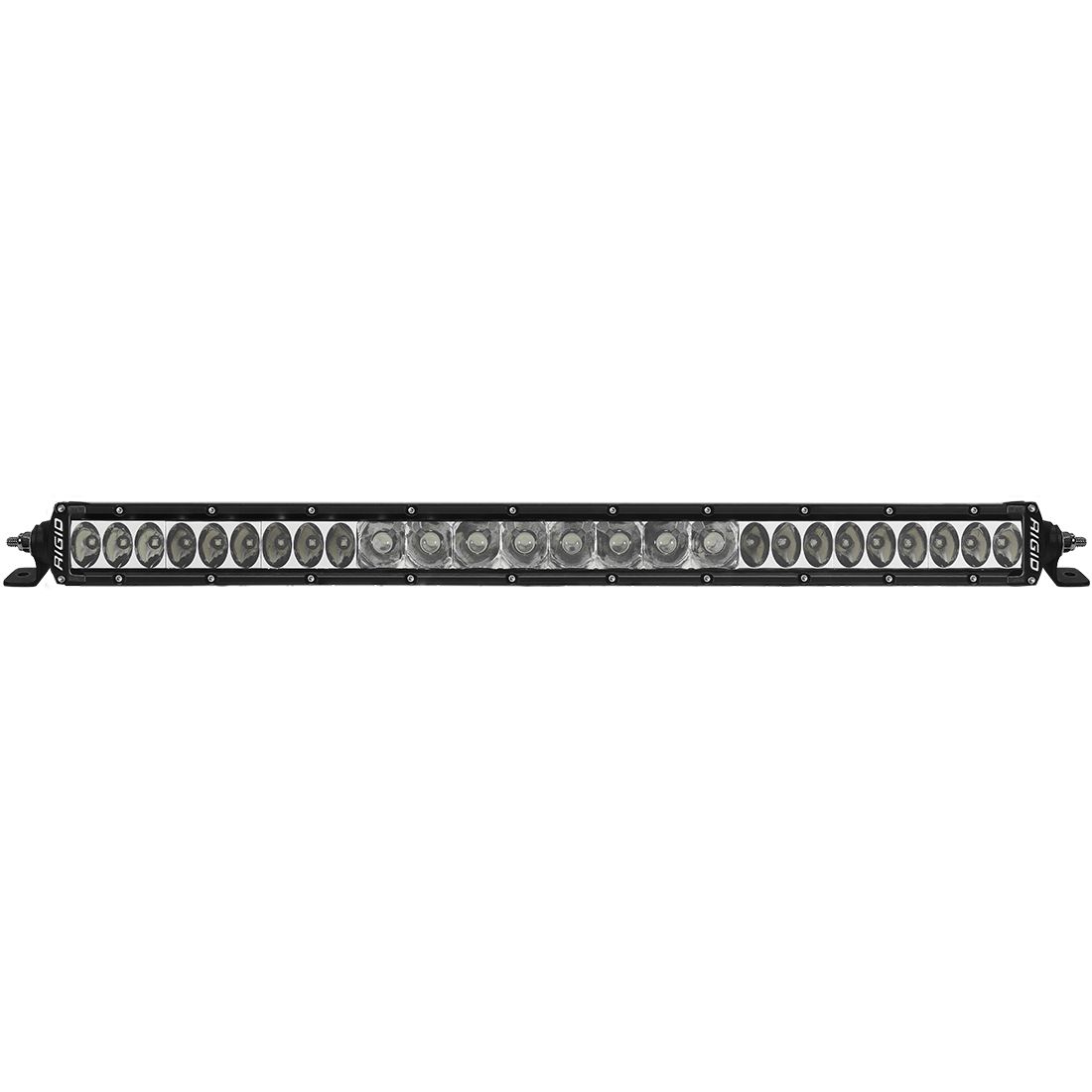

  • SR-Series PRO 20in Spot/Drive Combo

    • SKU: 921314
    • Size: 20"
    • Beam Category: Spot Driving Combo
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 9.43
    • Raw Lumens: 17424
    • Watts: 132
    • Lux @10m: 3053
    • Beam Distance @ 1 LUX: 553
    • Beam Distance @ .25 LUX: 892
    • Peak Beam Intensity(cd): 72013
    • Horizontal Beam Angle: 19
    • Vertical Beam Angle: 17

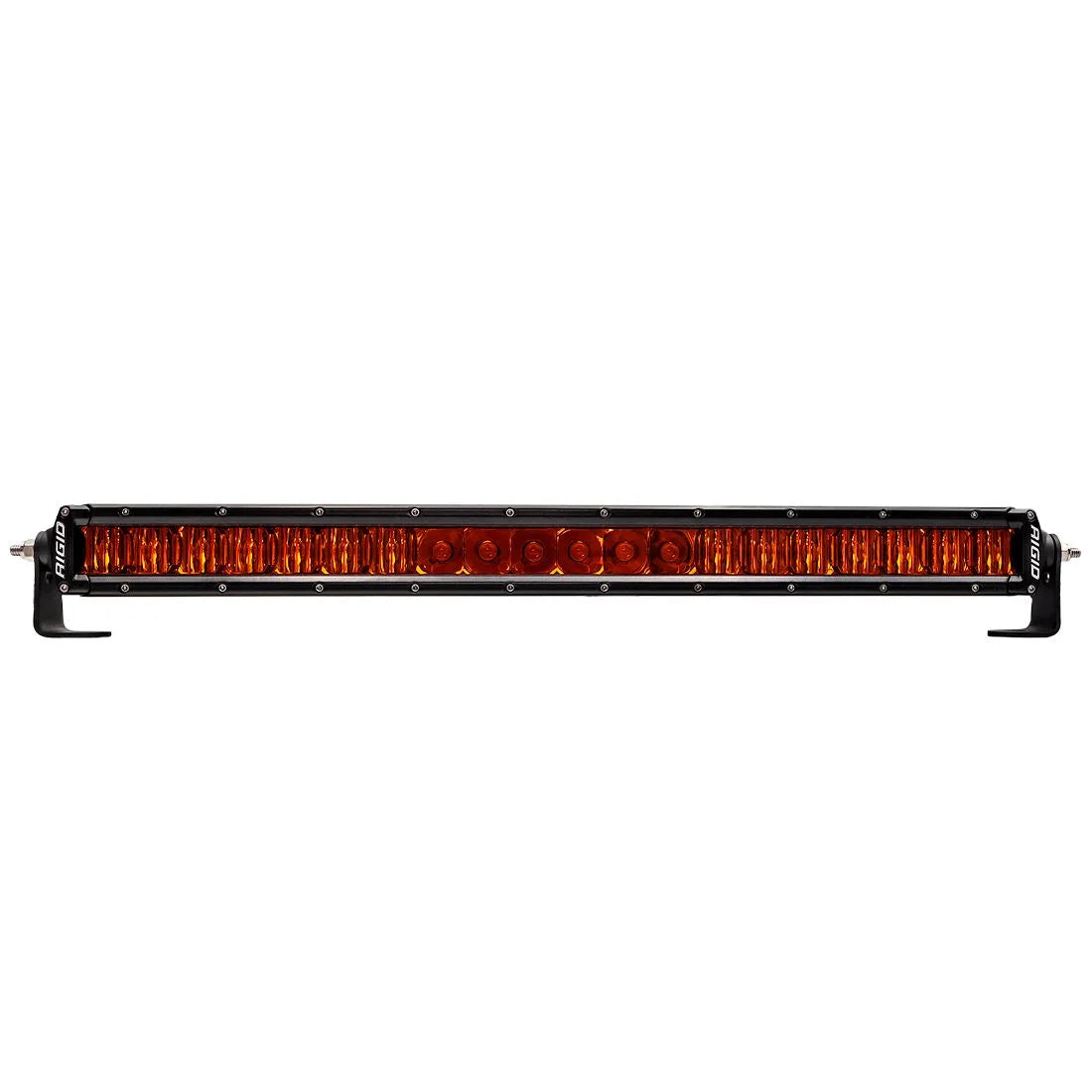

  • SR-Series PRO 20in Spot Amber

    • SKU: 922314
    • Size: 20"
    • Beam Category: Spot
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 8.5
    • Raw Lumens: 13680
    • Watts: 119
    • Lux @10m: 720.1
    • Beam Distance @ 1 LUX: 268.4
    • Beam Distance @ .25 LUX: 536.7
    • Peak Beam Intensity(cd): 72013
    • Horizontal Beam Angle: 58.2
    • Vertical Beam Angle: 15.8

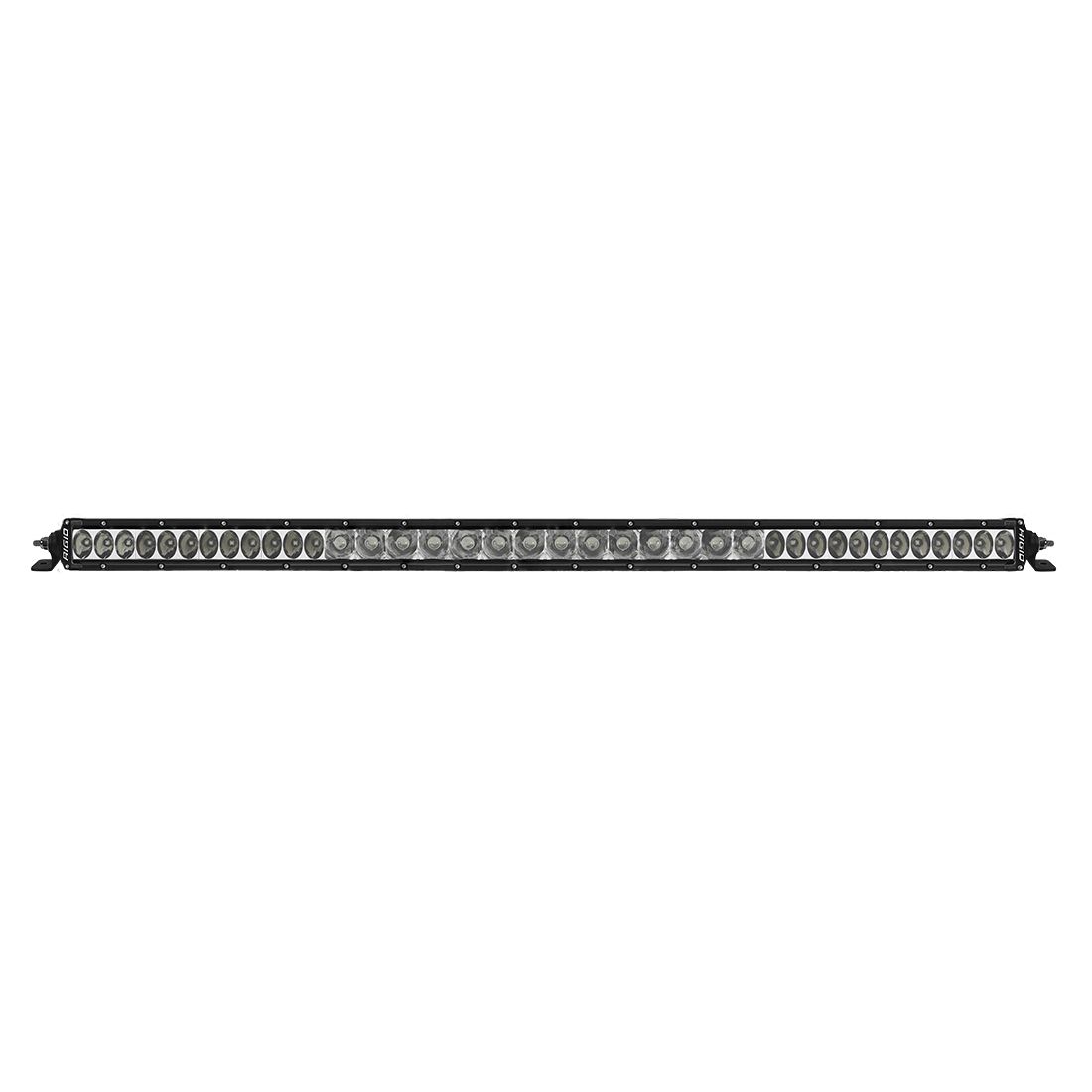

  • SR-Series PRO 30in Spot Driving Combo

    • SKU: 931314
    • Size: 30"
    • Beam Category: Spot Driving Combo
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 14.64
    • Raw Lumens: 21318
    • Watts: 205
    • Lux @10m: 3802
    • Beam Distance @ 1 LUX: 617
    • Beam Distance @ .25 LUX: 1233
    • Peak Beam Intensity(cd): 380181
    • Horizontal Beam Angle: 27
    • Vertical Beam Angle: 17

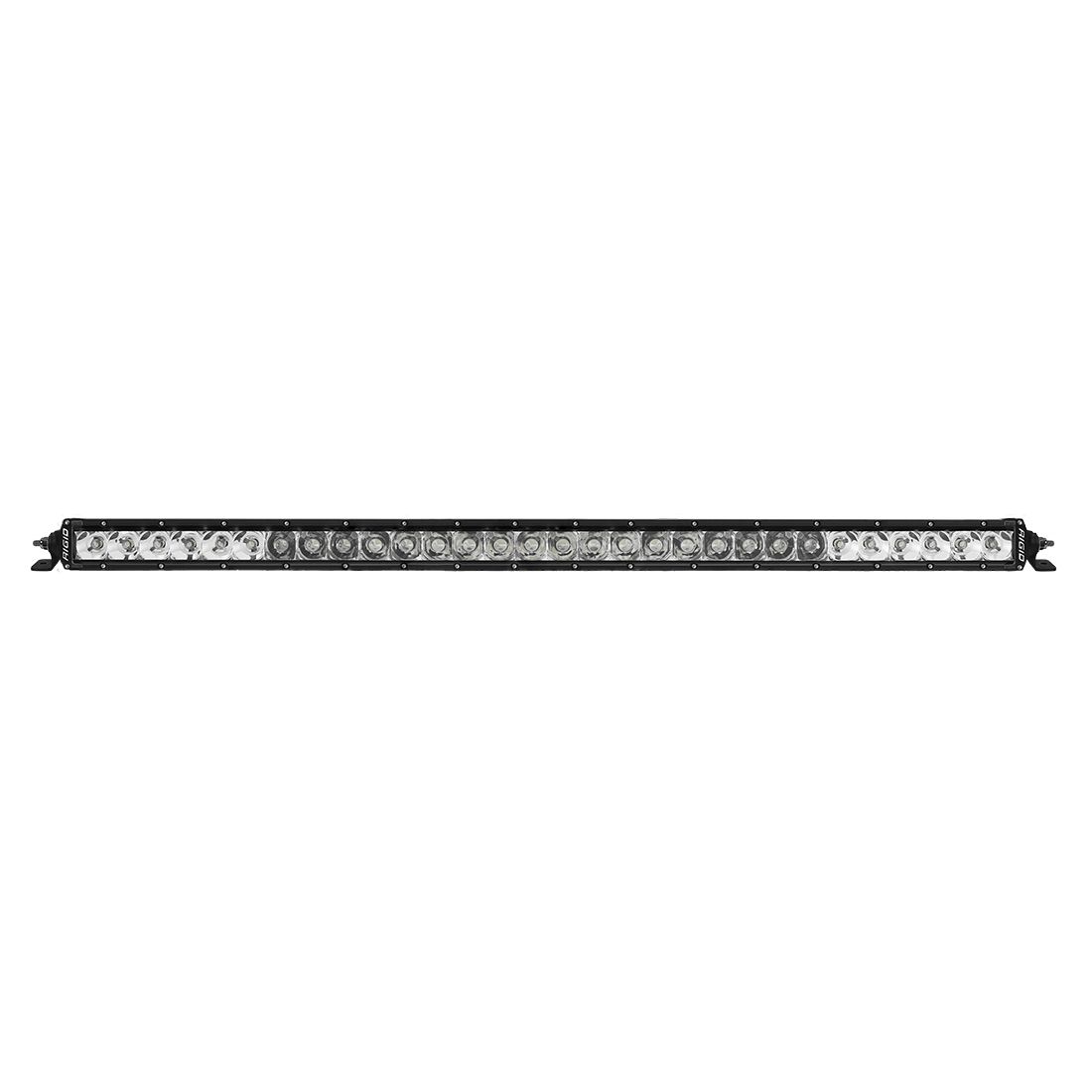

  • SR-Series PRO 30in Spot Flood Combo

    • SKU: 930314
    • Size: 30"
    • Beam Category: Spot Flood Combo
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 11.43
    • Raw Lumens: 18810
    • Watts: 160
    • Lux @10m: 2968
    • Beam Distance @ 1 LUX: 545
    • Beam Distance @ .25 LUX: 1090
    • Peak Beam Intensity(cd): 296841
    • Horizontal Beam Angle: 18
    • Vertical Beam Angle: 17

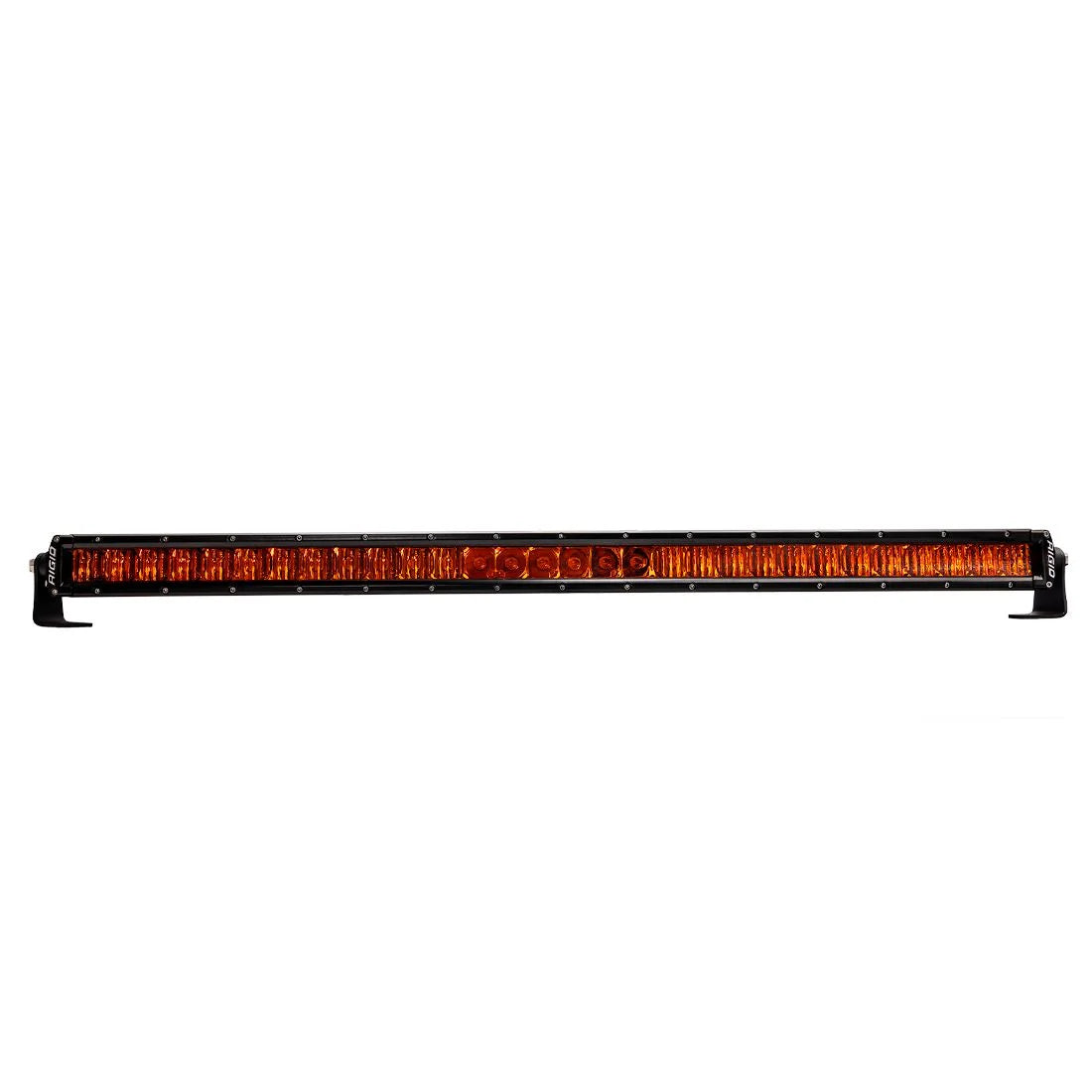

  • SR-Series PRO 30in Spot Amber

    • SKU: 932314
    • Size: 30"
    • Beam Category: Spot
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 11.4
    • Raw Lumens: 18810
    • Watts: 160
    • Lux @10m: 967.1
    • Beam Distance @ 1 LUX: 311
    • Beam Distance @ .25 LUX: 621.9
    • Peak Beam Intensity(cd): 96705
    • Horizontal Beam Angle: 47.6
    • Vertical Beam Angle: 17.6

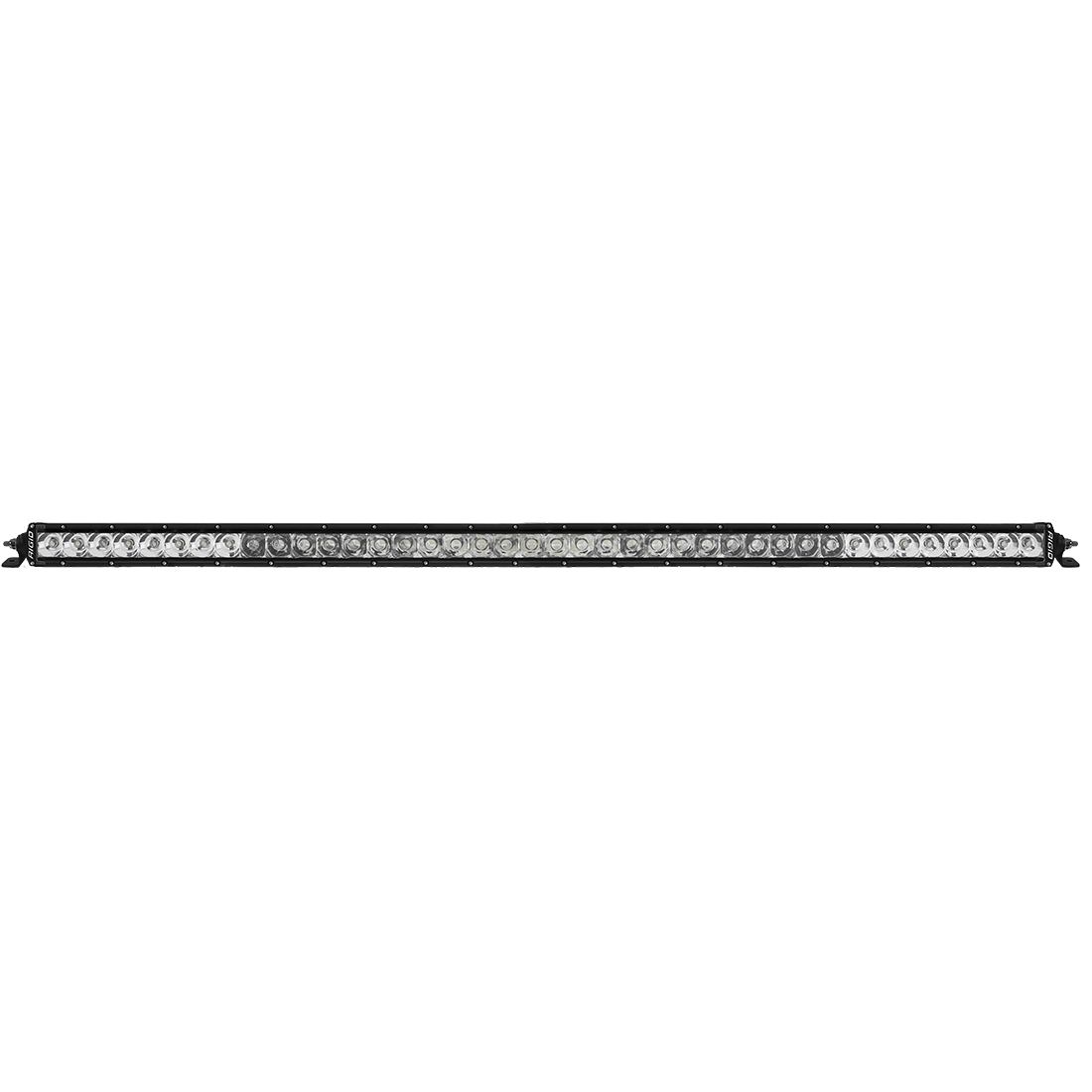

  • SR-Series PRO 40in Spot/Drive Combo

    • SKU: 941314
    • Size: 40"
    • Beam Category: Spot Driving Combo
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 21.64
    • Raw Lumens: 28842
    • Watts: 303
    • Lux @10m: 4653
    • Beam Distance @ 1 LUX: 982
    • Beam Distance @ .25 LUX: 1364
    • Peak Beam Intensity(cd): 465325
    • Horizontal Beam Angle: 18
    • Vertical Beam Angle: 16

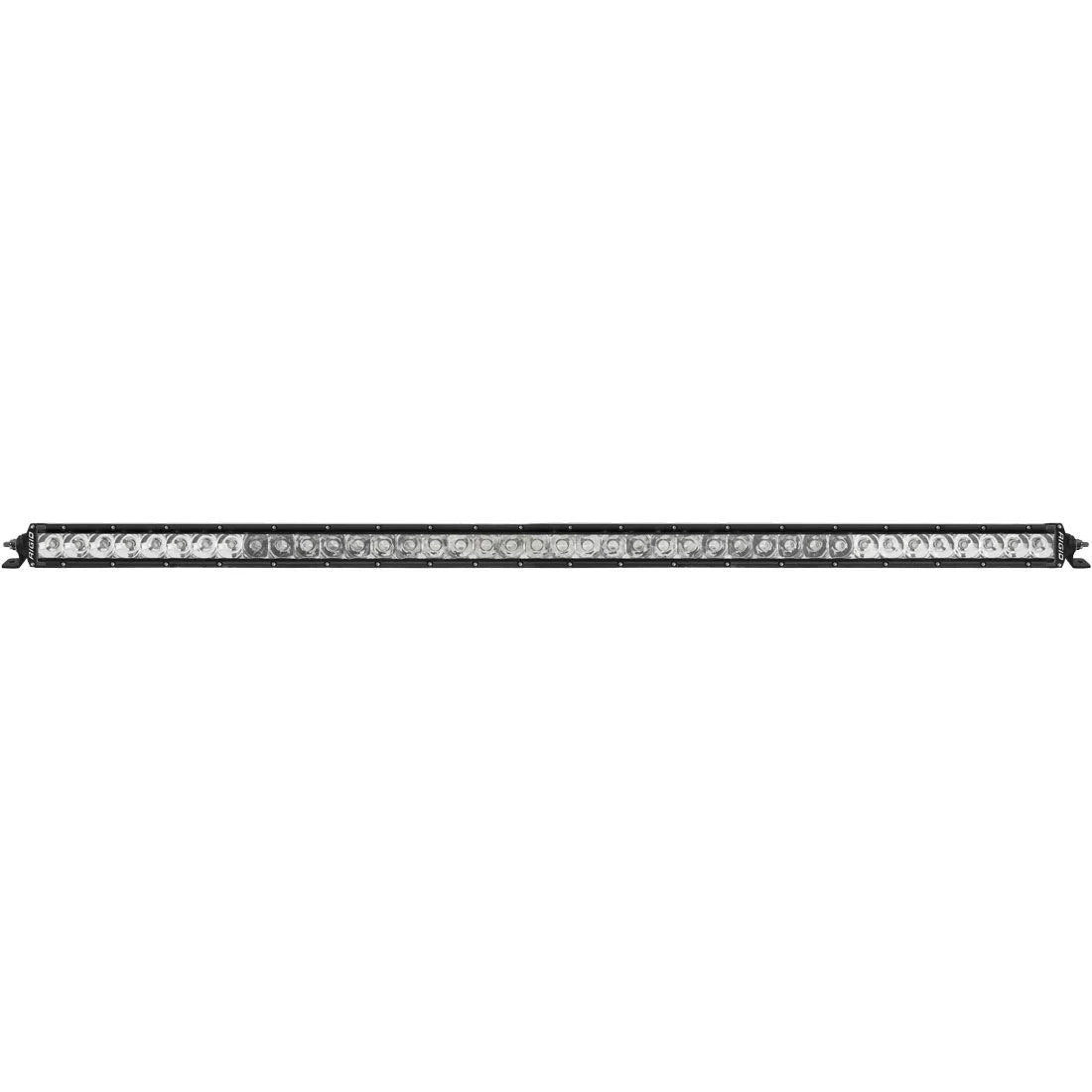

  • SR-Series PRO 40in Spot/Flood Combo

    • SKU: 940314
    • Size: 40"
    • Beam Category: Spot Flood Combo
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 18.5
    • Raw Lumens: 25080
    • Watts: 259
    • Lux @10m: 3772
    • Beam Distance @ 1 LUX: 614
    • Beam Distance @ .25 LUX: 1228
    • Peak Beam Intensity(cd): 377168
    • Horizontal Beam Angle: 18
    • Vertical Beam Angle: 17

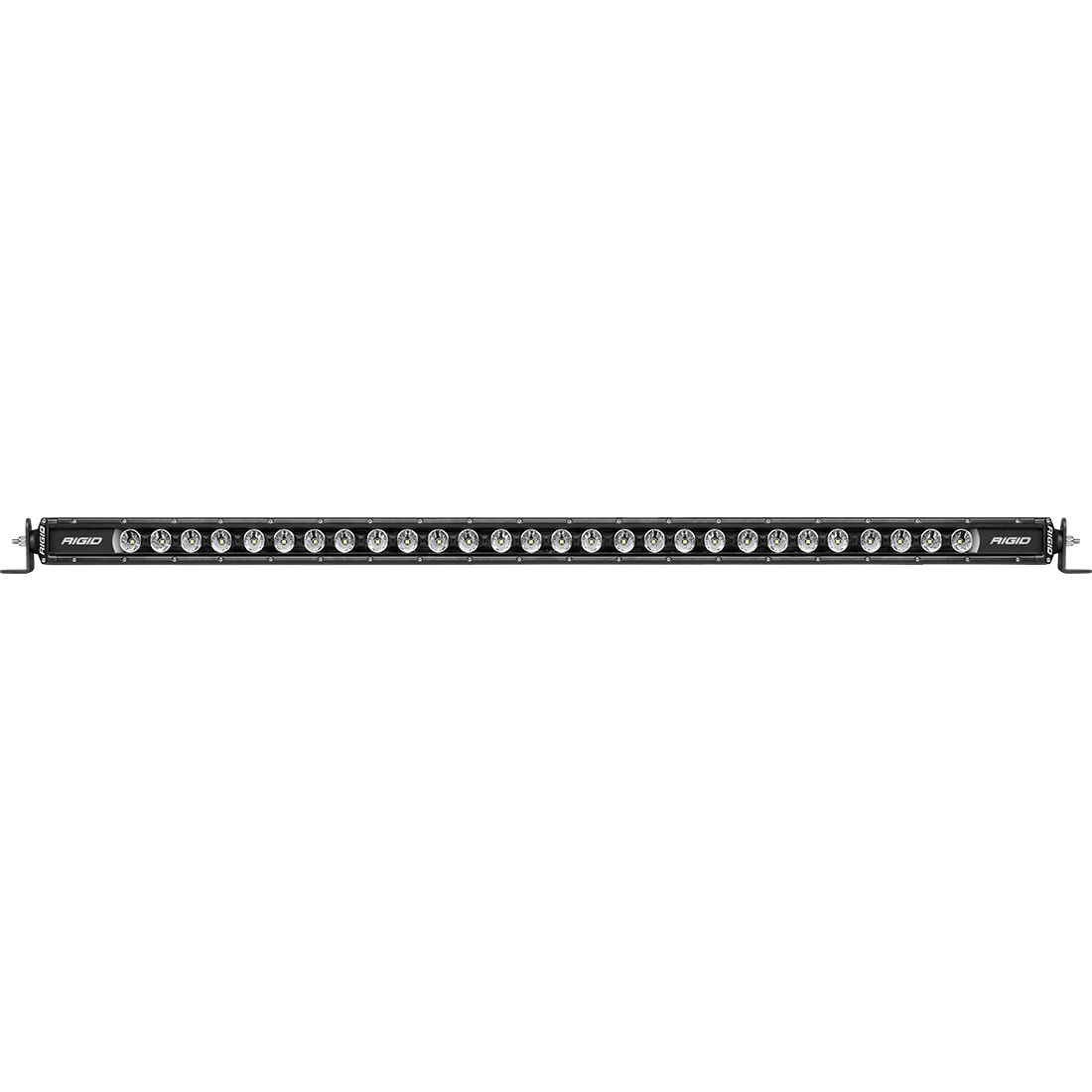

  • SR-Series PRO 40in Broad Spot

    • SKU: 240004
    • Size: 40"
    • Beam Category: Broad Spot
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 14.8
    • Raw Lumens: 22848
    • Watts: 197
    • Lux @10m: 2800.68
    • Beam Distance @ 1 LUX: 529.2
    • Beam Distance @ .25 LUX: 1058.5
    • Peak Beam Intensity(cd): 280068
    • Horizontal Beam Angle: 24
    • Vertical Beam Angle: 18.3

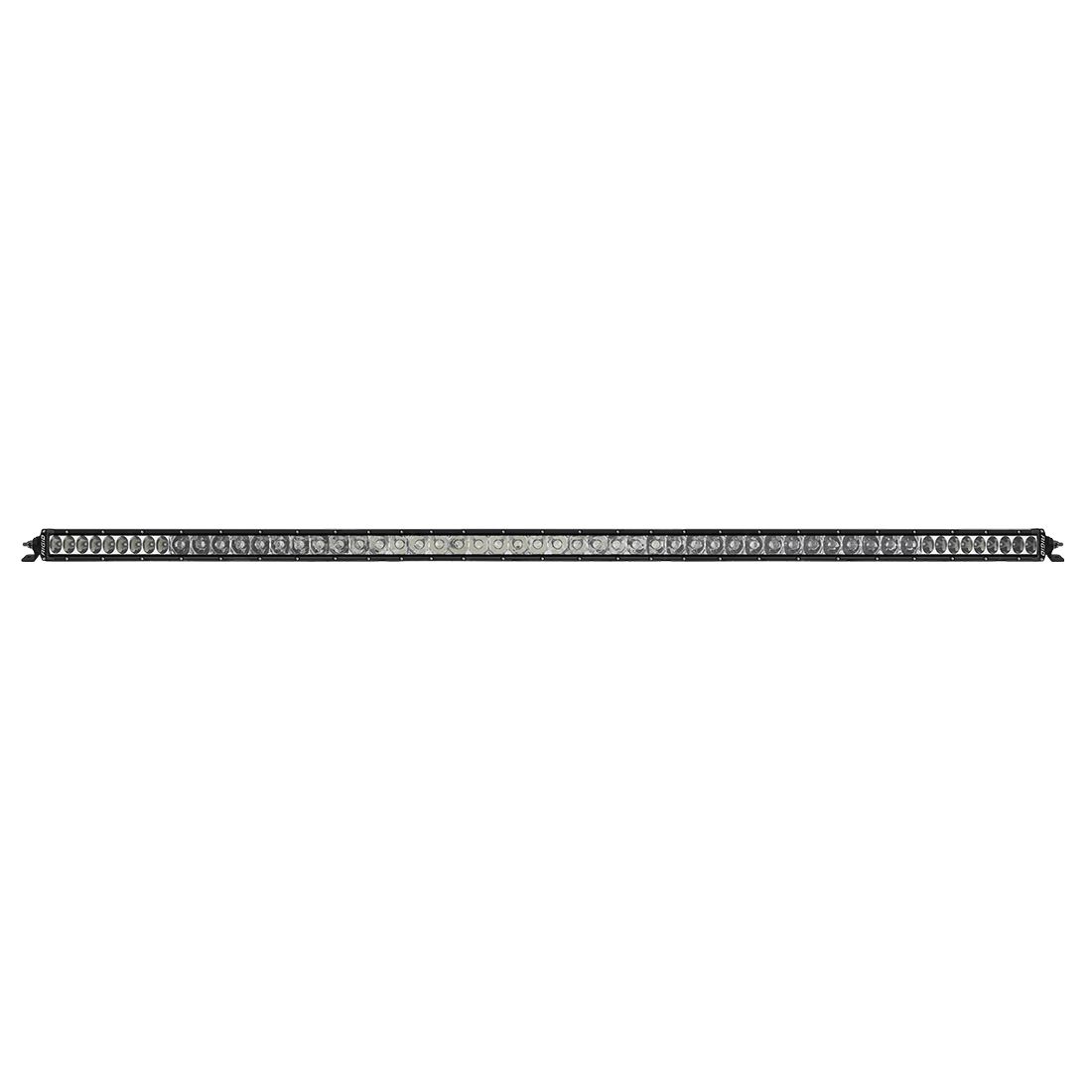

  • SR-Series PRO 50in Spot Driving Combo

    • SKU: 951314
    • Size: 50"
    • Beam Category: Spot Driving Combo
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 20.71
    • Raw Lumens: 31350
    • Watts: 290
    • Lux @10m: 3341
    • Beam Distance @ 1 LUX: 578
    • Beam Distance @ .25 LUX: 1156
    • Peak Beam Intensity(cd): 334145
    • Horizontal Beam Angle: 18
    • Vertical Beam Angle: 16

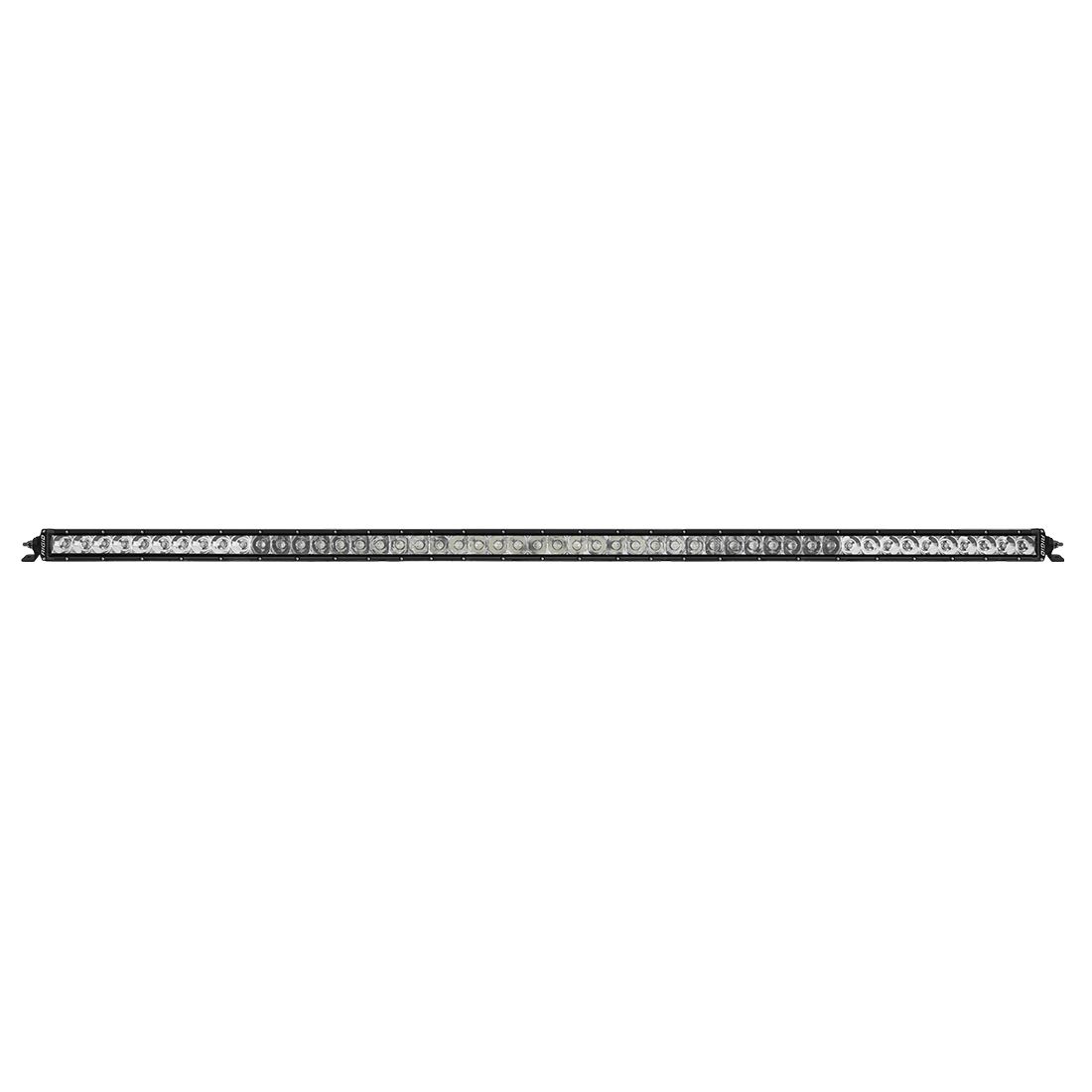

  • SR-Series PRO 50in Spot Flood Combo

    • SKU: 950314
    • Size: 50"
    • Beam Category: Spot Flood Combo
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 20.71
    • Raw Lumens: 31350
    • Watts: 290
    • Lux @10m: 4347
    • Beam Distance @ 1 LUX: 659
    • Beam Distance @ .25 LUX: 1318
    • Peak Beam Intensity(cd): 434698
    • Horizontal Beam Angle: 19
    • Vertical Beam Angle: 17

SR-Series Dual Function

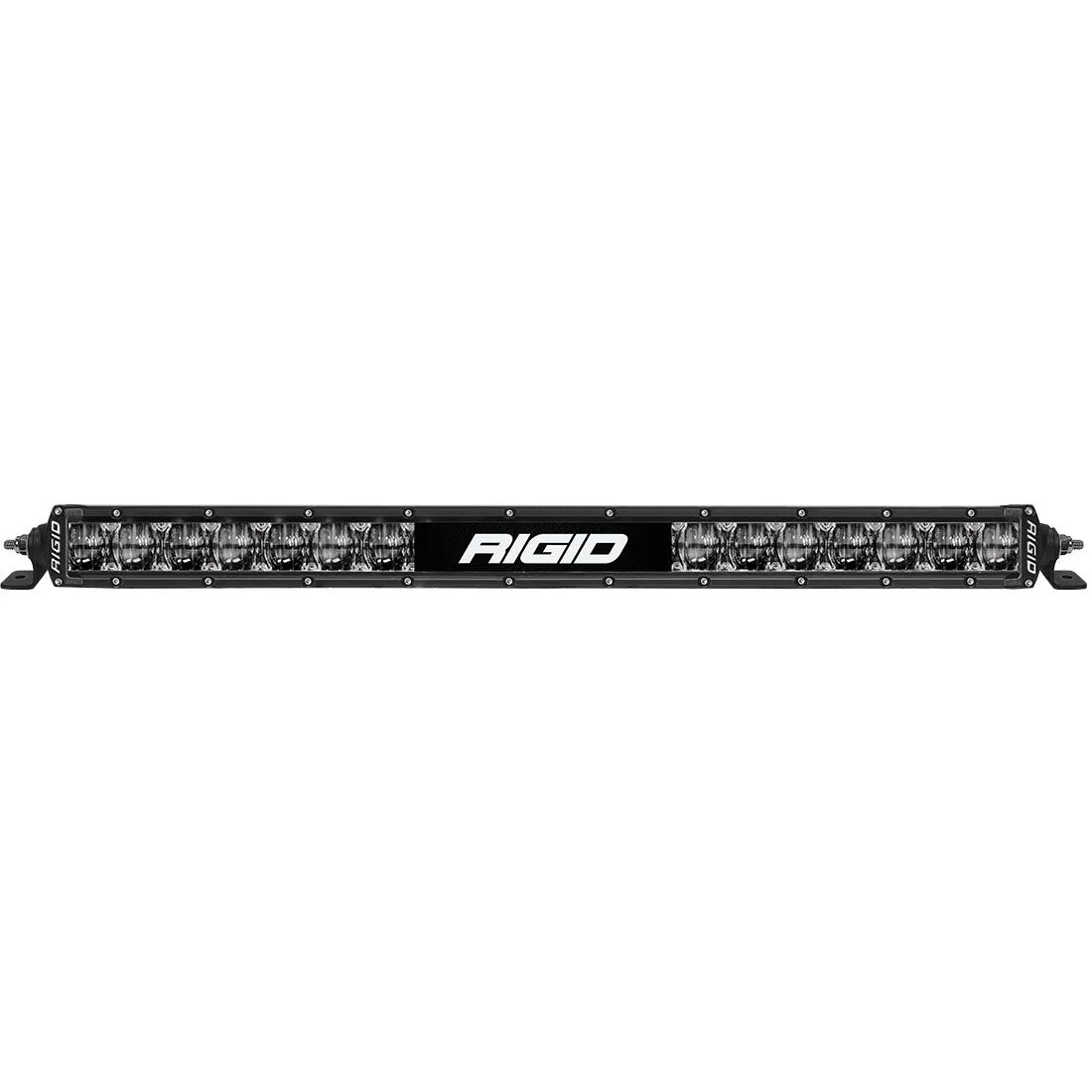

  • SR-Series 20 Inch Dual Function SAE with White/Amber Backlight

    • SKU: 920413
    • Size: 20"
    • Beam Category: Driving
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 6.8
    • Raw Lumens: 8253
    • Watts: 95
    • Lux @10m: 342.6
    • Beam Distance @ 1 LUX: 185.1
    • Beam Distance @ .25 LUX: 370.2
    • Peak Beam Intensity(cd): 34263
    • Horizontal Beam Angle: 68.7
    • Vertical Beam Angle: 10.2

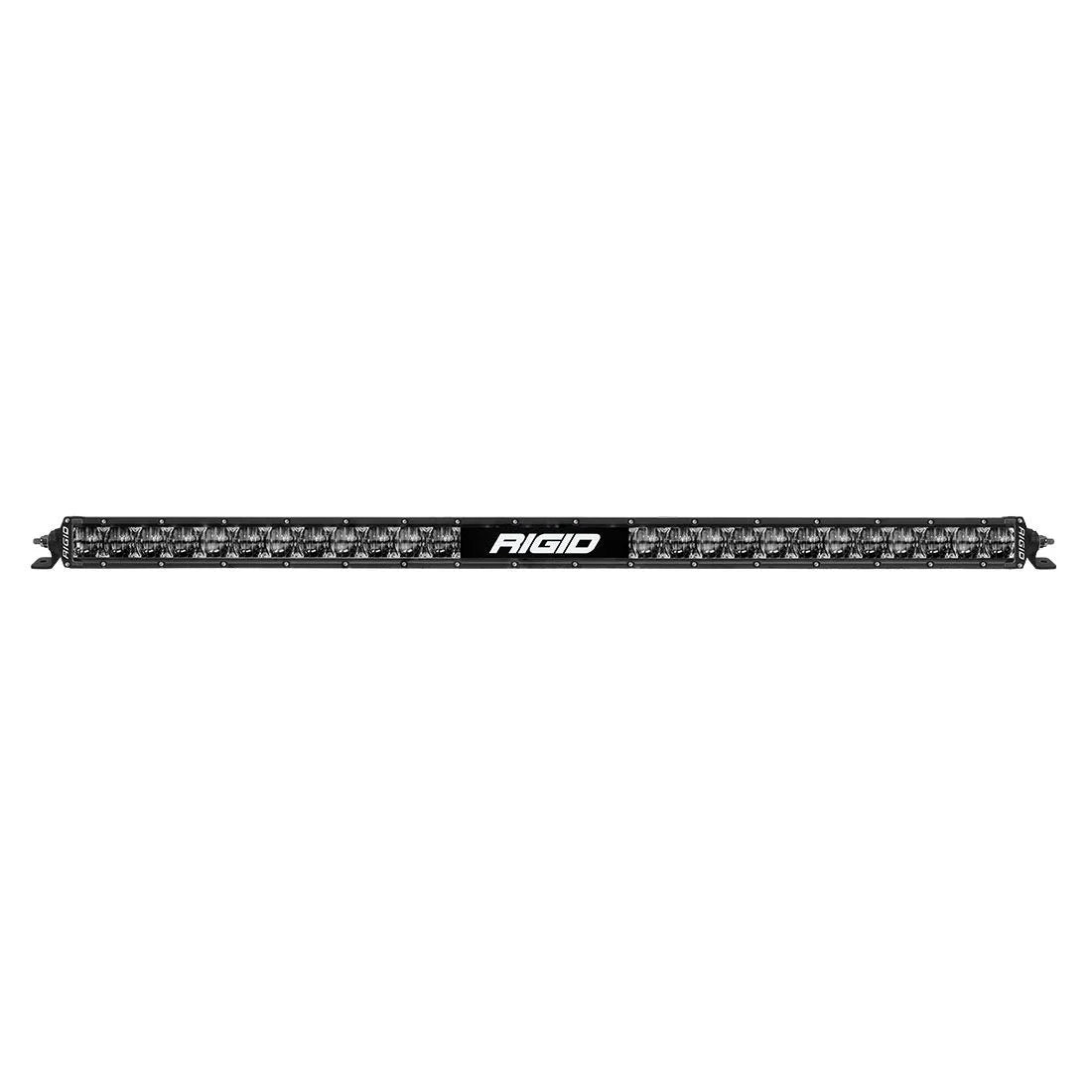

  • SR-Series 30 Inch Dual Function SAE with White/Amber Backlight

    • SKU: 930413
    • Size: 30"
    • Beam Category: Driving
    • Voltage Range: 9V - 36V
    • Current Draw at 14V (a): 12.9
    • Raw Lumens: 14148
    • Watts: 180
    • Lux @10m: 745.5
    • Beam Distance @ 1 LUX: 273
    • Beam Distance @ .25 LUX: 546.1
    • Peak Beam Intensity(cd): 74555
    • Horizontal Beam Angle: 53.6
    • Vertical Beam Angle: 9.1
  • Shipping Worldwide
    *Free Shipping Over $299.99 (Within the 48 Cont. USA)
  • Top-notch support
    We are different. We're Specialists.
  • Secure payments
    All Major Payment Types Accepted Payment Plans Available with Shop Pay so you can pay over time.
  • Military & First Resp Discounts
    Look for the "GOVXID" icon at checkout. Discounts will automatically be applied (Some Exclusions Apply)
