Rigid Pod Tech Specs

360 D-Series D-XL Ignite Q-Series Radiance Side Shooter SR-M / SR-Q Others

360 Pods

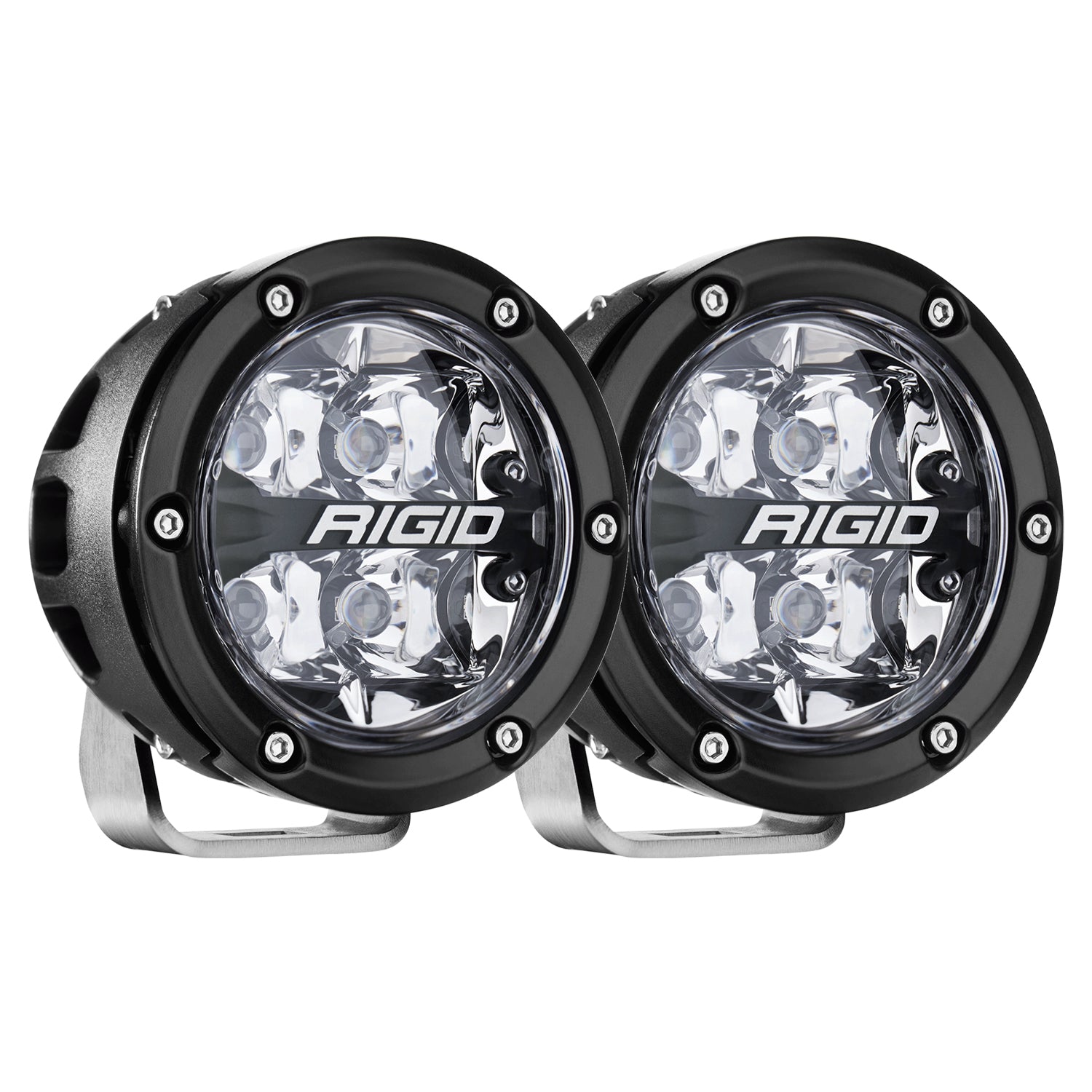

360-Series PRO 4 Inch Spot RGBW
- Size: 4"
- Light Shape: Pod
- Mount Type: Surface MOUNT
- Beam Category: Spot
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 2
- Raw Lumens: 3060
- Watts: 28
- Lux @10m: 725.8
- Beam Distance @ 1 LUX: 269.4
- Beam Distance @ .25 LUX: 538.8
- Peak Beam Intensity(cd): 72582
- Horizontal Beam Angle: 16.5
- Vertical Beam Angle: 15.7

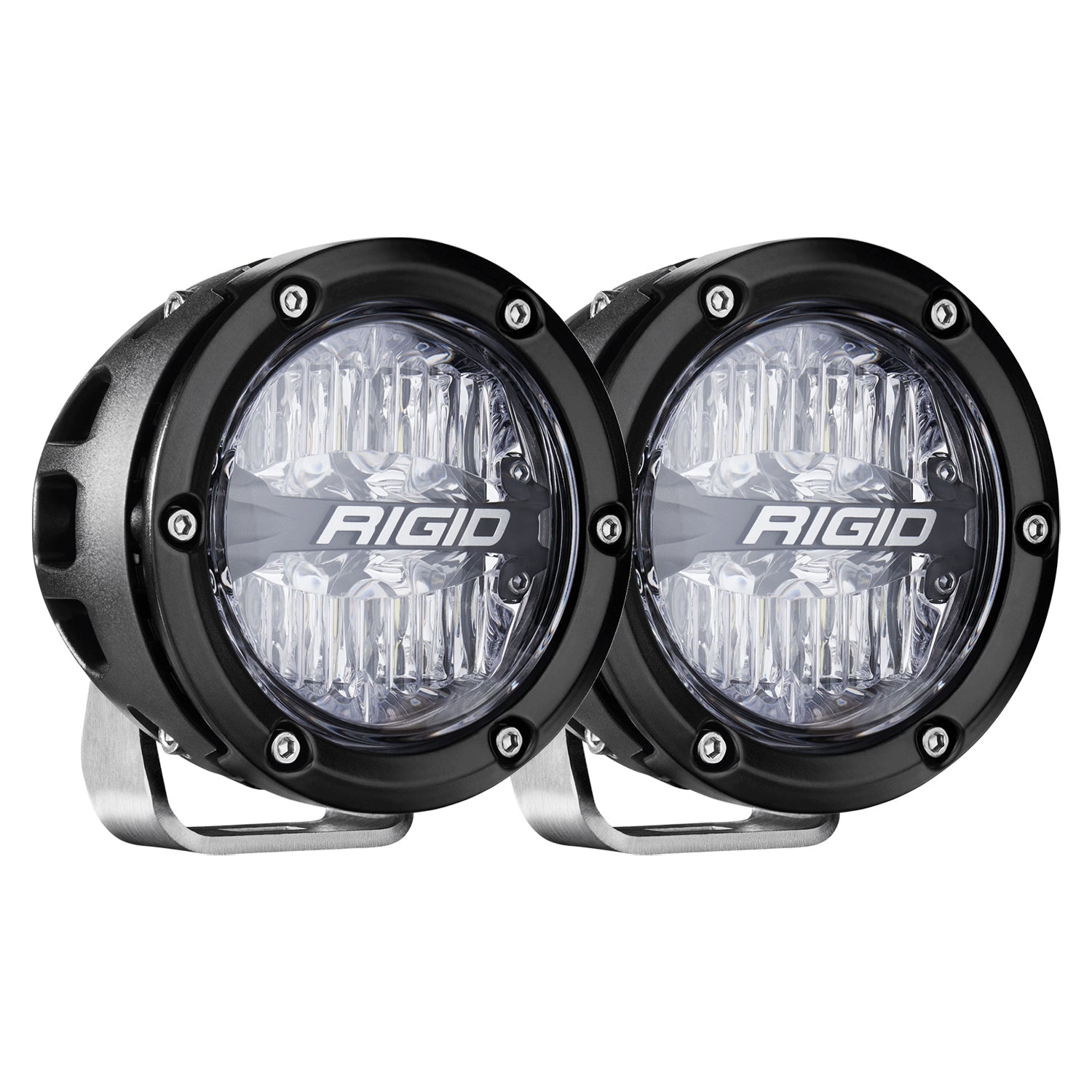

360-Series PRO 4 Inch Drive RGBW
- Size: 4"
- Light Shape: Pod
- Mount Type: Surface MOUNT
- Beam Category: Drive
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 2
- Raw Lumens: 3060
- Watts: 23
- Lux @10m: 326.9
- Beam Distance @ 1 LUX: 180.8
- Beam Distance @ .25 LUX: 361.6
- Peak Beam Intensity(cd): 32685
- Horizontal Beam Angle: 44
- Vertical Beam Angle: 15.4

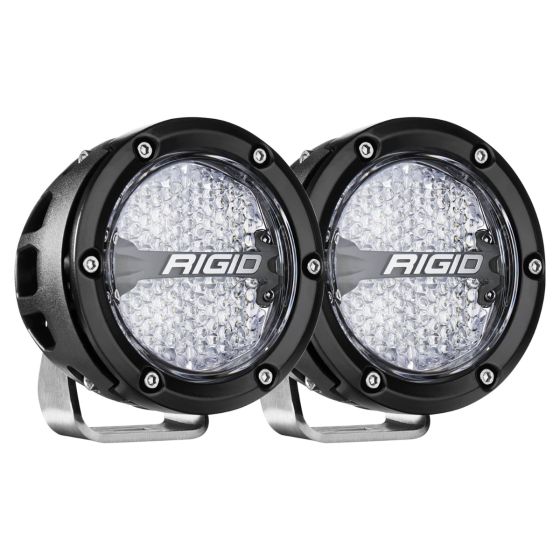

360-Series PRO 4 Inch Diffused RGBW
- Size: 4"
- Light Shape: Pod
- Mount Type: Surface MOUNT
- Beam Category: Diffused
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 2
- Raw Lumens: 3060
- Watts: 28
- Lux @10m: 16.8
- Beam Distance @ 1 LUX: 41
- Beam Distance @ .25 LUX: 82
- Peak Beam Intensity(cd): 1681
- Horizontal Beam Angle: 68.7
- Vertical Beam Angle: 44.5

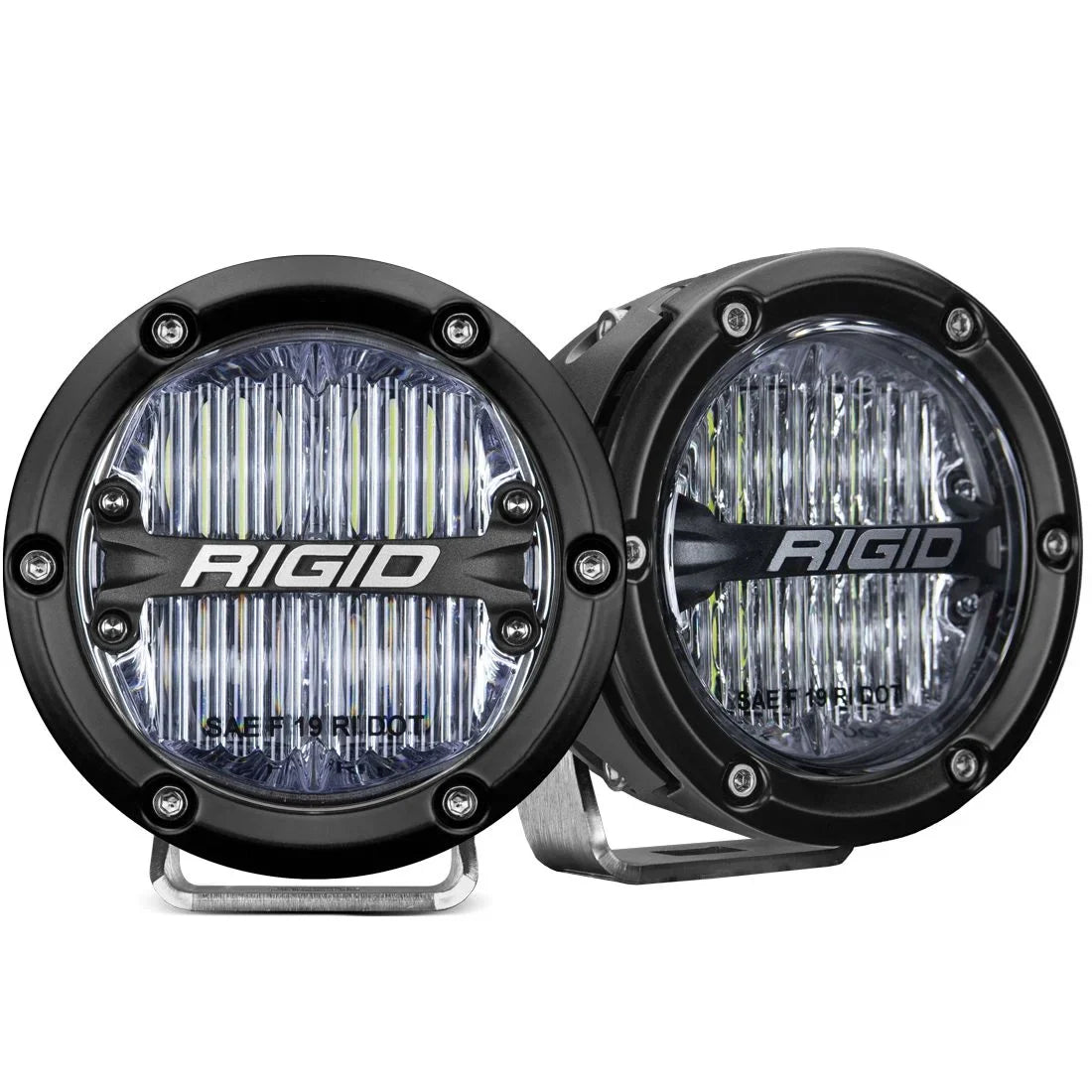

360-Series PRO 4 Inch SAE
- Size: 4"
- Light Shape: POD
- Mount Type: SURFACE MOUNT
- Beam Category: SAE
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 2.86
- Raw Lumens: 3445
- Watts: 40
- Lux @10m: 137.33
- Beam Distance @ 1 LUX: 117.2
- Beam Distance @ .25 LUX: 234.4
- Peak Beam Intensity(cd): 13
- Horizontal Beam Angle: 68.6
- Vertical Beam Angle: 8.7

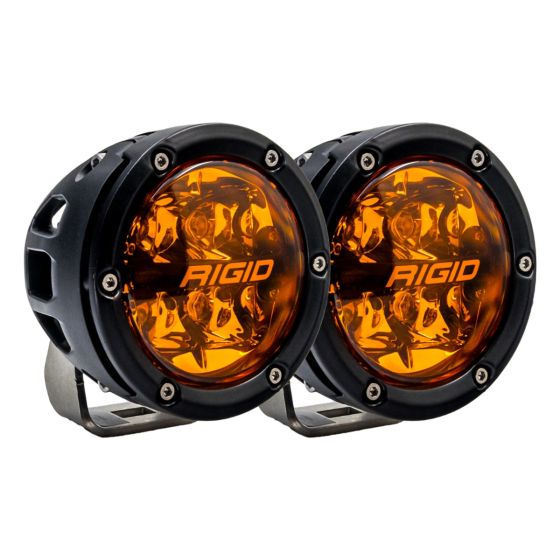

360-Series 4 Inch Spot Amber PRO
- Size: 4"
- Light Shape: Pod
- Mount Type: Surface MOUNT
- Beam Category: Spot
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 2
- Raw Lumens: 3060
- Watts: 28
- Lux @10m: 362.7
- Beam Distance @ 1 LUX: 190.4
- Beam Distance @ .25 LUX: 380.9
- Peak Beam Intensity(cd): 36266
- Horizontal Beam Angle: 16
- Vertical Beam Angle: 16.8

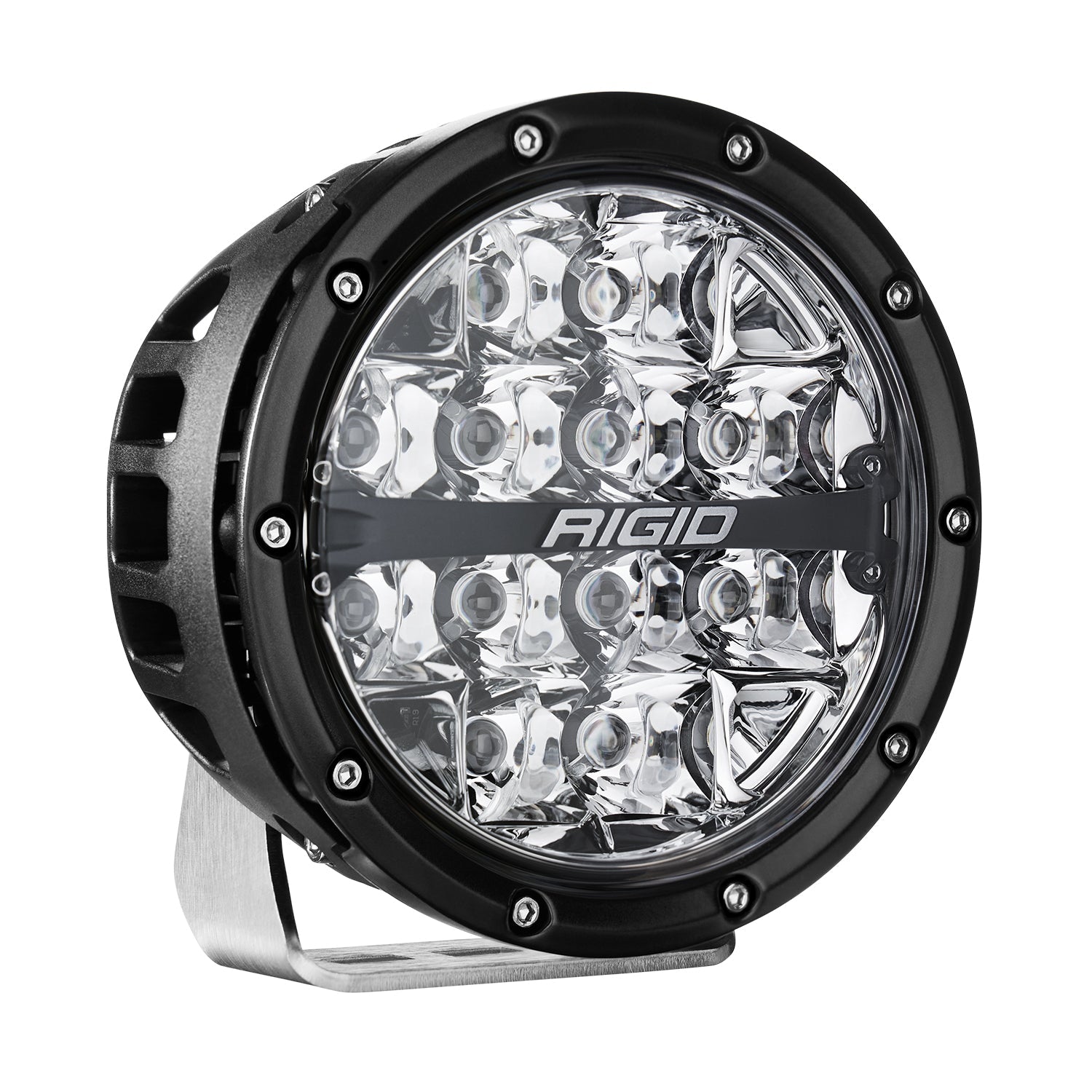

360-Series PRO 6 Inch Spot RGBW
- Size: 6"
- Light Shape: Pod
- Mount Type: Surface MOUNT
- Beam Category: Spot
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 5.1
- Raw Lumens: 8670
- Watts: 72
- Lux @10m: 2130.9
- Beam Distance @ 1 LUX: 461.6
- Beam Distance @ .25 LUX: 923.2
- Peak Beam Intensity(cd): 213091
- Horizontal Beam Angle: 17.2
- Vertical Beam Angle: 16.8

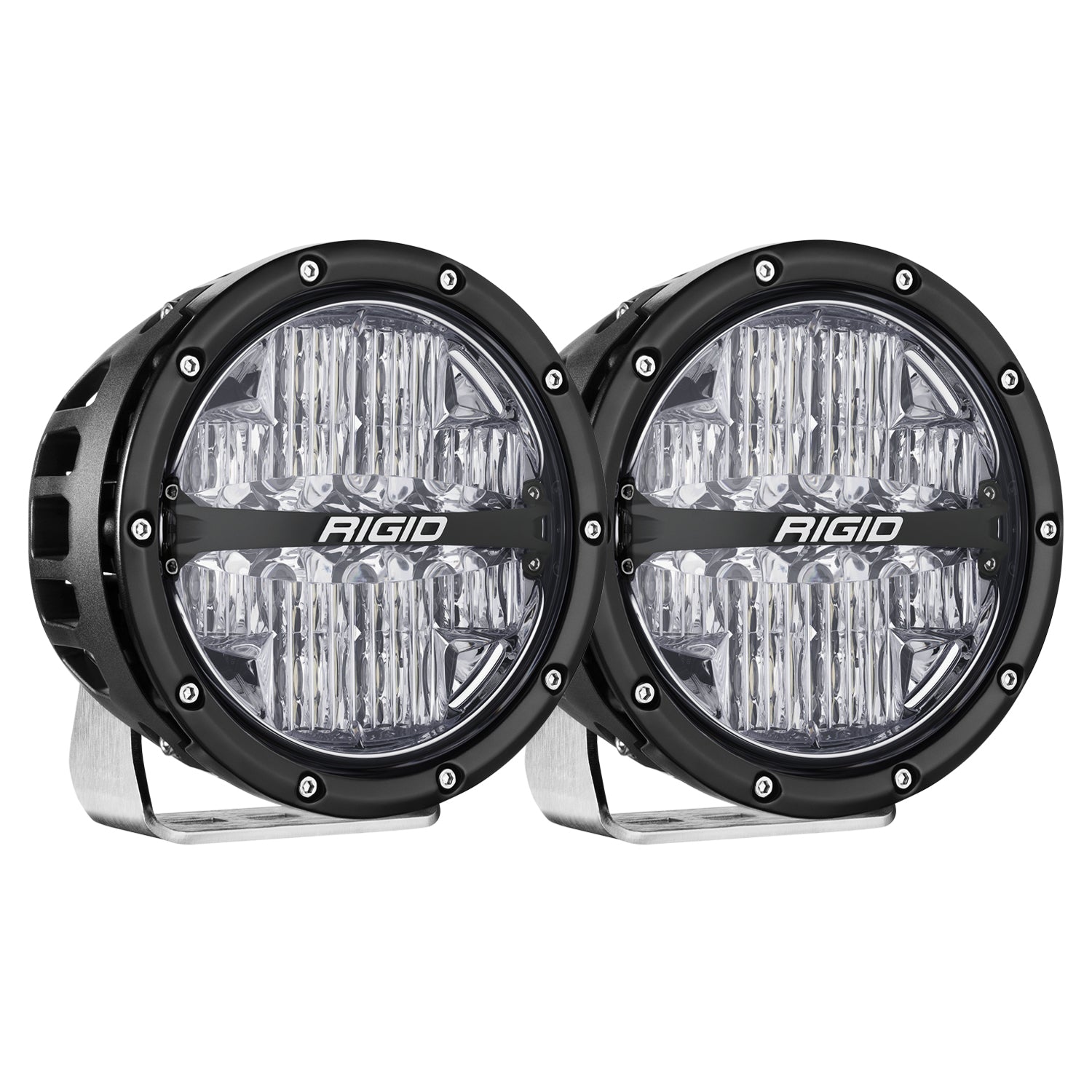

360-Series PRO 6 Inch Drive RGBW
- Size: 6"
- Light Shape: Pod
- Mount Type: Surface MOUNT
- Beam Category: Drive
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 5.1
- Raw Lumens: 8670
- Watts: 72
- Lux @10m: 746.2
- Beam Distance @ 1 LUX: 273.2
- Beam Distance @ .25 LUX: 546.3
- Peak Beam Intensity(cd): 74615
- Horizontal Beam Angle: 58.9
- Vertical Beam Angle: 18.9
360-Series 6 Inch Spot Amber PRO
- Size: 6"
- Light Shape: Pod
- Mount Type: Surface MOUNT
- Beam Category: Spot
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 5.1
- Raw Lumens: 8670
- Watts: 72
- Lux @10m: 1142
- Beam Distance @ 1 LUX: 337.9
- Beam Distance @ .25 LUX: 675.9
- Peak Beam Intensity(cd): 114202
- Horizontal Beam Angle: 17.4
- Vertical Beam Angle: 16.3

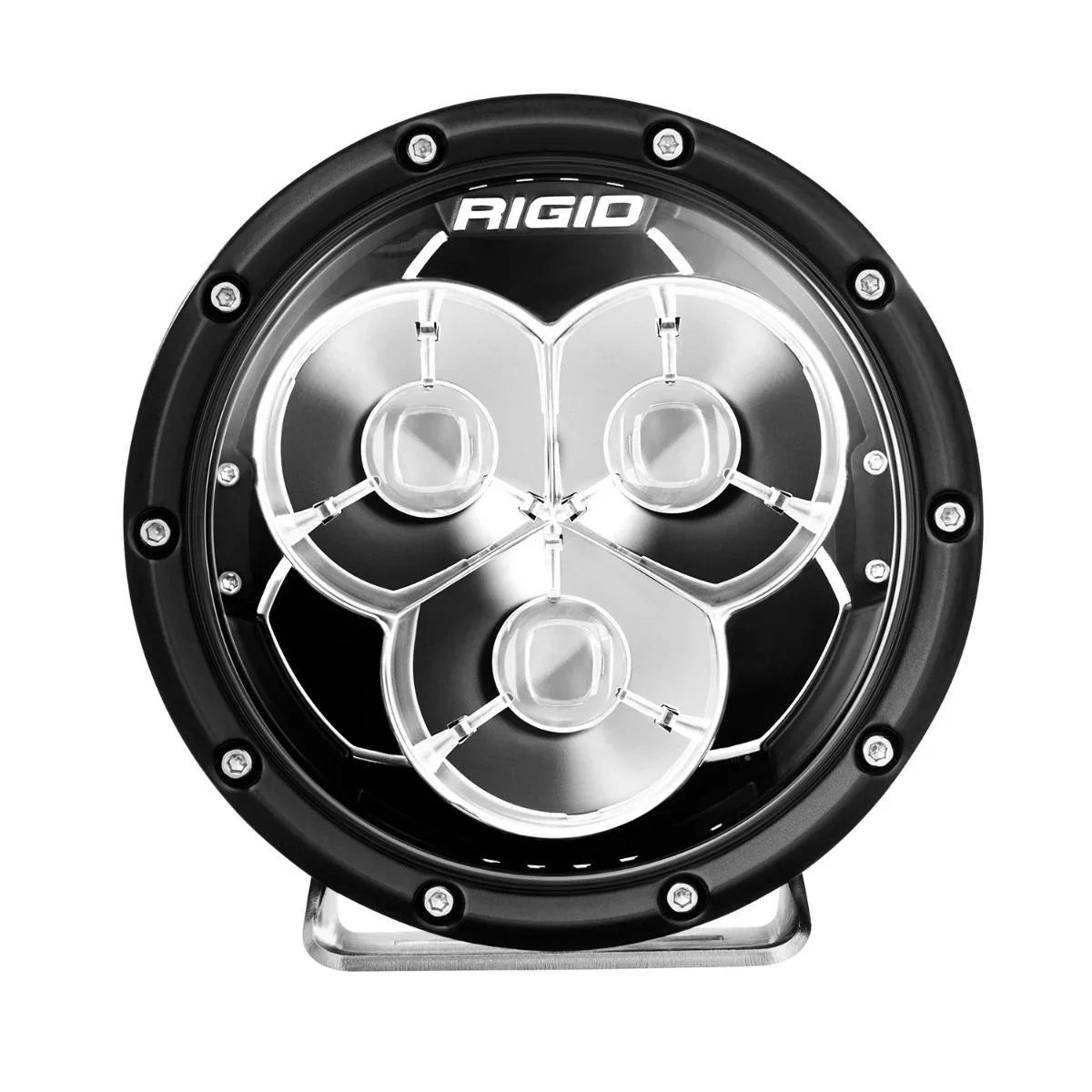

360-Series Laser Optic 6 Inch Pair
- Size: 6"
- Light Shape: POD
- Mount Type: SURFACE MOUNT
- Beam Category: Precision Spot
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 5.6
- Raw Lumens: 4189
- Watts: 78
- Lux @10m: 10,778.90
- Beam Distance @ 1 LUX: 1038.20
- Beam Distance @ .25 LUX: 2076.40
- Peak Beam Intensity(cd): 1
- Horizontal Beam Angle: 5.4
- Vertical Beam Angle: 4.6

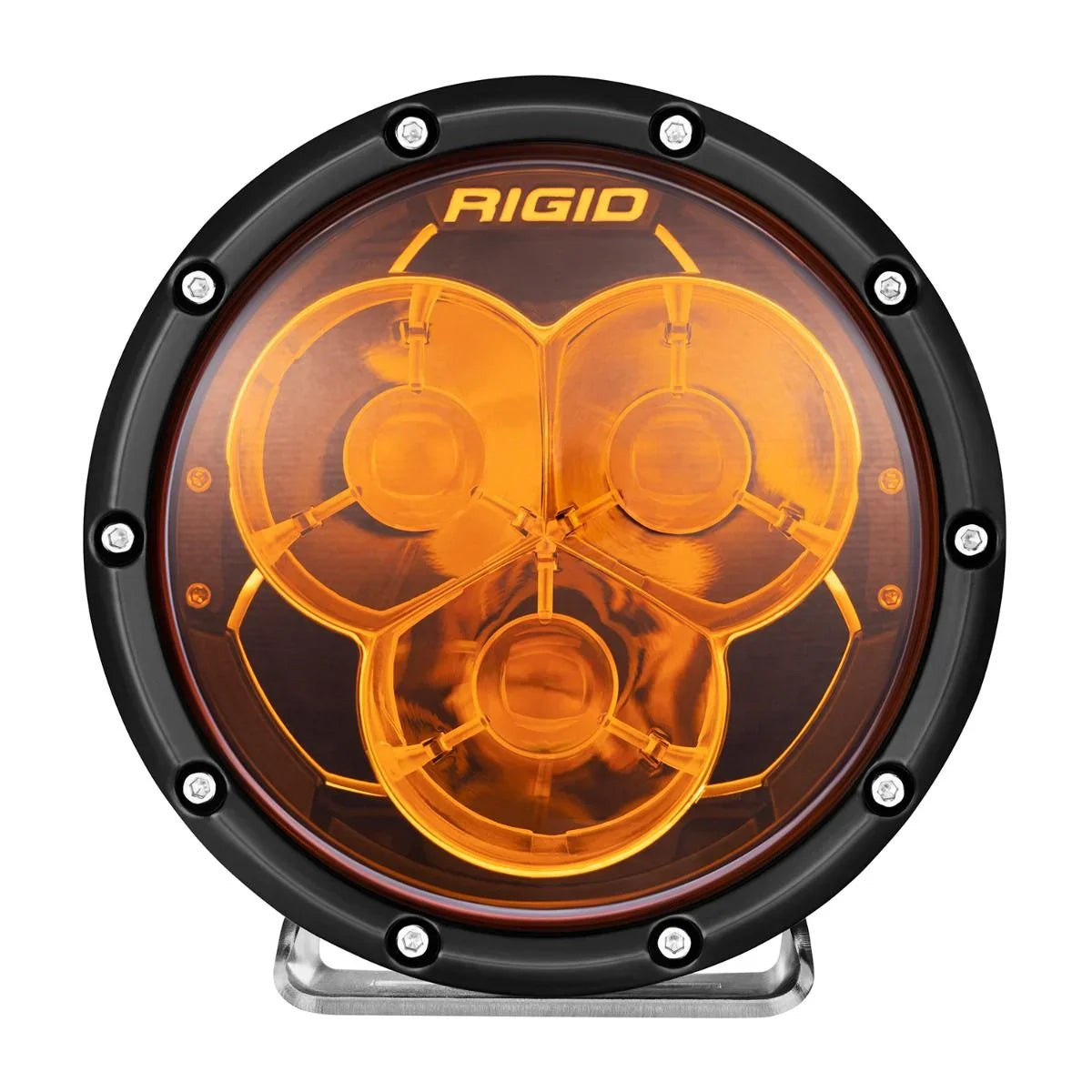

360-Series Laser Optic 6 Inch Amber Pro Pair
- Size: 6"
- Light Shape: POD
- Mount Type: SURFACE MOUNT
- Beam Category: Precision Spot
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 5.6
- Raw Lumens: 4189
- Watts: 78
- Lux @10m: 4,703.10
- Beam Distance @ 1 LUX: 685.80
- Beam Distance @ .25 LUX: 1371.60
- Peak Beam Intensity(cd): 470
- Horizontal Beam Angle: 5.8
- Vertical Beam Angle: 5

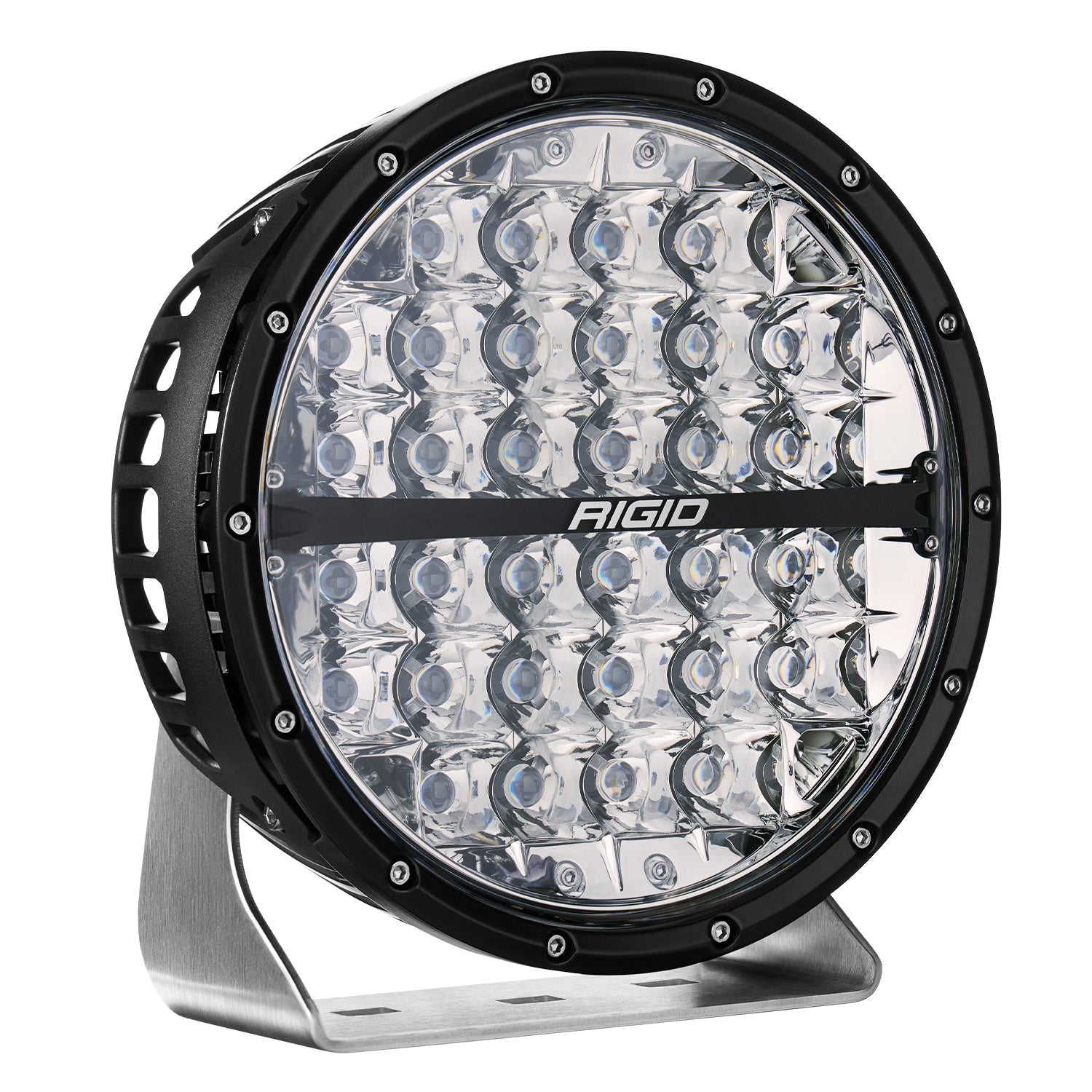

360-Series PRO 9 Inch Spot RGBW
- Size: 9"
- Light Shape: POD
- Mount Type: SURFACE MOUNT
- Beam Category: Spot
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 13.6
- Raw Lumens: 23232
- Watts: 189
- Lux @10m: 4536.3
- Beam Distance @ 1 LUX: 673.5
- Beam Distance @ .25 LUX: 1347
- Peak Beam Intensity(cd): 453633
- Horizontal Beam Angle: 18.2
- Vertical Beam Angle: 17.9

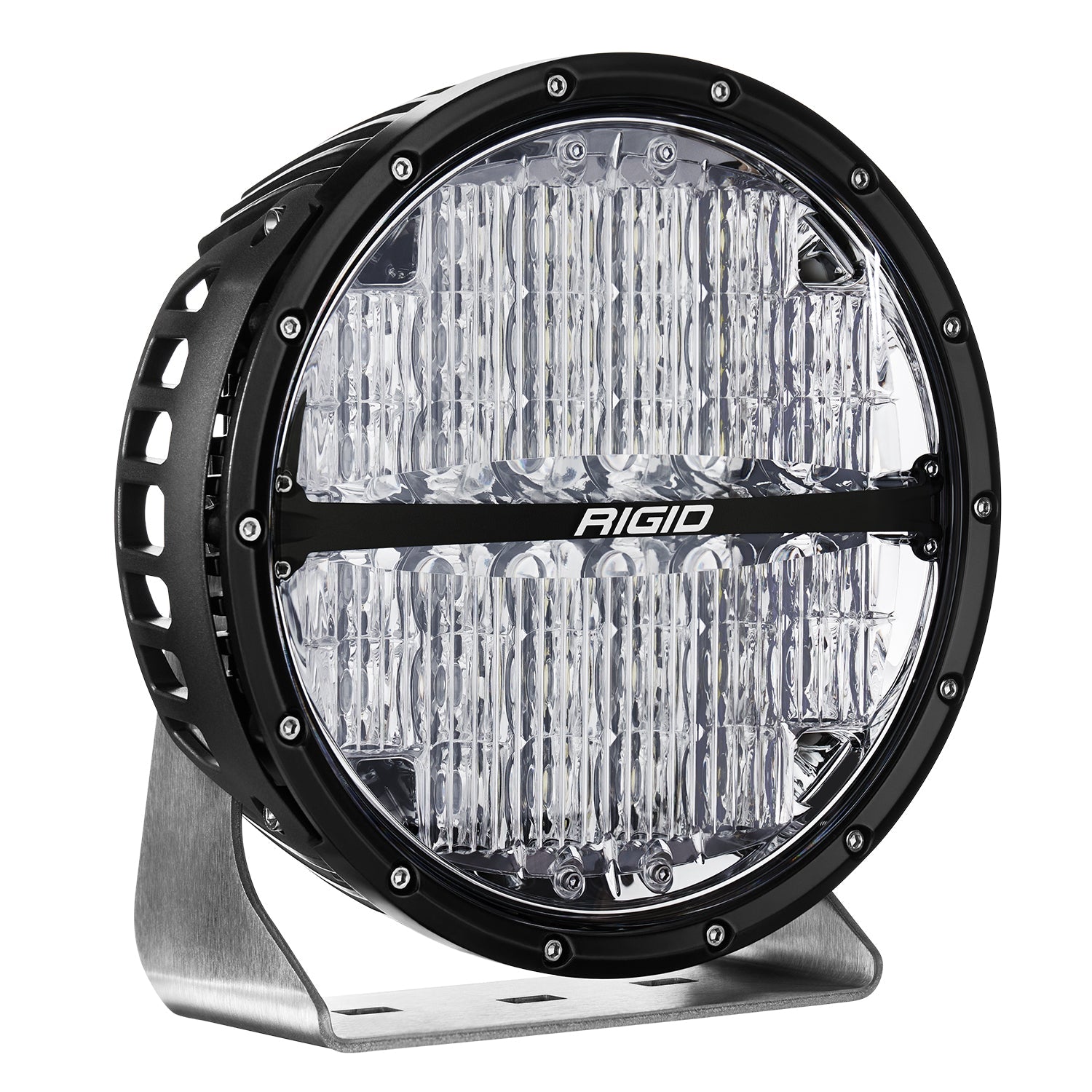

360-Series PRO 9 Inch Driving RGBW
- Size: 9"
- Light Shape: POD
- Mount Type: SURFACE MOUNT
- Beam Category: Driving
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 13.6
- Raw Lumens: 23232
- Watts: 189
- Lux @10m: 1374.7
- Beam Distance @ 1 LUX: 370.8
- Beam Distance @ .25 LUX: 741.5
- Peak Beam Intensity(cd): 137471
- Horizontal Beam Angle: 58
- Vertical Beam Angle: 19.9

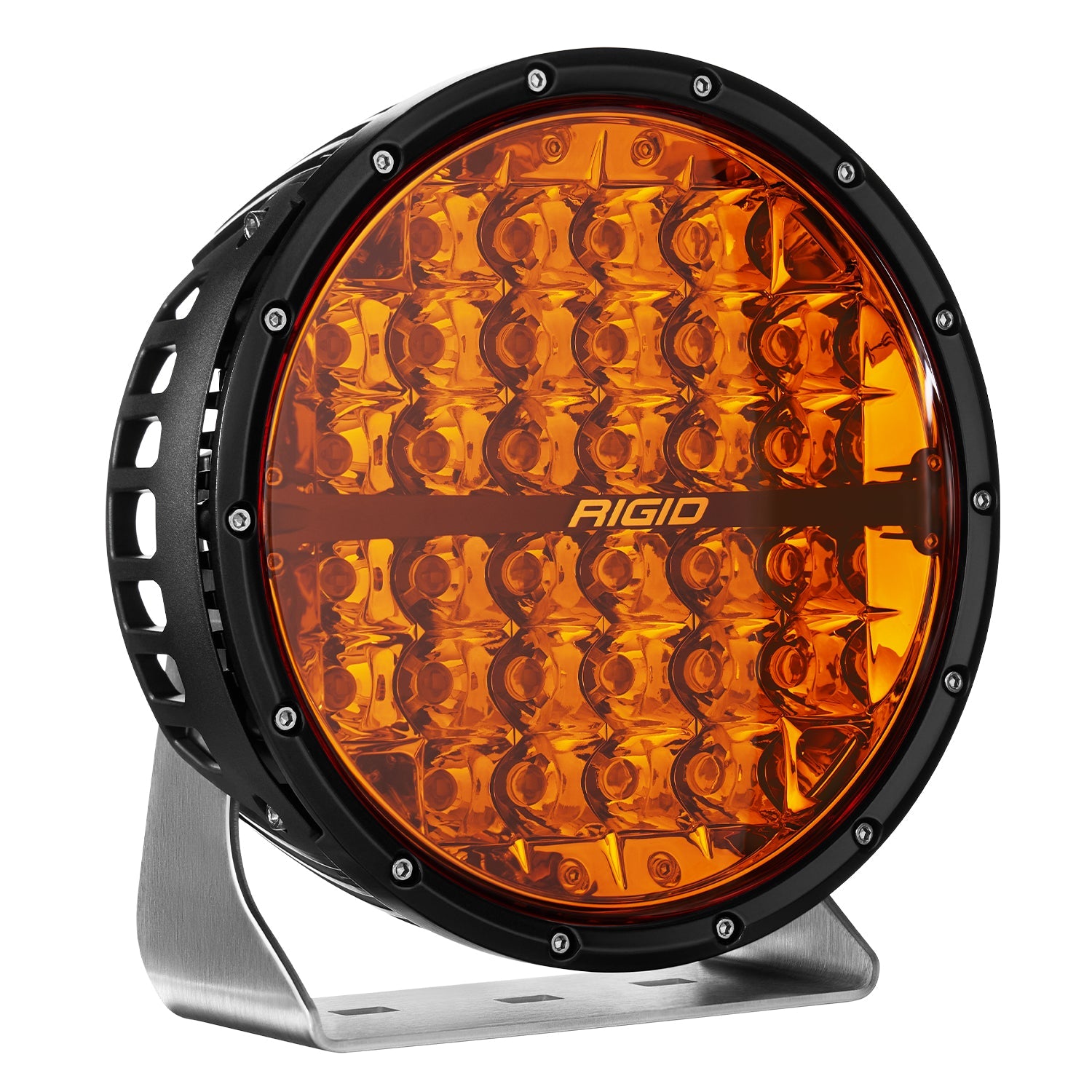

360-Series PRO 9 Inch Spot Amber RGBW
- Size: 9"
- Light Shape: POD
- Mount Type: SURFACE MOUNT
- Beam Category: Spot
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 13.6
- Raw Lumens: 23232
- Watts: 189
- Lux @10m: 2668.2
- Beam Distance @ 1 LUX: 516.5
- Beam Distance @ .25 LUX: 1033.1
- Peak Beam Intensity(cd): 266820
- Horizontal Beam Angle: 18
- Vertical Beam Angle: 17.9

D-Series Pods

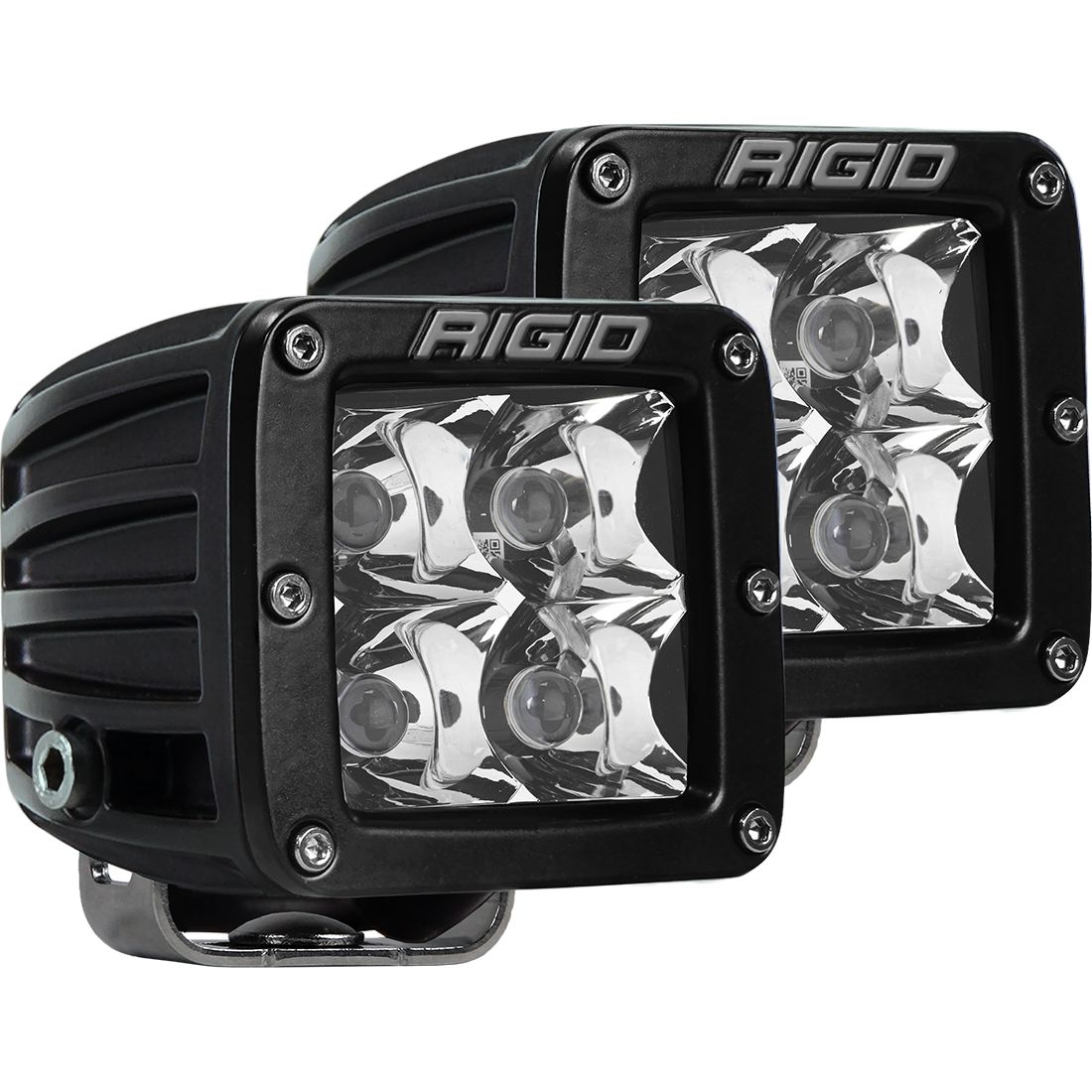

D-Series PRO Spot POD
- Size: 3"X3"
- Light Shape: POD
- Mount Type: SURFACE MOUNT
- Beam Category: SPOT
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 2.14
- Raw Lumens: 3168
- Watts: 30
- Lux @10m: 721.97
- Beam Distance @ 1 LUX: 268.7
- Beam Distance @ .25 LUX: 537.40
- Peak Beam Intensity(cd): 72197
- Horizontal Beam Angle: 16.5
- Vertical Beam Angle: 16.3

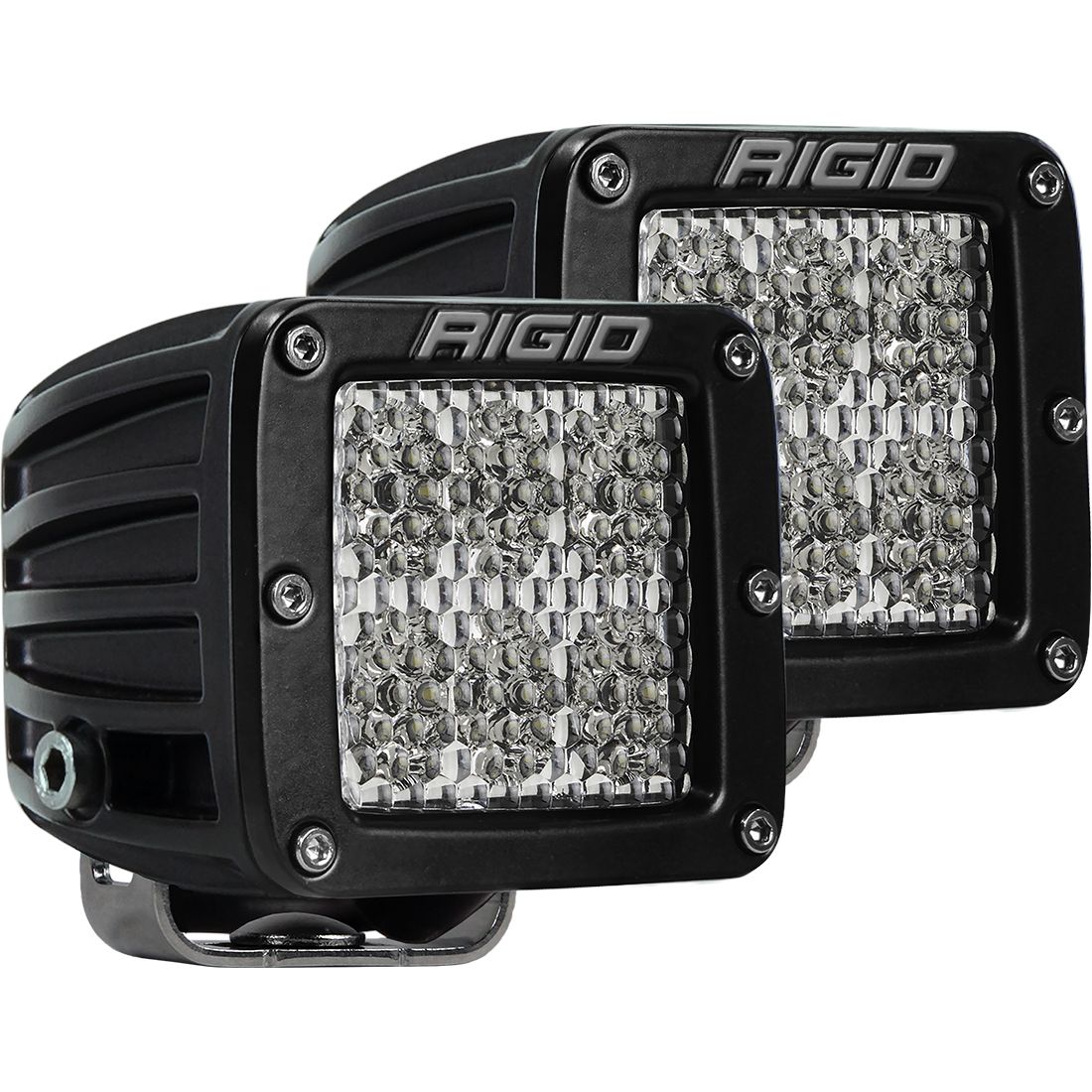

D-Series PRO Flood Diffused Pod
- Size: 3"X3"
- Light Shape: POD
- Mount Type: SURFACE MOUNT
- Beam Category: FLOOD DIFFUSED
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 2.14
- Raw Lumens: 3168
- Watts: 30
- Lux @10m: 20.6
- Beam Distance @ 1 LUX: 45.4
- Beam Distance @ .25 LUX: 90.8
- Peak Beam Intensity(cd): 2060
- Horizontal Beam Angle: 82.6
- Vertical Beam Angle: 90.4

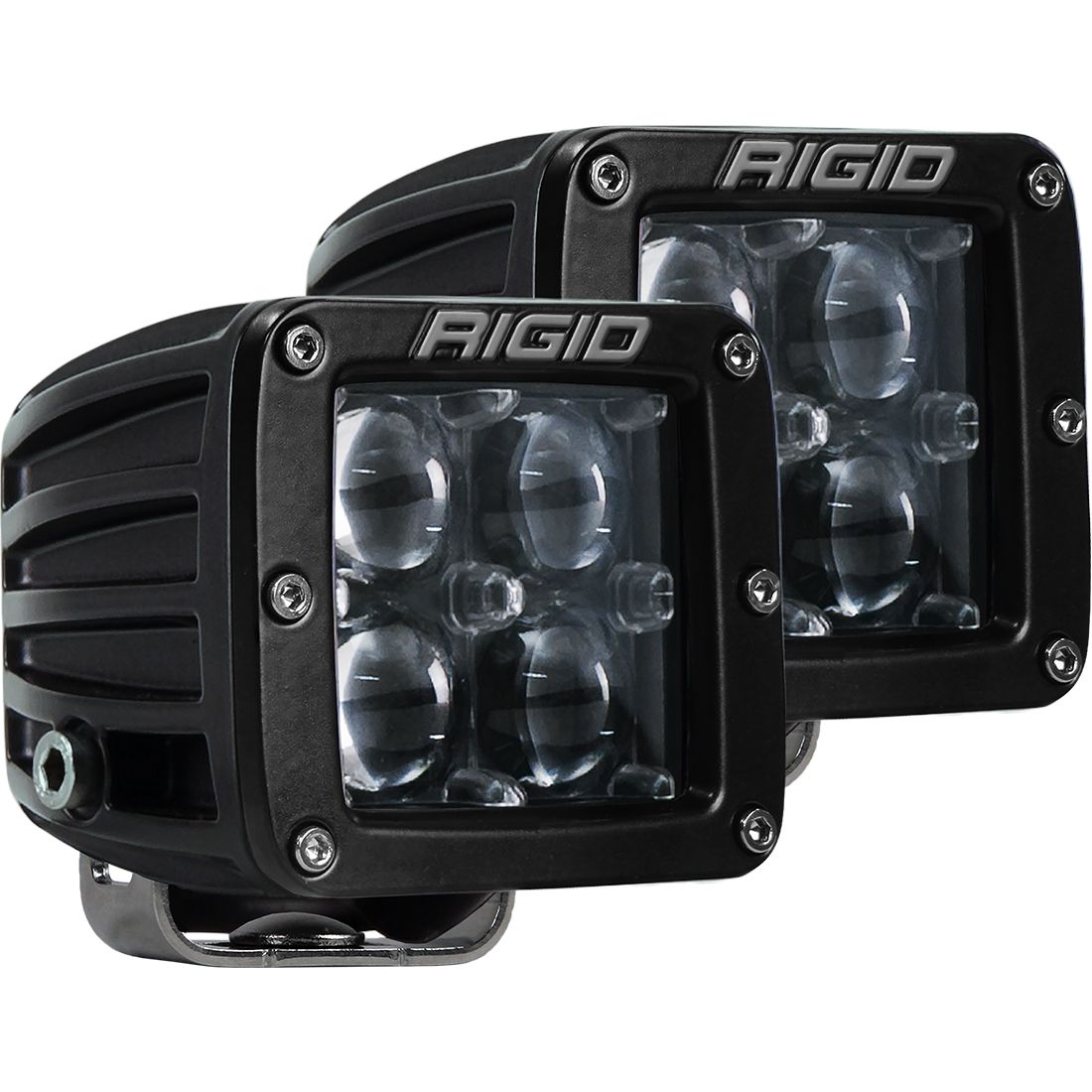

D-Series PRO Hyperspot Pod
- Size: 3"X3"
- Light Shape: POD
- Mount Type: SURFACE MOUNT
- Beam Category: Hyperspot
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 2.14
- Raw Lumens: 3168
- Watts: 30
- Lux @10m: 794.56
- Beam Distance @ 1 LUX: 281.9
- Beam Distance @ .25 LUX: 563.8
- Peak Beam Intensity(cd): 79456
- Horizontal Beam Angle: 11.1
- Vertical Beam Angle: 10.9

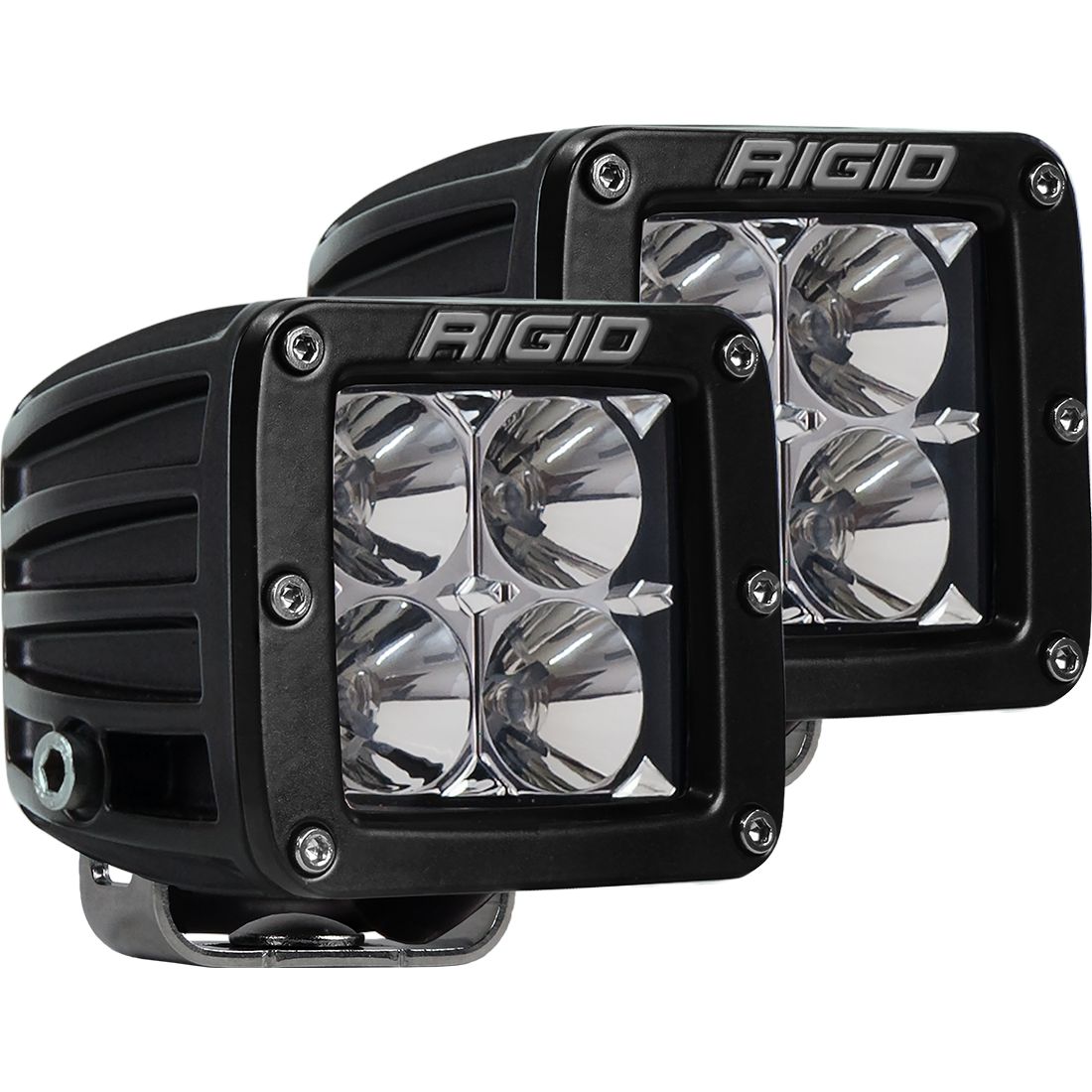

D-Series PRO Flood Pod
- Size: 3"X3"
- Light Shape: POD
- Mount Type: SURFACE MOUNT
- Beam Category: Flood
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 2.14
- Raw Lumens: 3168
- Watts: 30
- Lux @10m: 58.19
- Beam Distance @ 1 LUX: 76.3
- Beam Distance @ .25 LUX: 152.6
- Peak Beam Intensity(cd): 5819
- Horizontal Beam Angle: 50.6
- Vertical Beam Angle: 51.1

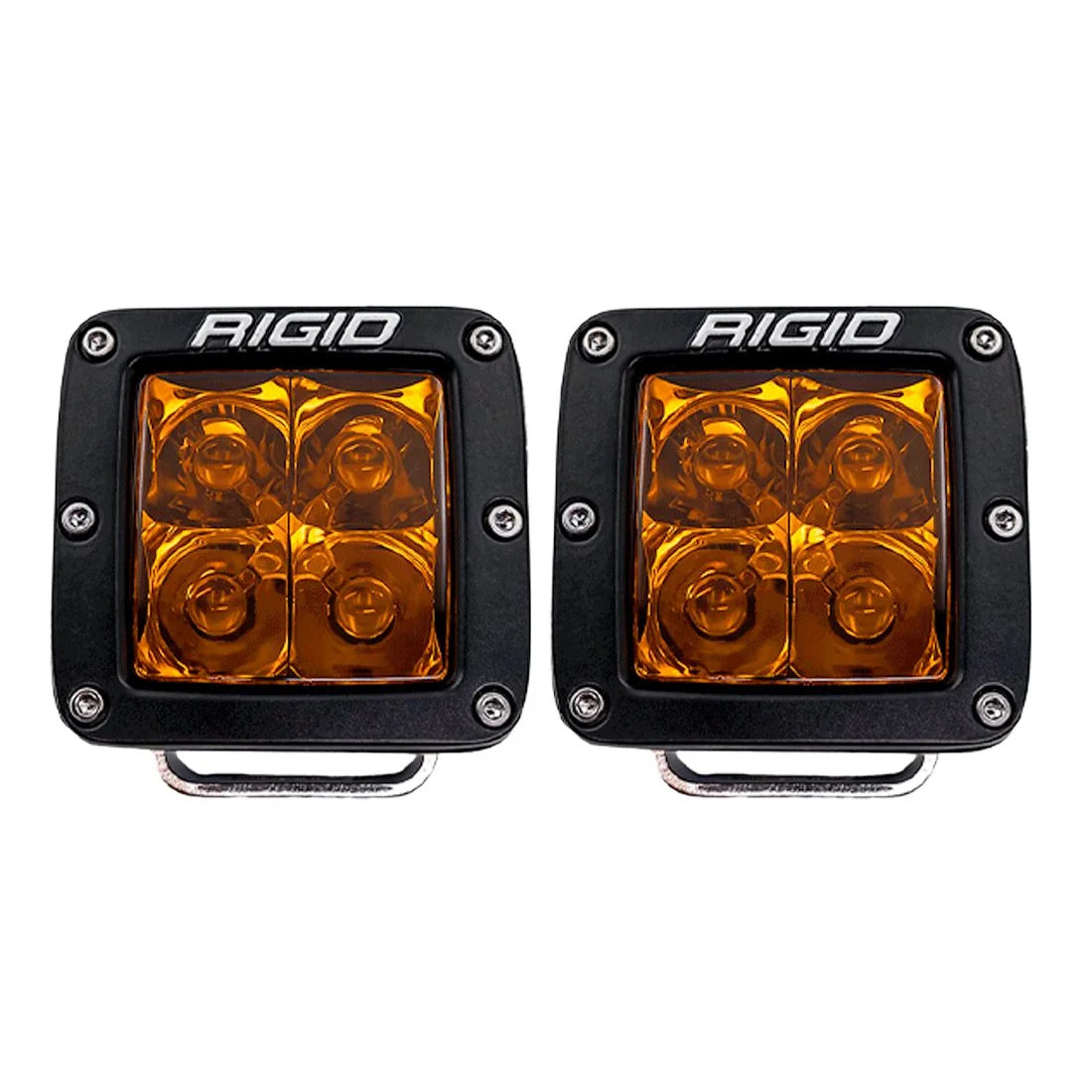

D-Series PRO Spot Amber PRO Pod
- Size: 3"X3"
- Light Shape: POD
- Mount Type: SURFACE MOUNT
- Beam Category: Spot
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 2.14
- Raw Lumens: 3168
- Watts: 30
- Lux @10m: 343.4
- Beam Distance @ 1 LUX: 185.3
- Beam Distance @ .25 LUX: 370.6
- Peak Beam Intensity(cd): 34340
- Horizontal Beam Angle: 18.8
- Vertical Beam Angle: 17.2

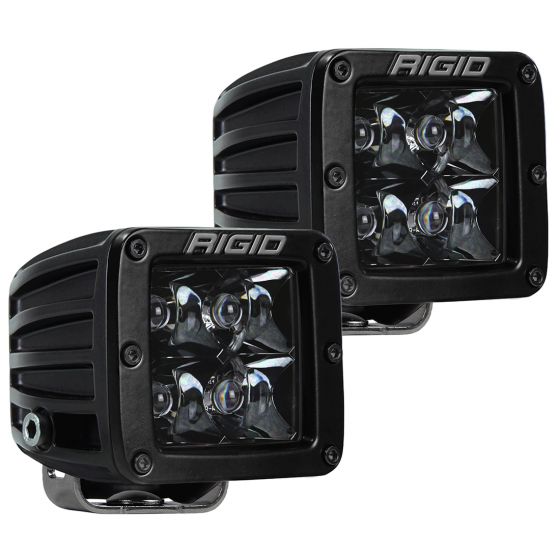

D-Series PRO Spot Diffused Midnight
- Size: 3"X3"
- Light Shape: POD
- Mount Type: SURFACE MOUNT
- Beam Category: SPOT
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 2.07
- Raw Lumens: 3168
- Watts: 29
- Lux @10m: 388.94
- Beam Distance @ 1 LUX: 197.2
- Beam Distance @ .25 LUX: 394.4
- Peak Beam Intensity(cd): 38
- Horizontal Beam Angle: 18.7
- Vertical Beam Angle: 18.6

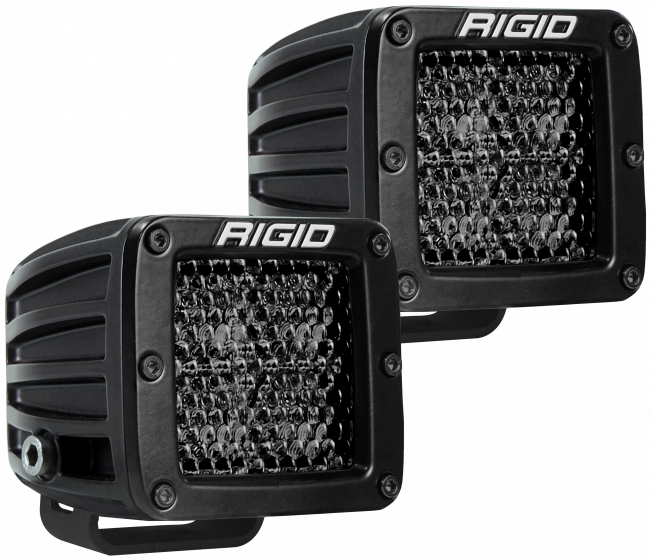

D-Series PRO Spot Diffused Midnight
- Size: 3"X3"
- Light Shape: POD
- Mount Type: SURFACE MOUNT
- Beam Category: SPOT DIFFUSED
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 2.1
- Raw Lumens: 1411
- Watts: 30
- Lux @10m: 9.13
- Beam Distance @ 1 LUX: 30.2
- Beam Distance @ .25 LUX: 60.4
- Peak Beam Intensity(cd): 913
- Horizontal Beam Angle: 74.6
- Vertical Beam Angle: 87

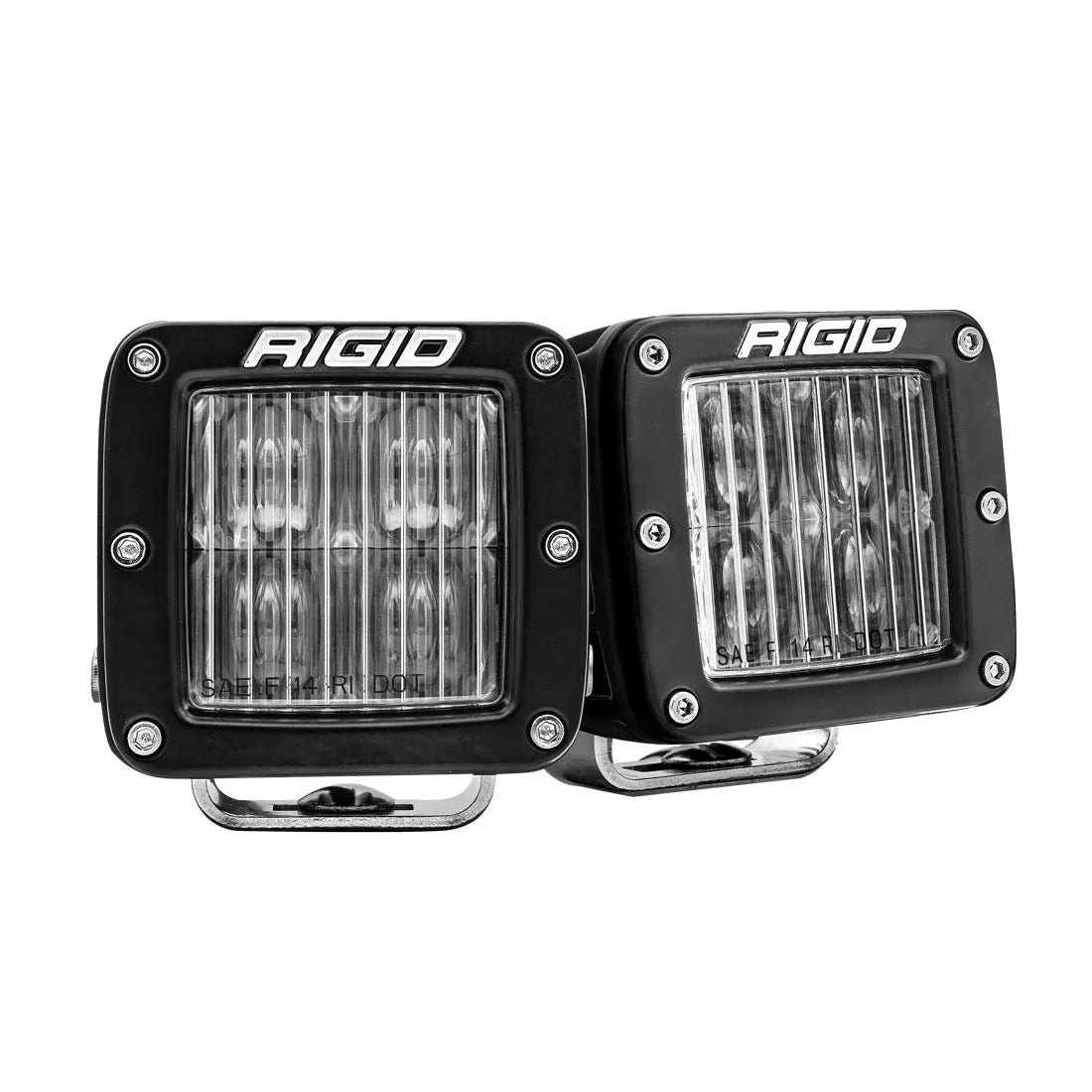

D-Series PRO SAE Fog
- Size: 3"X3"
- Light Shape: POD
- Mount Type: SURFACE MOUNT
- Beam Category: SAE
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 2.86
- Raw Lumens: 3445
- Watts: 40
- Lux @10m: 187.7
- Beam Distance @ 1 LUX: 137
- Beam Distance @ .25 LUX: 274
- Peak Beam Intensity(cd): 18
- Horizontal Beam Angle: 60.5
- Vertical Beam Angle: 8.8

D-XL Pods

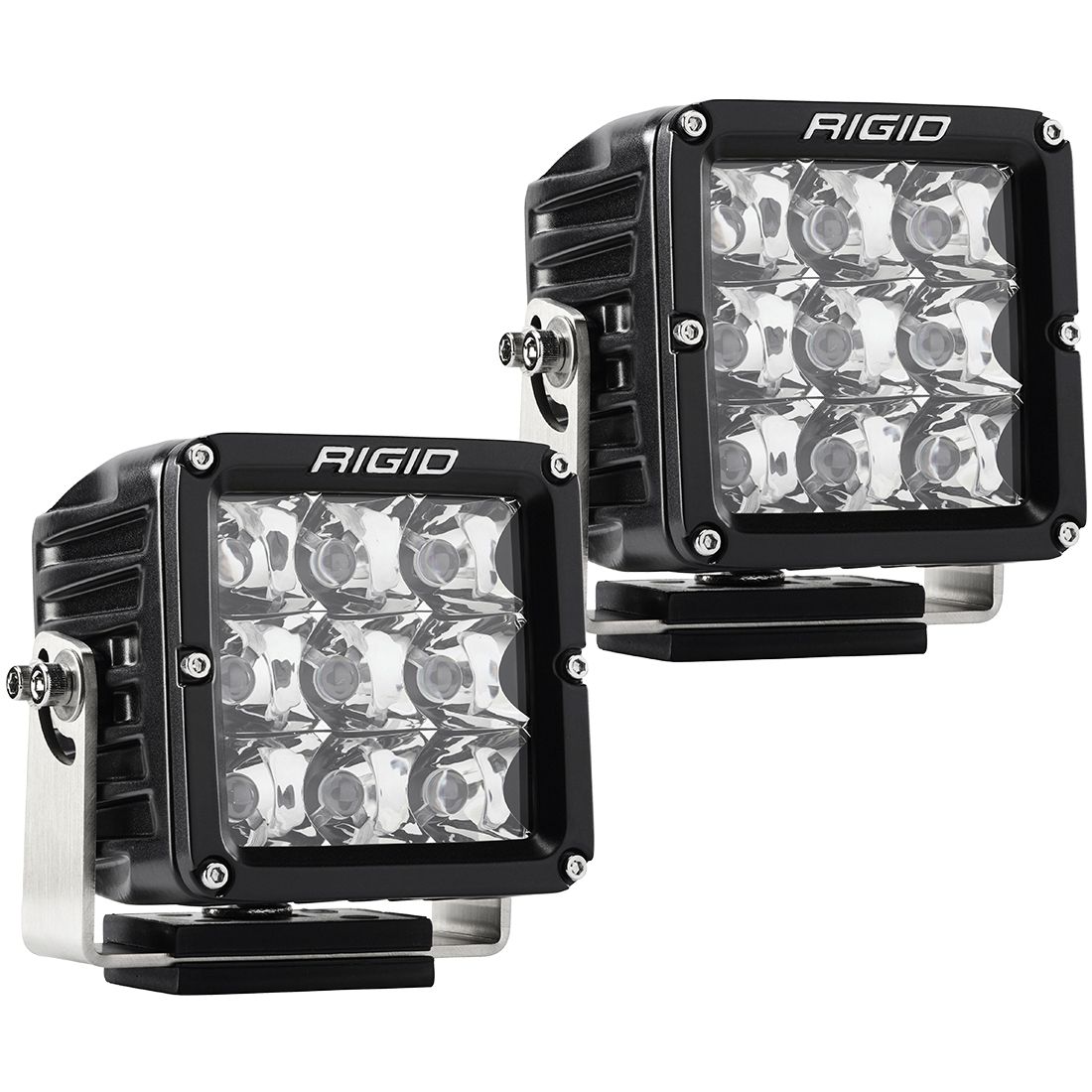

D-XL PRO Spot Pod
- Size: 4"x4"
- Light Shape: Pod
- Mount Type: Surface MOUNT
- Beam Category: Spot
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 4.86
- Raw Lumens: 7128
- Watts: 68
- Lux @10m: 1342.26
- Beam Distance @ 1 LUX: 366.4
- Beam Distance @ .25 LUX: 732.7
- Peak Beam Intensity(cd): 134226
- Horizontal Beam Angle: 16.5
- Vertical Beam Angle: 16.6

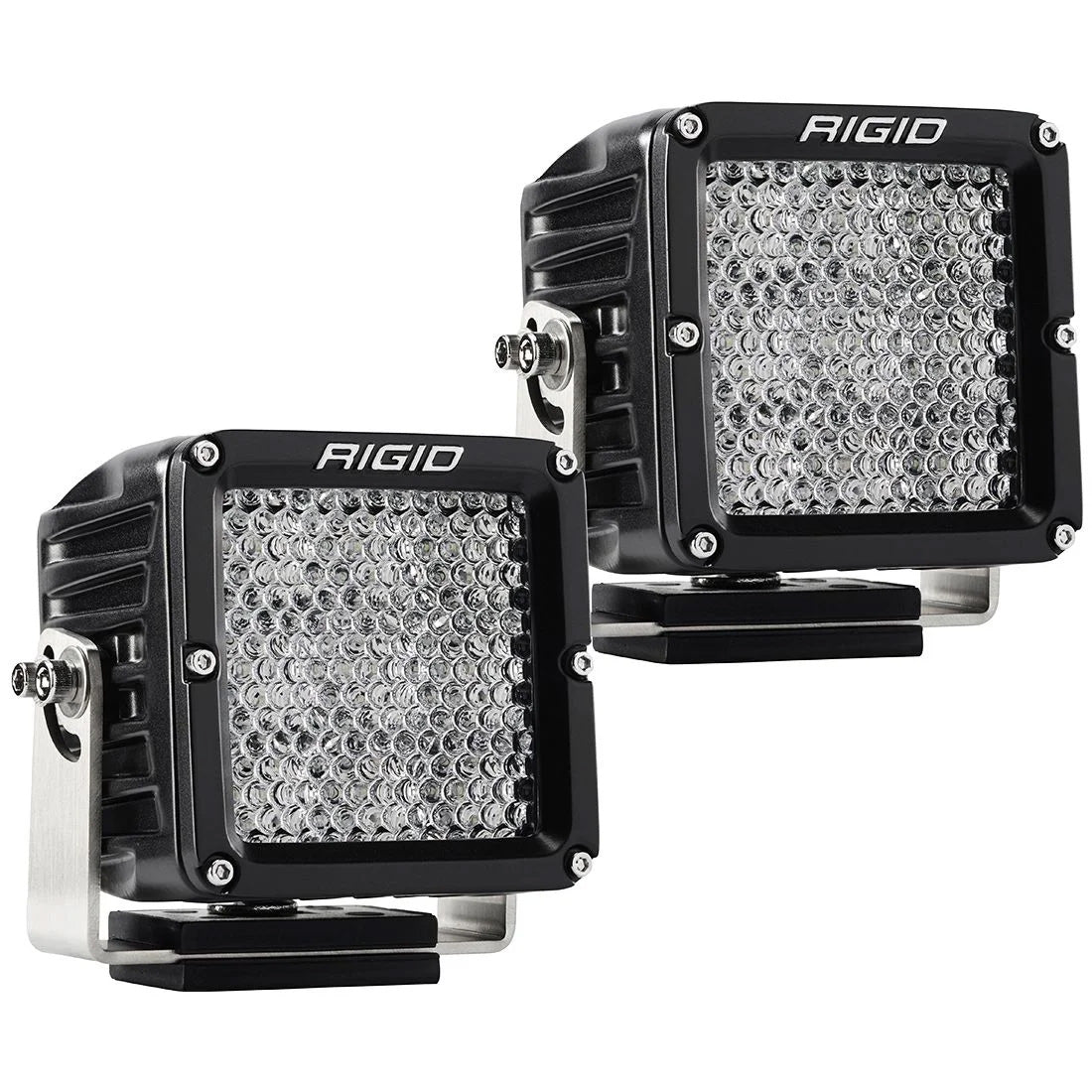

D-XL PRO Diffused Pod
- Size: 4"x4"
- Light Shape: Pod
- Mount Type: Surface MOUNT
- Beam Category: Spot
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 4.79
- Raw Lumens: 7128
- Watts: 67
- Lux @10m: 39.8
- Beam Distance @ 1 LUX: 63.1
- Beam Distance @ .25 LUX: 126.2
- Peak Beam Intensity(cd): 3980
- Horizontal Beam Angle: 96.3
- Vertical Beam Angle: 98.9

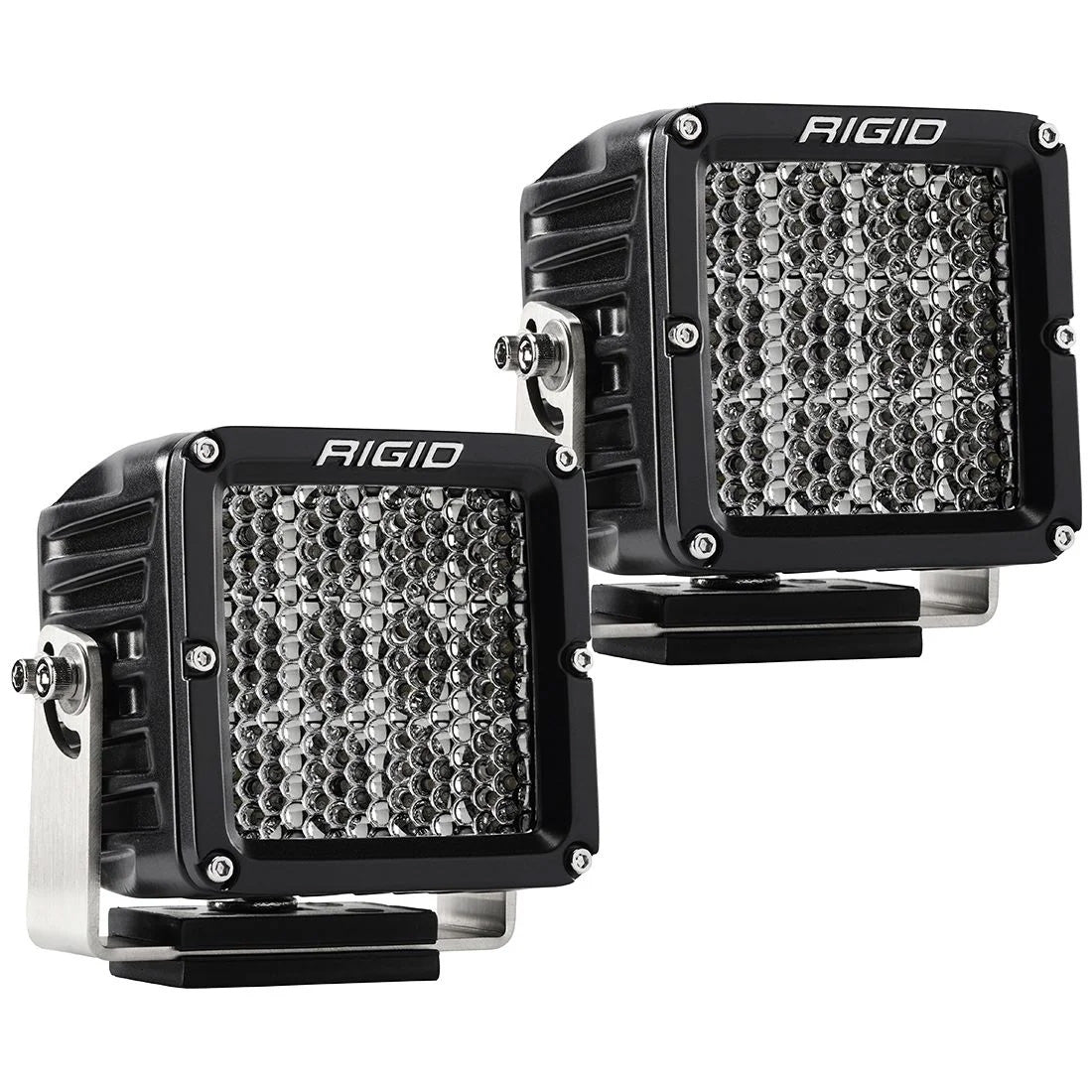

D-XL PRO Driving Diffused Pod
- Size: 4"x4"
- Light Shape: Pod
- Mount Type: Surface MOUNT
- Beam Category: Driving Diffused
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 6.29
- Raw Lumens: 9504
- Watts: 88
- Lux @10m: 74.5
- Beam Distance @ 1 LUX: 86.3
- Beam Distance @ .25 LUX: 172.7
- Peak Beam Intensity(cd): 7454
- Horizontal Beam Angle: 79
- Vertical Beam Angle: 93.4

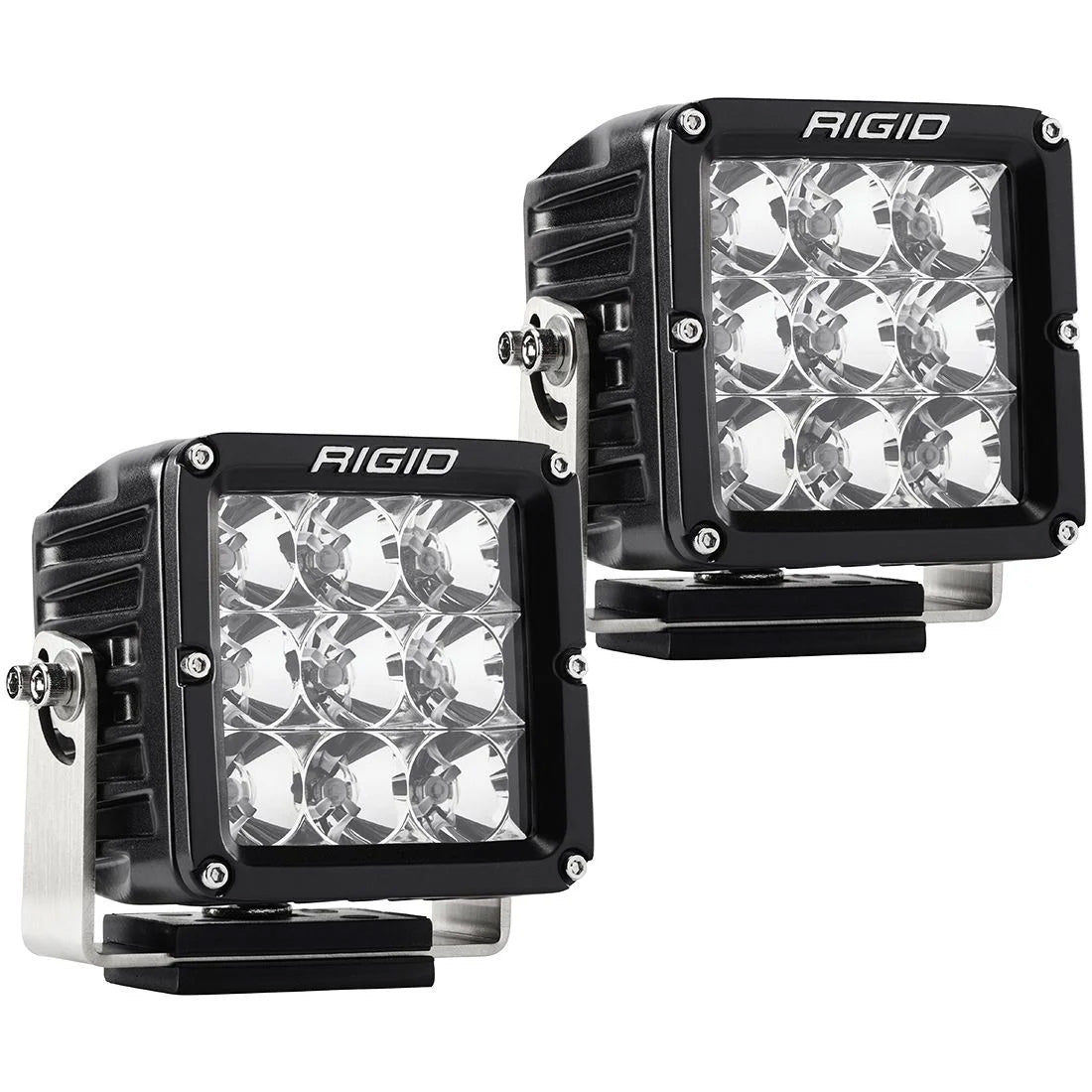

D-XL PRO Flood Pod
- Size: 4"x4"
- Light Shape: Pod
- Mount Type: Surface MOUNT
- Beam Category: Flood
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 4.93
- Raw Lumens: 7128
- Watts: 69
- Lux @10m: 146.8
- Beam Distance @ 1 LUX: 121.2
- Beam Distance @ .25 LUX: 242.3
- Peak Beam Intensity(cd): 14681
- Horizontal Beam Angle: 46.9
- Vertical Beam Angle: 48.5

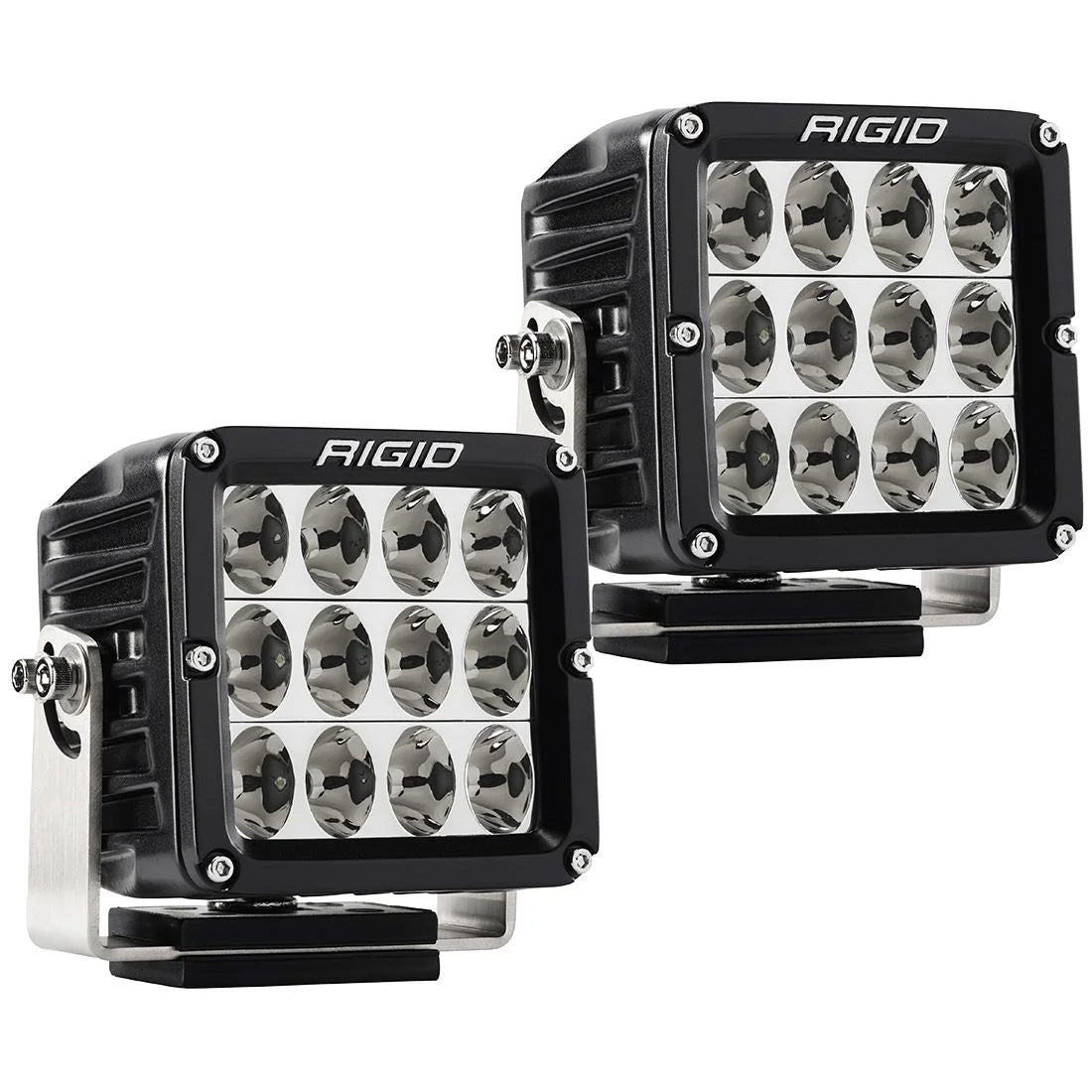

D-XL PRO Driving Pod
- Size: 4"x4"
- Light Shape: Pod
- Mount Type: Surface MOUNT
- Beam Category: Driving
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 6.36
- Raw Lumens: 9504
- Watts: 89
- Lux @10m: 638.4
- Beam Distance @ 1 LUX: 252.7
- Beam Distance @ .25 LUX: 505.3
- Peak Beam Intensity(cd): 63841
- Horizontal Beam Angle: 47.3
- Vertical Beam Angle: 23

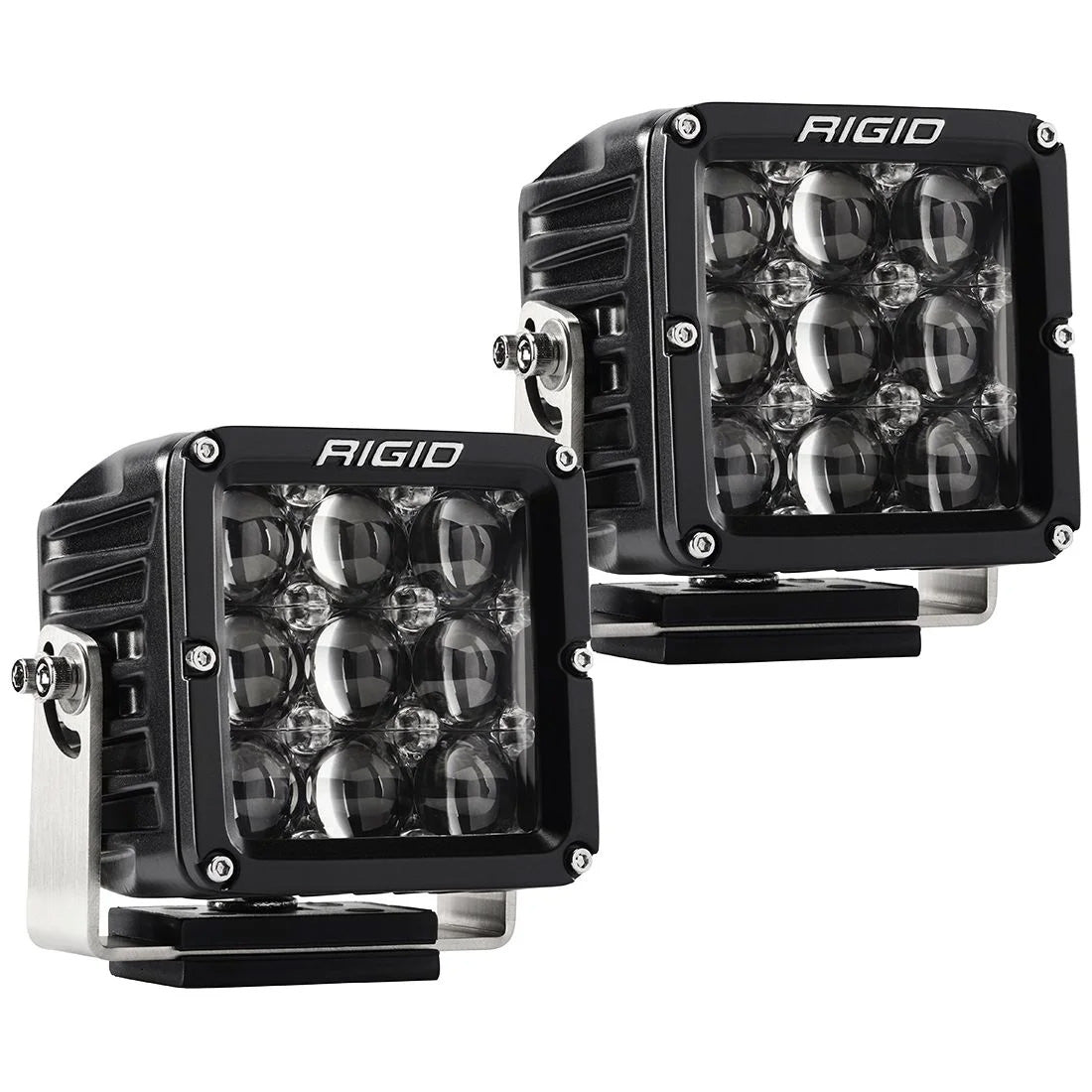

D-XL PRO Hyperspot Pod
- Size: 4"x4"
- Light Shape: Pod
- Mount Type: Surface MOUNT
- Beam Category: Hyperspot
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 4.86
- Raw Lumens: 7128
- Watts: 68
- Lux @10m: 1685.2
- Beam Distance @ 1 LUX: 410.5
- Beam Distance @ .25 LUX: 821
- Peak Beam Intensity(cd): 168523
- Horizontal Beam Angle: 10.9
- Vertical Beam Angle: 11.5

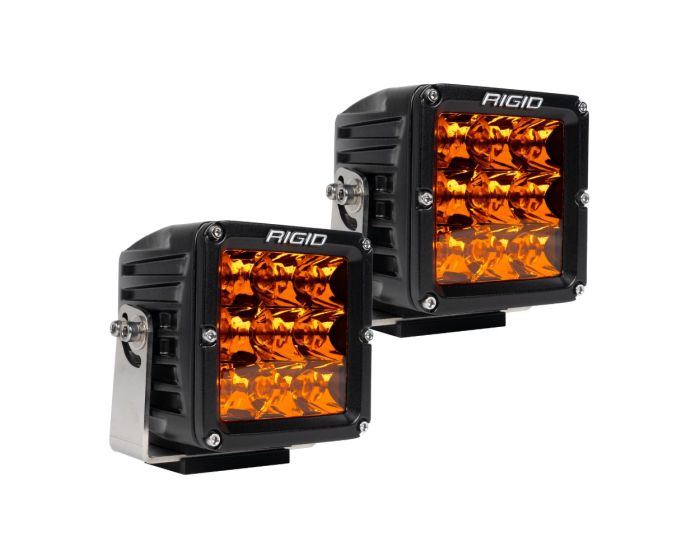

D-XL PRO Spot Amber Pod
- Size: 4"x4"
- Light Shape: Pod
- Mount Type: Surface MOUNT
- Beam Category: Spot
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 3.9
- Raw Lumens: 7128
- Watts: 55
- Lux @10m: 731
- Beam Distance @ 1 LUX: 270
- Beam Distance @ .25 LUX: 541
- Peak Beam Intensity(cd): 73099
- Horizontal Beam Angle: 18
- Vertical Beam Angle: 17.5

Ignite Pods

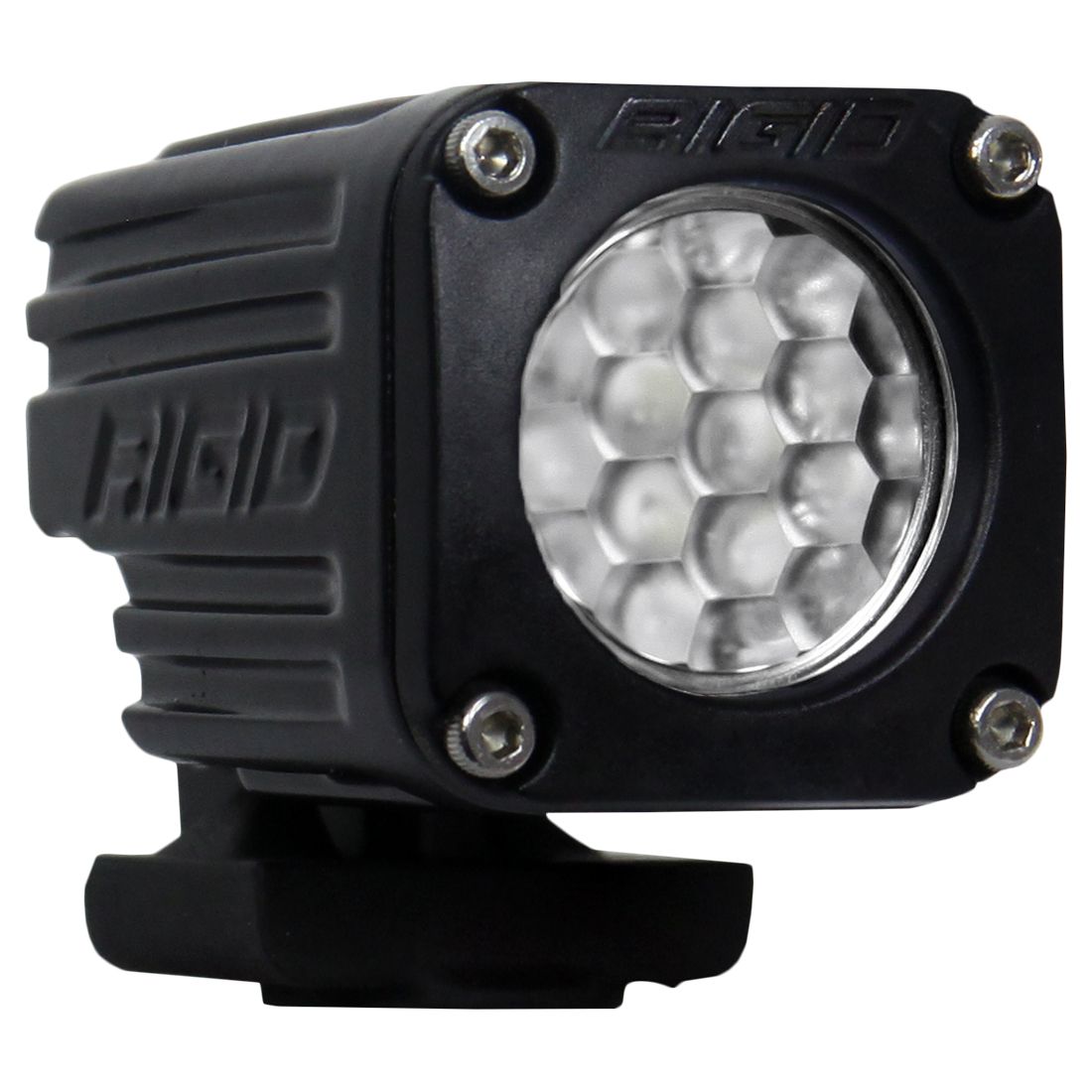

Ignite Diffused Pod
- Size: 1"X2"
- Light Shape: POD
- Mount Type: SURFACE MOUNT
- Beam Category: Flood Diffused
- Voltage Range: 9V - 24V
- Current Draw at 14V (a): 0.85
- Raw Lumens: 1000
- Watts: 12
- Lux @10m: 9
- Beam Distance @ 1 LUX: 29
- Beam Distance @ .25 LUX: 60
- Peak Beam Intensity(cd): 885
- Horizontal Beam Angle: 55.8
- Vertical Beam Angle: 54.3

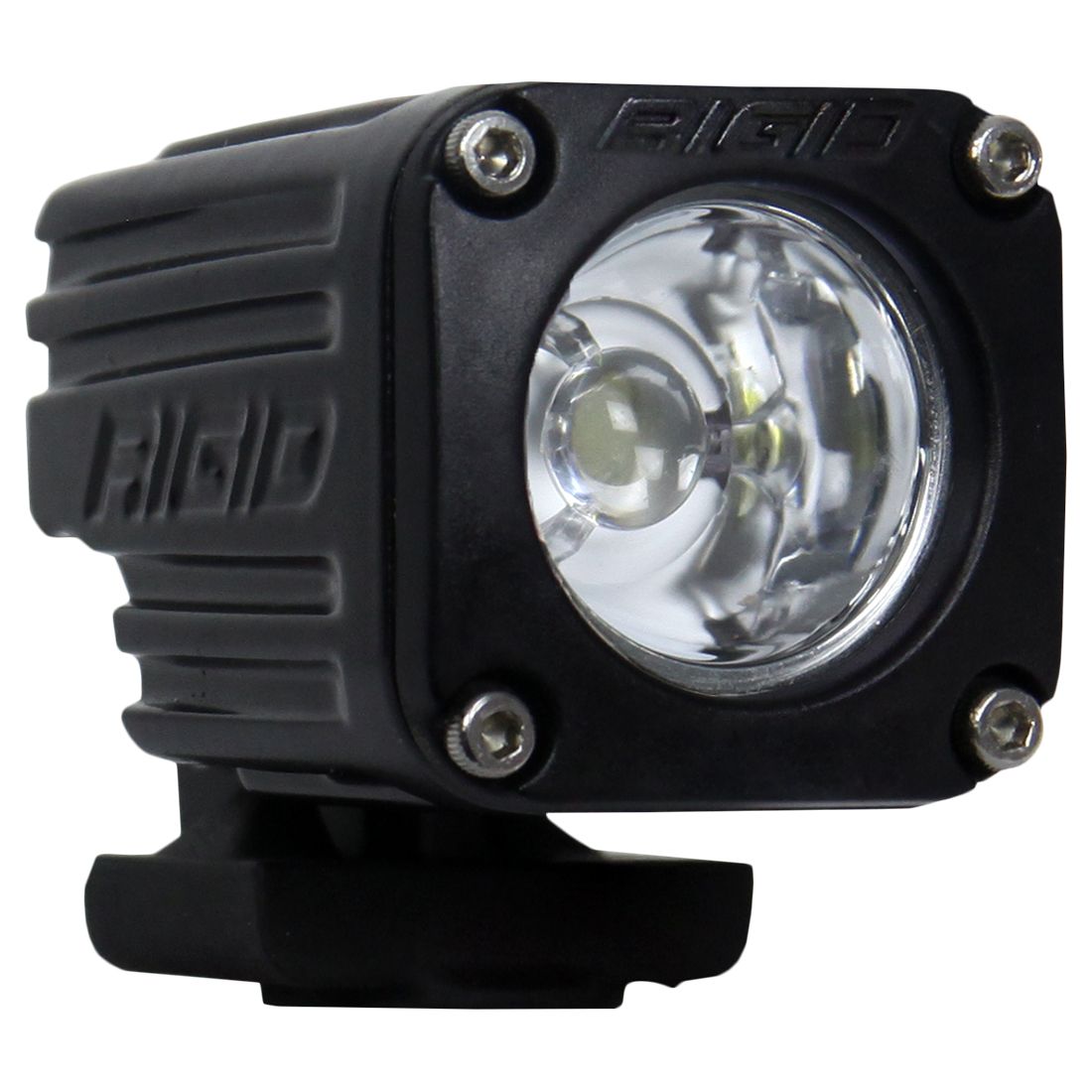

Ignite Flood Pod
- Size: 1"X2"
- Light Shape: POD
- Mount Type: SURFACE MOUNT
- Beam Category: Flood
- Voltage Range: 9V - 24V
- Current Draw at 14V (a): 0.85
- Raw Lumens: 1000
- Watts: 12
- Lux @10m: 18
- Beam Distance @ 1 LUX: 42
- Beam Distance @ .25 LUX: 80
- Peak Beam Intensity(cd): 1786
- Horizontal Beam Angle: 45
- Vertical Beam Angle: 42.2

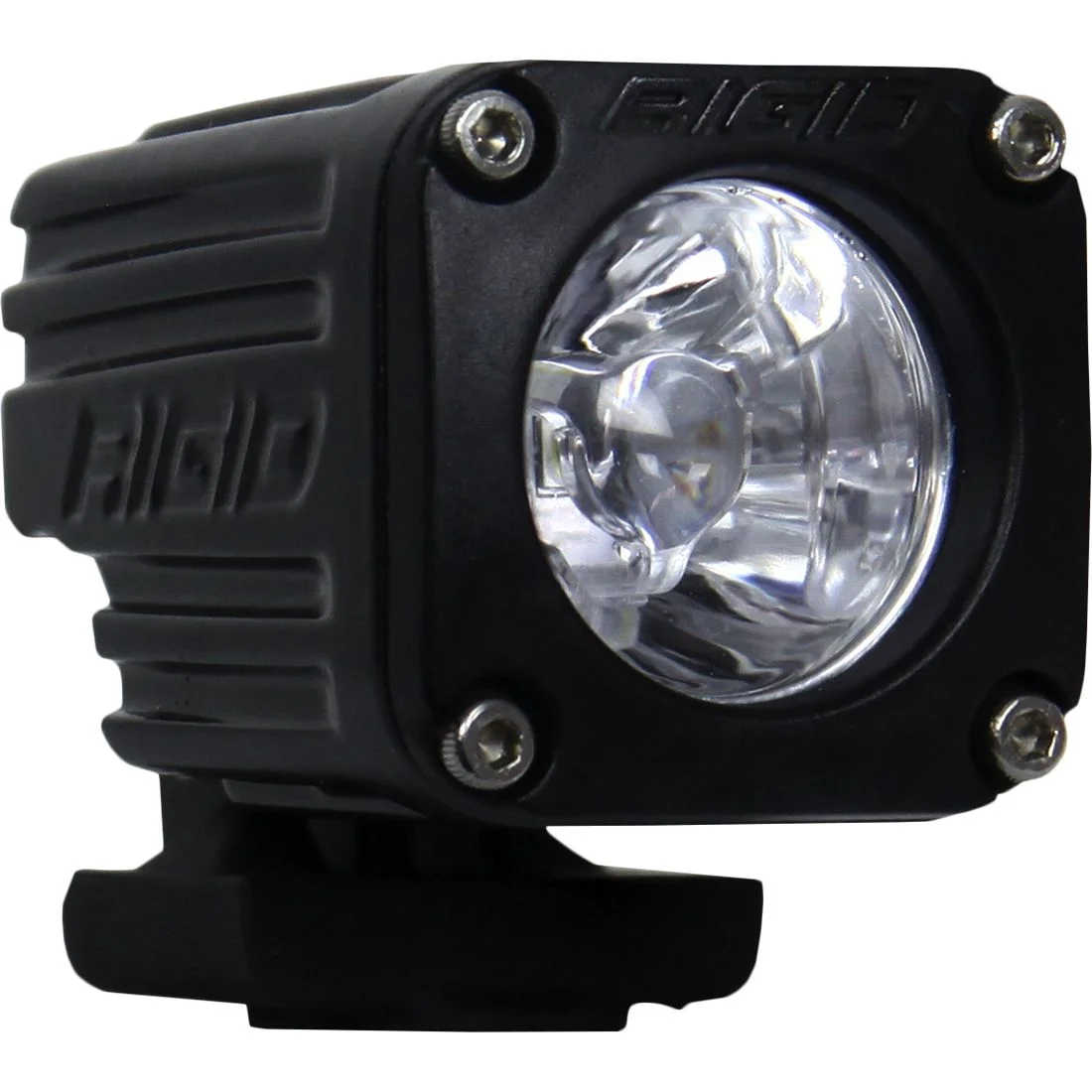

Ignite Spot Pod
- Size: 1"X2"
- Light Shape: POD
- Mount Type: SURFACE MOUNT
- Beam Category: Spot
- Voltage Range: 9V - 24V
- Current Draw at 14V (a): 0.85
- Raw Lumens: 1000
- Watts: 12
- Lux @10m: 139
- Beam Distance @ 1 LUX: 118
- Beam Distance @ .25 LUX: 236
- Peak Beam Intensity(cd): 13939
- Horizontal Beam Angle: 15.7
- Vertical Beam Angle: 10.9

Q-Series Pods

Q-Series PRO Pod Spot
- Size: 7"x7"
- Light Shape: POD
- Mount Type: SURFACE MOUNT
- Beam Category: SPOT
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 8.8
- Raw Lumens: 12672
- Watts: 123
- Lux @10m: 3446.27
- Beam Distance @ 1 LUX: 587
- Beam Distance @ .25 LUX: 1174.1
- Peak Beam Intensity(cd): 344627
- Horizontal Beam Angle: 15.7
- Vertical Beam Angle: 14.4

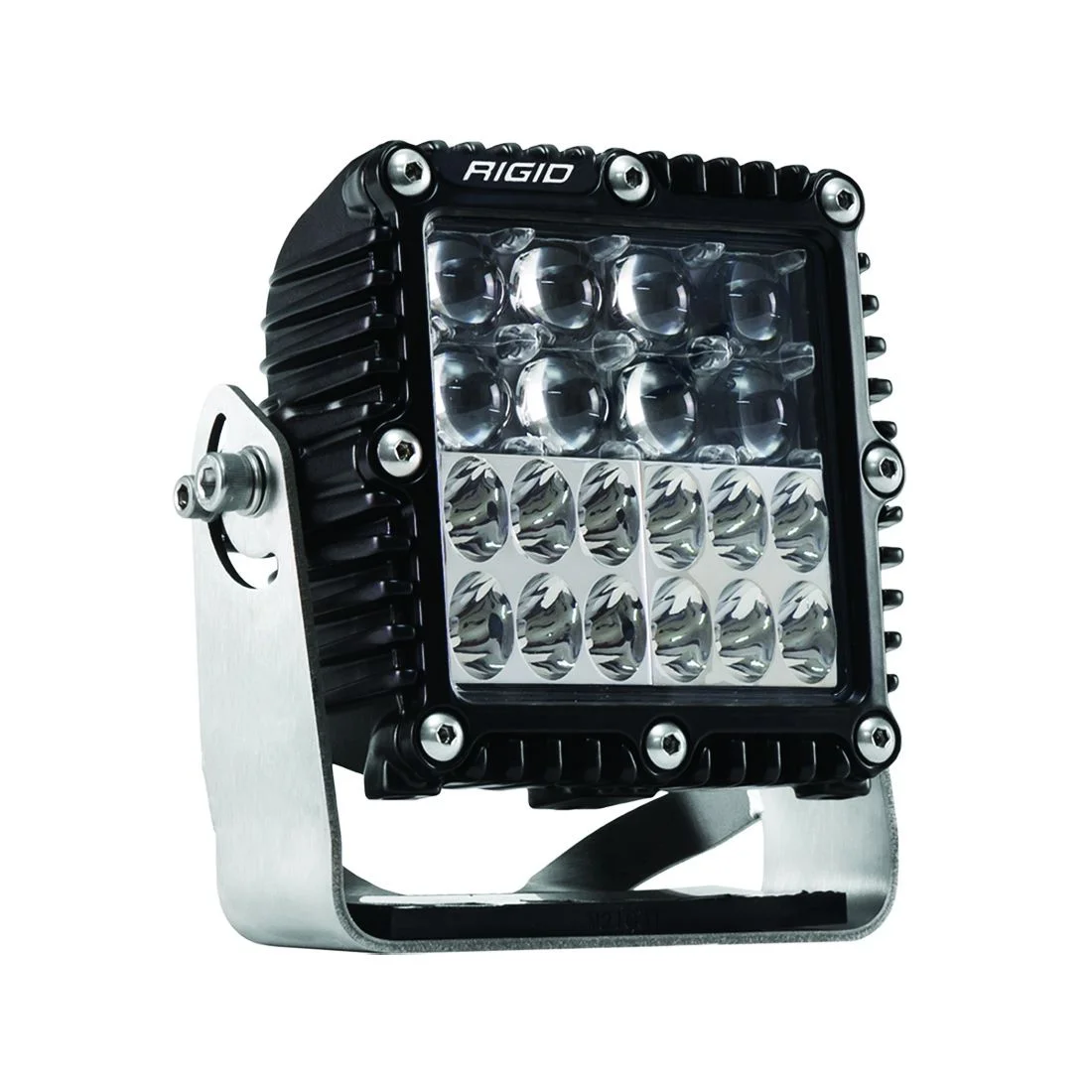

Q-Series PRO Pod Hyperspot/Driving Combo
- Size: 7"x7"
- Light Shape: POD
- Mount Type: SURFACE MOUNT
- Beam Category: Driving Hyperspot Combo
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 12.5
- Raw Lumens: 12150
- Watts: 175
- Lux @10m: 2169.75
- Beam Distance @ 1 LUX: 465.8
- Beam Distance @ .25 LUX: 931.6
- Peak Beam Intensity(cd): 216975
- Horizontal Beam Angle: 35.8
- Vertical Beam Angle: 12.9

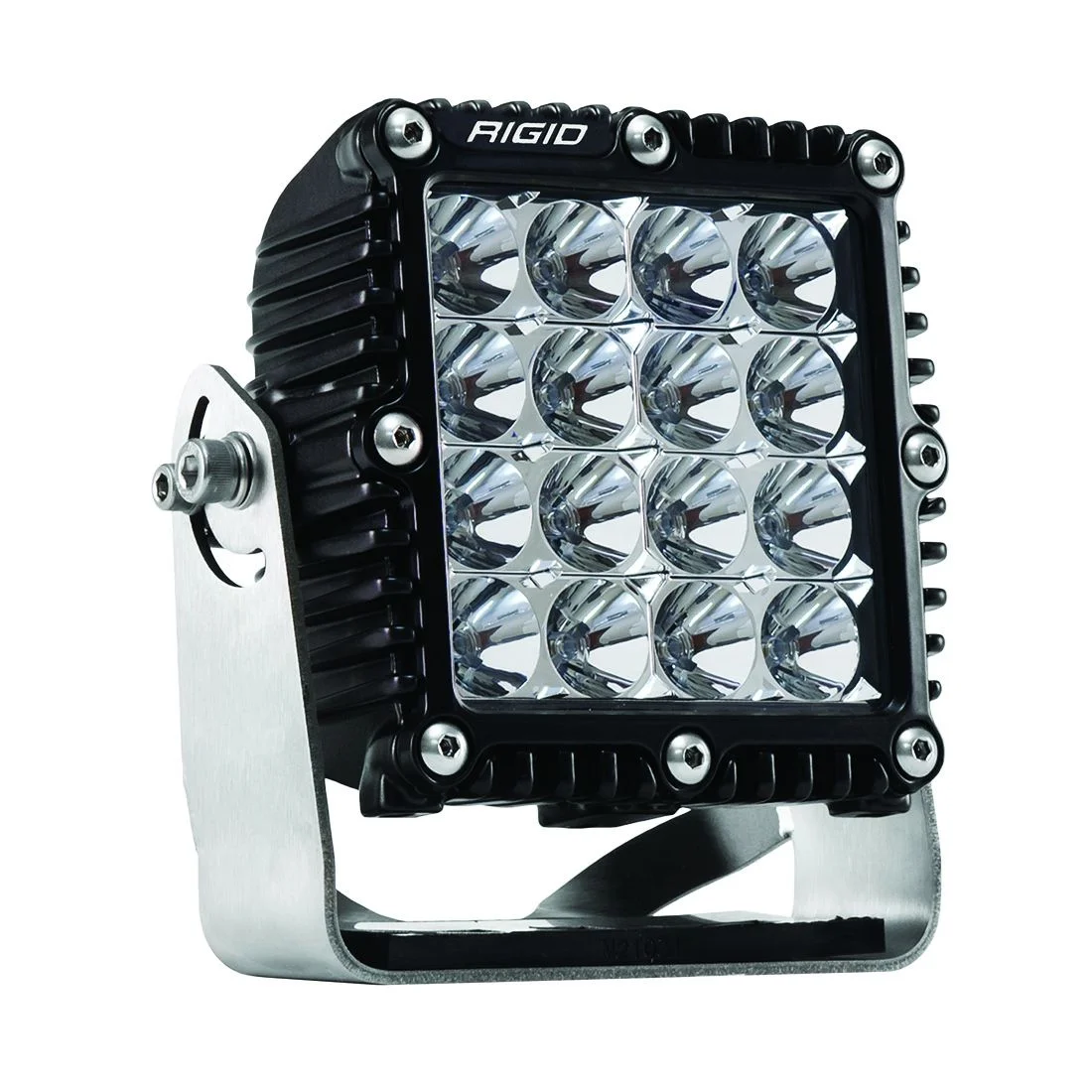

Q-Series PRO Pod Flood
- Size: 7"x7"
- Light Shape: POD
- Mount Type: SURFACE MOUNT
- Beam Category: Flood
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 8.8
- Raw Lumens: 12672
- Watts: 123
- Lux @10m: 329
- Beam Distance @ 1 LUX: 181.4
- Beam Distance @ .25 LUX: 362.8
- Peak Beam Intensity(cd): 32902
- Horizontal Beam Angle: 47
- Vertical Beam Angle: 46.6

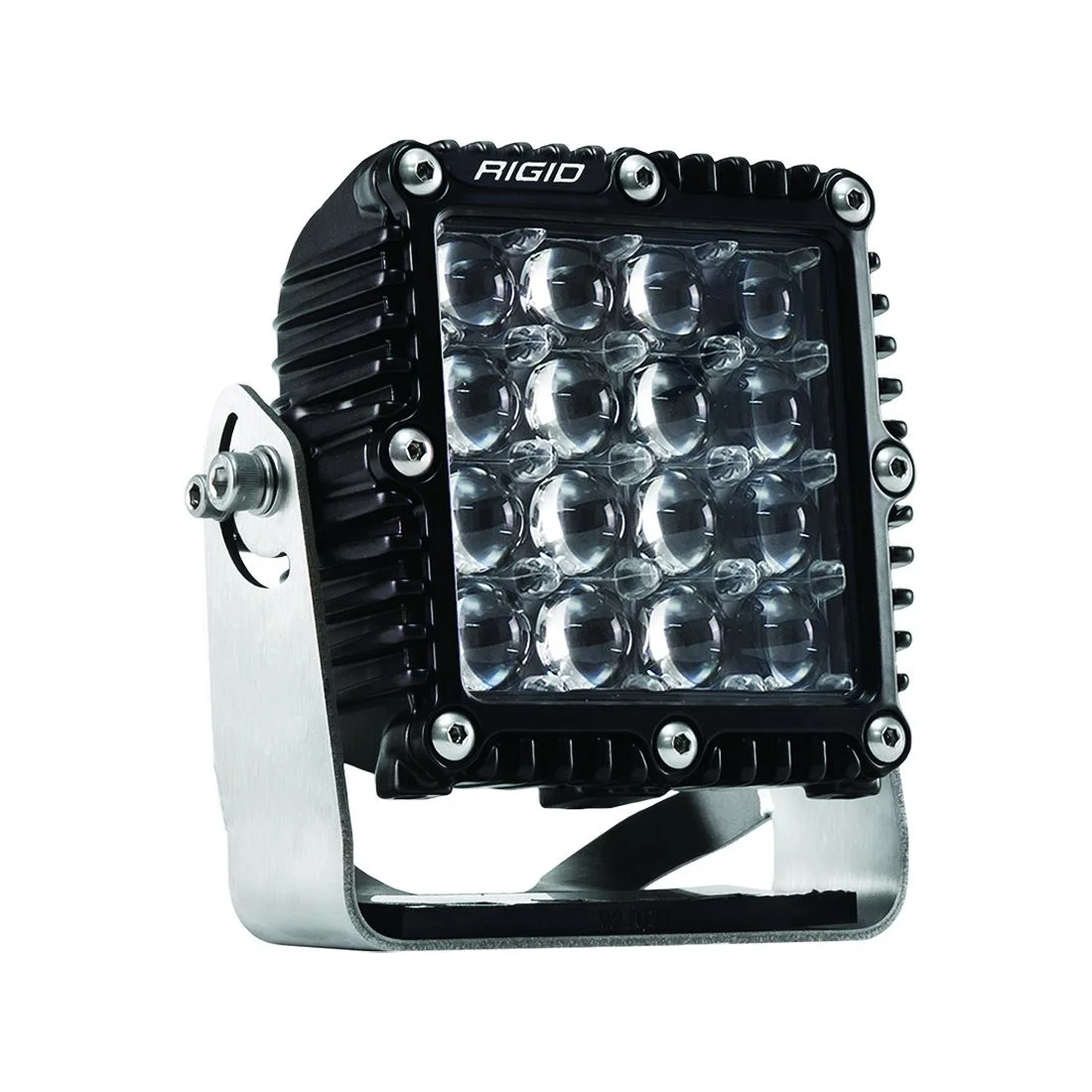

Q-Series PRO Pod Hyperspot
- Size: 7"x7"
- Light Shape: POD
- Mount Type: SURFACE MOUNT
- Beam Category: Hyperspot
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 5.7
- Raw Lumens: 7040
- Watts: 80
- Lux @10m: 3280
- Beam Distance @ 1 LUX: 573
- Beam Distance @ .25 LUX: 1146
- Peak Beam Intensity(cd): 328000
- Horizontal Beam Angle: 9.1
- Vertical Beam Angle: 9

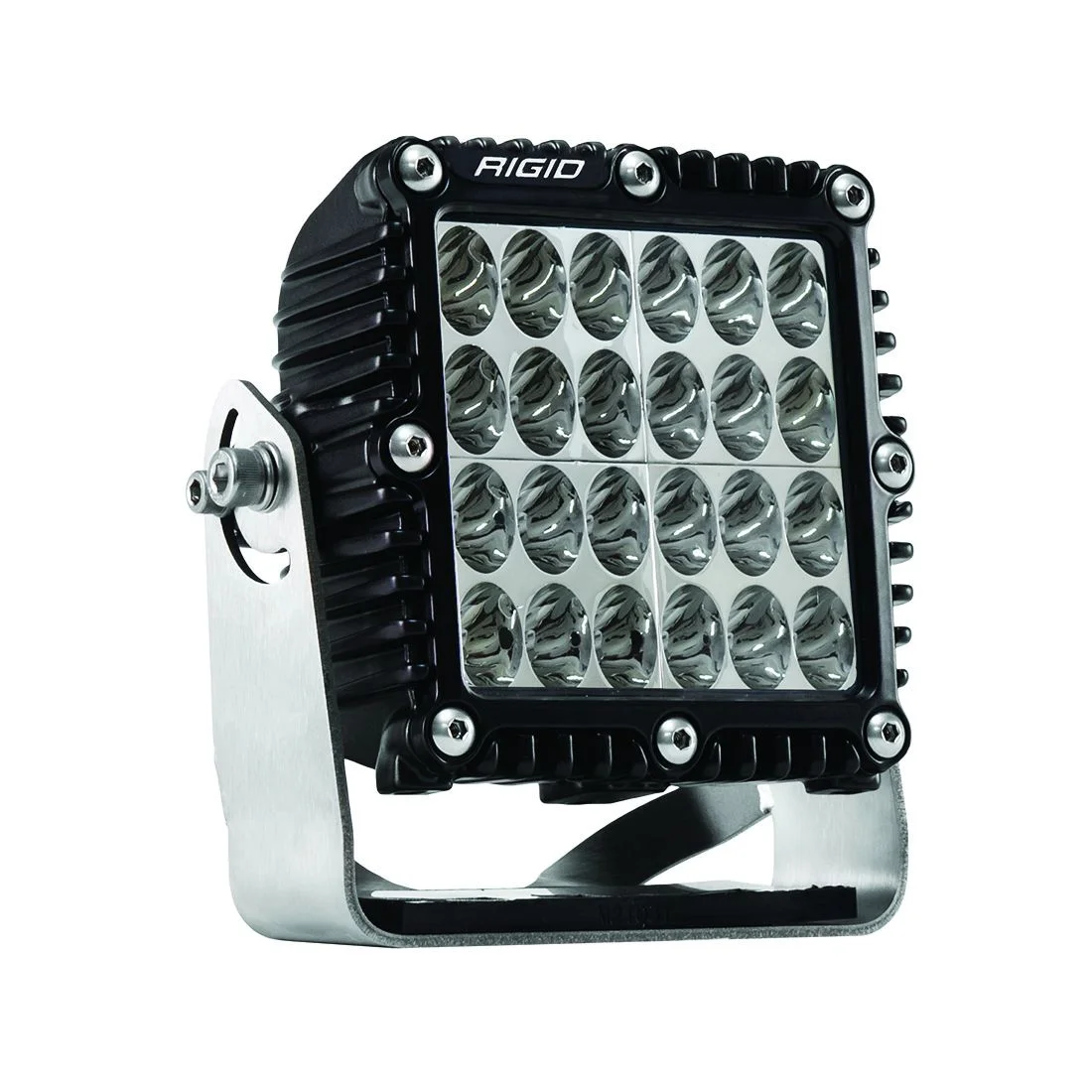

Q-Series PRO Pod Driving
- Size: 7"x7"
- Light Shape: POD
- Mount Type: SURFACE MOUNT
- Beam Category: Driving
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 13.9
- Raw Lumens: 19008
- Watts: 195
- Lux @10m: 1035.3
- Beam Distance @ 1 LUX: 321.8
- Beam Distance @ .25 LUX: 643.5
- Peak Beam Intensity(cd): 103531
- Horizontal Beam Angle: 48.4
- Vertical Beam Angle: 22.8

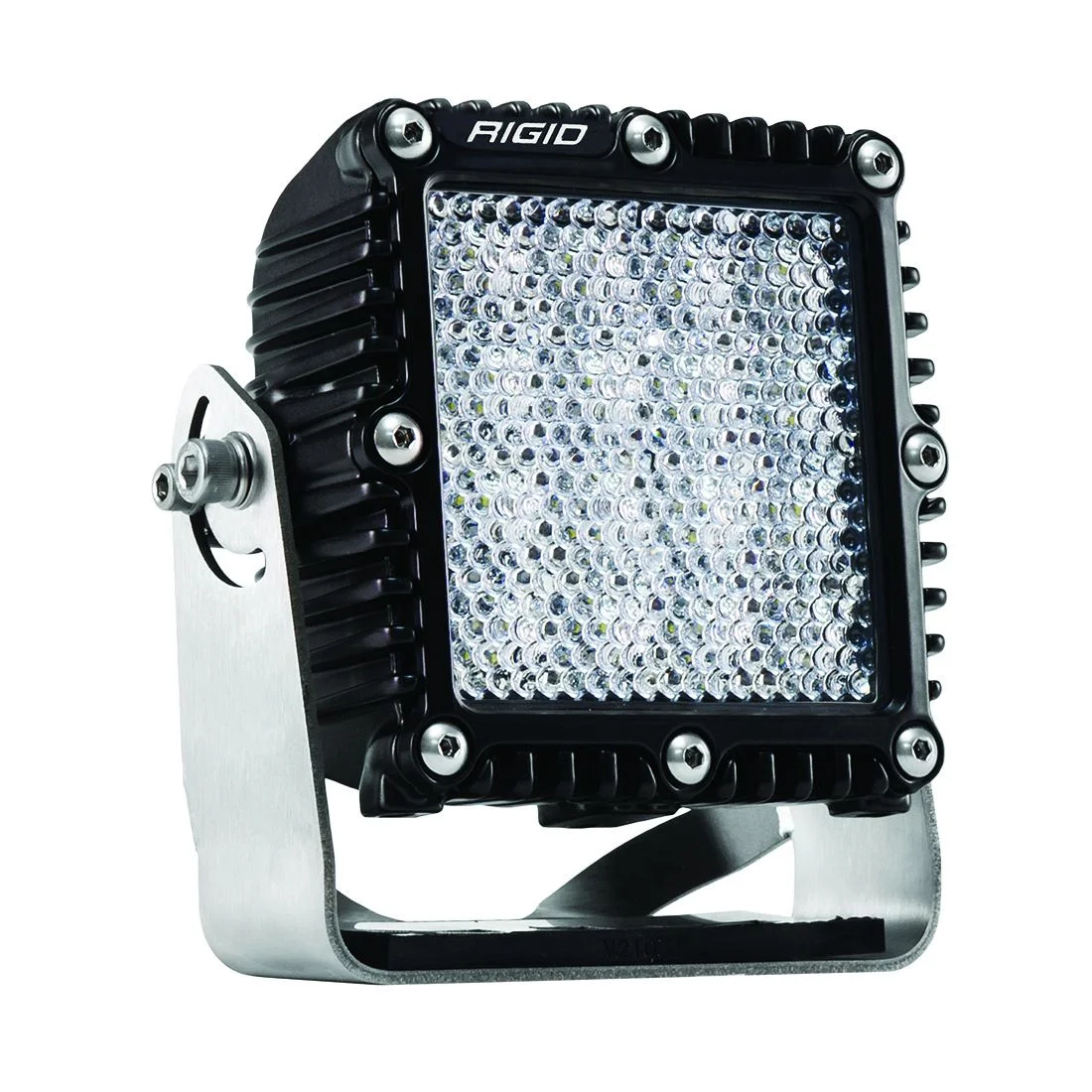

Q-Series PRO Pod Flood Diffused
- Size: 7"x7"
- Light Shape: POD
- Mount Type: SURFACE MOUNT
- Beam Category: Flood Diffused
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 8.8
- Raw Lumens: 12672
- Watts: 123
- Lux @10m: 77.37
- Beam Distance @ 1 LUX: 88
- Beam Distance @ .25 LUX: 176
- Peak Beam Intensity(cd): 7737
- Horizontal Beam Angle: 95.3
- Vertical Beam Angle: 97.1

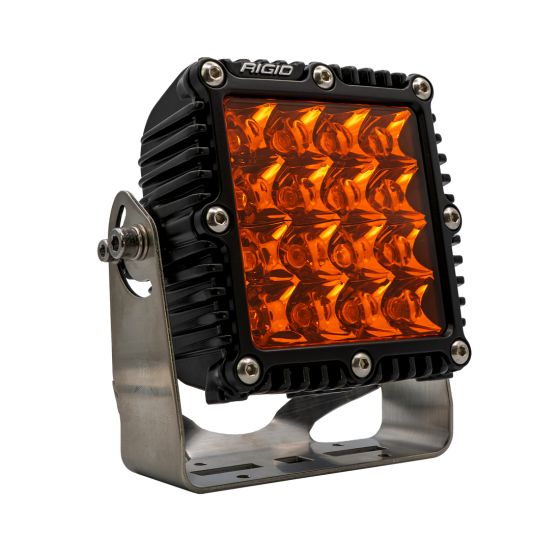

Q-Series PRO Pod Spot Amber
- Size: 7"x7"
- Light Shape: POD
- Mount Type: SURFACE MOUNT
- Beam Category: Spot
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 8.8
- Raw Lumens: 12672
- Watts: 123
- Lux @10m: 1554.4
- Beam Distance @ 1 LUX: 394.3
- Beam Distance @ .25 LUX: 788.5
- Peak Beam Intensity(cd): 155440
- Horizontal Beam Angle: 14.6
- Vertical Beam Angle: 14.4

Radiance Pods

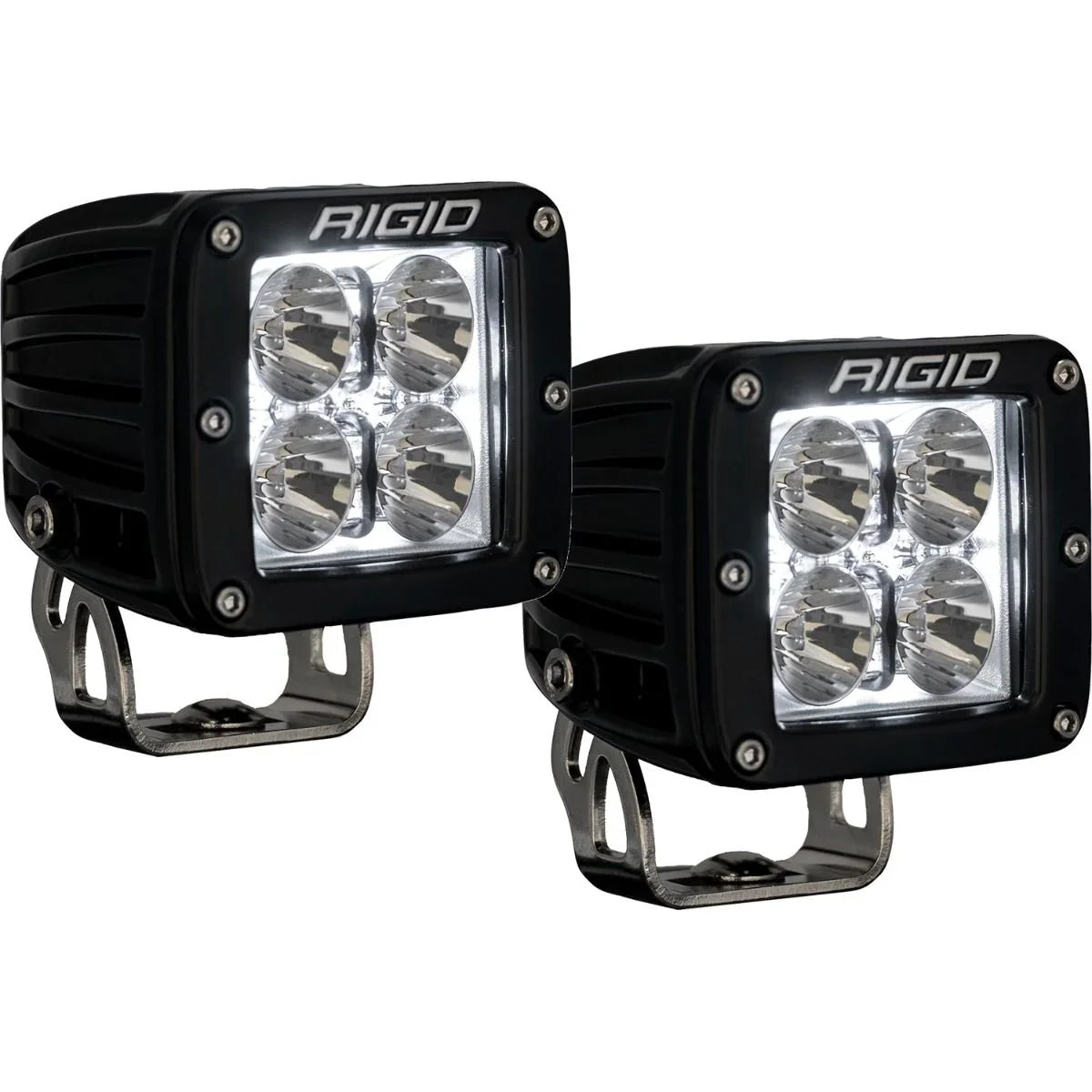

Radiance+ Pod RGBW
- Size: 3"
- Light Shape: POD
- Mount Type: SURFACE MOUNT
- Beam Category: BROAD SPOT
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 1.2
- Raw Lumens: 2180
- Watts: 17
- Lux @10m: 264
- Beam Distance @ 1 LUX: 163
- Beam Distance @ .25 LUX: 325
- Peak Beam Intensity(cd): 26400
- Horizontal Beam Angle: 19.9
- Vertical Beam Angle: 22.4

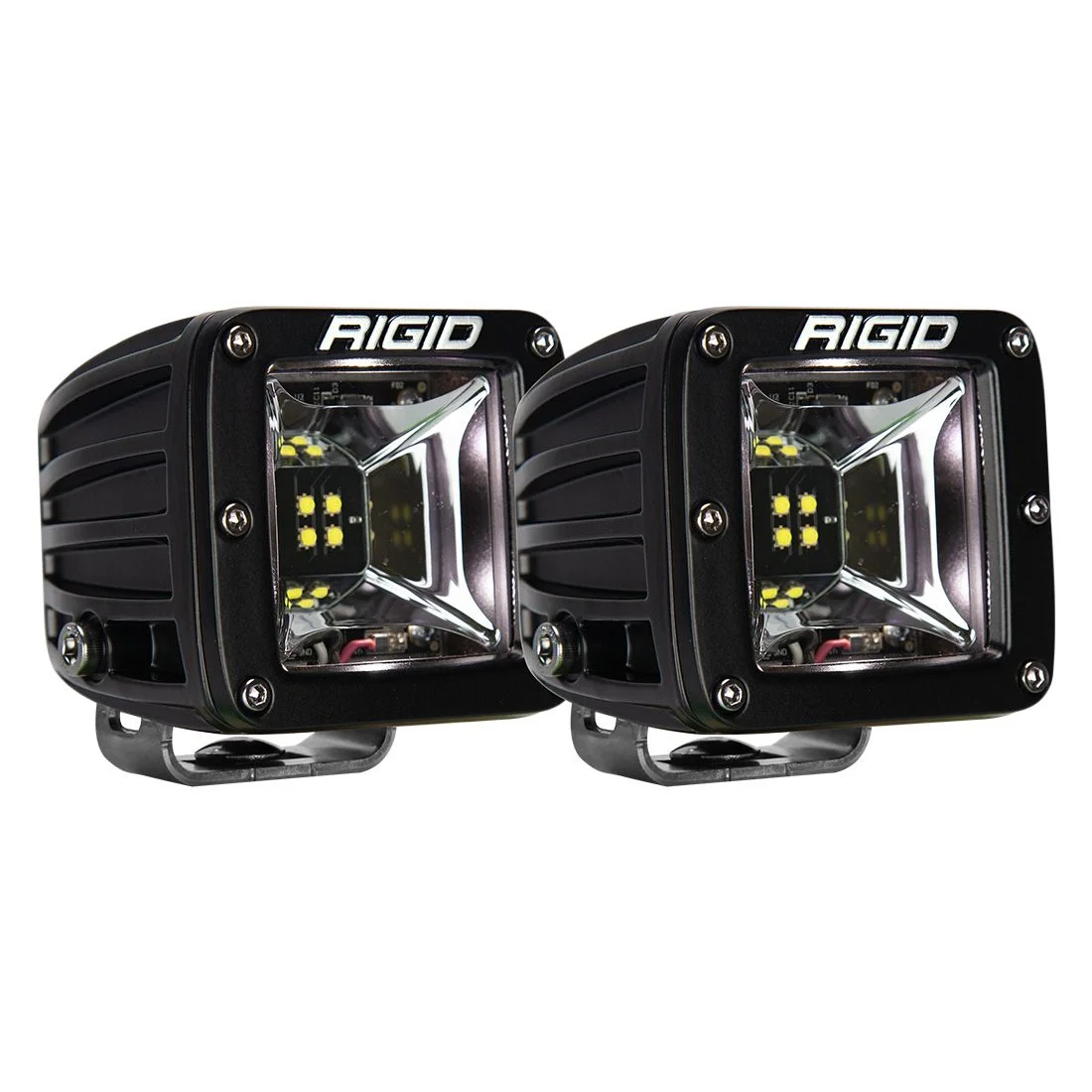

Radiance+ Scene RGBW Pod
- Size: 3"
- Light Shape: POD
- Mount Type: SURFACE MOUNT
- Beam Category: SCENE LIGHT
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 1.7
- Raw Lumens: 2970
- Watts: 24
- Lux @10m: 22
- Beam Distance @ 1 LUX: 50
- Beam Distance @ .25 LUX: 93
- Peak Beam Intensity(cd): 2166
- Horizontal Beam Angle: 100
- Vertical Beam Angle: 100

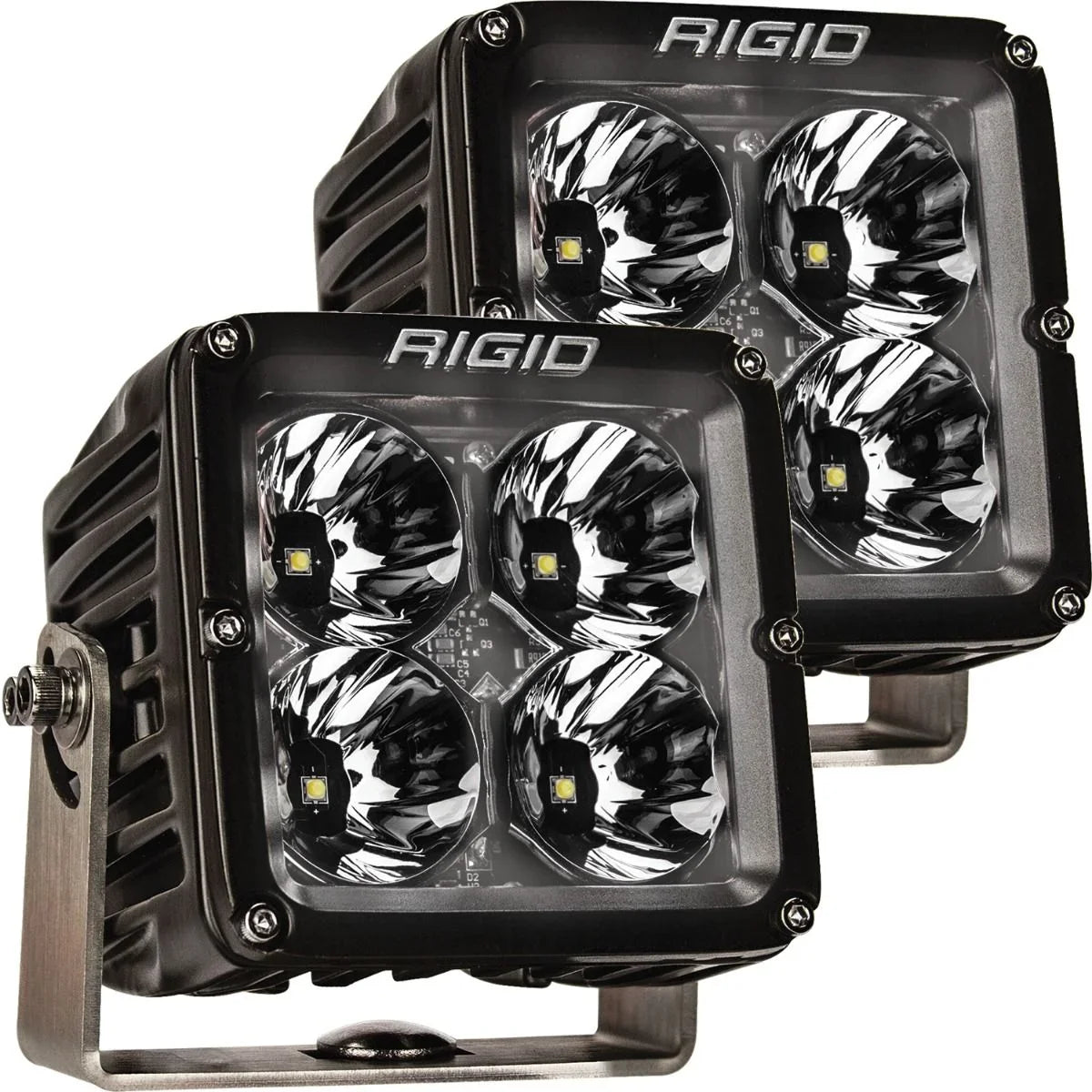

Radiance+ Pod XL RGBW
- Size: 4"
- Light Shape: POD
- Mount Type: SURFACE MOUNT
- Beam Category: SPOT DRIVE
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 3.5
- Raw Lumens: 2992
- Watts: 49
- Lux @10m: 500
- Beam Distance @ 1 LUX: 225
- Beam Distance @ .25 LUX: 450
- Peak Beam Intensity(cd): 45000
- Horizontal Beam Angle: 15
- Vertical Beam Angle: 10

Side Shooter Pods

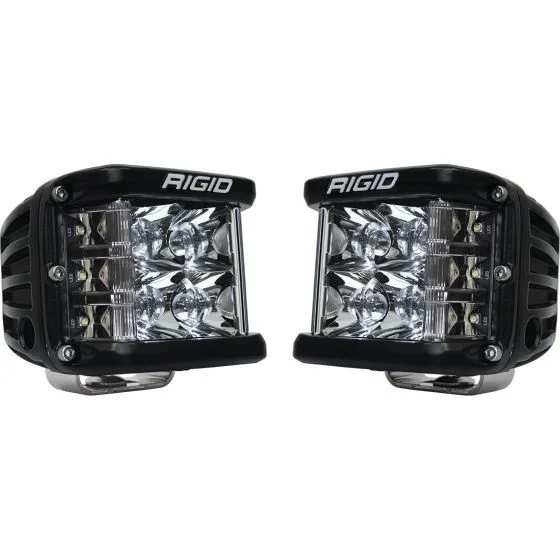

D-SS PRO Spot Pod
- Size: 3"x4"
- Light Shape: Pod
- Mount Type: Surface MOUNT
- Beam Category: Spot
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 3.21
- Raw Lumens: 5544
- Watts: 45
- Lux @10m: 652.41
- Beam Distance @ 1 LUX: 255.4
- Beam Distance @ .25 LUX: 510.8
- Peak Beam Intensity(cd): 65241
- Horizontal Beam Angle: 17.3
- Vertical Beam Angle: 16

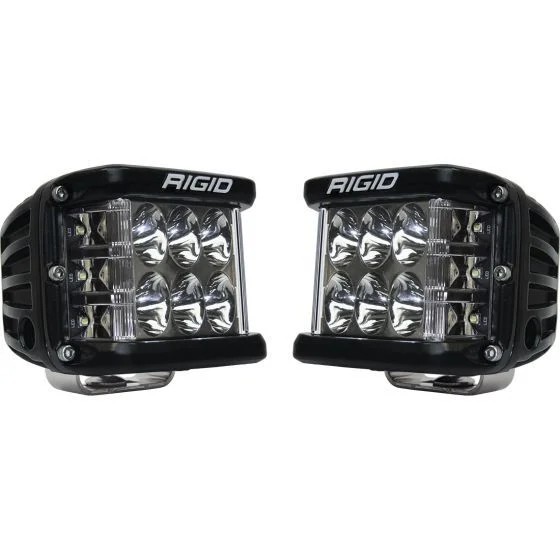

D-SS PRO Driving Pod
- Size: 3"x4"
- Light Shape: Pod
- Mount Type: Surface MOUNT
- Beam Category: Spot
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 5.14
- Raw Lumens: 7128
- Watts: 72
- Lux @10m: 281.08
- Beam Distance @ 1 LUX: 167.7
- Beam Distance @ .25 LUX: 335.3
- Peak Beam Intensity(cd): 28108
- Horizontal Beam Angle: 61.9
- Vertical Beam Angle: 22.6

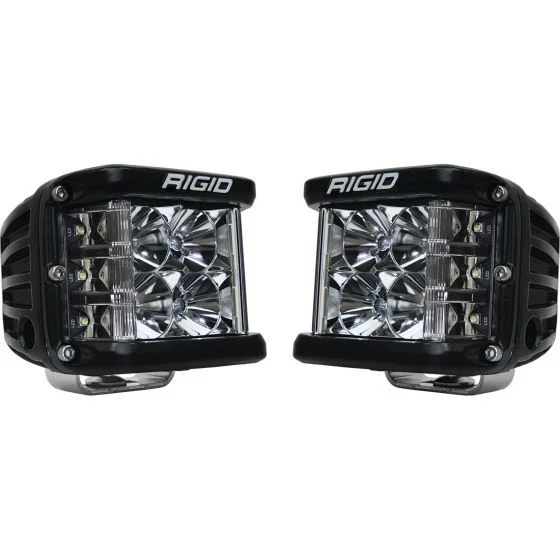

D-SS PRO Flood Pod
- Size: 3"x4"
- Light Shape: Pod
- Mount Type: Surface MOUNT
- Beam Category: Spot
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 3.36
- Raw Lumens: 5544
- Watts: 47
- Lux @10m: 71.29
- Beam Distance @ 1 LUX: 84.4
- Beam Distance @ .25 LUX: 168.9
- Peak Beam Intensity(cd): 7129
- Horizontal Beam Angle: 86.2
- Vertical Beam Angle: 48.4

SR-M & SR-Q Pods

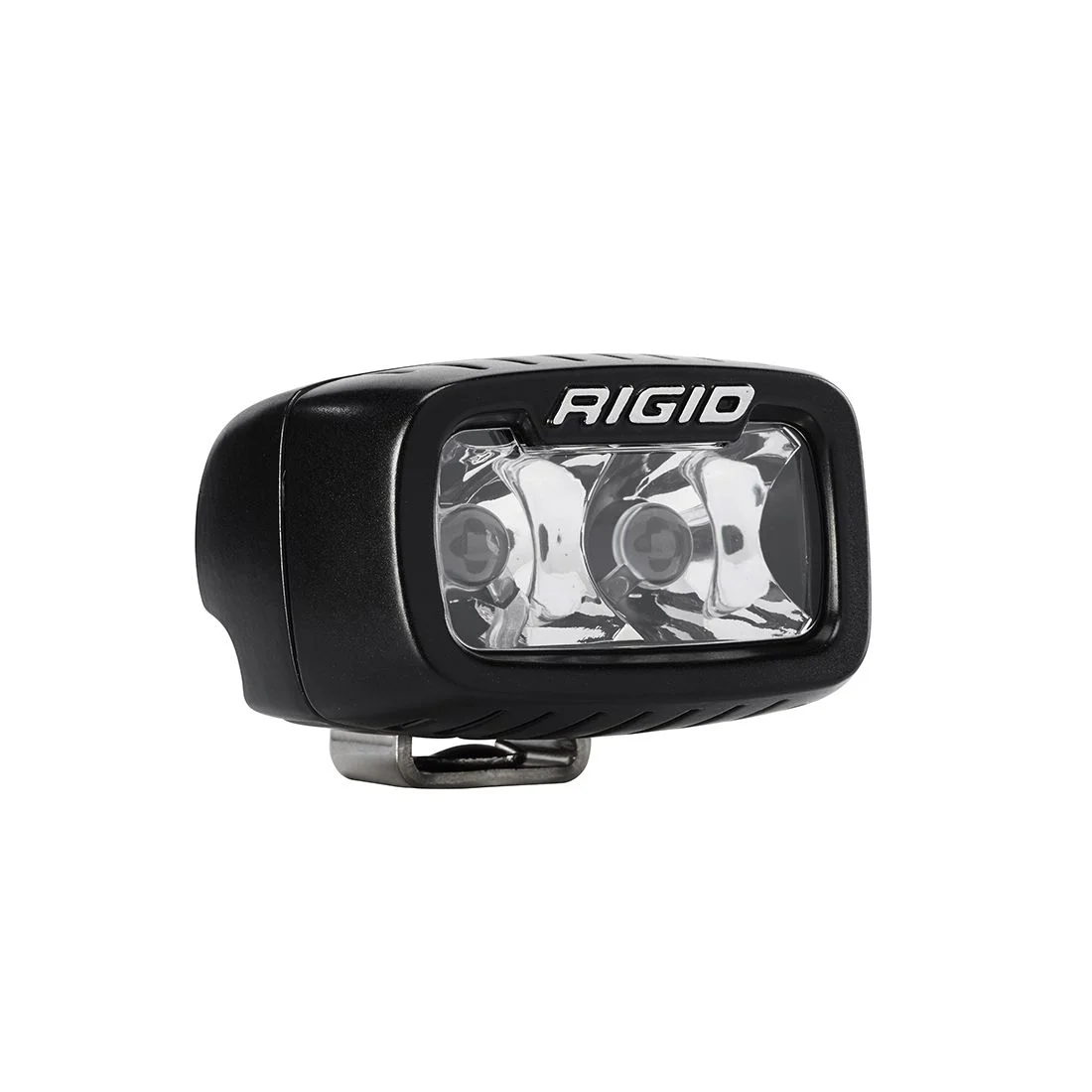

SR-M Series PRO Spot
- Size: 2"X3"
- Light Shape: POD
- Mount Type: SURFACE MOUNT
- Beam Category: SPOT
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 1.07
- Raw Lumens: 1584
- Watts: 15
- Lux @10m: 157
- Beam Distance @ 1 LUX: 346.41
- Beam Distance @ .25 LUX: 372.2
- Peak Beam Intensity(cd): 34641
- Horizontal Beam Angle: 17.2
- Vertical Beam Angle: 15.8
SR-M Series PRO Flood
- Size: 2"X3"
- Light Shape: POD
- Mount Type: SURFACE MOUNT
- Beam Category: Flood
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 1.07
- Raw Lumens: 1584
- Watts: 15
- Lux @10m: 31.6
- Beam Distance @ 1 LUX: 56.2
- Beam Distance @ .25 LUX: 112.4
- Peak Beam Intensity(cd): 3160
- Horizontal Beam Angle: 48.8
- Vertical Beam Angle: 43.4

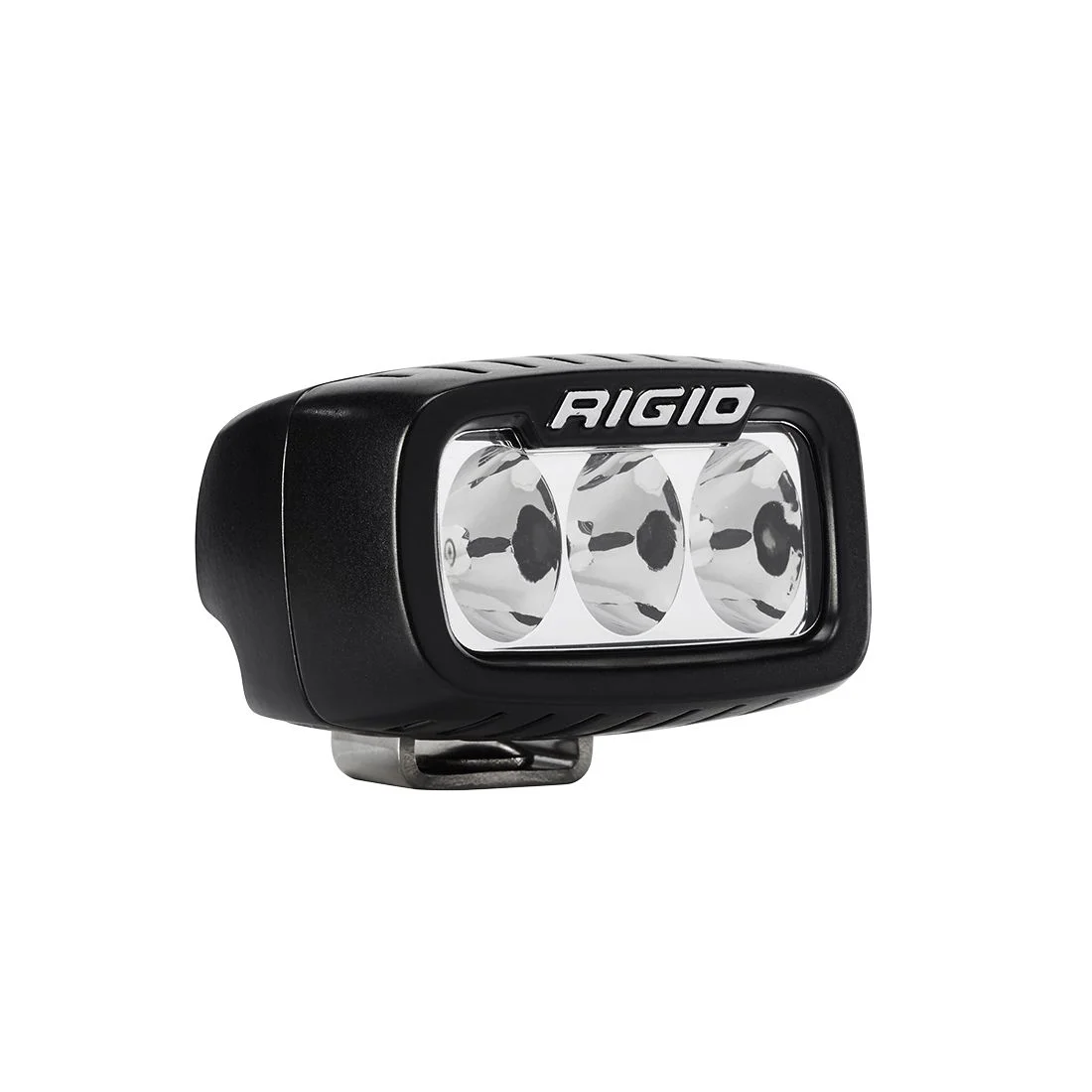

SR-M Series PRO Driving
- Size: 2"X3"
- Light Shape: POD
- Mount Type: SURFACE MOUNT
- Beam Category: Driving
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 1.64
- Raw Lumens: 2376
- Watts: 23
- Lux @10m: 107.38
- Beam Distance @ 1 LUX: 103.6
- Beam Distance @ .25 LUX: 207.2
- Peak Beam Intensity(cd): 10738
- Horizontal Beam Angle: 52.1
- Vertical Beam Angle: 22.3

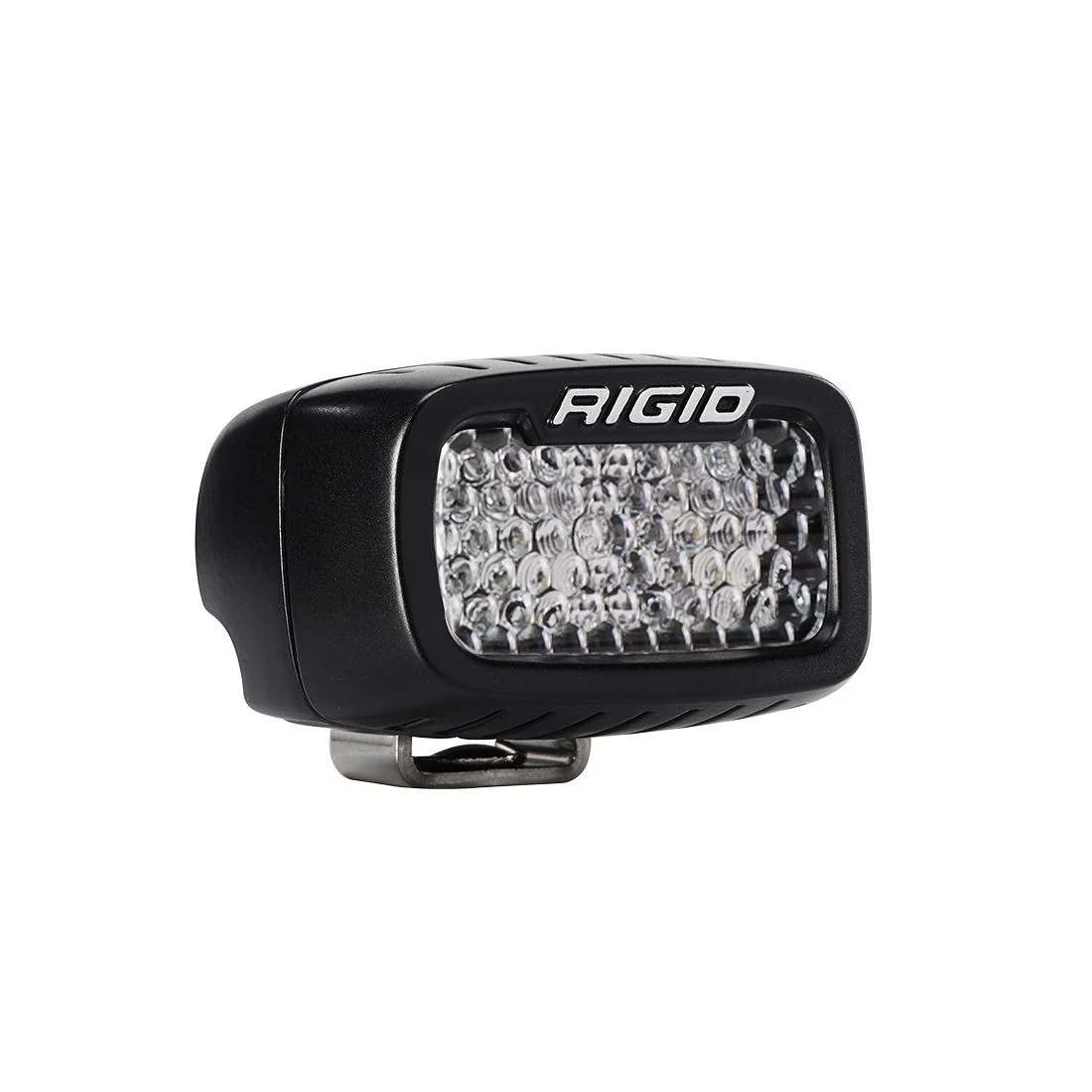

SR-M Series PRO Flood Diffused
- Size: 2"X3"
- Light Shape: POD
- Mount Type: SURFACE MOUNT
- Beam Category: Flood Diffused
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 1.14
- Raw Lumens: 1584
- Watts: 16
- Lux @10m: 18.3
- Beam Distance @ 1 LUX: 42.8
- Beam Distance @ .25 LUX: 85.6
- Peak Beam Intensity(cd): 1830
- Horizontal Beam Angle: 70.5
- Vertical Beam Angle: 66.2

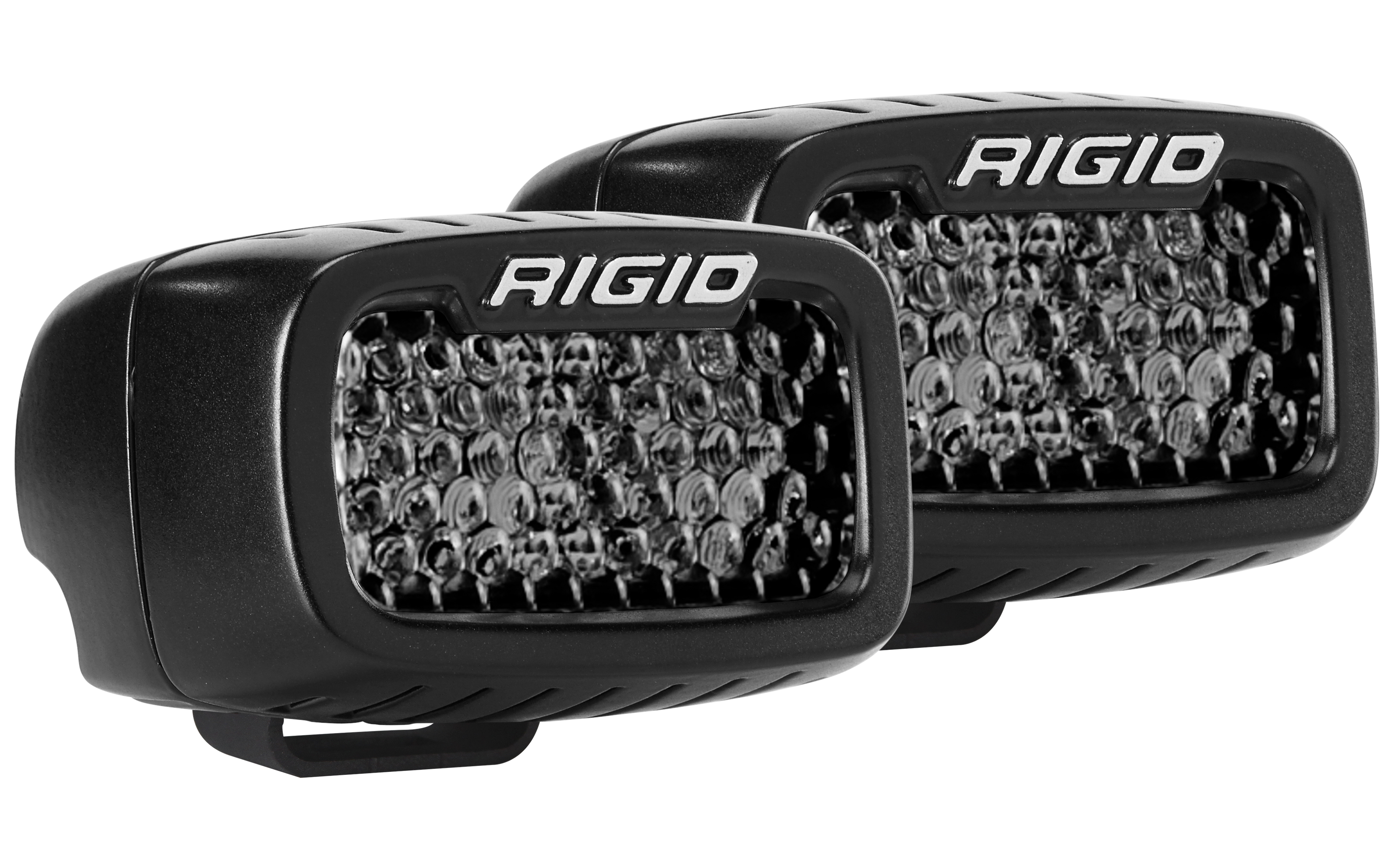

SR-M Series PRO Spot Diffused Midnight Pod
- Size: 2"X3"
- Light Shape: POD
- Mount Type: SURFACE MOUNT
- Beam Category: Spot Diffused
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 0.7
- Raw Lumens: 706
- Watts: 10
- Lux @10m: 11.8
- Beam Distance @ 1 LUX: 34.4
- Beam Distance @ .25 LUX: 68.7
- Peak Beam Intensity(cd): 1180
- Horizontal Beam Angle: 50.2
- Vertical Beam Angle: 50.2

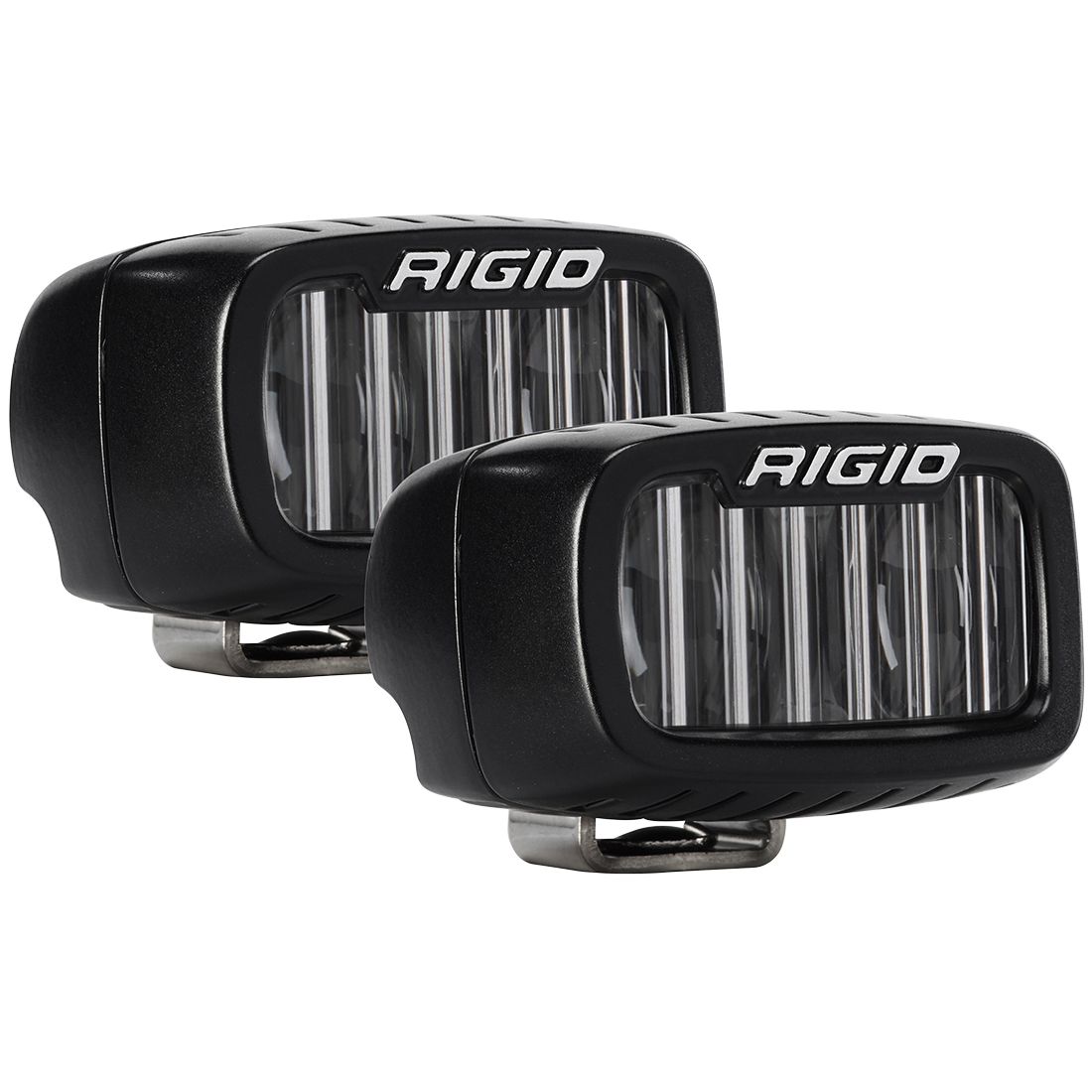

SR-M Series PRO SAE Fog Light Pod
- Size: 2"X3"
- Light Shape: POD
- Mount Type: SURFACE MOUNT
- Beam Category: SAE Fog
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 1.1
- Raw Lumens: 1179
- Watts: 15
- Lux @10m: 69
- Beam Distance @ 1 LUX: 83
- Beam Distance @ .25 LUX: 166
- Peak Beam Intensity(cd): 6662
- Horizontal Beam Angle: 45
- Vertical Beam Angle: 5

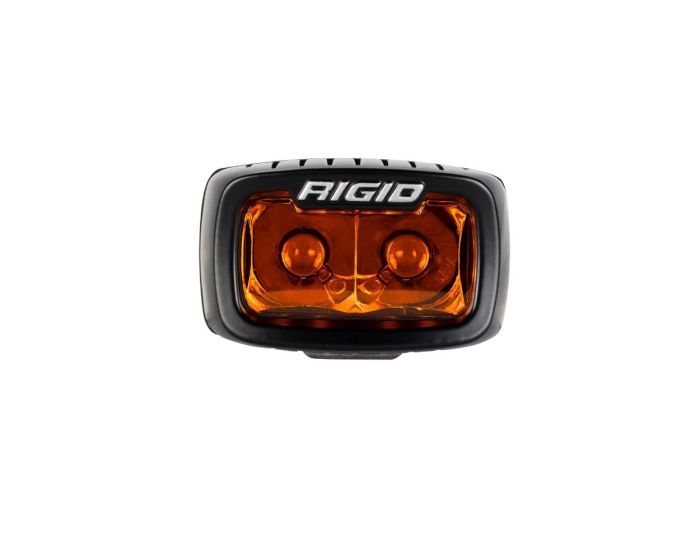

SR-M Series Spot Pod Amber
- Size: 2"X3"
- Light Shape: POD
- Mount Type: SURFACE MOUNT
- Beam Category: SPOT
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 1
- Raw Lumens: 1584
- Watts: 14
- Lux @10m: 157
- Beam Distance @ 1 LUX: 126
- Beam Distance @ .25 LUX: 251
- Peak Beam Intensity(cd): 15744
- Horizontal Beam Angle: 18
- Vertical Beam Angle: 16.6

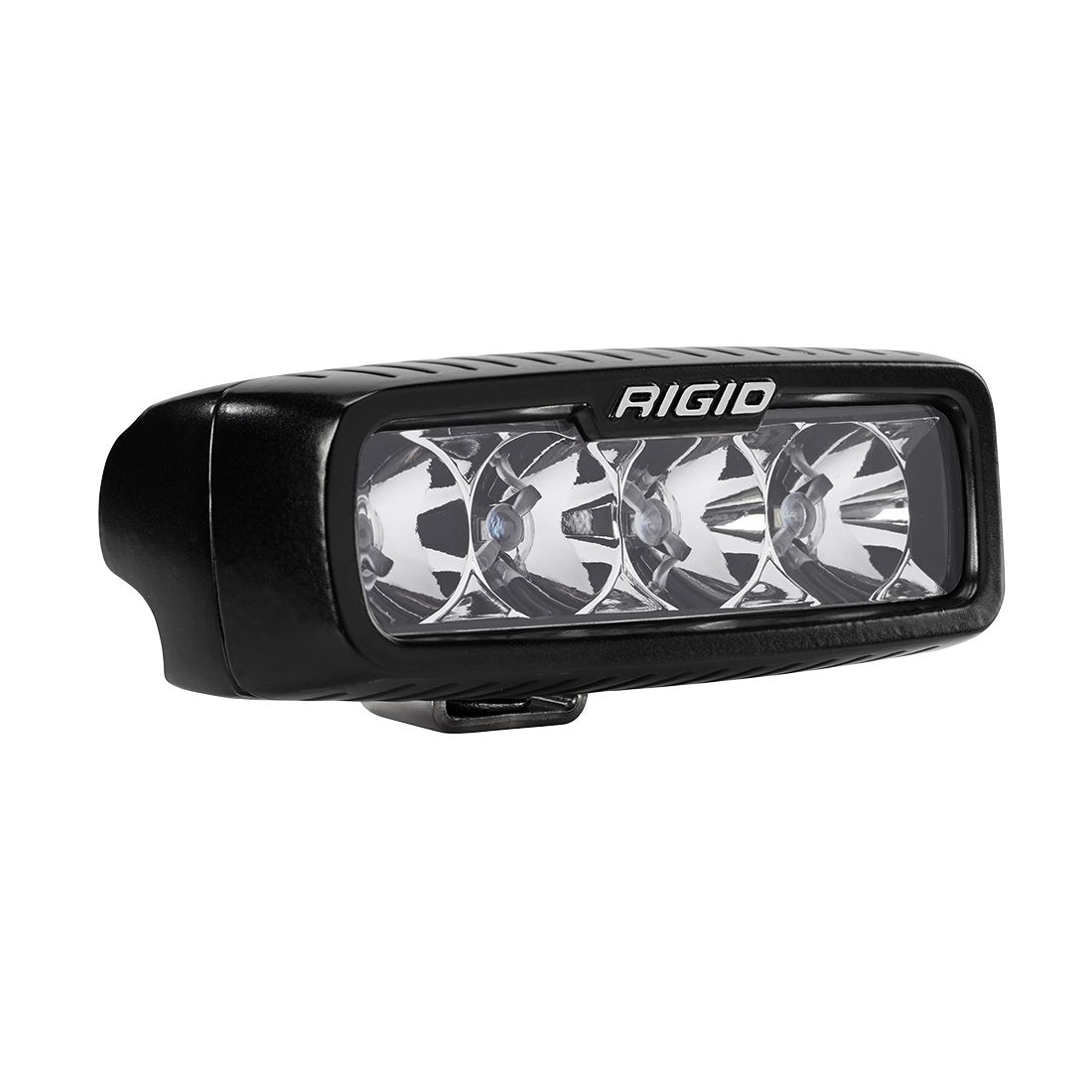

SR-Q Series PRO Pod
- Size: n/a
- Light Shape: POD
- Mount Type: SURFACE MOUNT
- Beam Category: SPOT
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): n/a
- Raw Lumens: n/a
- Watts: n/a
- Lux @10m: n/a
- Beam Distance @ 1 LUX: n/a
- Beam Distance @ .25 LUX: n/a
- Peak Beam Intensity(cd): n/a
- Horizontal Beam Angle: n/a
- Vertical Beam Angle: n/a

Other Pods

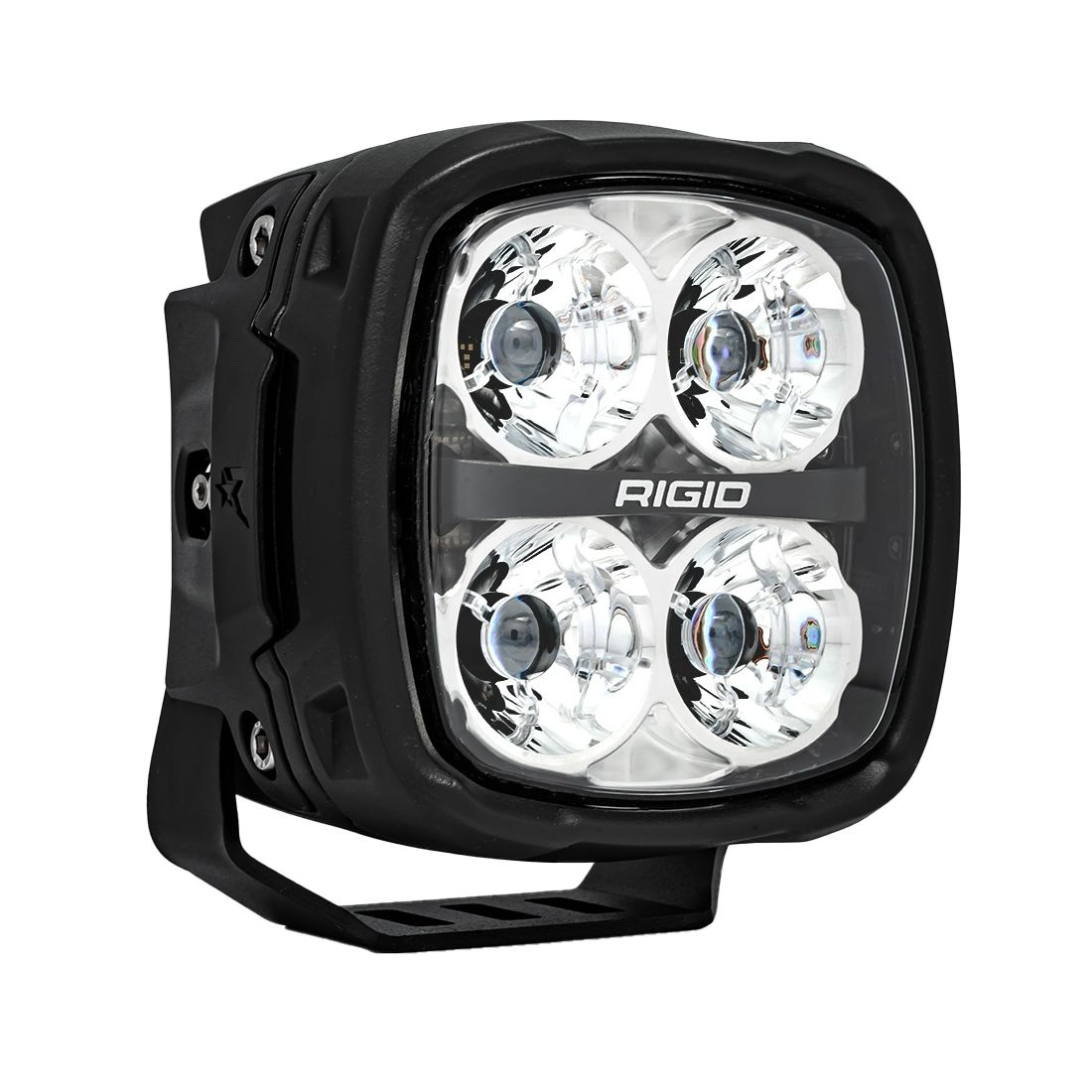

Phoenix

Size: 5"
Light Shape: POD
Mount Type: SURFACE MOUNT
Beam Category: SPOT
Voltage Range: 9V - 36V
Current Draw at 14V (a): 9.6
Raw Lumens: 10104
Watts: 134
Lux @10m: 1554
Beam Distance @ 1 LUX: 394
Beam Distance @ .25 LUX: 788
Peak Beam Intensity(cd): 155379
Horizontal Beam Angle: 19.7
Vertical Beam Angle: 16.5

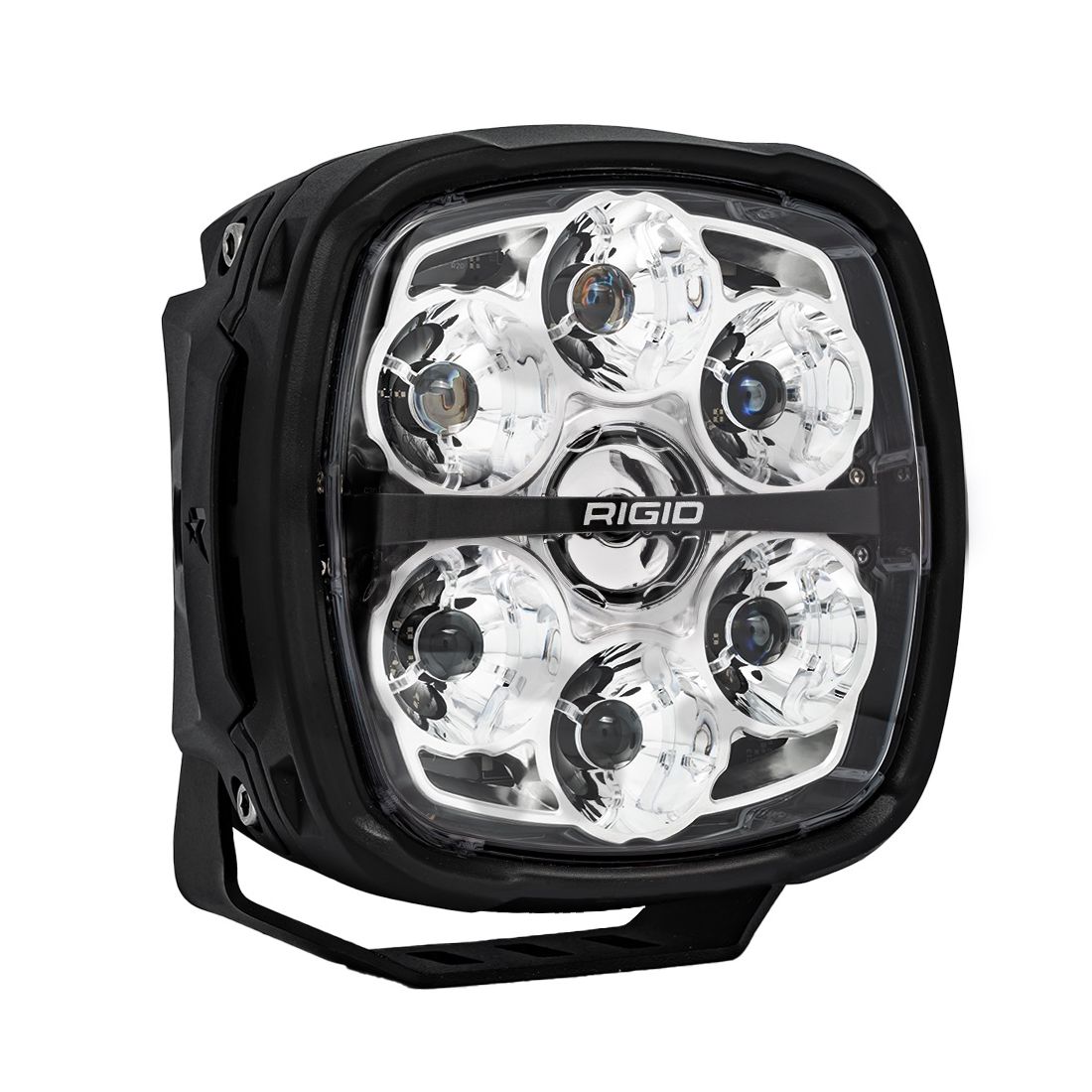

Phoenix XL

Size: 7"
Light Shape: POD
Mount Type: SURFACE MOUNT
Beam Category: SPOT
Voltage Range: 9V - 36V
Current Draw at 14V (a): 13.9
Raw Lumens: 14213
Watts: 191
Lux @10m: 2216
Beam Distance @ 1 LUX: 471
Beam Distance @ .25 LUX: 941
Peak Beam Intensity(cd): 221579
Horizontal Beam Angle: 20.0
Vertical Beam Angle: 15.8

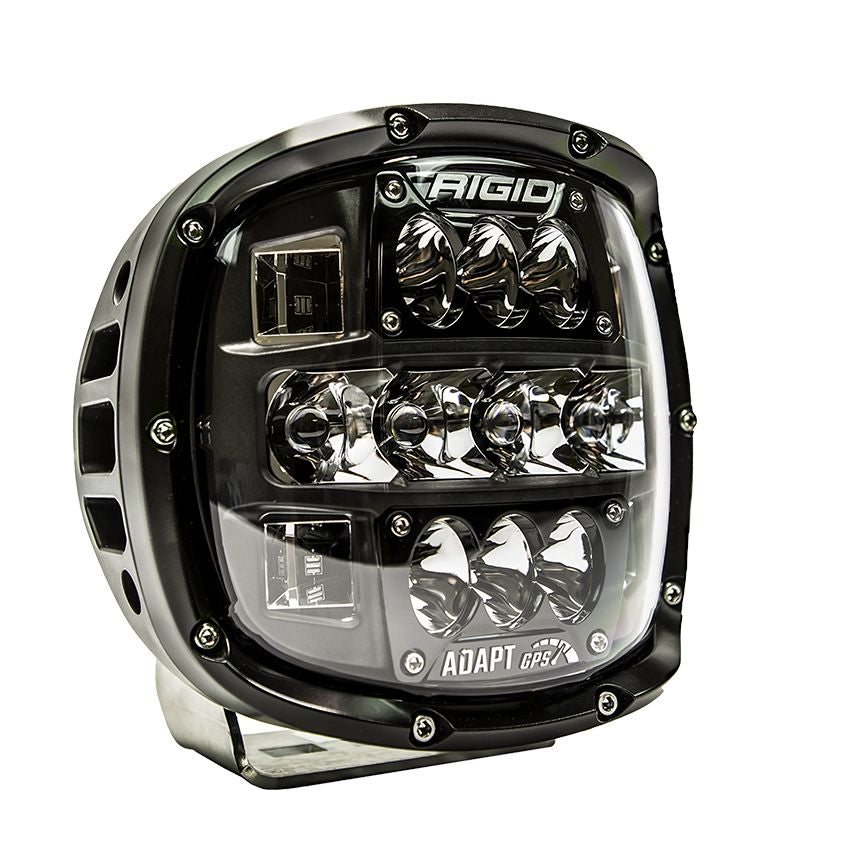

Adapt XP
- Mount Type: SURFACE MOUNT
- Beam Category: Scene, Driving, Spot
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 1.857/6.429
- Raw Lumens: 2856-Scene/4488-Drive/3264-Spot/10608-All/4092-Clip In
- Watts: 26-Scene/40-Drive/29-Spot/90-All/37-Clip In
- Lux @10m: 1007.54
- Beam Distance @ 1 LUX: 317.4
- Beam Distance @ .25 LUX: 634.8
- Peak Beam Intensity(cd): 1349-Scene/32223-Drive/87448-Spot/100754-All/49245-Clip In
- Horizontal Beam Angle: 80.9-Scene/48-Drive/16-Spot/34.7-All/37.1-Clip In
- Vertical Beam Angle: 103.7

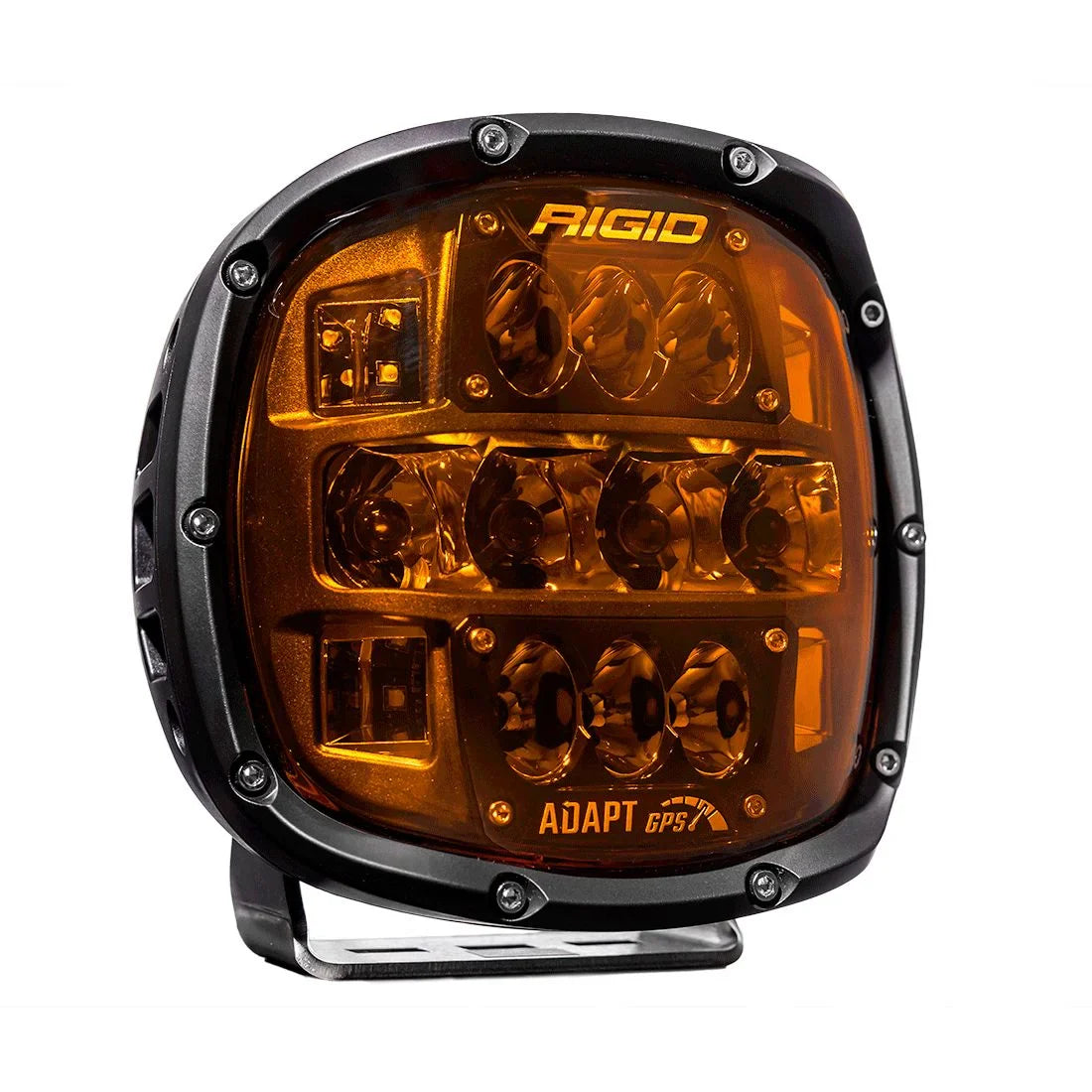

Adapt XP Amber PRO
- Mount Type: SURFACE MOUNT
- Beam Category: Scene, Driving, Spot
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 7.4
- Raw Lumens: 10956
- Watts: 104
- Lux @10m: 564.7
- Beam Distance @ 1 LUX: 237.6
- Beam Distance @ .25 LUX: 475.3
- Peak Beam Intensity(cd): 56470
- Horizontal Beam Angle: 34.2
- Vertical Beam Angle: 18.5

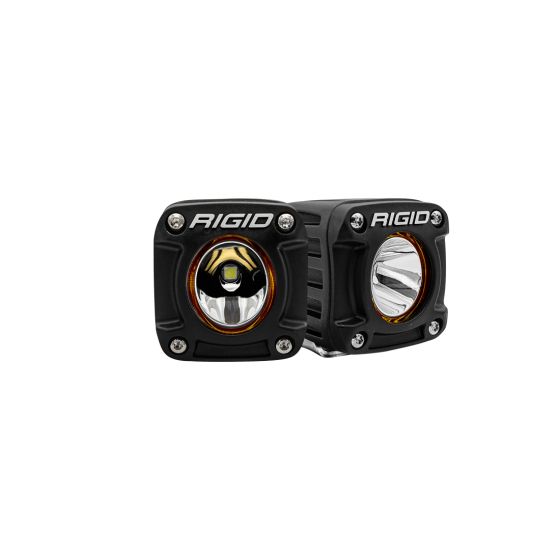

Revolve Pod White/Amber
- Size: 2"
- Light Shape: Pod
- Mount Type: Surface MOUNT
- Beam Category: Broad Spot
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 1.4
- Raw Lumens: 2106
- Watts: 22
- Lux @10m: 179.22
- Beam Distance @ 1 LUX: 133.9
- Beam Distance @ .25 LUX: 267.7
- Peak Beam Intensity(cd): 17922
- Horizontal Beam Angle: 30.6
- Vertical Beam Angle: 33.6

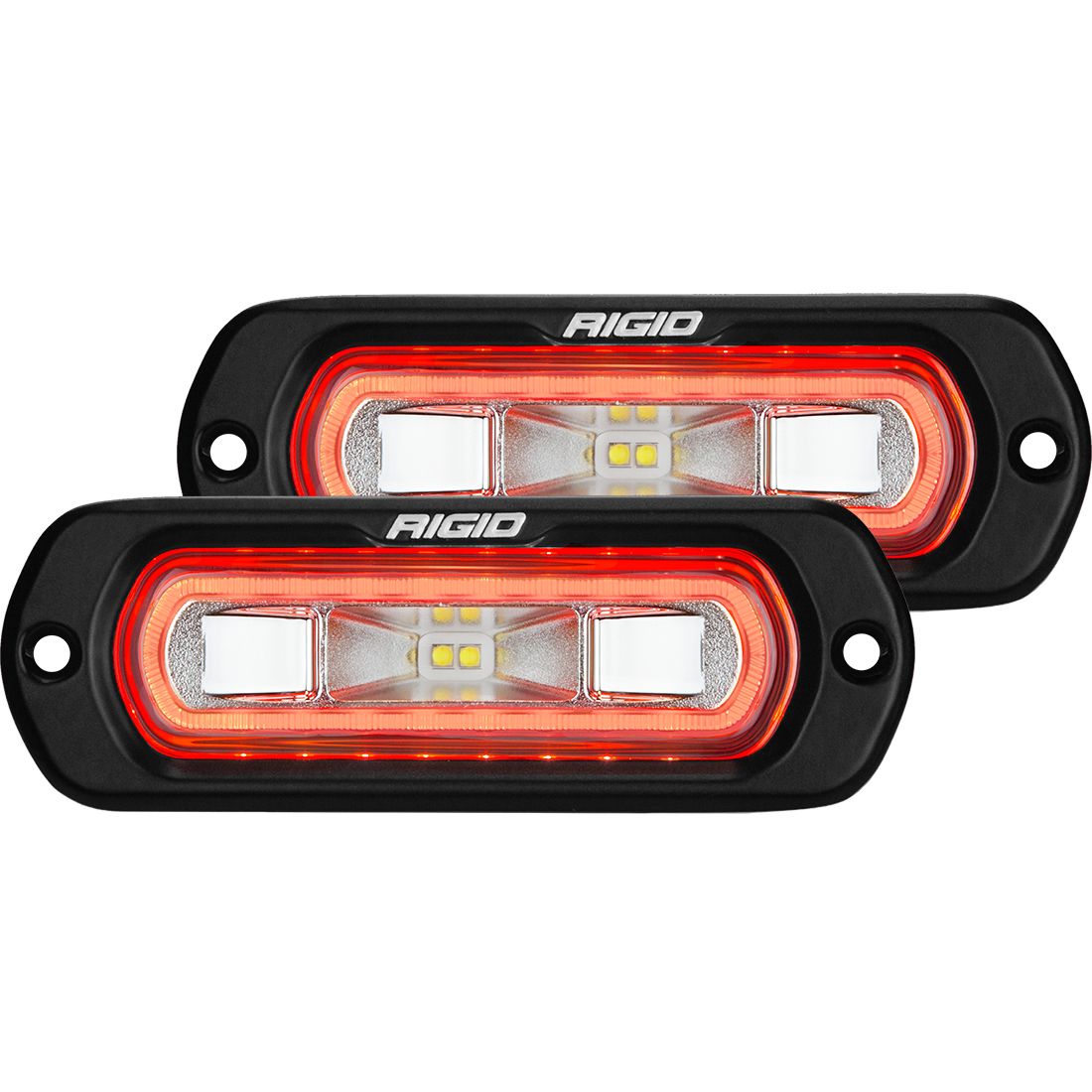

SR-L Series Amber / Red Halo
- Size: 4.5"X1.5"
- Light Shape: POD
- Mount Type: Flush MOUNT
- Beam Category: Wide Drive
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 1
- Raw Lumens: 1452
- Watts: 14
- Lux @10m: 8.4
- Beam Distance @ 1 LUX: 29
- Beam Distance @ .25 LUX: 57.9
- Peak Beam Intensity(cd): 838/270
- Horizontal Beam Angle: 120
- Vertical Beam Angle: 90

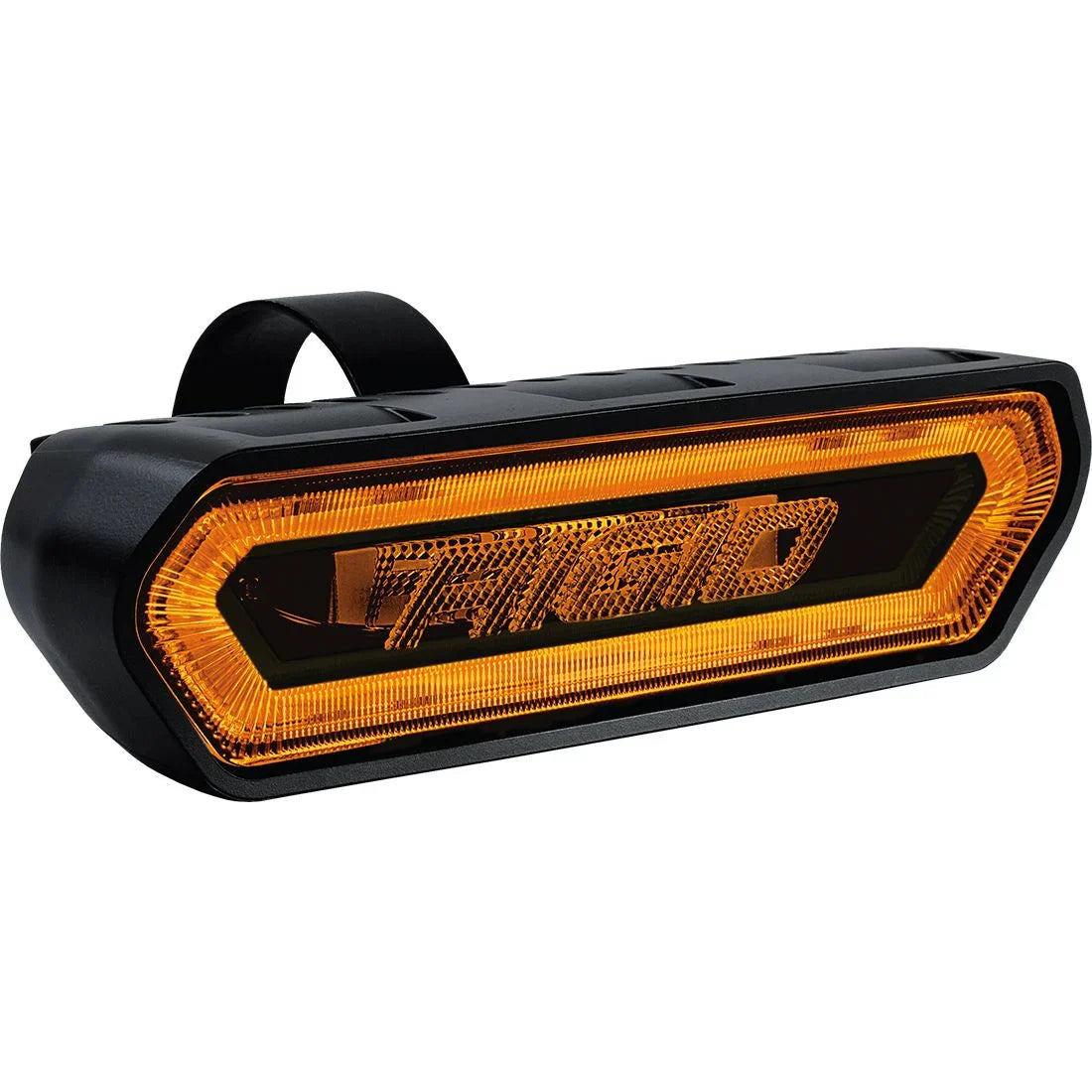

Chase Pod Amber, Red, Blue
- Size: 2"x7"
- Light Shape: Pod
- Mount Type: Surface MOUNT
- Beam Category: Rear
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 0.7
- Raw Lumens: 715
- Watts: 10
- Lux @10m: 5.09
- Beam Distance @ 1 LUX: 22.6
- Beam Distance @ .25 LUX: 45.1
- Peak Beam Intensity(cd): 509
- Horizontal Beam Angle: 77.5
- Vertical Beam Angle: 65.6

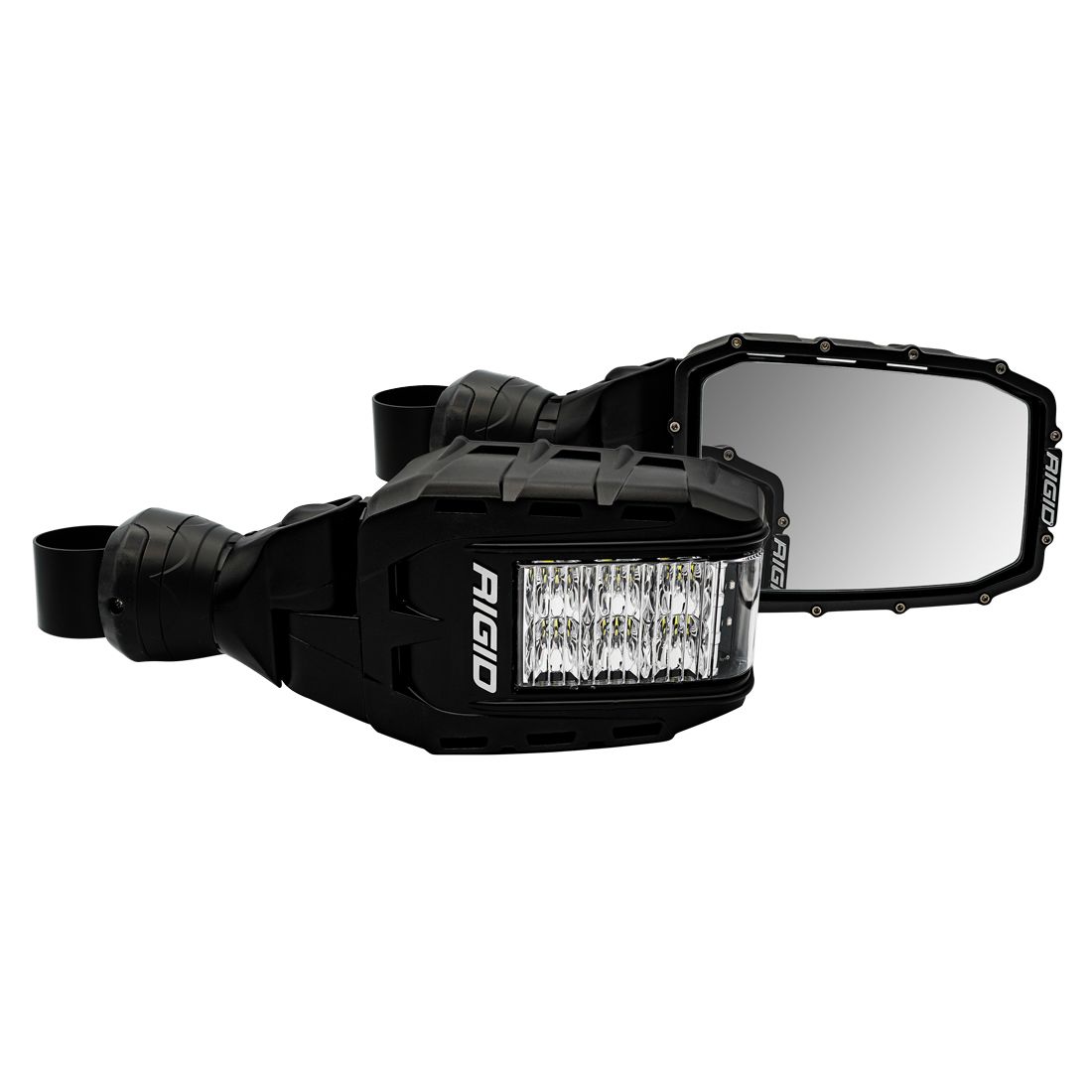

Reflect Side Mirror Lights Pair
- Size: 5"x13"
- Light Shape: Other
- Mount Type: Tube MOUNT
- Beam Category: Flood
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 2.3
- Raw Lumens: 3826
- Watts: 32
- Lux @10m: 43
- Beam Distance @ 1 LUX: 66
- Beam Distance @ .25 LUX: 131
- Peak Beam Intensity(cd): 4300
- Horizontal Beam Angle: 107
- Vertical Beam Angle: 52

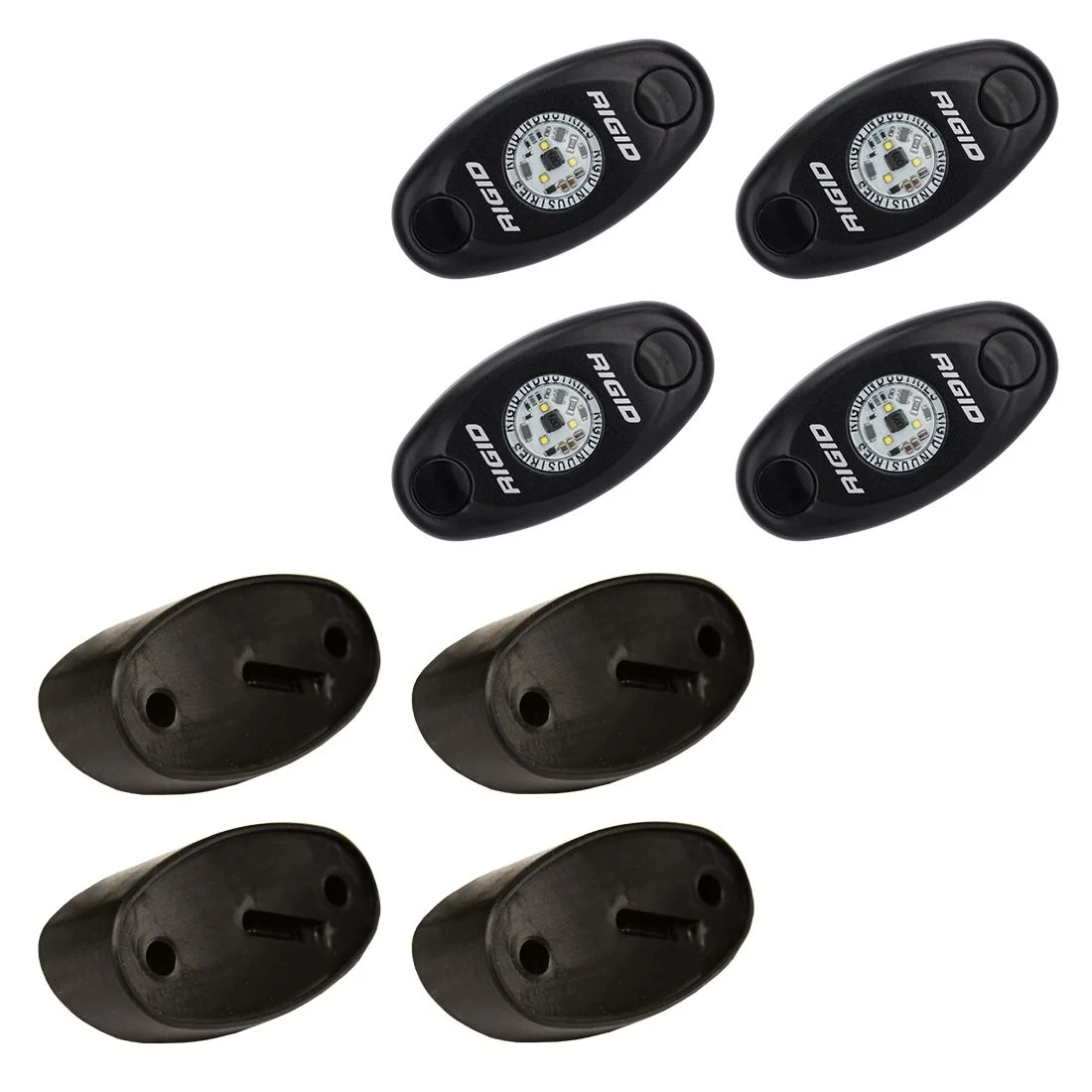

A-Series Rock Light
- Light Shape: Other
- Mount Type: SURFACE MOUNT
- Beam Category: Flood
- Voltage Range: 9V - 36V
- Current Draw at 14V (a): 0.3
- Raw Lumens: 600
- Watts: 6
- Lux @10m: 1.75
- Beam Distance @ 1 LUX: 13.2
- Beam Distance @ .25 LUX: 26.5
- Peak Beam Intensity(cd): 175
- Horizontal Beam Angle: 149.8
- Vertical Beam Angle: 145.3

Shipping Worldwide
*Free Shipping Over $299.99 (Within the 48 Cont. USA)
Top-notch support
We are different. We're Specialists.
Secure payments
All Major Payment Types Accepted Payment Plans Available with Shop Pay so you can pay over time.
Military & First Resp Discounts
Look for the "GOVXID" icon at checkout. Discounts will automatically be applied (Some Exclusions Apply)
